Lifting and parallel moving installation with vacuum suckers
Max. length of panel to be flipped 14m
Before packing, if plastic film and padding are needed to put at the cutting ends and the bottom of panels to be packed, this process shall be done manually. Electric-heating filament is used to cut off the film. Film is pneumatically pinched.

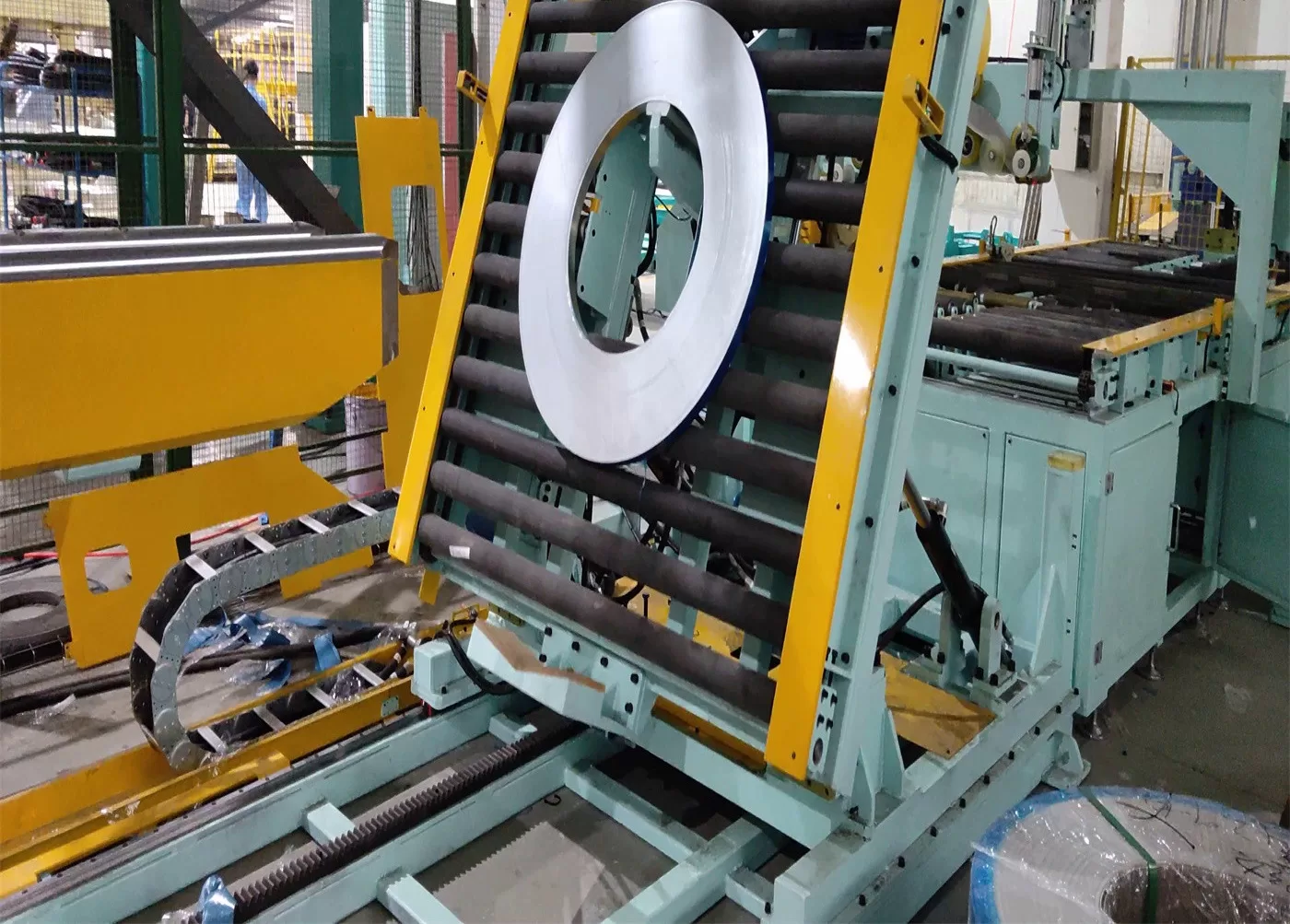

This machine includes a main frame, a flipping mechanism£¬and powered rollers. The flipping mechanism includes both flipping and take-over installations. Its operations are actuated by two independent powered systems while flipping action is controlled by electrical parts like limit switch, etc.
The integrated 6-axis articulated arm robot, a fully-programmable arm that moves in all directions, uses its four-point tool to pick-up two lots of two portions from the multihead weigher simultaneously and pack them neatly within the trays provided.This accustomed to need a highly-complex mechanism or perhaps manual intervention. A benefit of the Orbital wrapper transfer system is its flexibility, as each of its numerous motion sequences is freely programmable.
