Automatic Coil Packing Line
This automatic coil packing line consists of a turnstile, coil separator, weighing device, strapping machine, stacking system and conveyor line.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Automatic Coil Packing Line in short
This automatic coil packing line consists of a turnstile, coil separator, weighing device, strapping machine, stacking system and conveyor line. It is used to separate, strap, stack and weigh copper coils with a width of 10mm to 300mm.
This steel coil packaging line for stainless steel, cooper coil, aluminium coil. That is composed of turnstile, coil separator, weighing device, strapping machine, stacking system, conveyor line and etc. It can be used for separating, strapping, stacking and weighing of copper coils of width 10mm～300mm.
This machinery is controlled by a supervisory control system, and each part can be operated separately by manual.
The machinery equips with hydraulic press station itself, while the power supply, air supply supplied by the user.
The Stainless Steel and Alloy Coil Packing Line offers a comprehensive, automated solution designed specifically for efficient handling and packaging of stainless steel and alloy coils. This advanced system features a range of integrated components, such as a coil car, coil downender, coil packing machine, and stacking system, ensuring seamless operation and optimized productivity.
Visual details

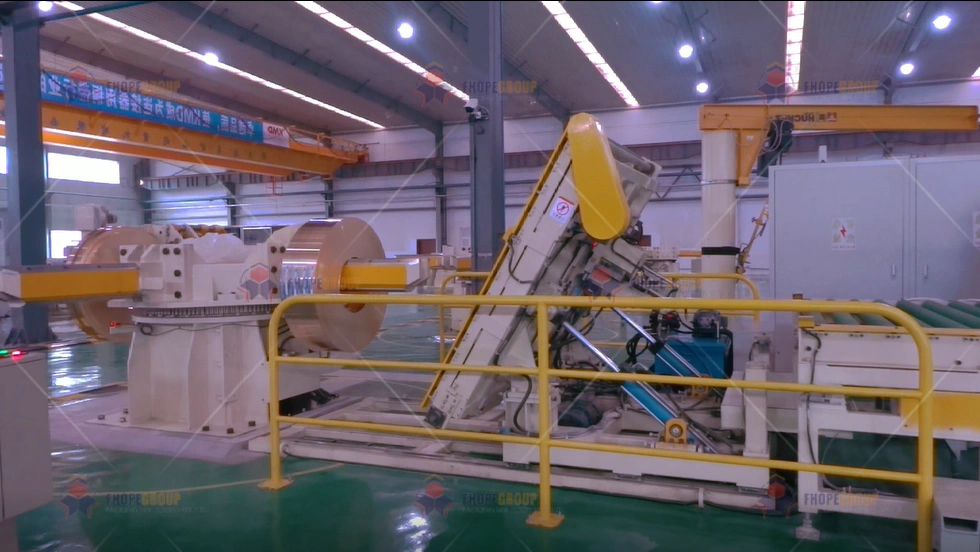

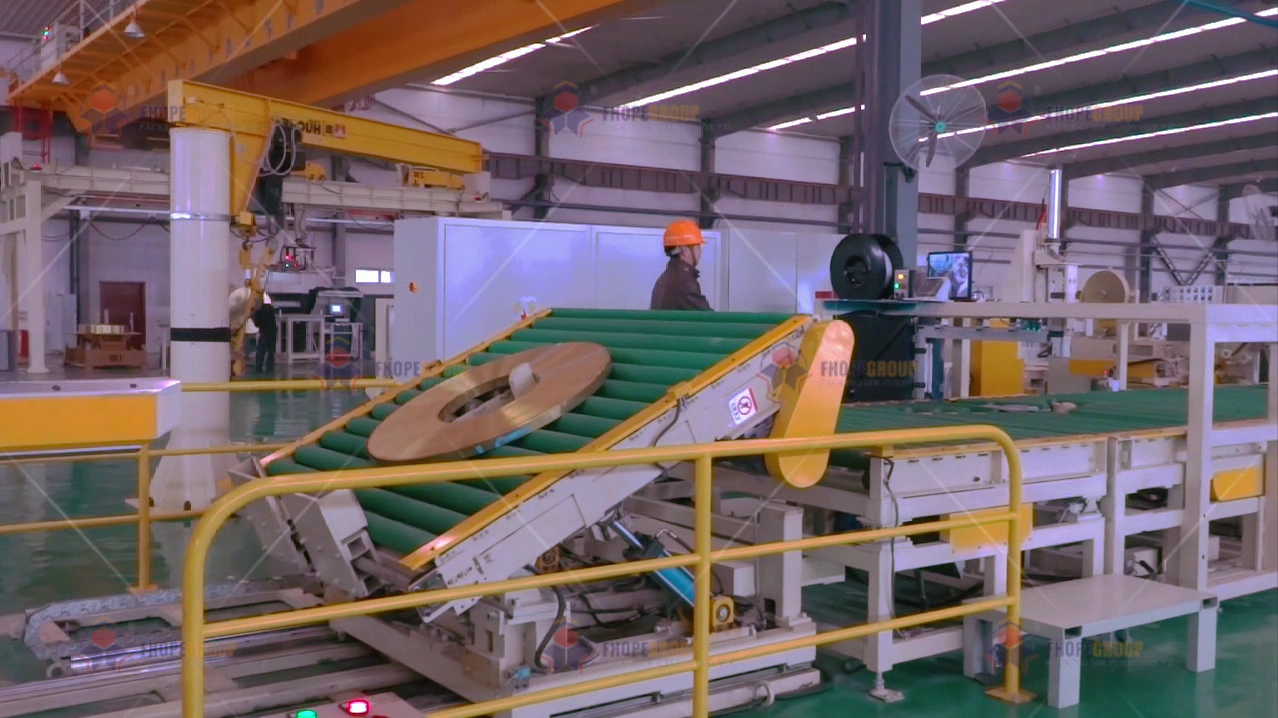

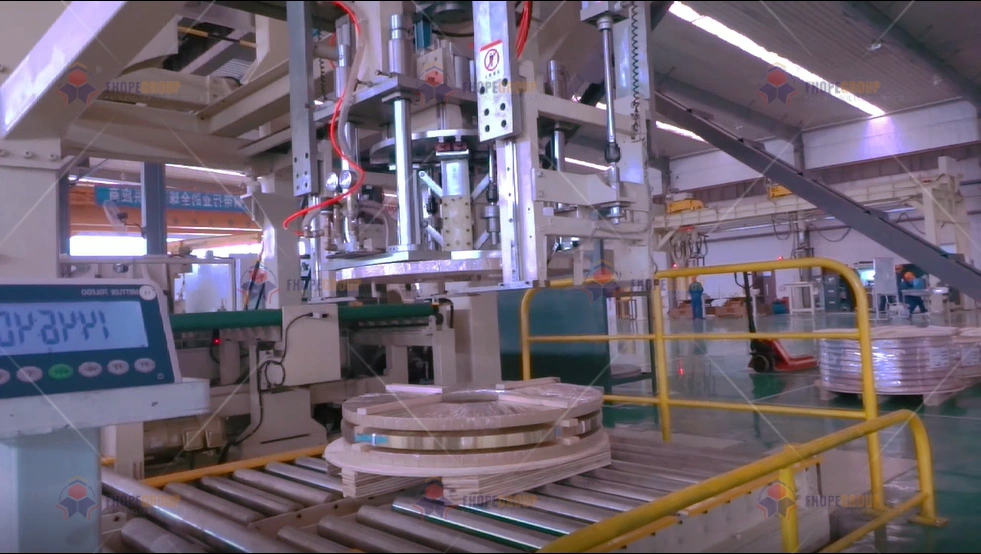

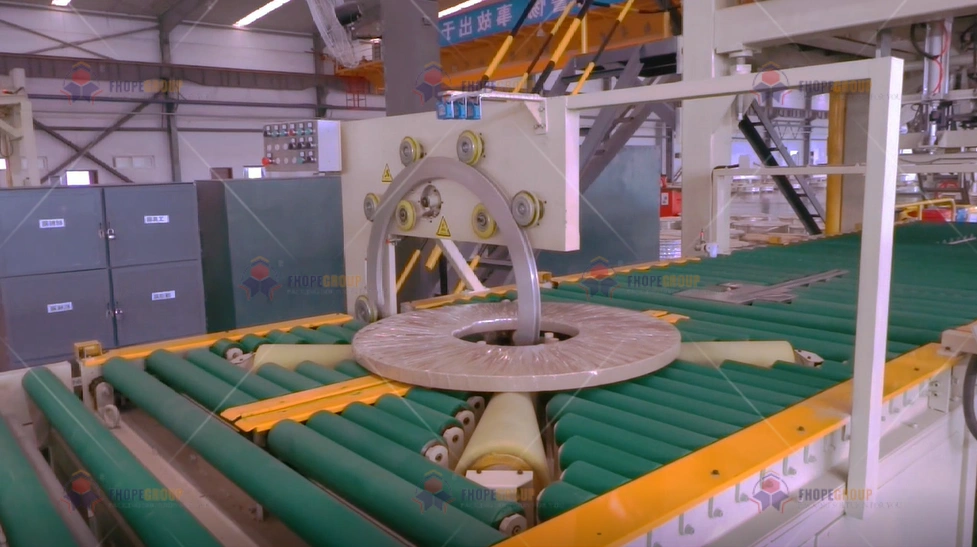

The Automatic Coil Packing Line machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Automatic Coil Packing Line in operation
Video: FHOPE Horizontal coil packaging line (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- COIL PACKING LINE FOR STAINLESS STEEL COIL AND ALLOY COIL
- This steel coil packaging line for stainless steel, cooper coil, aluminium coil. That is composed of turnstile, coil separator, weighing device, strapping machine, stacking system, conveyor line and etc. It can be used for separating, strapping, stacking and weighing of copper coils of width 10mm～300mm.
- This machinery is controlled by a supervisory control system, and each part can be operated separately by manual.
- The machinery equips with hydraulic press station itself, while the power supply, air supply supplied by the user.
- Technical parameter of the coil packing line:
- Object weight: 100-3000kg
- Package width: 30-300mm
- Package OD: 600-1500mm
- Package ID:508mm
- Roller Speed:2-4m/min
- Wrapping speed:20-60sec/pcs
- Rotating speed: 20-100r/min
- Overlap scope: 20%-80%
- Power output: app. 3.6kw
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Automatic Coil Packing System
Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
