Copper Coil Packing Machine Manufacturer
Wrapping, weighing and stacking for copper coil and copper strip, integrated with slitting lines.
Overview
Copper Coil Packing Machine
The FPC series copper coil wrapper packs copper coils, and the same machine is used for copper wire coils. It is also known as a copper wire wrapping machinery, copper coil packing machinery, cable coil wrapping machinery, horizontal steel coil packing machine... which is with highly efficiency...
- Optimized Machine Configuration
- Centralized operation via an advanced PLC and intuitive HMI touchscreen. Operators can easily set packing parameters, view status diagnostics, and manage wrapping recipes.
- Maximum operator security featuring Safety Light Beams to detect intrusion during cycles, and Safety Power Locks that mechanically lock cabinet doors while the machine is energized.
| Object weight | 20-3000kg |
|---|---|
| Package width | 10-400mm |
| Package OD | 700-1600mm |
| Package ID | 400-800mm OD-ID |
| Speed | 2-4m/min |
| Wrapping speed | 25-60sec/pcs |
| Rotating speed | 10-100r/min |
| Air supply | 5-8kgf/m2 |
Where it is used
Typical installations for this application
Product list
Copper Coil Packing Machine models
Machines we build for this application. Each has its own data sheet; tell us your coil and we confirm which one fits.

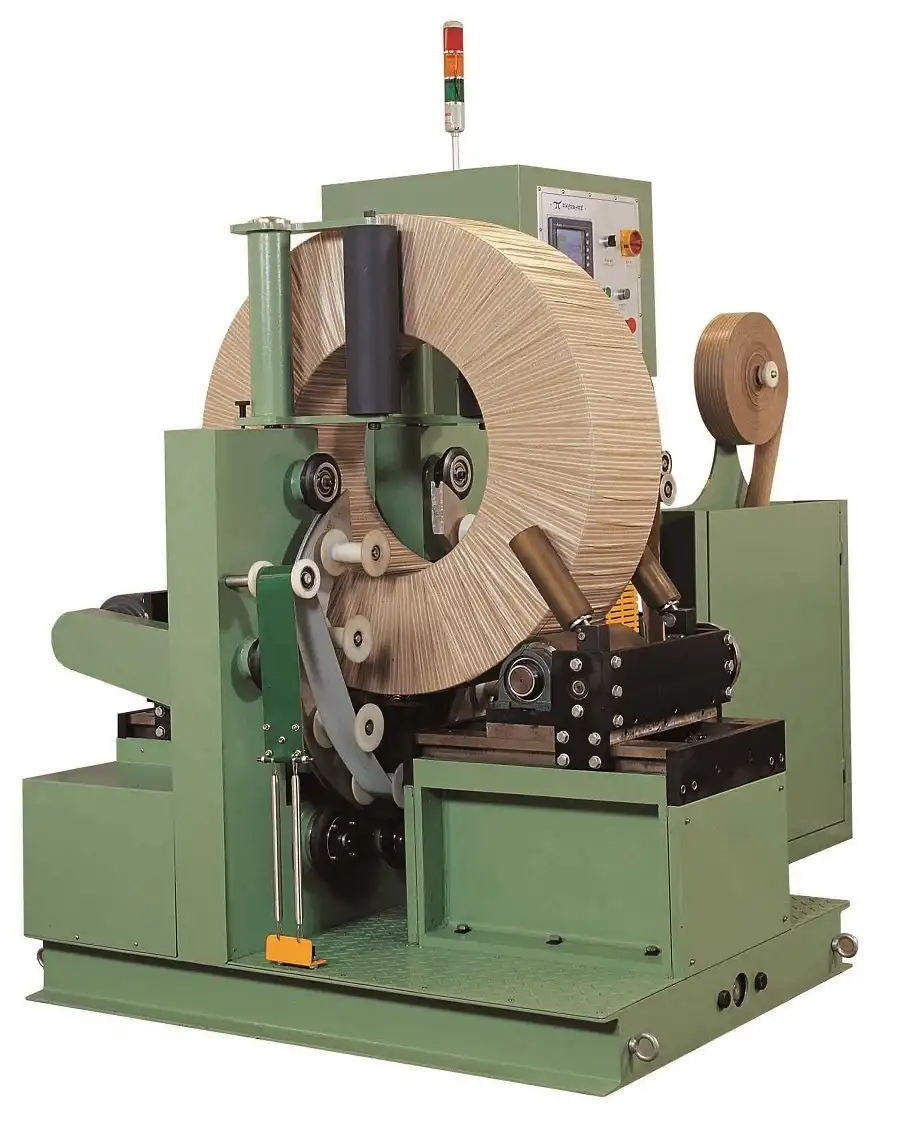

FPC-200Copper Coil Packing Machine FPC-200The FPC-200 packs copper coils from 20 mm to 200 mm in width. It is a horizontal wrapping machine for copper and brass strip coils, built around the customer's coil dimensions.View machine →

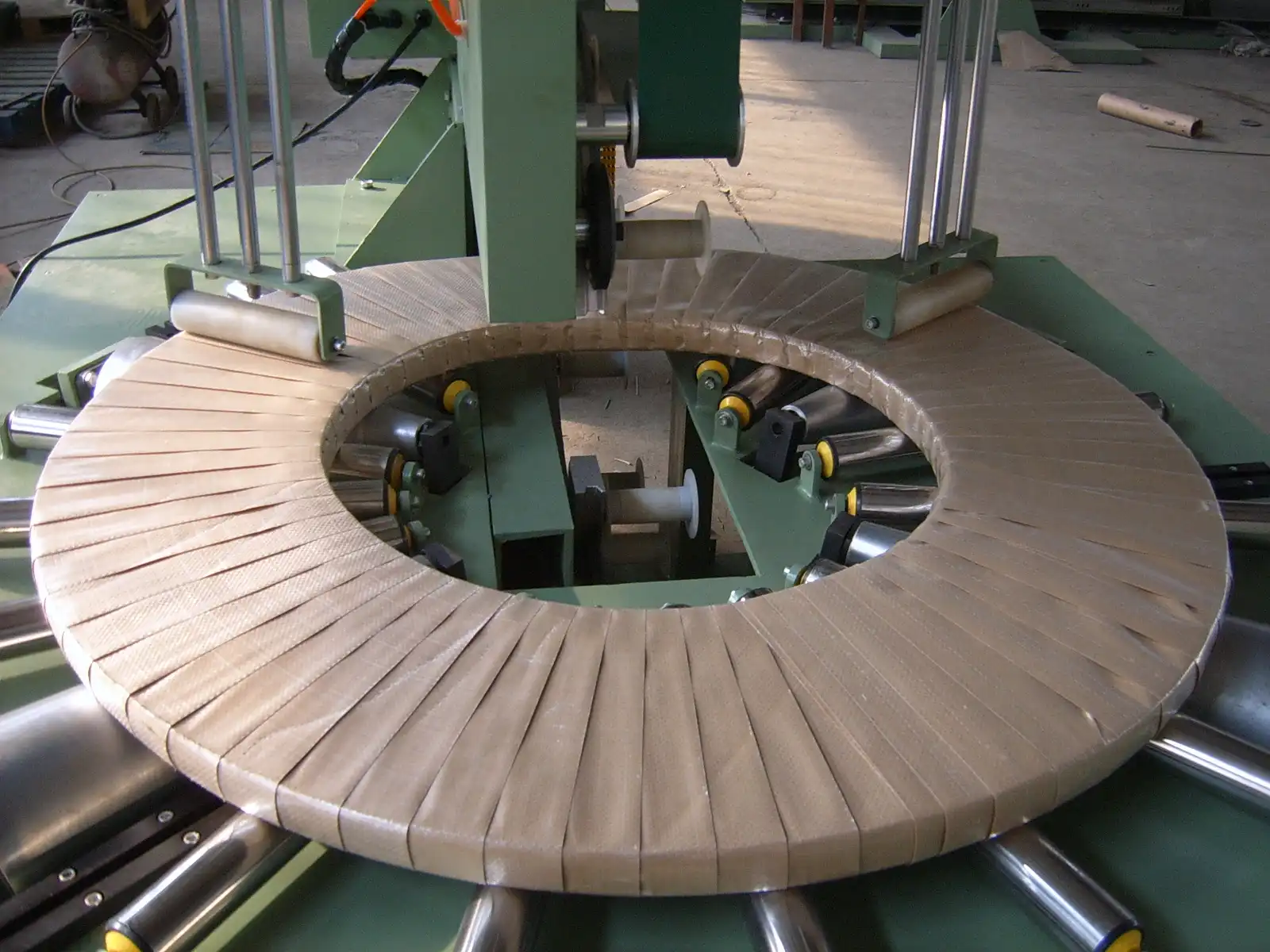

FPC-300Copper Coil Packing Machine FPC-300The FPC-300 is a horizontal copper coil wrapper for coil widths from 50 mm to 300 mm. Overlap and layer count are adjustable from the panel, and the closed wrap protects the copper surface during handling and storage.View machine →

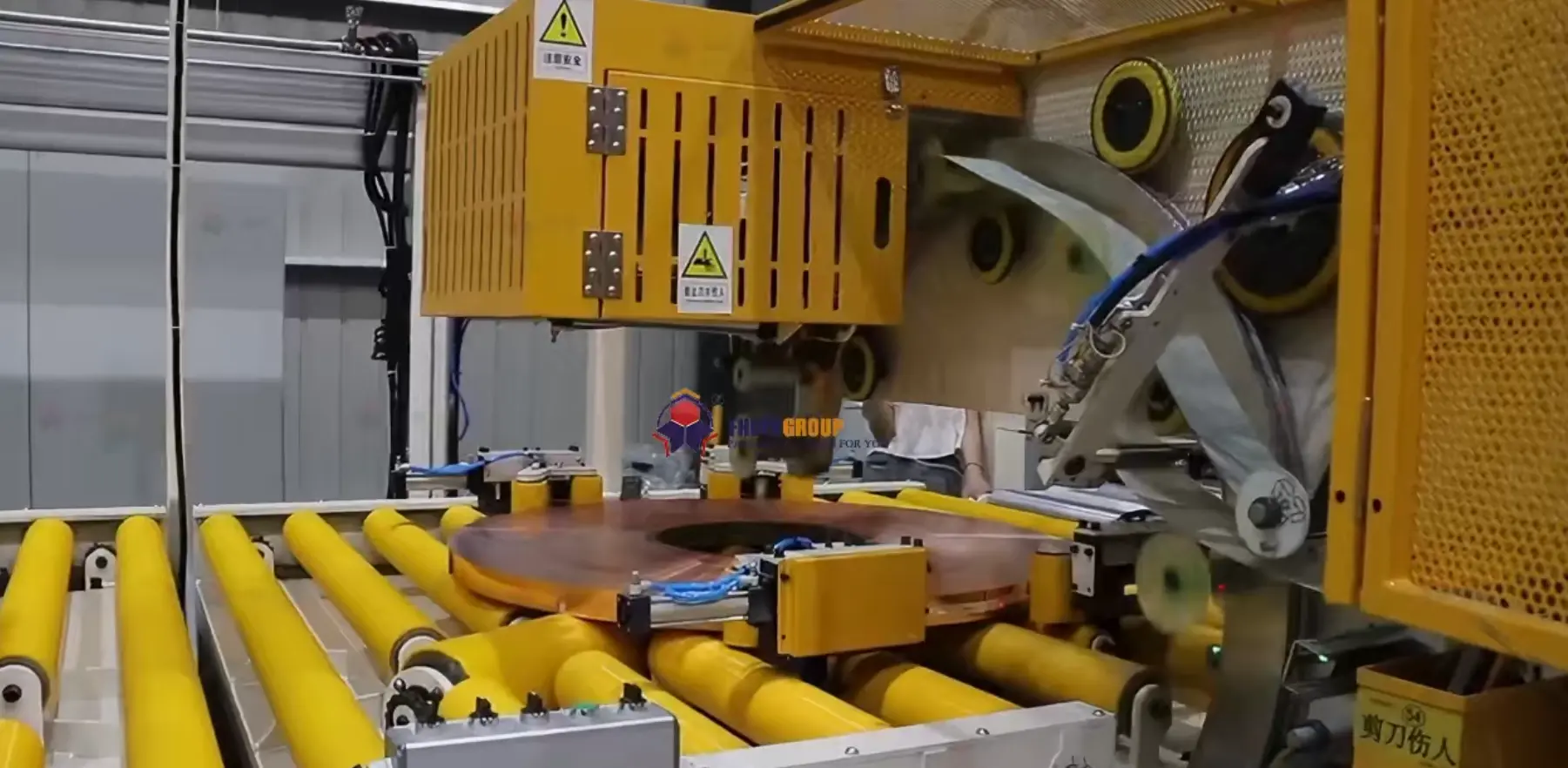

FPC-400Copper Coil Packing Machine FPC-400The FPC-400 wraps copper coils horizontally, and the same machine is used for copper wire and cable coils. Coil dimensions, packing material and wrapping pattern are confirmed with the customer before the machine is built.View machine →
Machines in action

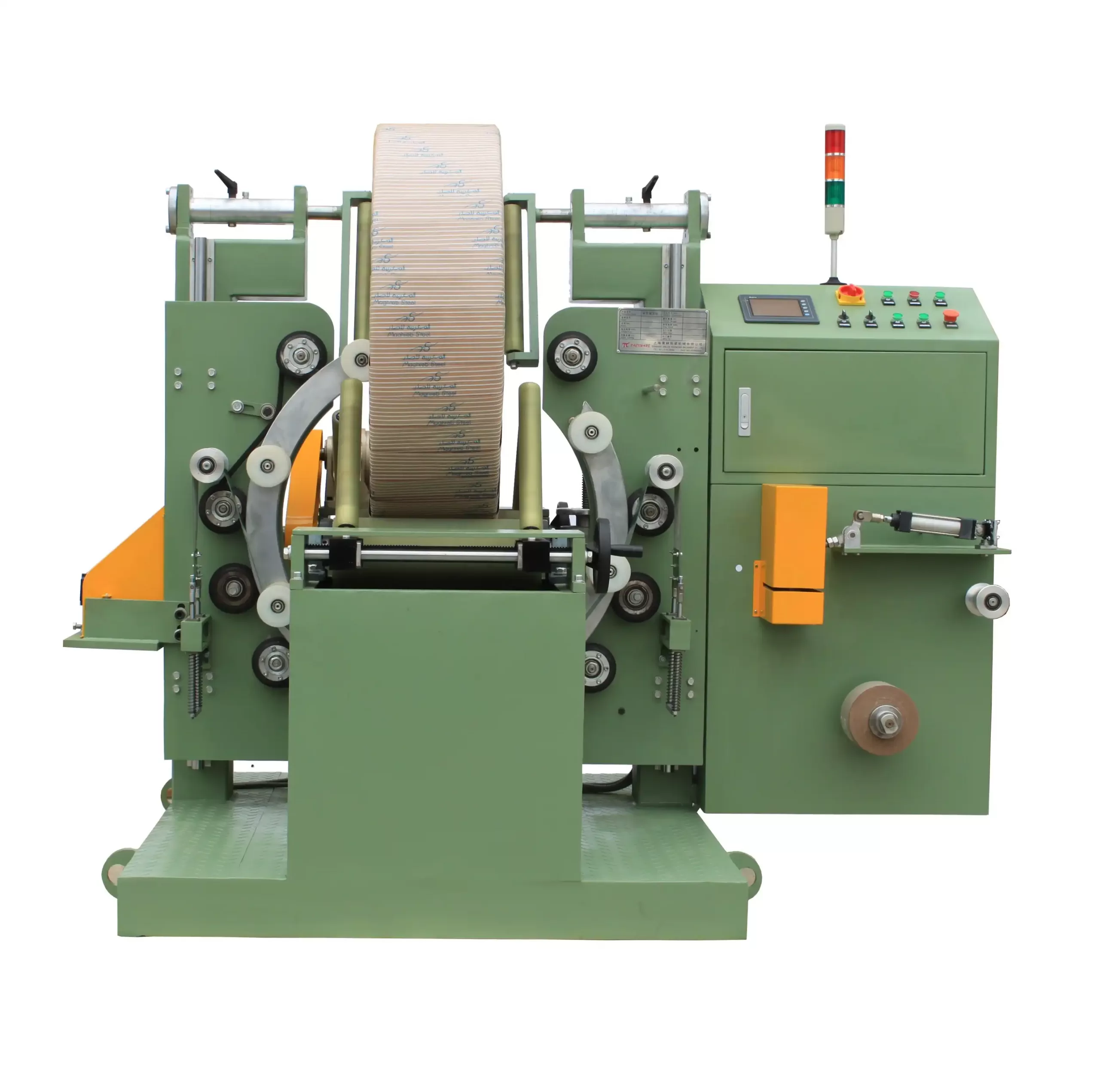

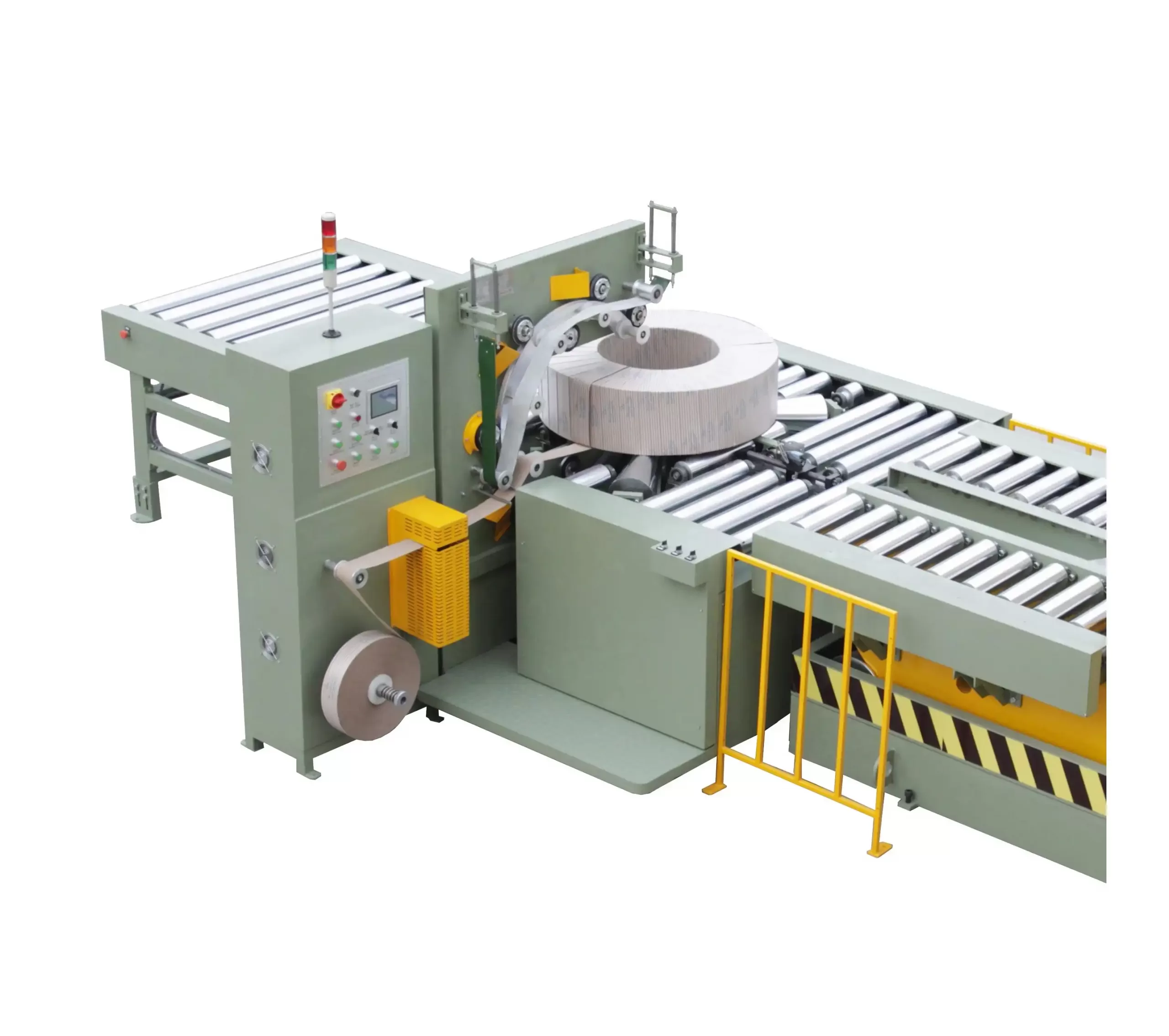

Copper Coil Packing Machine in the workshop and at customer plants
Expert insights
Frequently asked questions
What is a steel coil wrapping machine?
A steel coil wrapping machine is an automated packaging machine that applies protective film, paper, or woven material around steel coils to prevent rust, scratches, and handling damage. FHOPE systems handle slit coils, copper coils, and heavy steel master coils, and can run alone or as part of a complete coil packing line with strapping, weighing, labeling, and stacking.
What coil sizes can the machine handle?
FHOPE coil wrapping machines are engineered around the customer's coil dimensions , including inner diameter, outer diameter, and width, so size capacity is defined by model and configuration. The series covers narrow slit coils through wide heavy-duty master coils. Customers provide ID, OD, width, weight, and material type for model selection.
Other coil wrapping machine applications
Send us your coil data for copper coil packing machine
Coil ID / OD / width / weight and required output per hour are enough to propose a model.
