Copper Coil Packing Machine FPC-200
The FPC-200 packs copper coils from 20 mm to 200 mm in width.
- 5-500kg
- Object weight
- 10-200mm
- Package width
- 600-1200mm
- Package OD
- 300-800mm
- Package ID
Overview
FPC-200 in short
The FPC-200 packs copper coils from 20 mm to 200 mm in width. It is a horizontal wrapping machine for copper and brass strip coils, built around the customer's coil dimensions.
Visual details
The FPC-200 machine

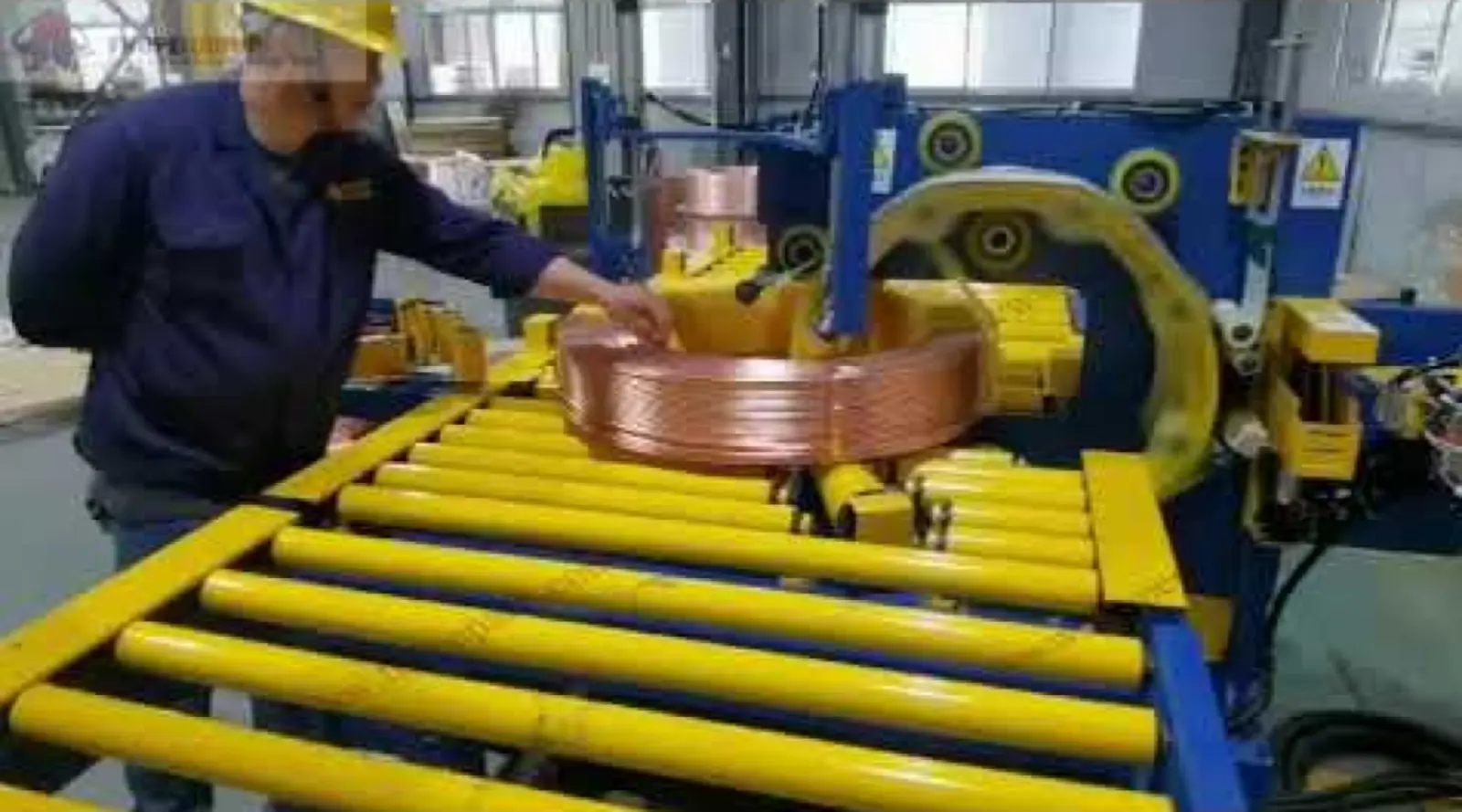

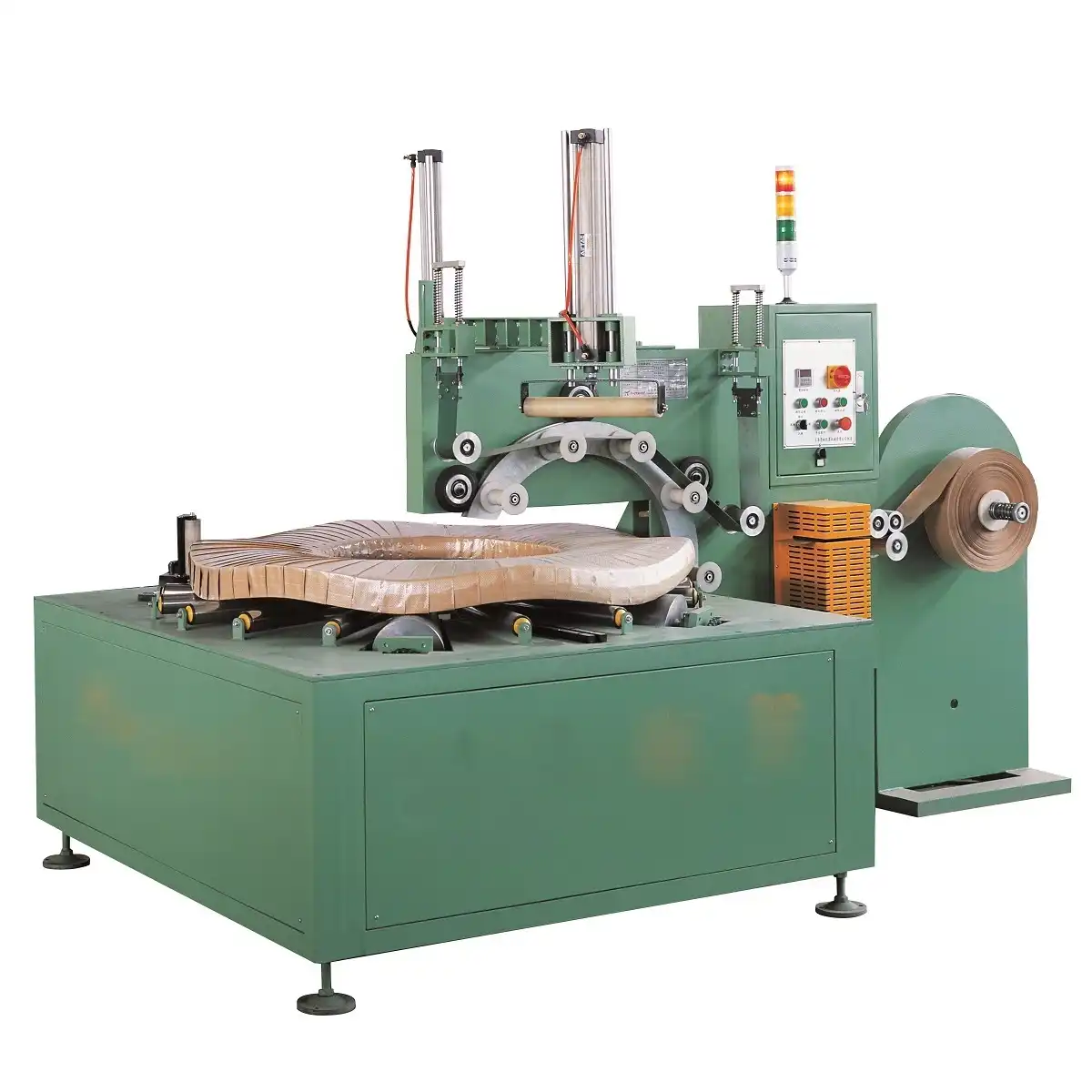

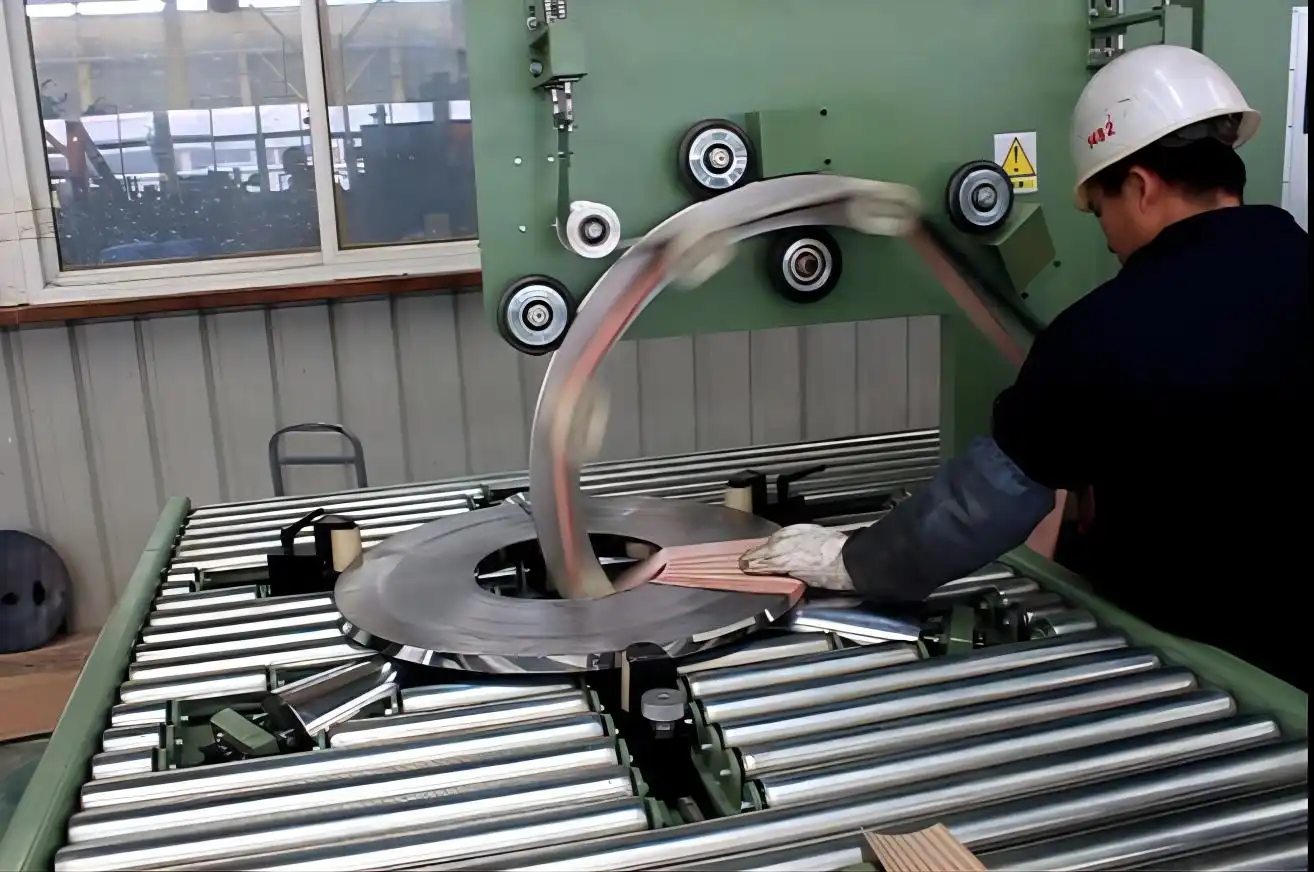

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPC-200 in operation
Video: FHOPE Automatic copper strip coil packaging line (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPC-200 specifications
Taken from the FPC-200 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Object weight | 5-500kg |
|---|---|
| Package width | 10-200mm |
| Package OD | 600-1200mm |
| Package ID | 300-800mm |
| OD-ID | <800mm |
| Roller Speed | 2-4m/min |
| Wrapping speed | 23-50sec/pcs |
| Rotating speed | 10-100r/min |
| Overlap scope | 20%-90% |
| Power voltage | 380v/50/60Hz/3ph |
| Air supply | 5-8kgf/m2 |
| Packing material | woven belt | Paper | stretch film ID:50/76mm OD:150-450mm Width:90-120mm |
Machine features
What this machine does
- Vertical model, can according to special requirements for high table design.
- PLC control program, HMI be optional.
- English & Chinese 2 different display are available.
- Indicator lamps red green yellow with different indication.
- Automatically upon trouble occurrence, error will be listed on the control panel screen.
- Wrapping layers can be one or two per packing require, auto cutting off material.
- Tension control system, overlap 20%-90% be adjustable effectively & precisely.
- Board structure can be height adjustable automatically or by manual with different OD of object.
- Anti-wear polyurethane material, whole mould structure used for ring.
- All rollers wrapped with wear-resisting rubber for product projection.
- Technical parameter：
- Object weight
- Package width
- 10-200mm
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
