Copper Coil Packing Machine FPC-300
The FPC-300 is a horizontal copper coil wrapper for coil widths from 50 mm to 300 mm.
- 10-1000kg
- Object weight
- 10-300mm
- Package width
- 700-1200mm
- Package OD
- 400-900mm
- Package ID
Overview
FPC-300 in short
The FPC-300 is a horizontal copper coil wrapper for coil widths from 50 mm to 300 mm. Overlap and layer count are adjustable from the panel, and the closed wrap protects the copper surface during handling and storage.
FPC-300 is mainly suitable for packing the width range 50mm-300mm of copper material coils. The controllable overlap, tighted layer, eliminated most of the air, dust and rust, all the details make the packaging with high quality.
Visual details

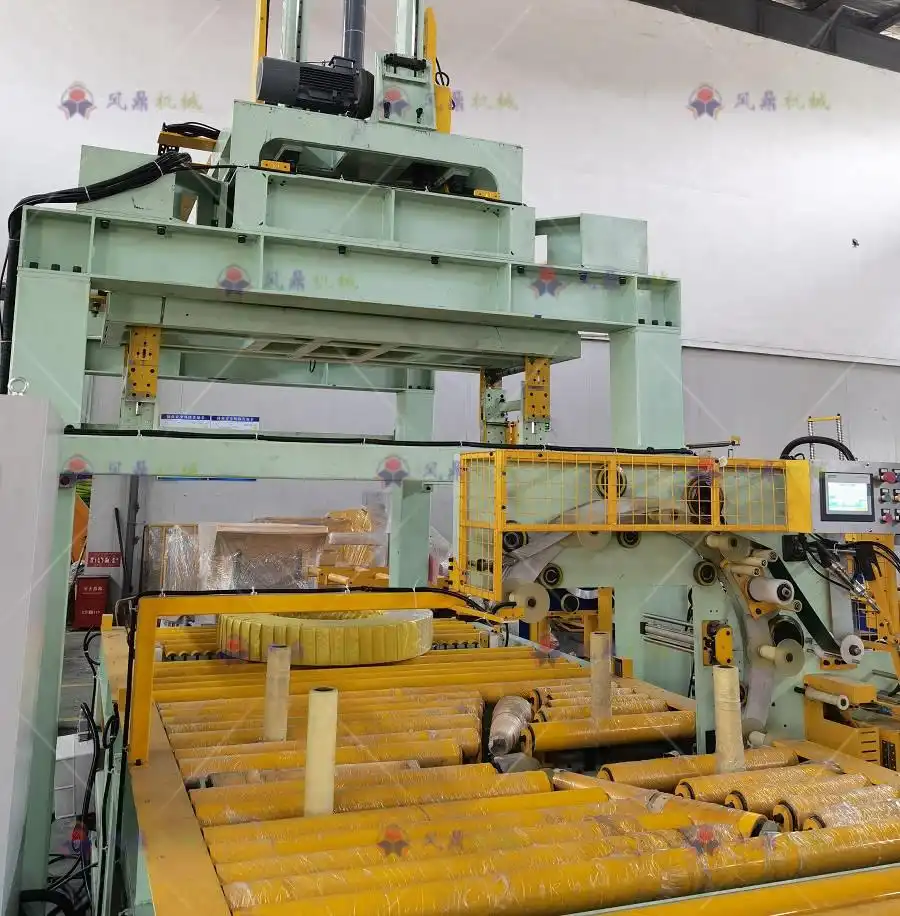

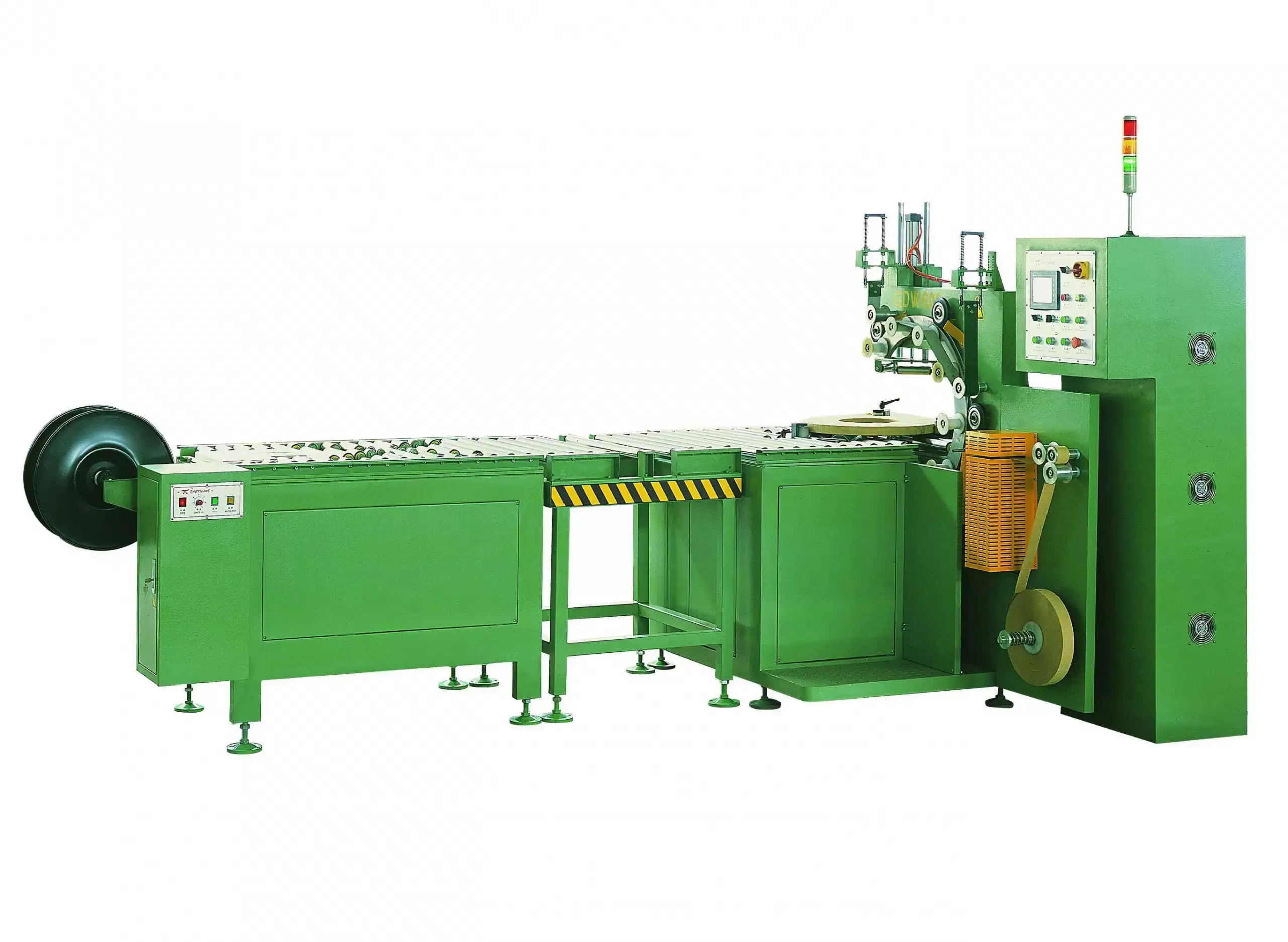

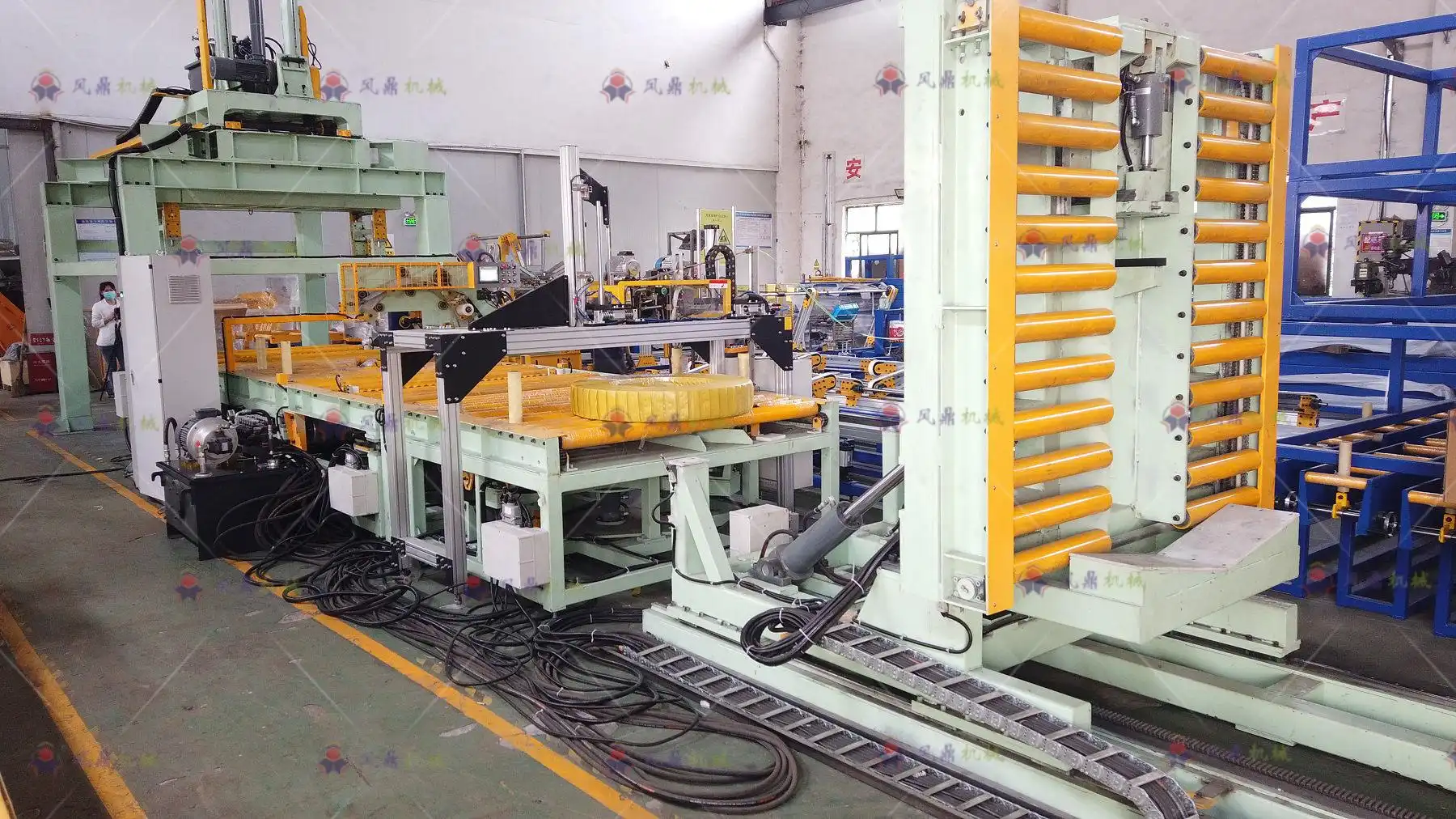

The FPC-300 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPC-300 in operation
Video: FHOPE Automatic copper strip coil packaging line (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPC-300 specifications
Taken from the FPC-300 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Object weight | 10-1000kg |
|---|---|
| Package width | 10-300mm |
| Package OD | 700-1200mm |
| Package ID | 400-900mm |
| OD-ID | <600mm |
| Roller Speed | 2-4m/min |
| Wrapping speed | 35-50sec/pcs |
| Rotating speed | 5-100r/min |
| Overlap scope | 10%-90% |
| Power voltage | 380v/50/60Hz/3ph |
| Air supply | 5-8kgf/m2 |
| Packing material | woven belt | Paper | stretch film ID:50/76mm OD:150-450mm Width:90-120mm |
Machine features
What this machine does
- High quality structure be adopted for horizontal machine design.
- PLC soft program, and HMI touch screen be optional.
- Function buttons on panel with different colors.
- Red green indicator lights on the electric cabinet with different indication.
- Indicator alarms, the red light flicking and error will be displayed on panel automatically.
- Adopting particular tension control system.
- Ring height automatically adjustable or manual for different coil OD.
- Friction wheels with anti-wear polyurethane, wrapping ring be made of a whole mould structure.
- Protective rollers wrapped with wear-resisting rubbers.
- Two different kinds of wrapping materials be feasible.
- Technical parameter：
- Object weight
- 10-1000kg
- Package width
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
