Hose Coil Wrapping Machine
Automatic coil wrapping for PVC, PPR and UPVC hose coils, with high-speed film and paper wrapping.
FPH-200 / 300 / 400 / 500
Ask for this configuration
FHOPE · Coil packaging machinery
Coil Wrapping Machine Manufacturer
Wrapping, strapping and packing machines for steel, wire, copper, cable, hose, bearing and tyre coils.
FHOPE's patented coil wrapping solutions:
- 20 kg – 25 t
- coil weight range
- 8
- coil applications
- 38
- models on file
- CE / ISO 13849
- safety compliance
- PLC + MES
- line integration
Overview
One platform, 8 coil applications
One machine platform, eight coil applications. FHOPE builds coil wrapping and packing machines from 20 kg to 25 t — mobile, stationary and fully automatic — engineered around your coil dimensions.
Applications we engineer for
Each application uses the same machine platform, configured around your coil dimensions, packing material and throughput. Choose the closest match and we will send the matching model range.
Steel Coil Wrapping Machine
Eye-through and horizontal wrapping for cold rolled, hot rolled and slit steel coils, 1–25 t.
FPS-300 / 400 / 500 / 800, FPCA-1000 / 1200
Ask for this configuration
Wire Coil Wrapping Machine
Ring-style wrapping for steel wire and wire rod coils with LLDPE film, compound paper or knitted belt.
FPW-300 / 400 / 500 / 600 / 800
Ask for this configuration
Copper Coil Packing Machine
Wrapping, weighing and stacking for copper coil and copper strip, integrated with slitting lines.
FPC-200 / 300 / 400
Ask for this configuration
Pipe Coil Packing Machine
Coil wrapping and strapping for coiled pipe, tube and profile bundles.
FPP-200 / 300 / 400
Ask for this configuration
Cable Coil Packing Machine
Coiling, wrapping and strapping for cable and wire reels, up to 60 coils per hour.
FPCA-200 / 300
Ask for this configuration
Bearing Packing Machine
Bagging and wrapping for large bearings and axletrees, OD 20–1300 mm, 10–120 pcs/min.
FPB-200 / 300 / 400, FPBS-200
Ask for this configuration
Tyre Packing Machine
Automatic tyre wrapping, information reading and palletising, 5–100 kg per tyre.
FPT-100 / 200 / 300 / 400
Ask for this configurationProduct list
Every coil wrapping machine we build
One row per machine, grouped by application. Open a machine for its own data sheet, features and the configuration we would quote.
Hose Coil Wrapping Machine
9 products · application page →

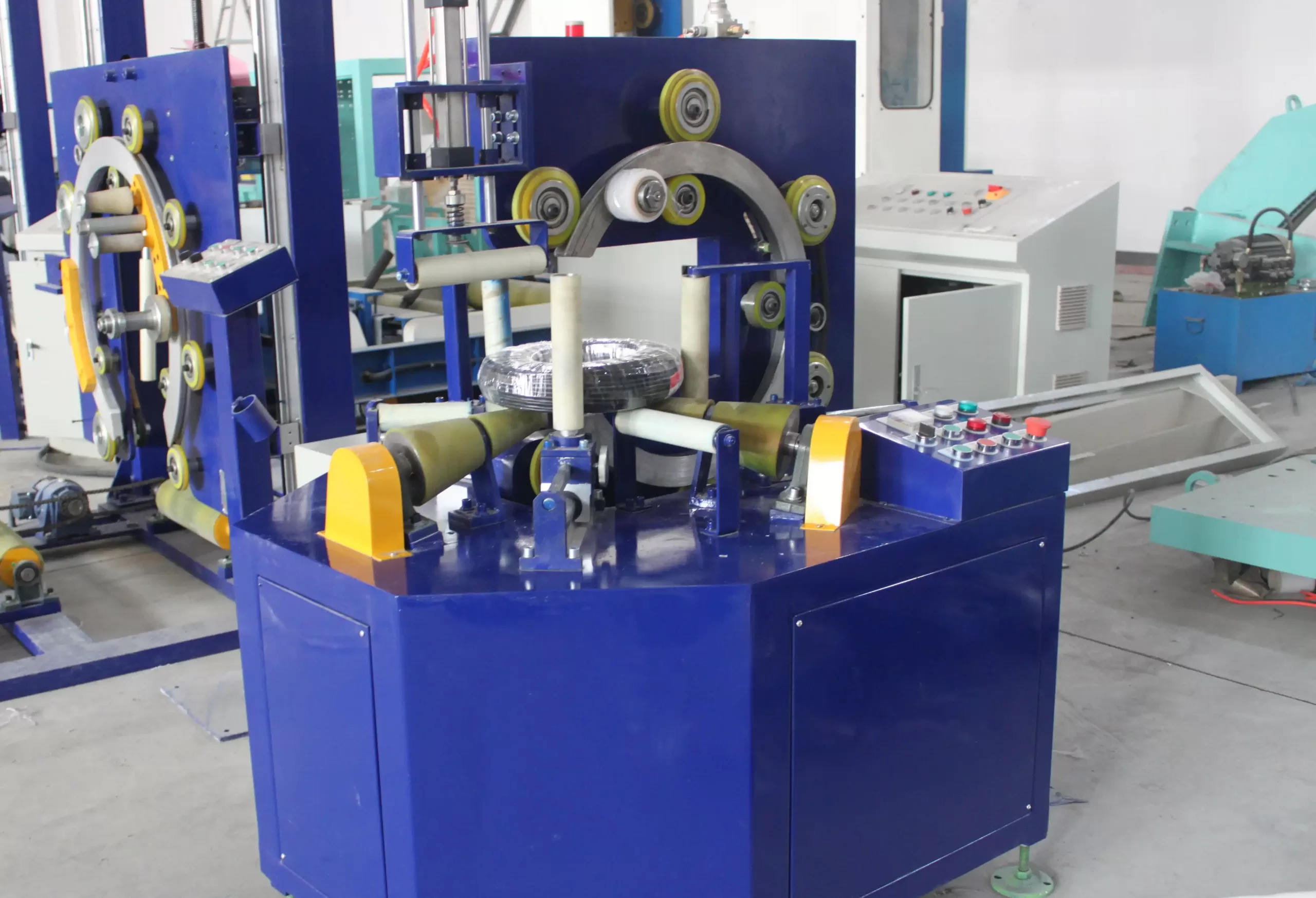

FPCA-100Hose Coil Wrapping Machine FPCA-100A horizontal coil wrapping machine rotates hose, cable, or pipe coils 360 degrees to wrap them in stretch film or paper. The machine securely binds coils from end to end.View machine →

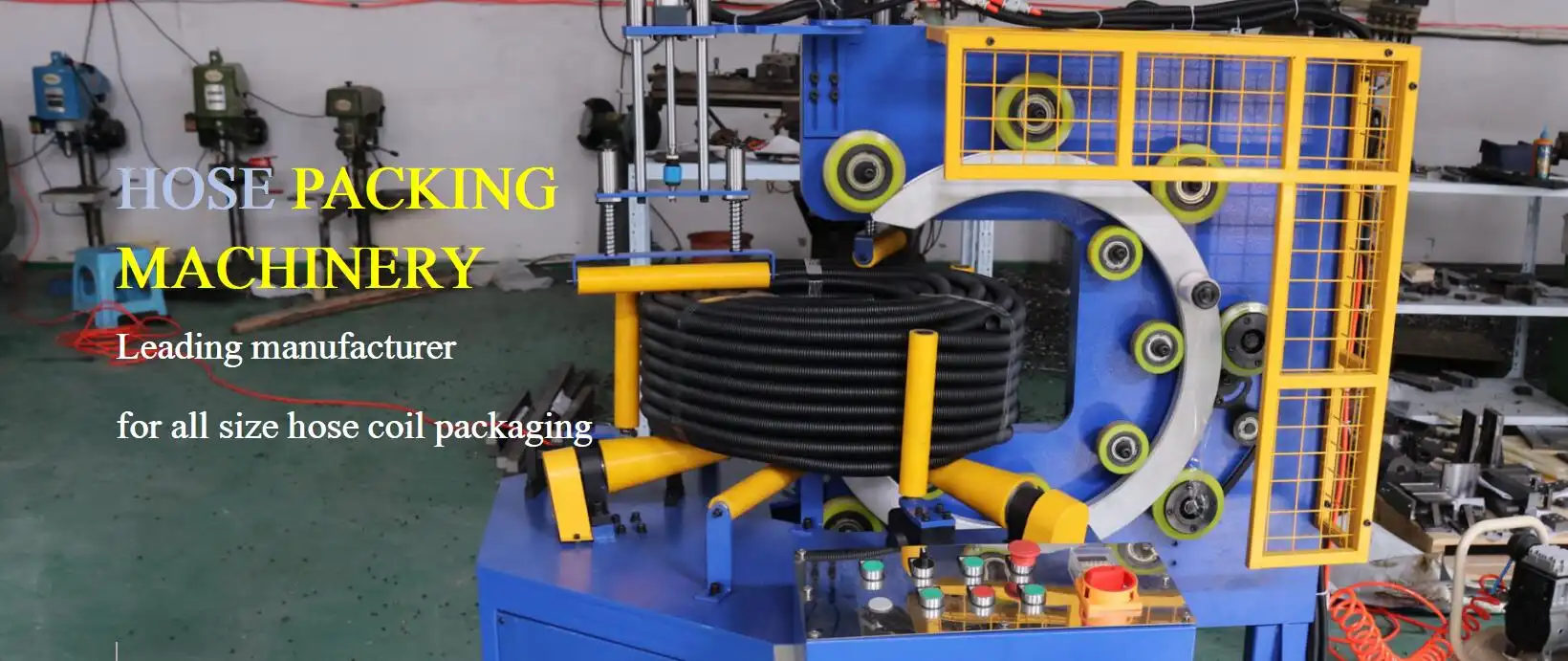

FPCA-200Hose Coil Wrapping Machine FPCA-200The FPCA-200 wraps soft hose coils horizontally. The coil is supported throughout the wrapping cycle, so the windings keep their shape and the finished package does not deform.View machine →

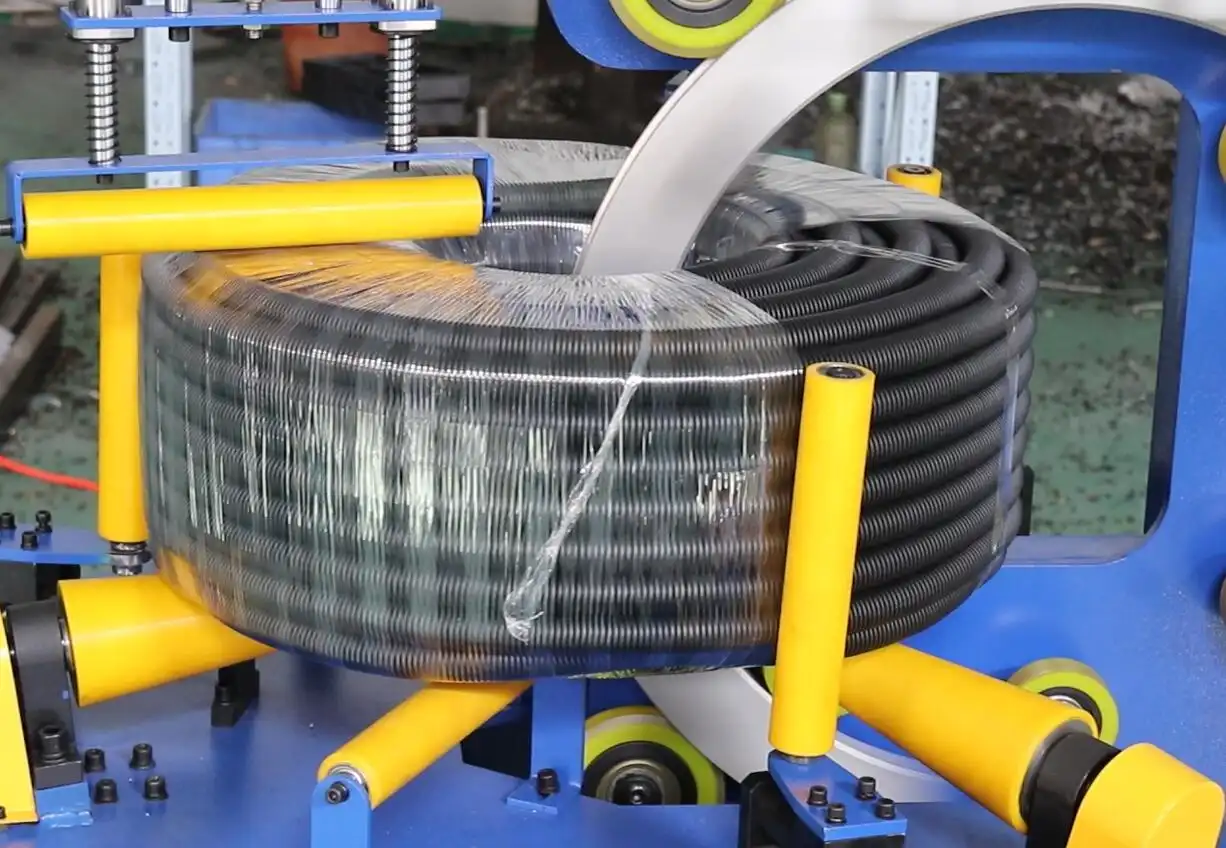

FPCA-300Hose Coil Wrapping Machine FPCA-300The FPCA-300 wraps hose coils inline, with a conveyor at the wrapping station that connects to an automatic coiler and downender. Coils are packed continuously without being moved by hand.View machine →

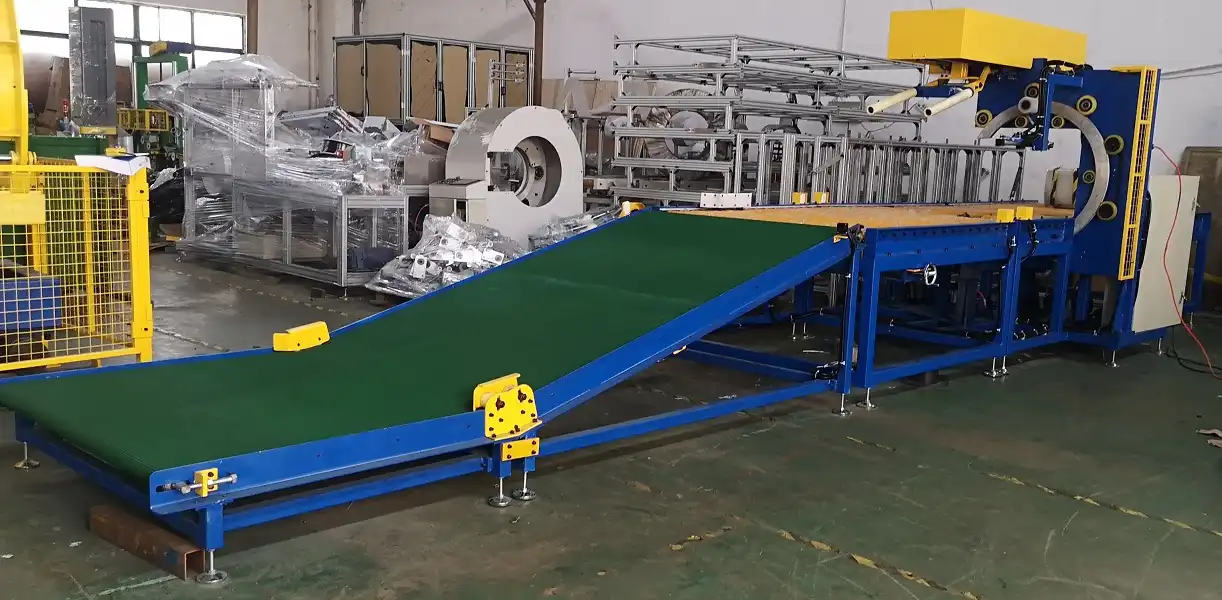

FPH-100Hose Coil Wrapping Machine FPH-100The FPH-100 wraps light corrugated hose coils in stretch film in 15 to 20 seconds per coil. The wrapping action is gentle enough for light coils while still producing a stable, even package.View machine →

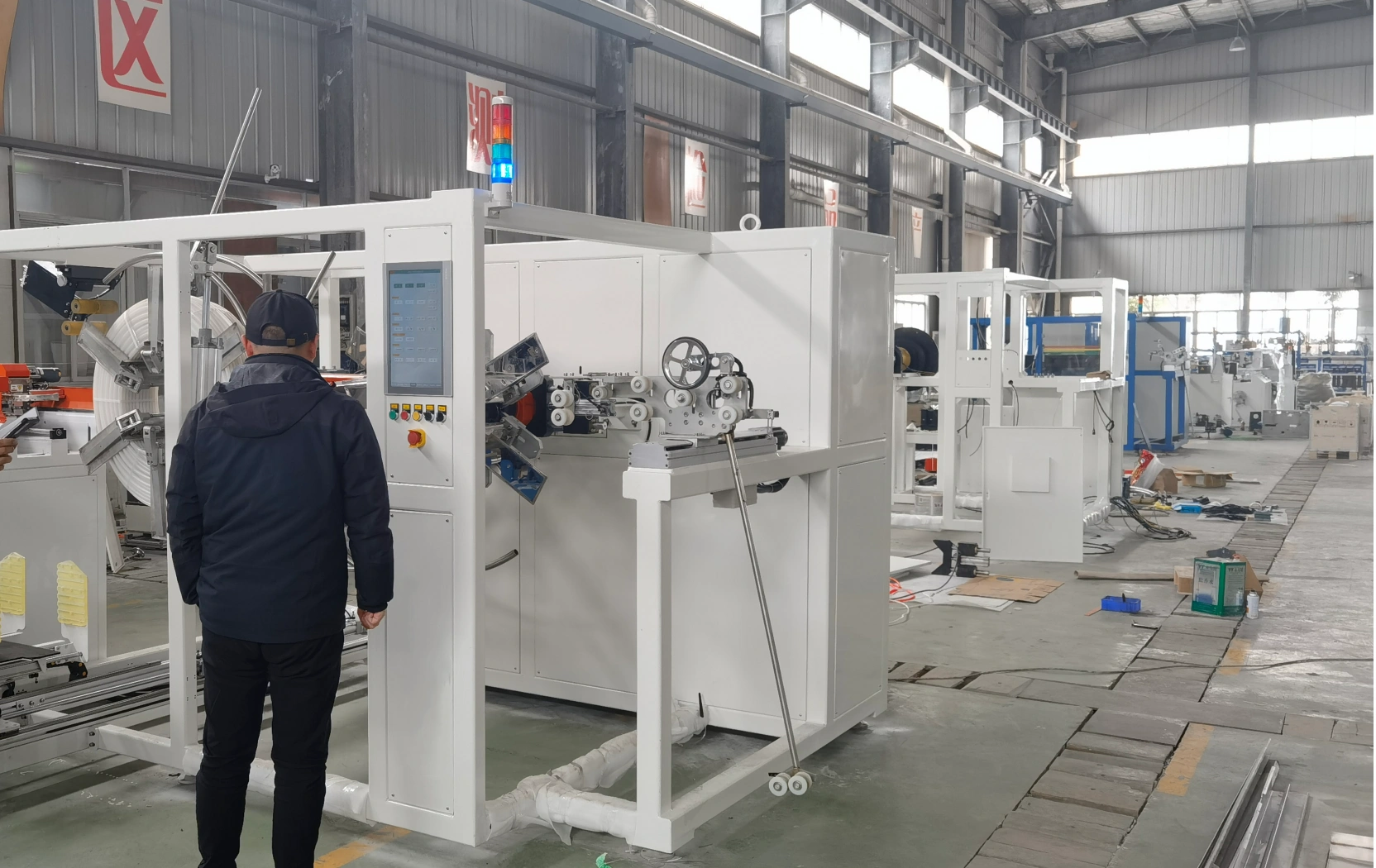

FPH-200NHose Coil Wrapping Machine FPH-200NThe FPH-200N wraps hose, PVC pipe and HDPE pipe coils in 15 to 25 seconds per coil. One machine takes over the manual wrapping operation, and the controlled overlap keeps film consumption low.View machine →

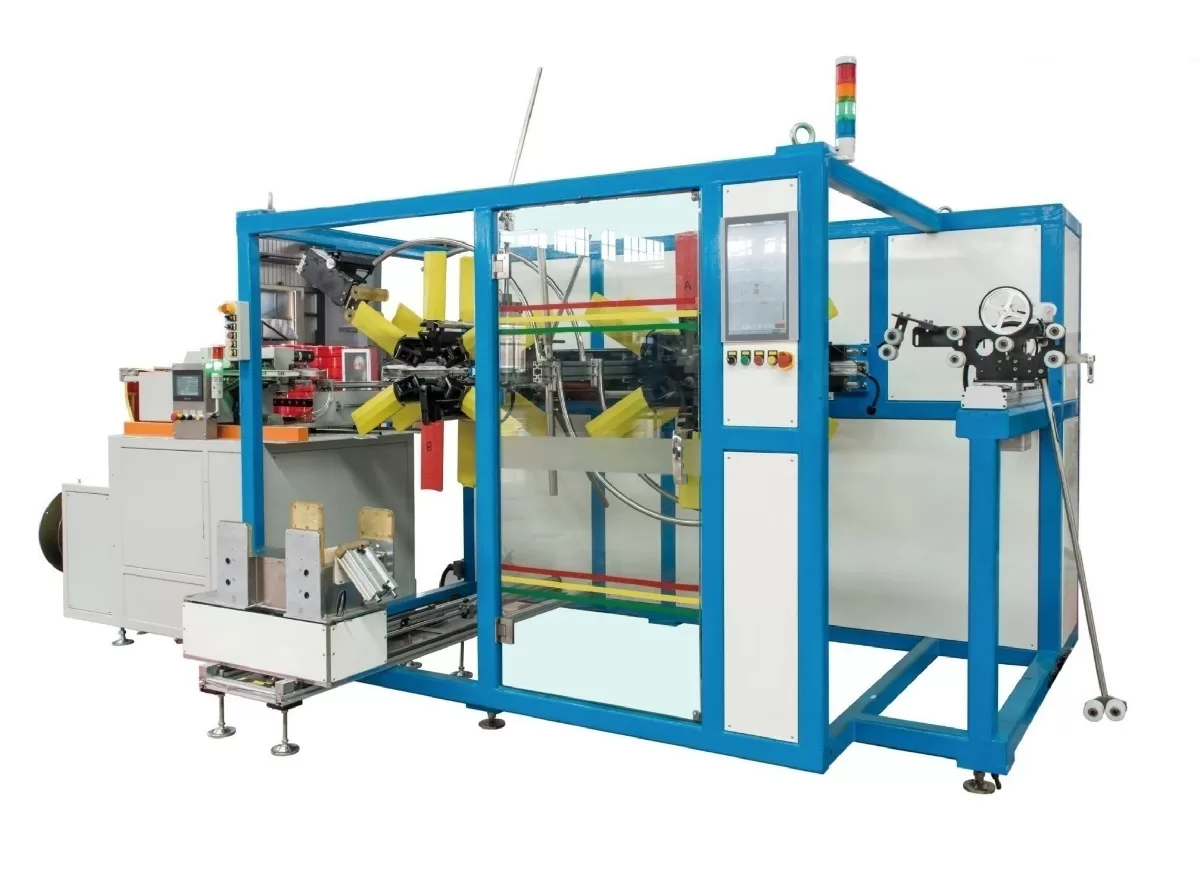

FPH-300NHose Coil Wrapping Machine FPH-300NThe FPH-300N wraps corrugated hose coils in a vertical eye orientation, which suits small and light coils. It is a stretch wrapper built for continuous production, with film tension set for light coils.View machine →

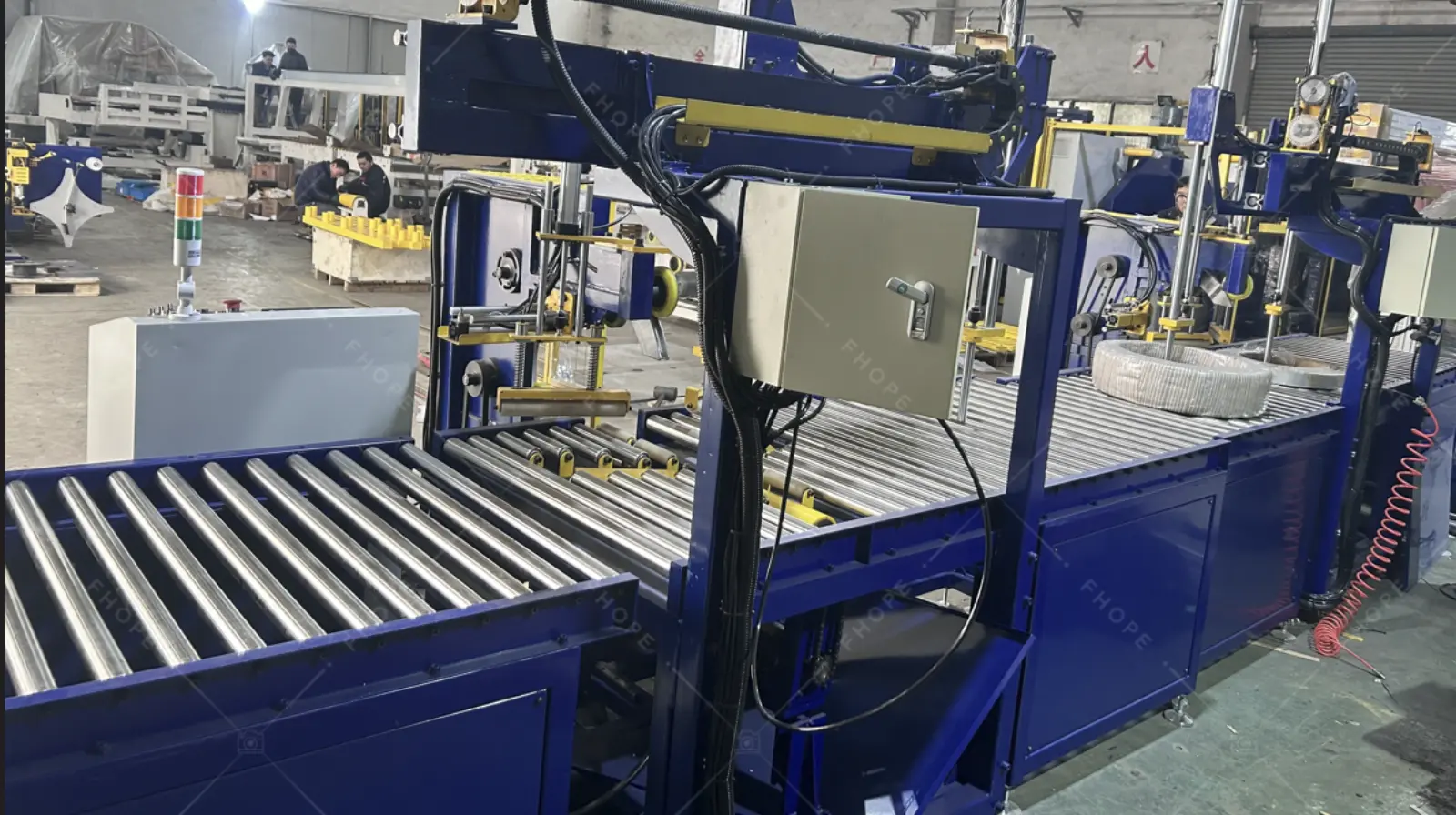

FPH-400WHose Coil Wrapping Machine FPH-400WThe FPH-400W wraps hose coils and plastic pipe coils. It is a high-efficiency machine for PVC, PE and similar pipe coils, and the tight wrap reduces both labour and packaging material cost.View machine →

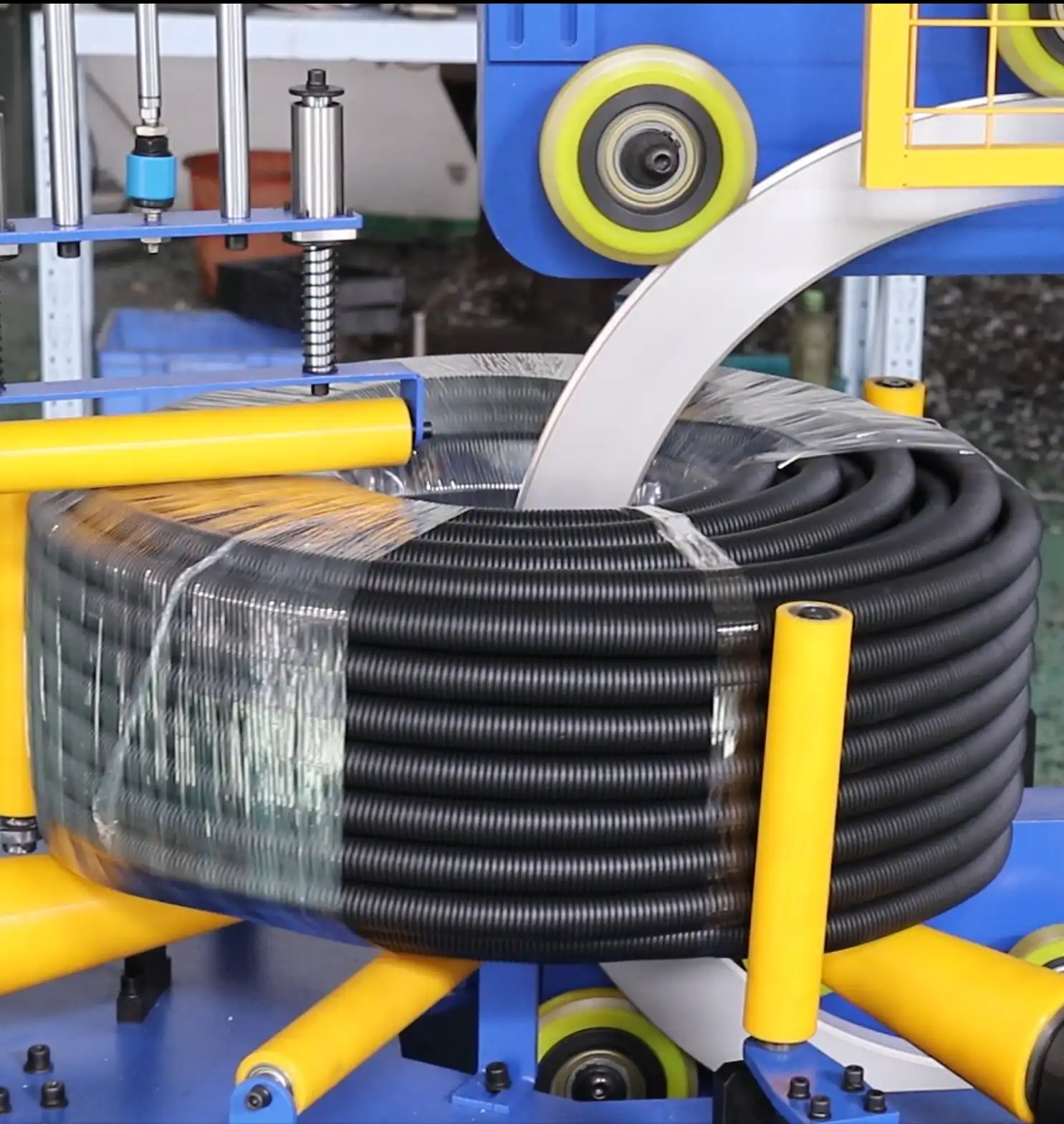

FPH-500WHose Coil Wrapping Machine FPH-500WThe FPH-500W wraps hose and pipe coils in stretch film, HDPE or woven material for an anti-moisture, anti-dust package. It is a vertical eye wrapping machine intended for small and light coils in the plastic and rubber industry.View machine →

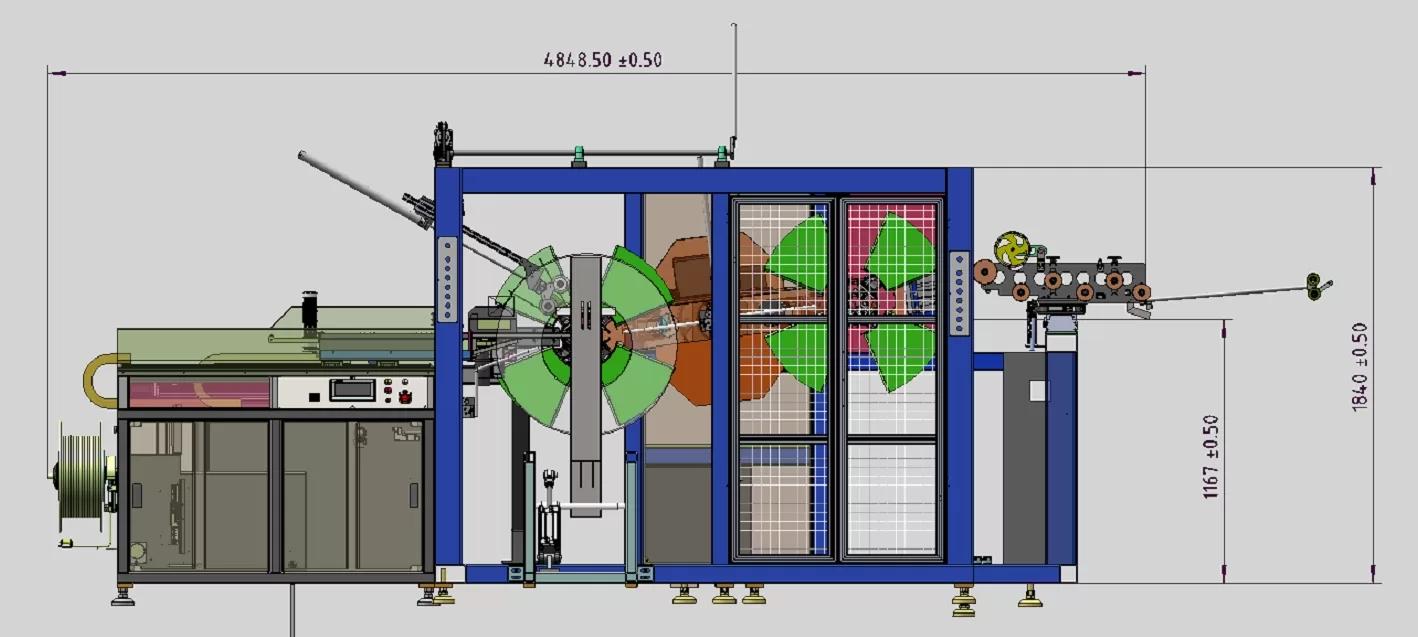

FPS-300HHose Coil Wrapping Machine FPS-300HThe FPS-300H wraps light hose coils and PVC pipe coils in stretch film. A tension controller and a press-down device hold the coil during wrapping, so thin-walled products are protected rather than crushed.View machine →
Steel Coil Wrapping Machine
7 products · application page →

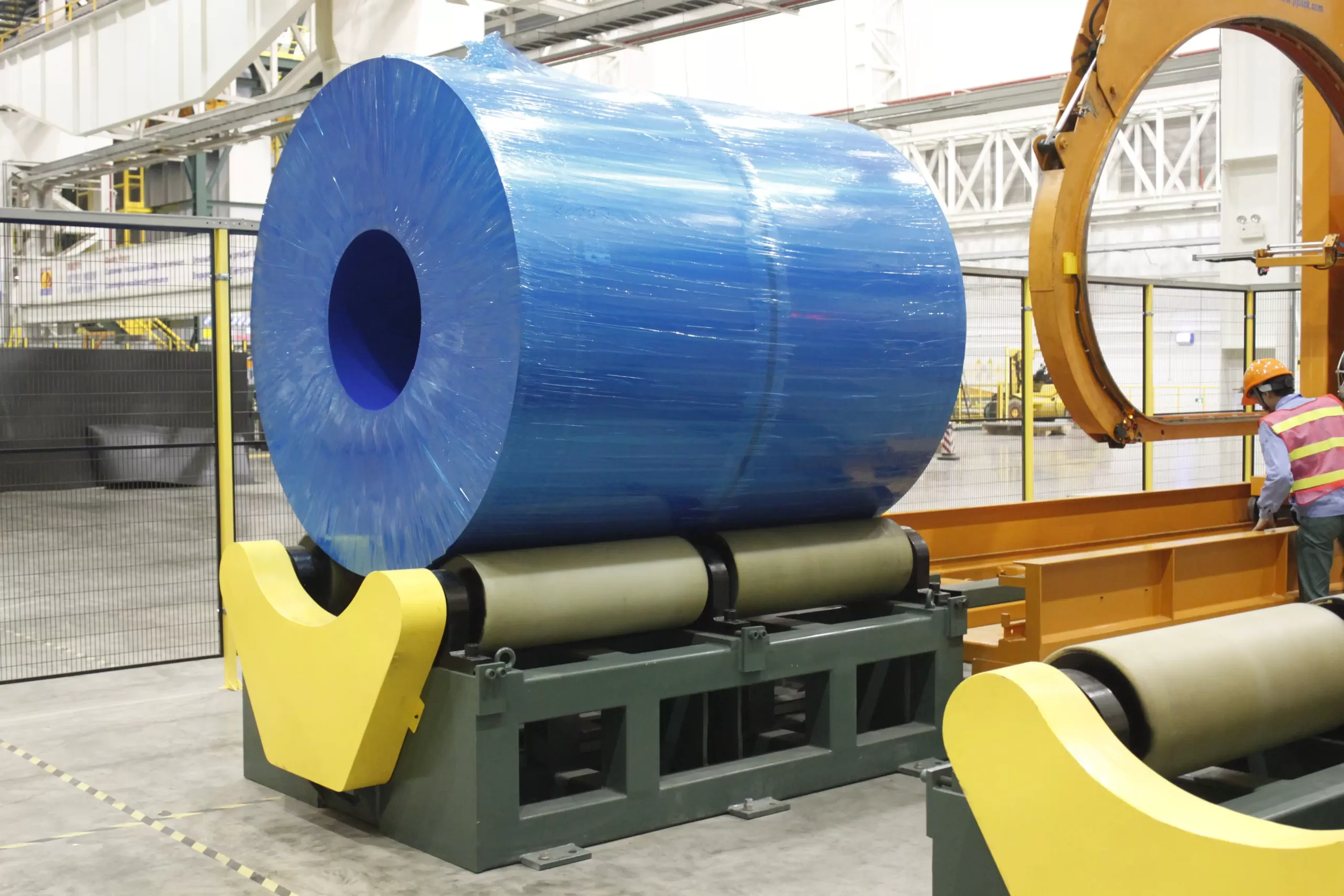

FPCA-1000Steel Coil Wrapping Machine FPCA-1000The FPCA-1000 is a horizontal wrapping machine for steel strip and slit coils, using paper, stretch film and other protective materials. It is built for coils that are packed lying flat rather than eye-through.View machine →
FPCA-1200Steel Coil Wrapping Machine FPCA-1200The FPCA-1200 is a horizontal steel coil wrapping and packing machine built from an upender, a coil station and a wrapping station. It applies film, PP woven material and paper in the sequence the coil requires.View machine →

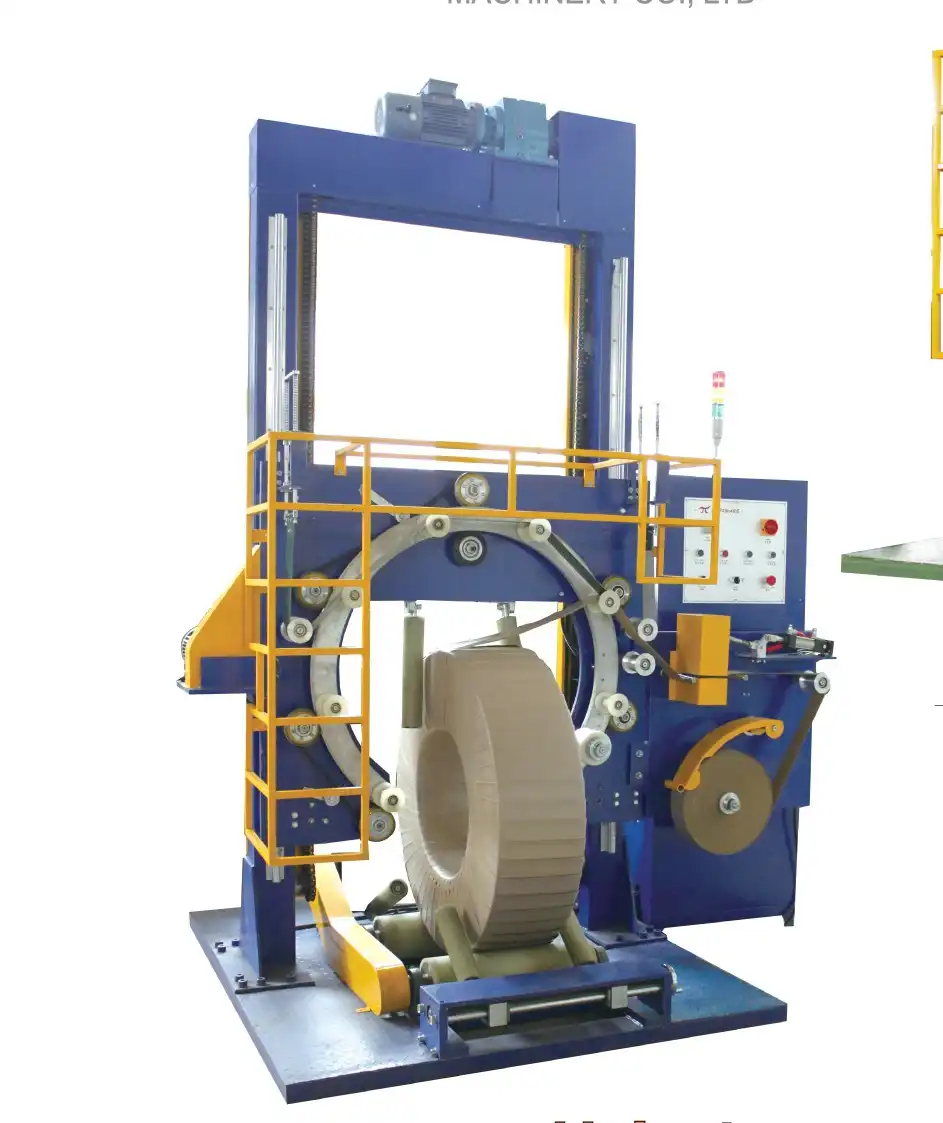

FPS-300Steel Coil Wrapping Machine FPS-300The FPS-300 wraps steel and copper coils in protective material. It is a horizontal coil wrapper designed to reduce labour and material cost while protecting the coil surface.View machine →

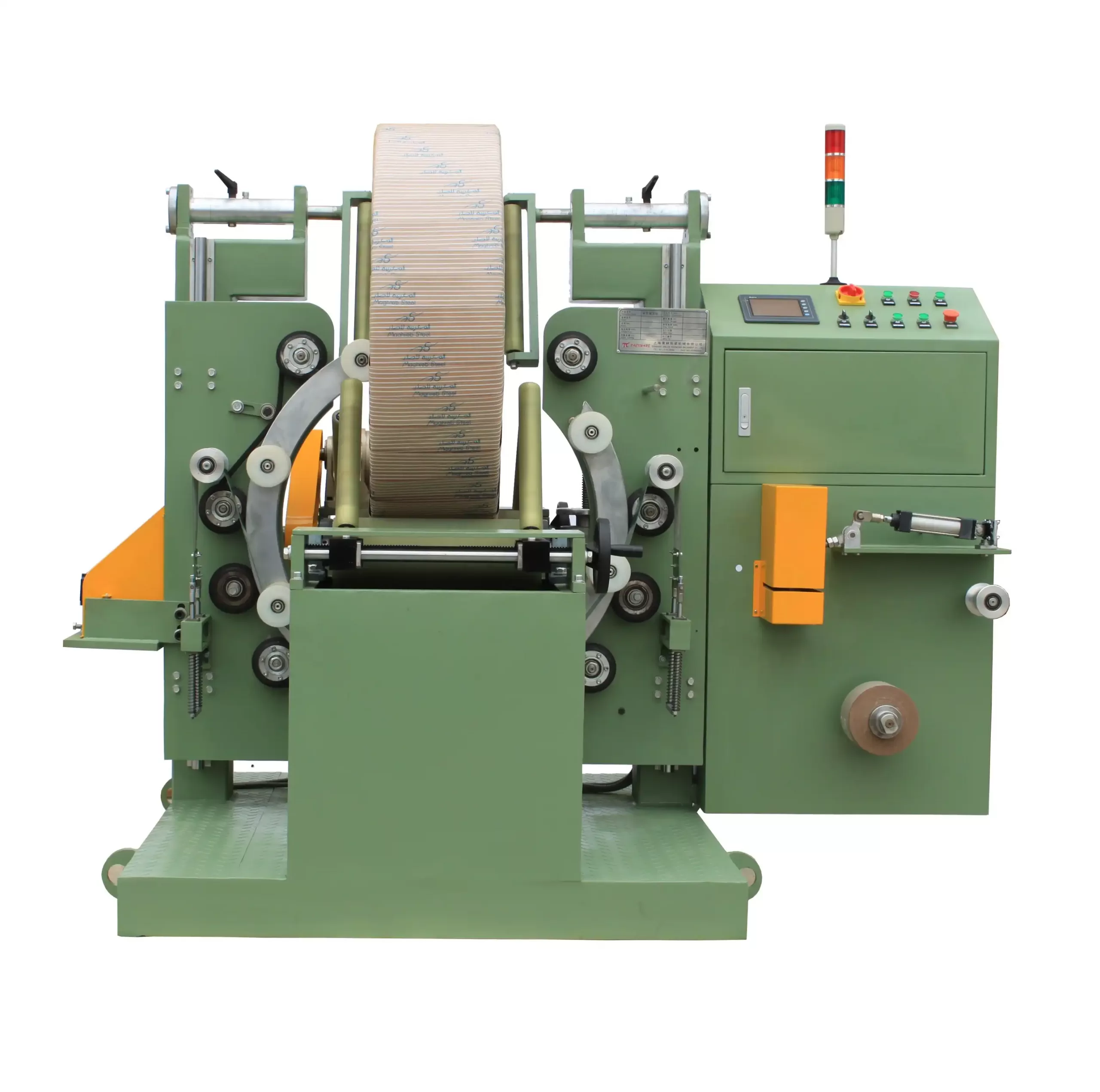

FPS-400Steel Coil Wrapping Machine FPS-400The FPS-400 wraps steel coils and steel strip coils. The machine is built for high efficiency with a tight, clean wrap that reduces labour and packaging material cost.View machine →
FPS-500Steel Coil Wrapping Machine FPS-500The FPS-500 wraps steel coils with a focus on flexibility and high operating speed. Maintenance access is straightforward, and the tight wrap reduces labour and material cost.View machine →

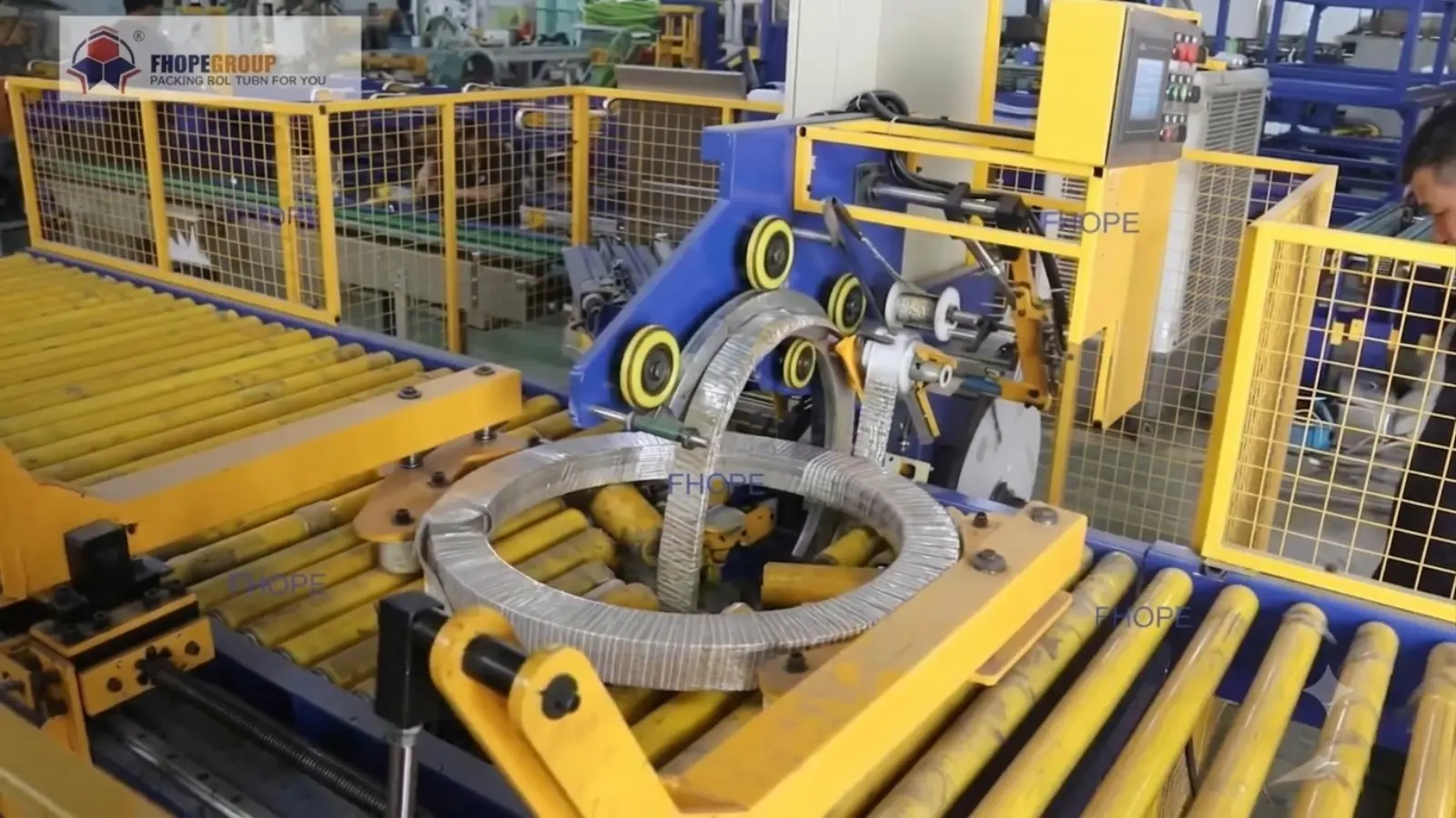

FPS-600Steel Coil Wrapping Machine FPS-600The FPS-600 wraps steel coils of different sizes with consistent tension, from small wire coils to large master coils. The tight wrap protects the coil through handling, storage and shipment.View machine →

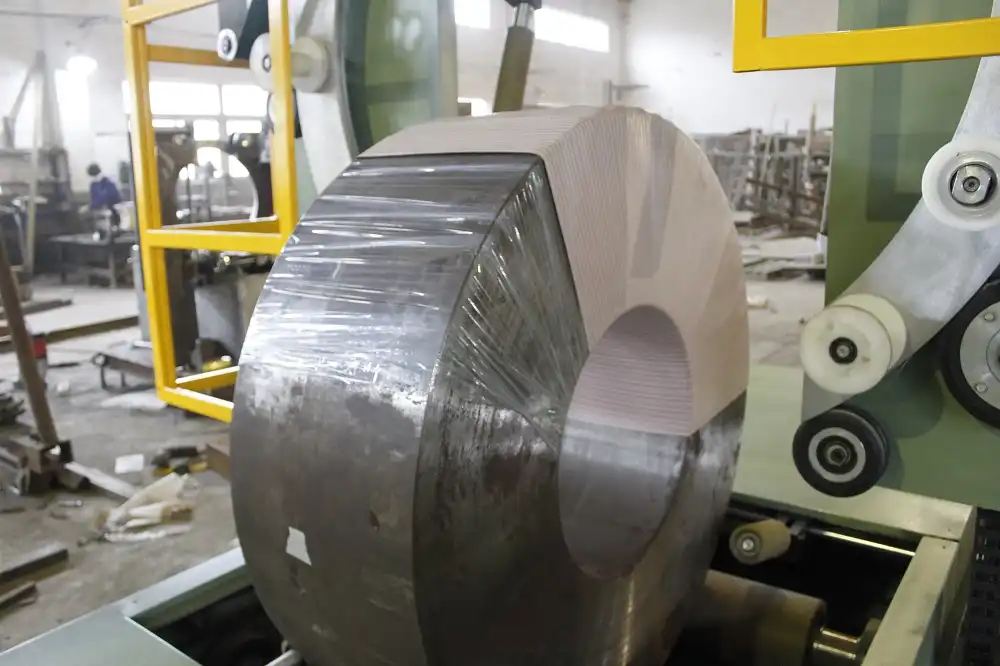

FPS-800Steel Coil Wrapping Machine FPS-800The FPS-800 wraps slit steel coils, copper coils and wire coils up to 800 mm wide and 400 kg in weight, using film, paper or HDPE. Coils are loaded and unloaded by trolley.View machine →
Wire Coil Wrapping Machine
6 products · application page →

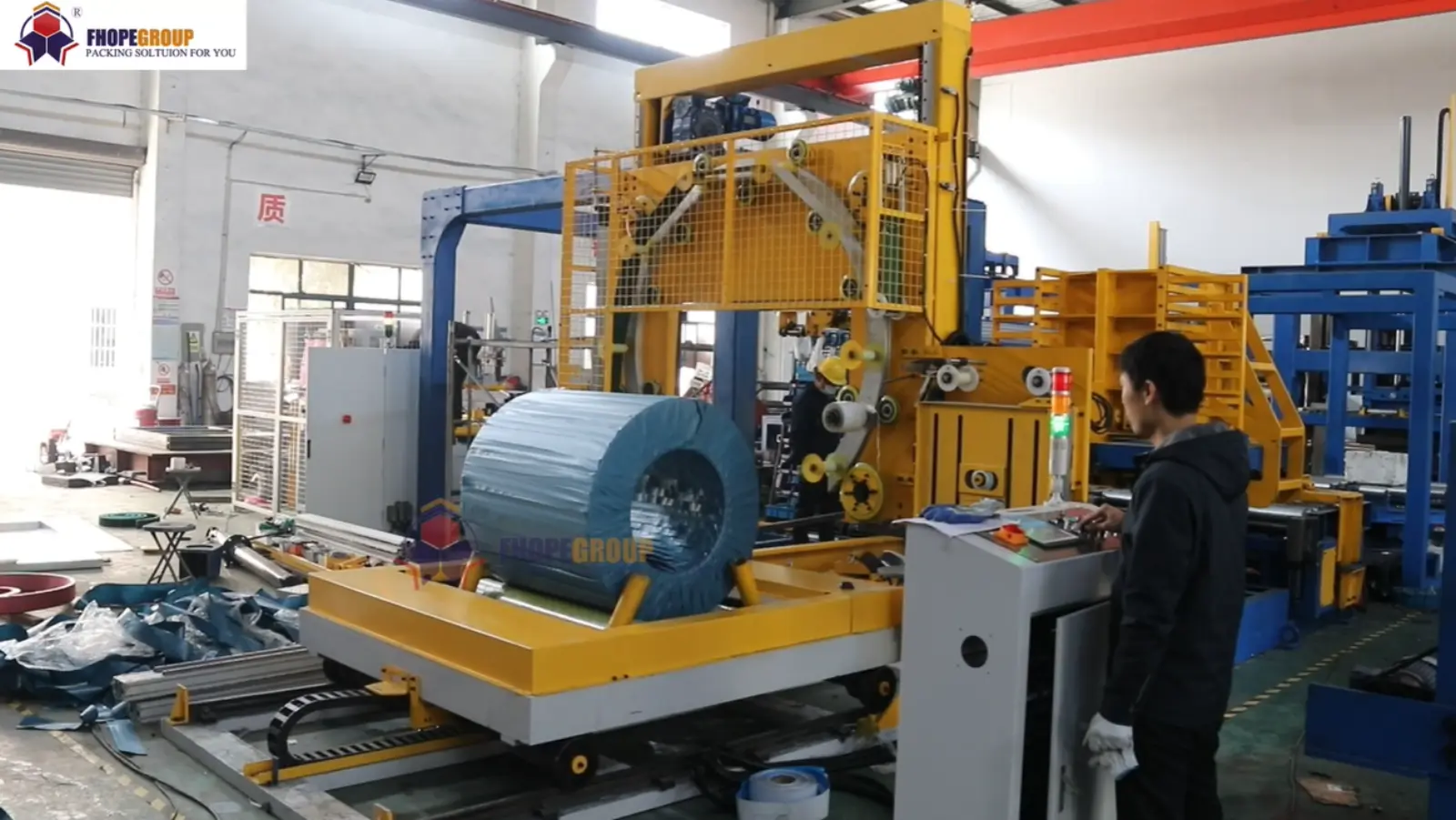

FPW-2500Wire Coil Wrapping Machine FPW-2500The horizontal PC wire coil packing machine is designed for steel wire coils with outer diameters of up to 2500 mm and weights of 1 to 3 tons. It is a ring-type coil wrapping machine that feeds plastic wrapping film through the inner diameter of the coil.View machine →

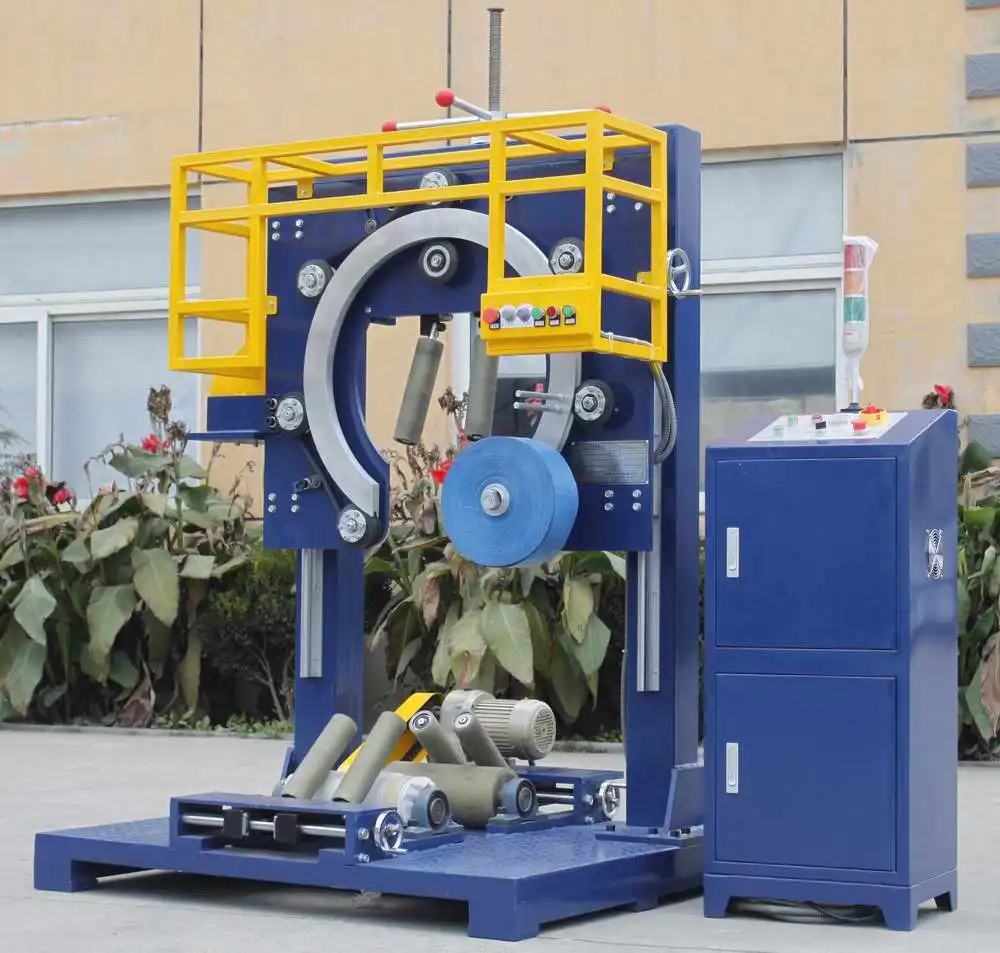

FPW-300Wire Coil Wrapping Machine FPW-300The FPW-300 is a wire coil ring wrapper intended for medium-sized coils. It is capable of wrapping coils with various packaging materials, such as LLDPE stretch film, compound paper, knitted belts, and more.View machine →
FPW-400Wire Coil Wrapping Machine FPW-400The FPW-400 wraps steel wire and copper wire coils in film, paper or woven material. It is a floor-standing ring wrapper: the coil is loaded by crane, trolley or conveyor, and a rotating ring with turning rollers wraps it in place.View machine →

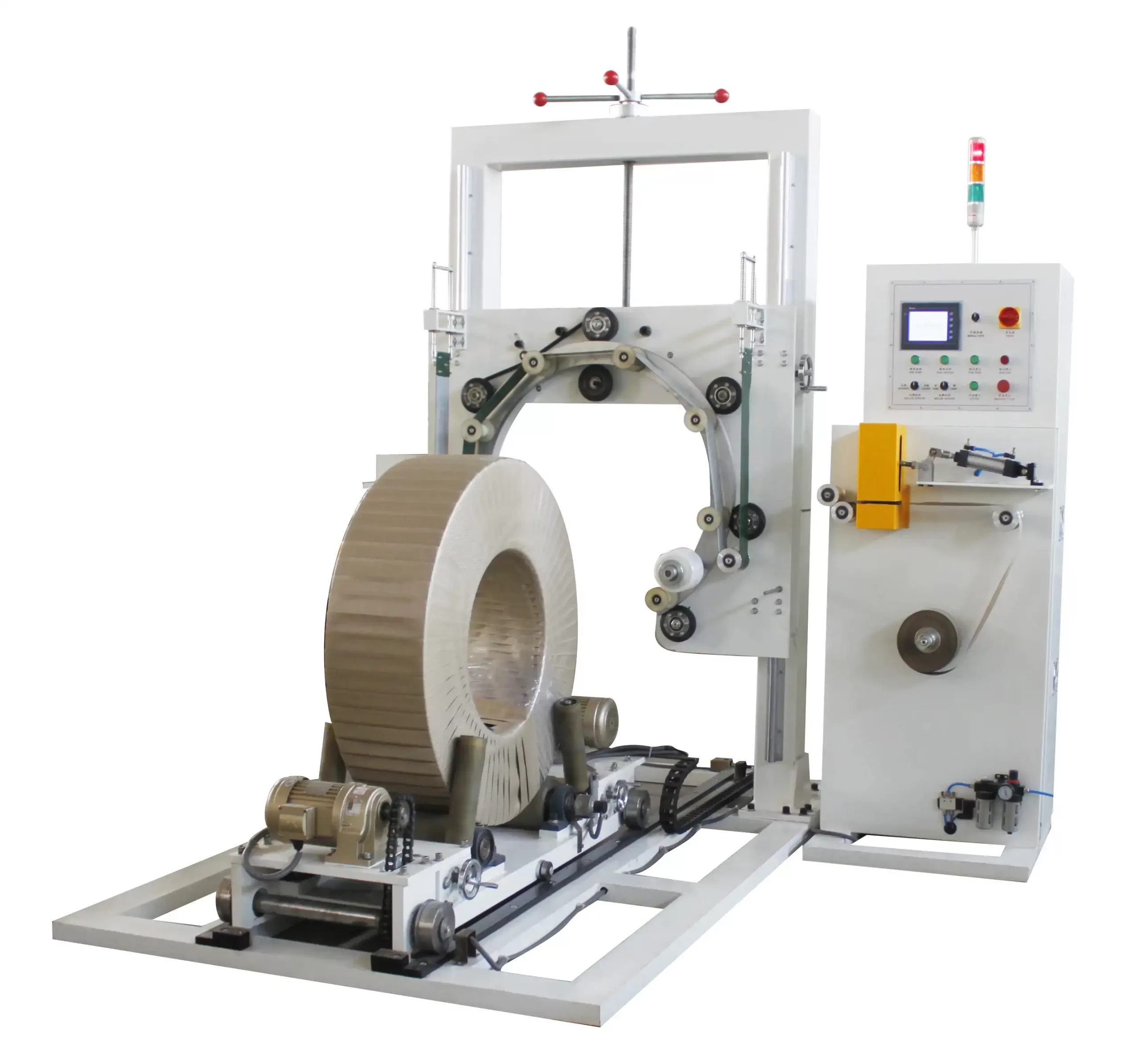

FPW-500Wire Coil Wrapping Machine FPW-500The FPW-500 wraps wire coils and includes a trolley for loading and unloading. A Siemens PLC controls the machine movements, and the control system is laid out for straightforward maintenance.View machine →
FPW-600Wire Coil Wrapping Machine FPW-600The FPW-600 is a steel wire coil wrapping machine featuring a trolley for easy coil loading and unloading. Primarily used for packaging big prestressed concrete wire and pre-strand wire coils, the FPW-600 delivers high efficiency and superior packaging.View machine →

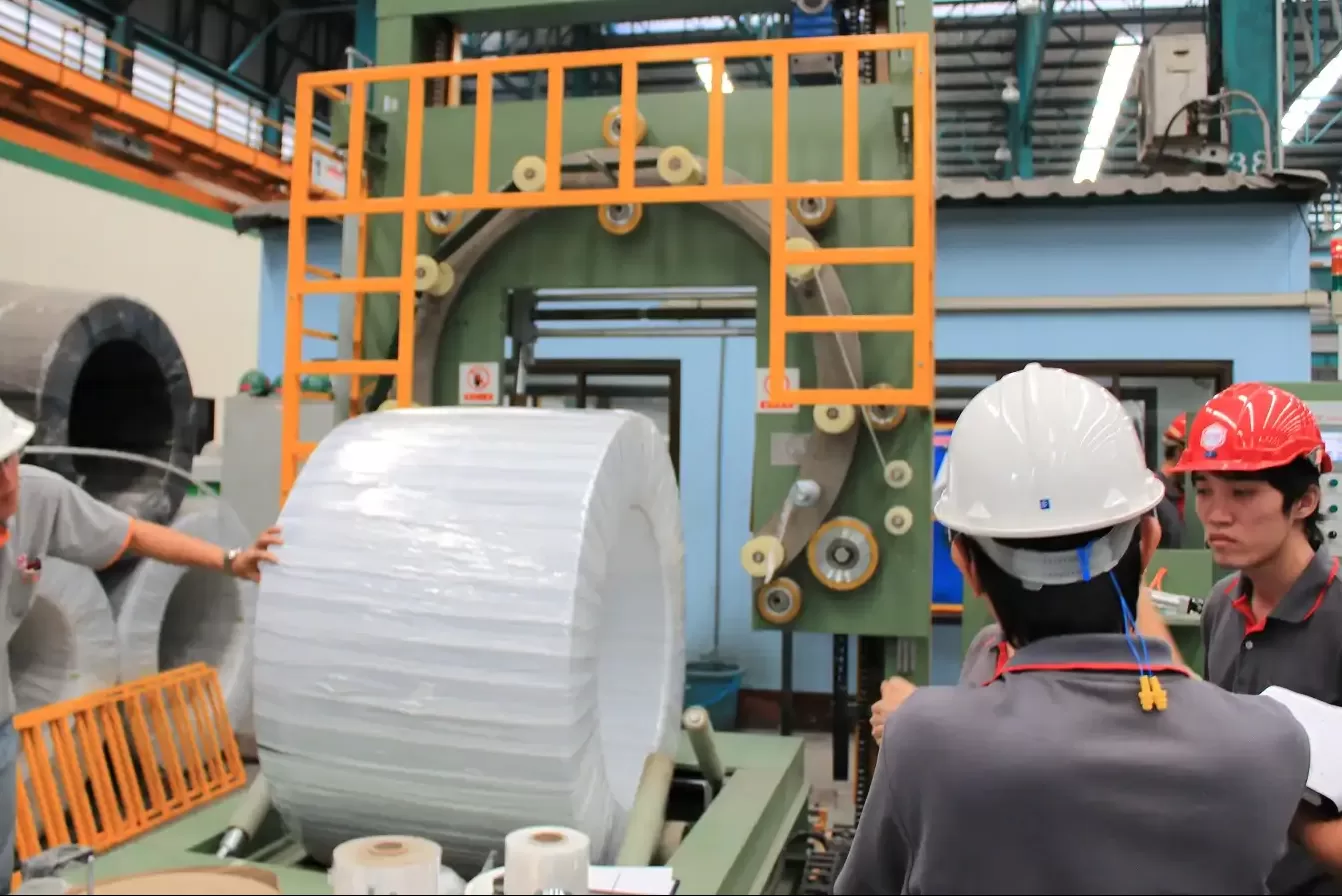

FPW-800Wire Coil Wrapping Machine FPW-800The FPW-800 wraps pre-stranded and PC wire coils and comes with loading and unloading trolley equipment. It is a heavy wire coil wrapper for coils that are too heavy to load by hand.View machine →
Copper Coil Packing Machine
3 products · application page →
FPC-200Copper Coil Packing Machine FPC-200The FPC-200 packs copper coils from 20 mm to 200 mm in width. It is a horizontal wrapping machine for copper and brass strip coils, built around the customer's coil dimensions.View machine →
FPC-300Copper Coil Packing Machine FPC-300The FPC-300 is a horizontal copper coil wrapper for coil widths from 50 mm to 300 mm. Overlap and layer count are adjustable from the panel, and the closed wrap protects the copper surface during handling and storage.View machine →
FPC-400Copper Coil Packing Machine FPC-400The FPC-400 wraps copper coils horizontally, and the same machine is used for copper wire and cable coils. Coil dimensions, packing material and wrapping pattern are confirmed with the customer before the machine is built.View machine →
Pipe Coil Packing Machine
2 products · application page →
FPH-200Pipe Coil Packing Machine FPH-200The FPH-200 is a hose and pipe coil wrapper built for straightforward operation. It is designed for plastic pipe and hose coils, and it reduces both labour and packaging material consumption.View machine →

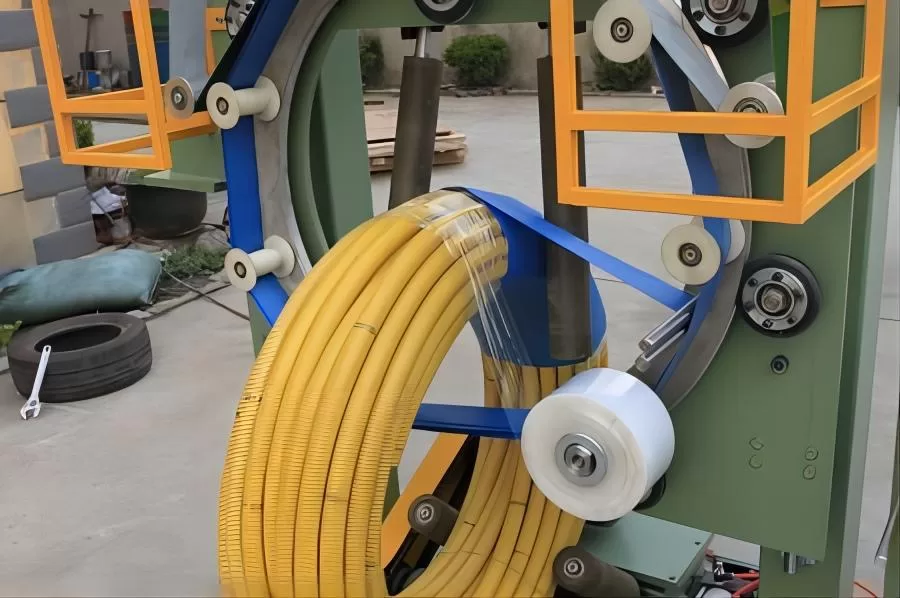

FPH-400Pipe Coil Packing Machine FPH-400The FPH-400 wraps hose and pipe coils, including PEX, PE, corrugated and HDPE pipe. High wrapping efficiency and a tight package reduce labour and material cost.View machine →
Cable Coil Packing Machine
3 products · application page →

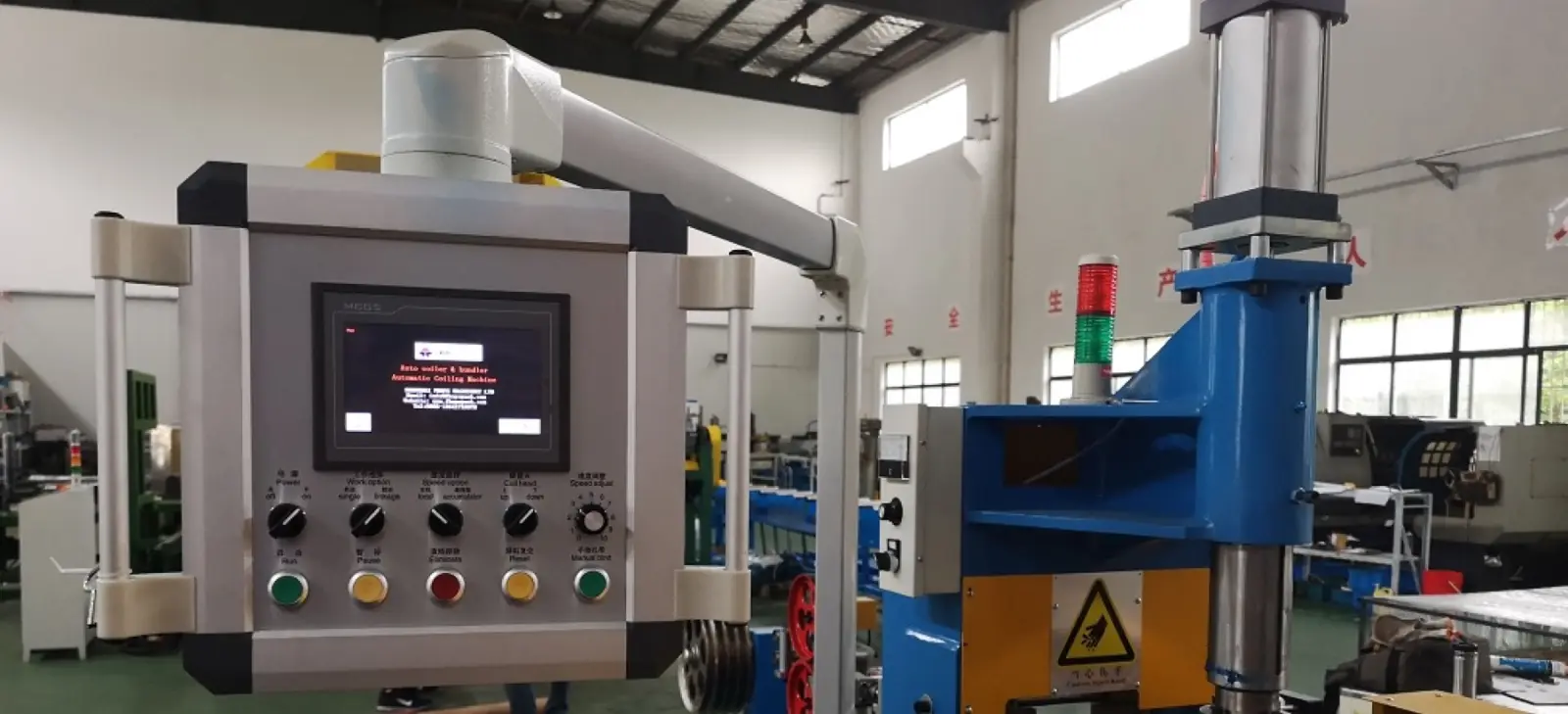

FPCA-100Cable Coil Packing Machine FPCA-100The FPCA-100 wraps cable coils with an inner diameter of 90 mm. It uses eye-through wrapping at high speed, and the simple, low-maintenance design keeps material changes quick.View machine →

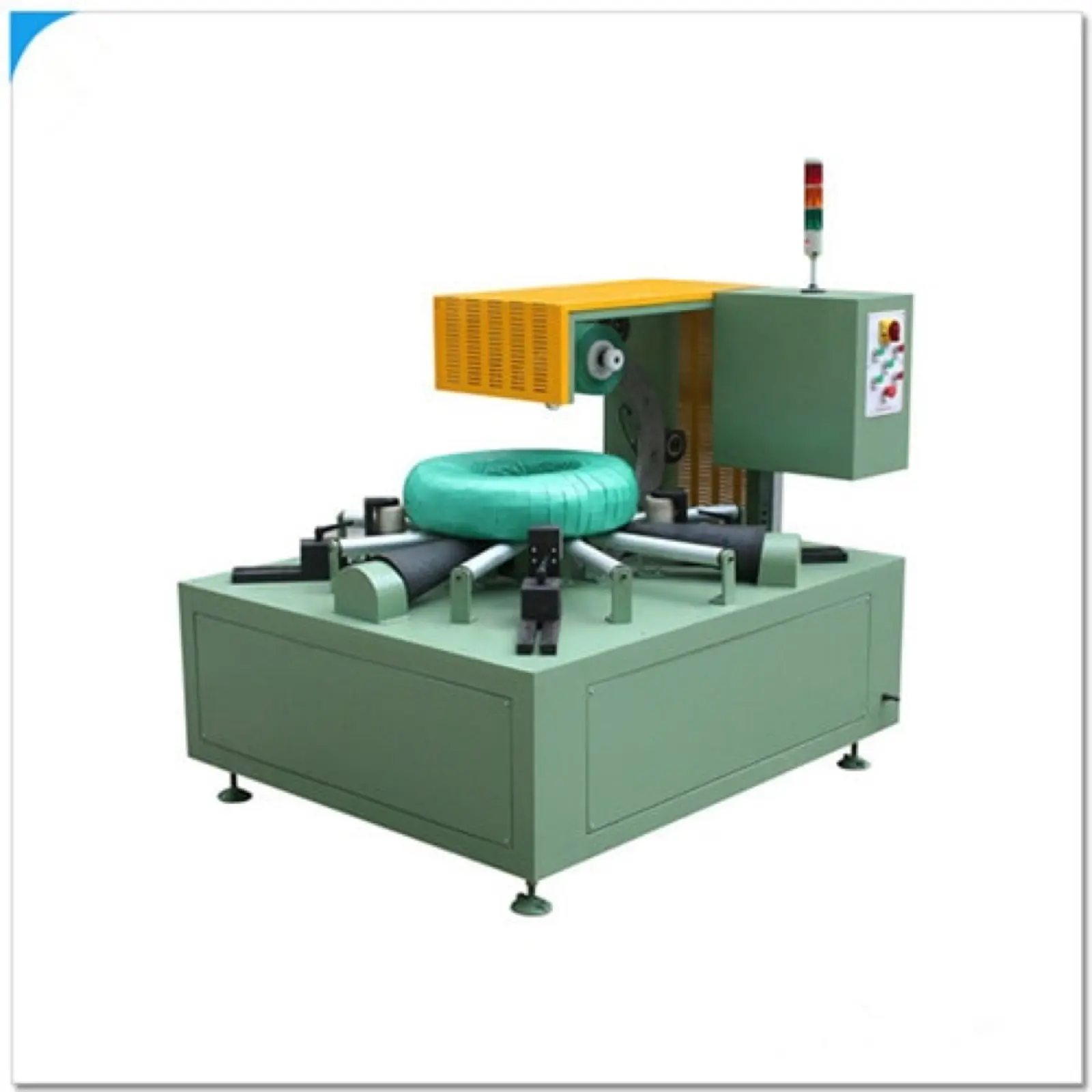

FPCA-200Cable Coil Packing Machine FPCA-200The FPCA-200 wraps cable coils in protective film or paper. The wrapping station is laid out for fast material changes and easy maintenance, and the finished coil keeps a clean, consistent appearance.View machine →

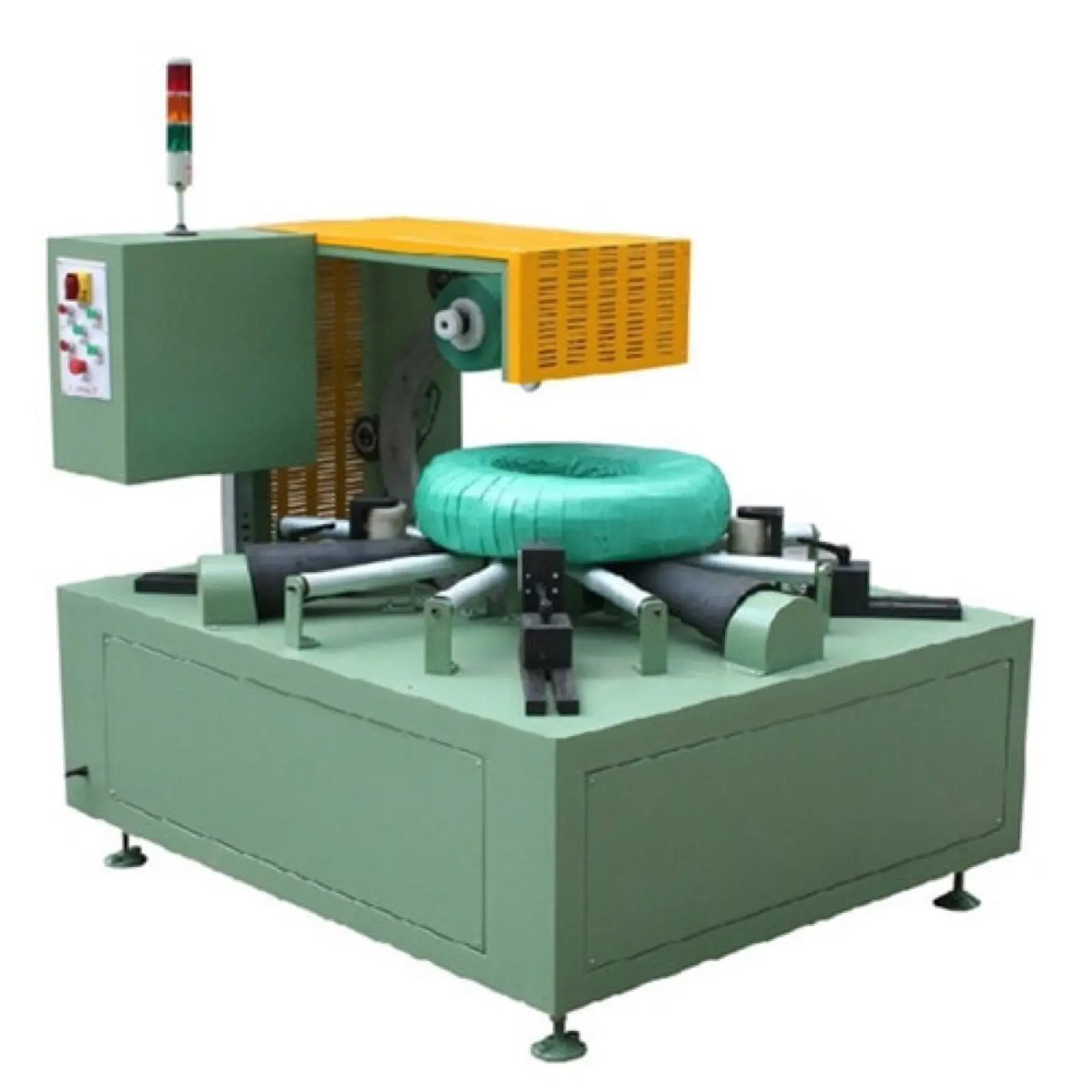

FPCA-300Cable Coil Packing Machine FPCA-300The FPCA-300 wraps large cable coils, with material handling designed for two-layer wrapping in stretch film, paper or woven material. Both layers are applied at the same wrapping station in one pass.View machine →
Bearing Packing Machine
5 products · application page →

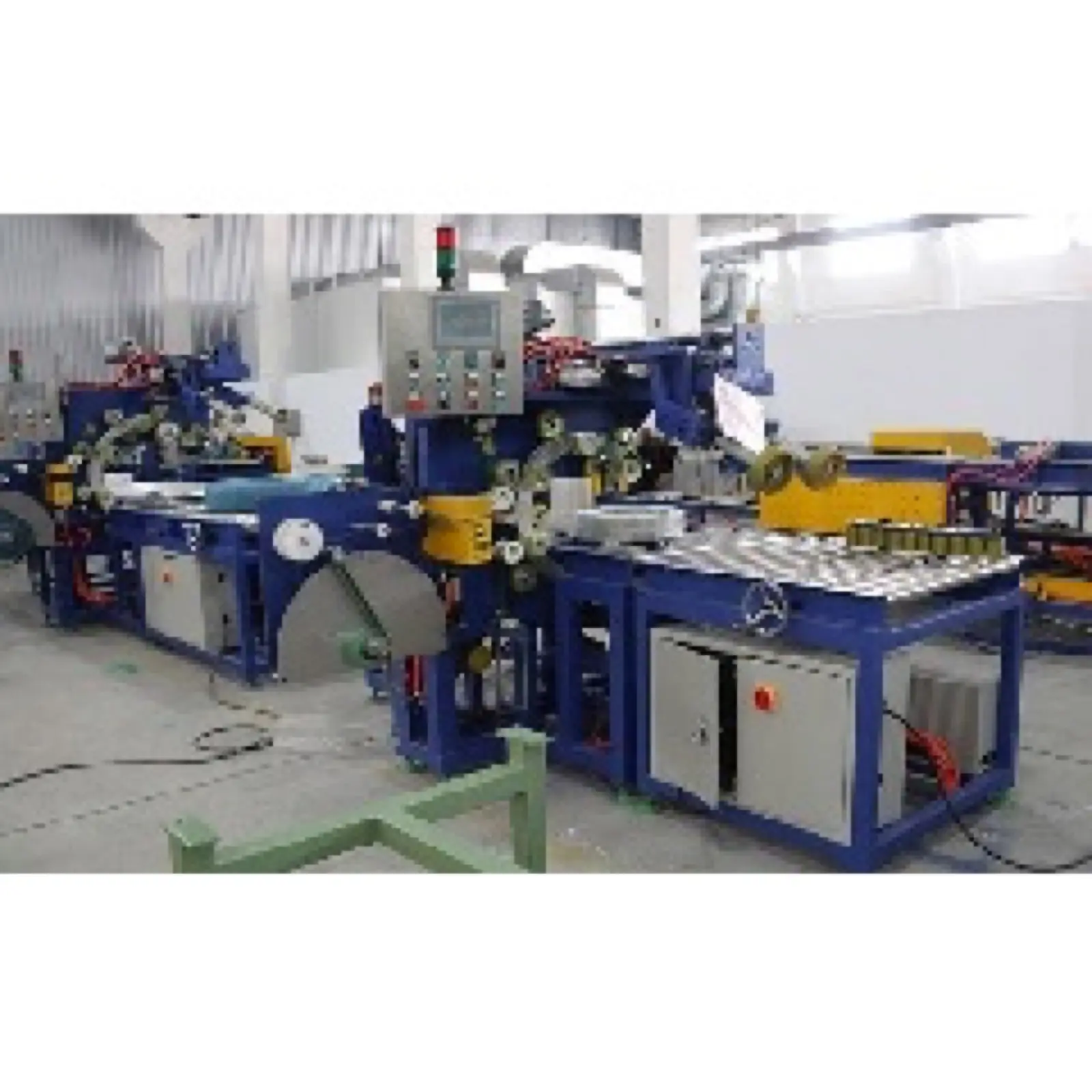

FPB-200Bearing Packing Machine FPB-200This machine is designed to provide a reliable and efficient packaging solution for bearings. It is an online and automatic system that can be customized to meet specific requirements, such as size, packing material, and handling needs.View machine →

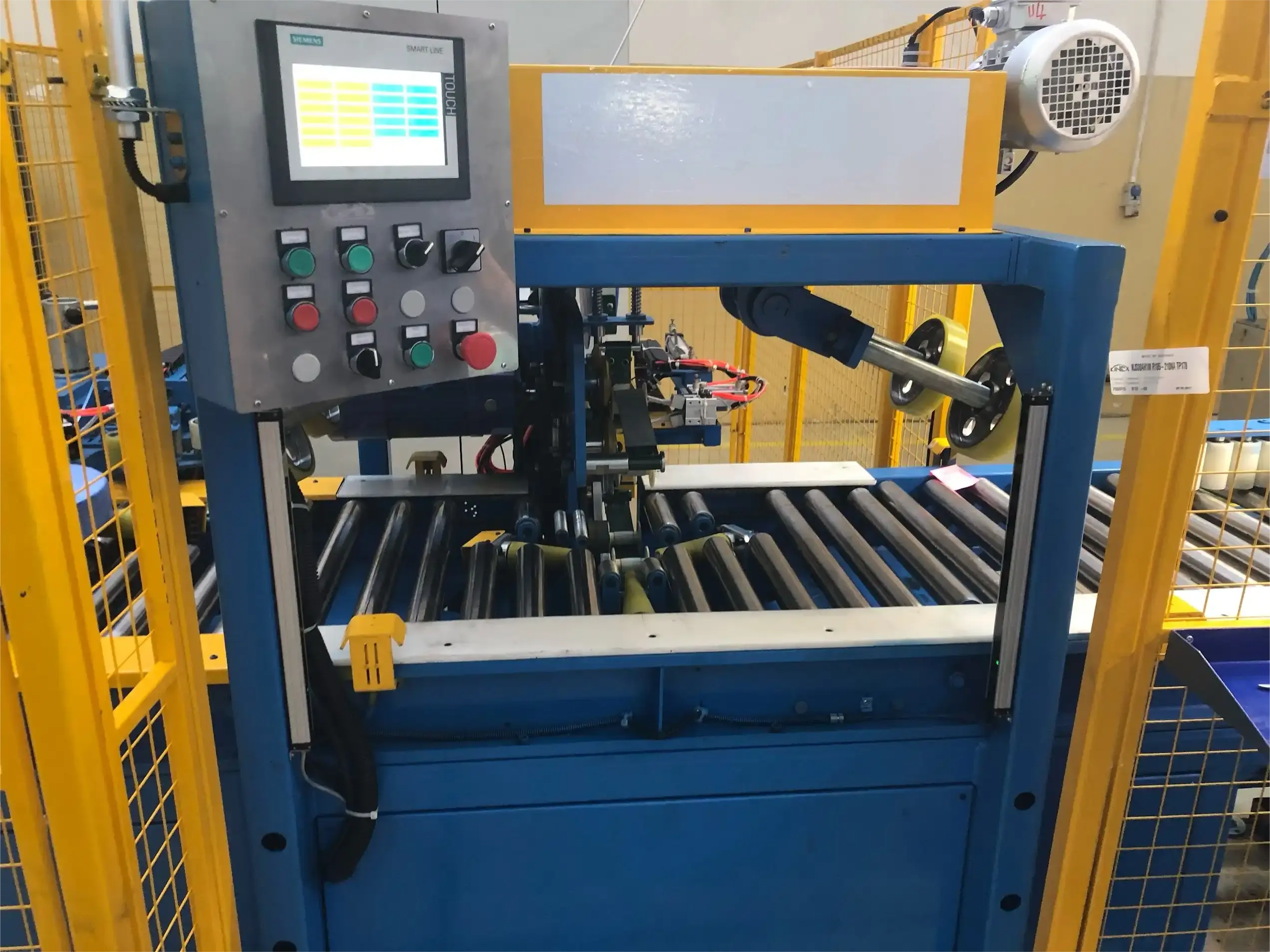

FPB-300Bearing Packing Machine FPB-300The FPB-300 wraps large bearings and axletrees in protective material. It raises packaging quality and throughput at the same time, which lowers both labour and packing material cost.View machine →

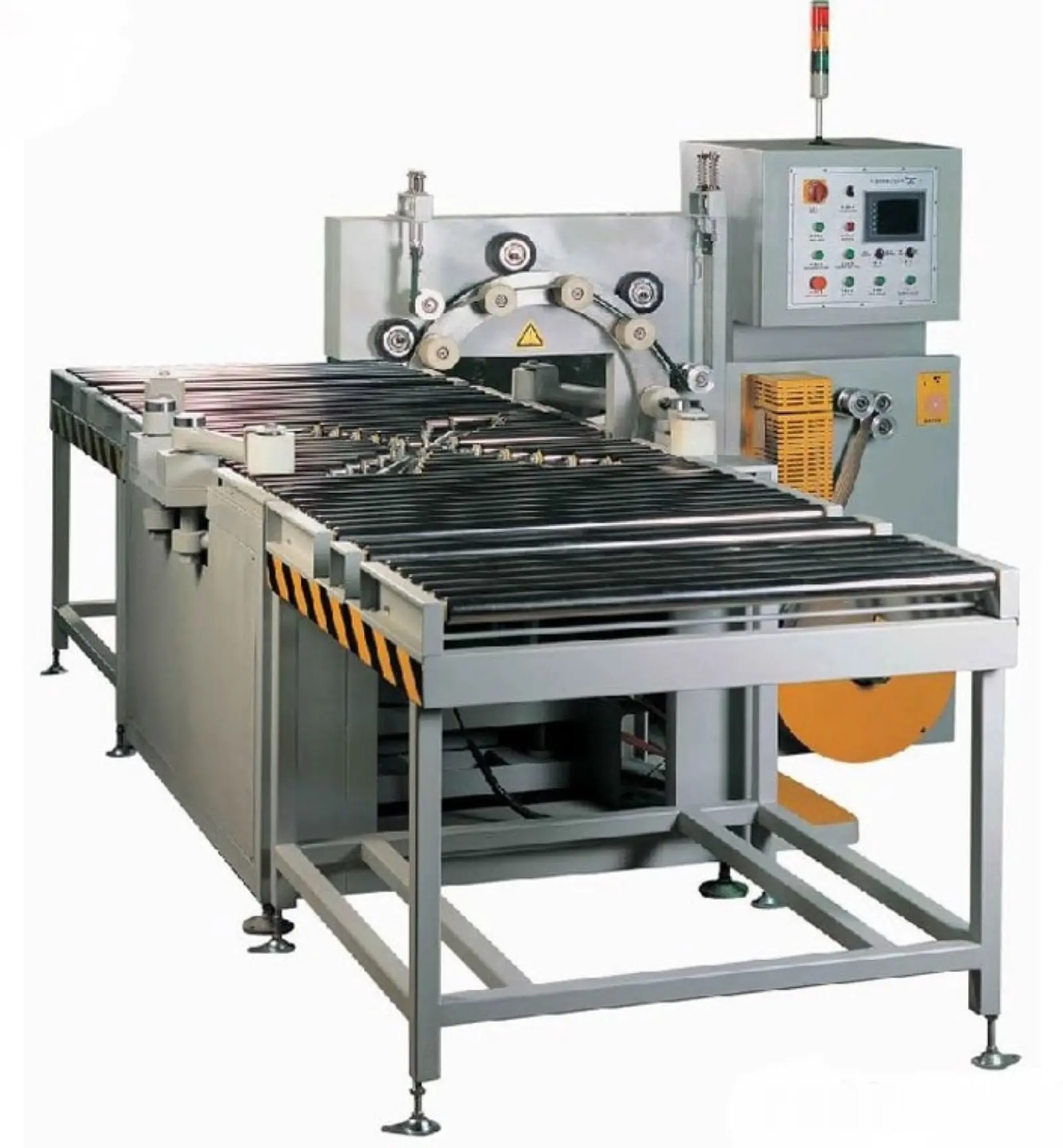

FPB-400Bearing Packing Machine FPB-400The FPB-400 is built for large bearings and axletrees. It wraps each bearing in protective material at production speed, increasing packing capacity while cutting labour and material waste.View machine →

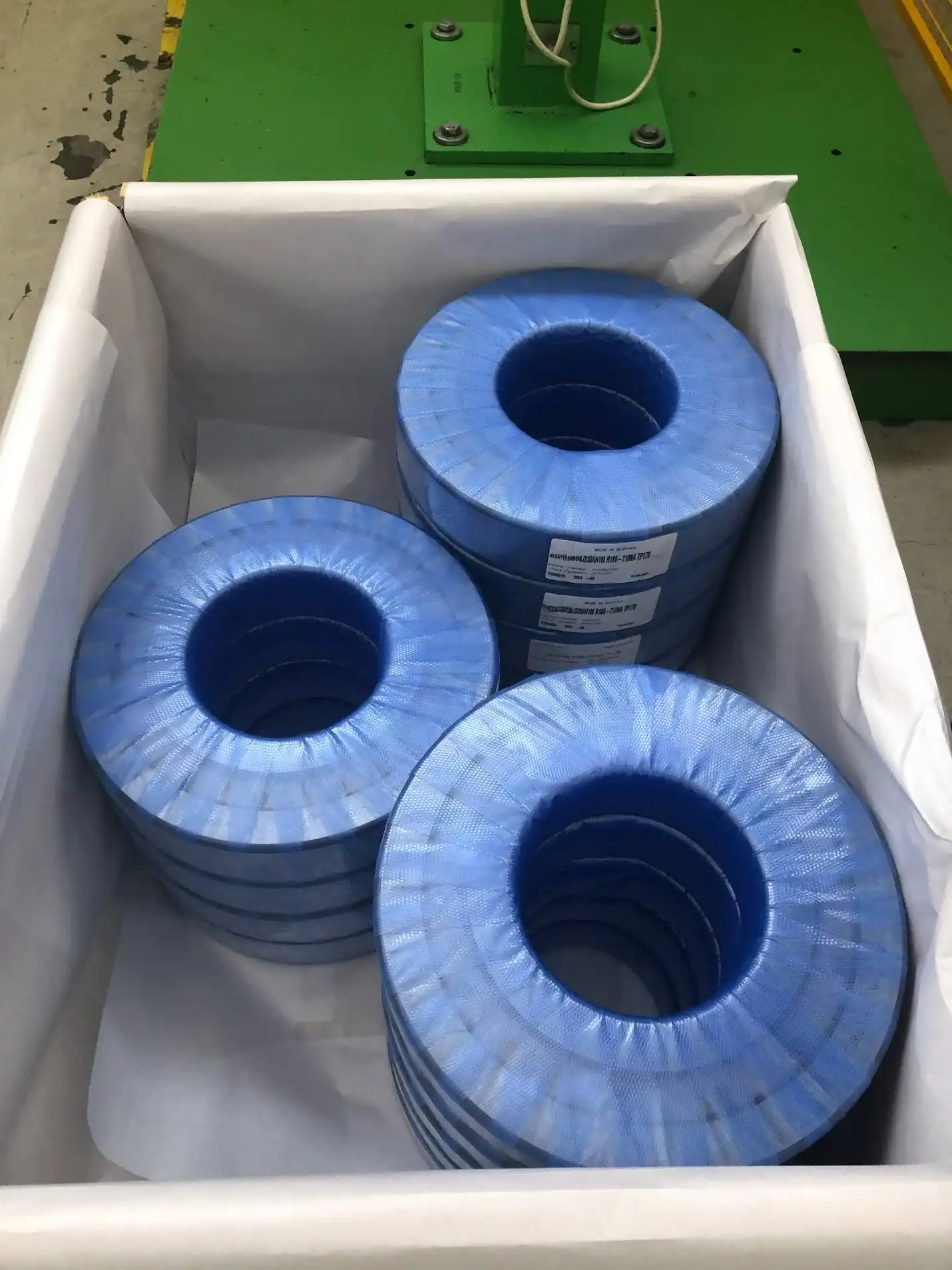

FPBS-200Bearing Packing Machine FPBS-200A bearing wrapping machine is a specialized piece of equipment used in industrial settings to wrap bearings in protective materials. The machine is designed to efficiently and effectively package bearings, protecting them from damage during storage and transportation.View machine →
FPCA-6000Bearing Packing Machine FPCA-6000FHOPE offers a packaging solution for big-sized bearings used in various applications such as supportive, wind, turbine, blade, and slewing ring bearings. This machine efficiently wraps and handles bearings, replacing manual labour and providing a tight and neat packaging.View machine →
Tyre Packing Machine
3 products · application page →

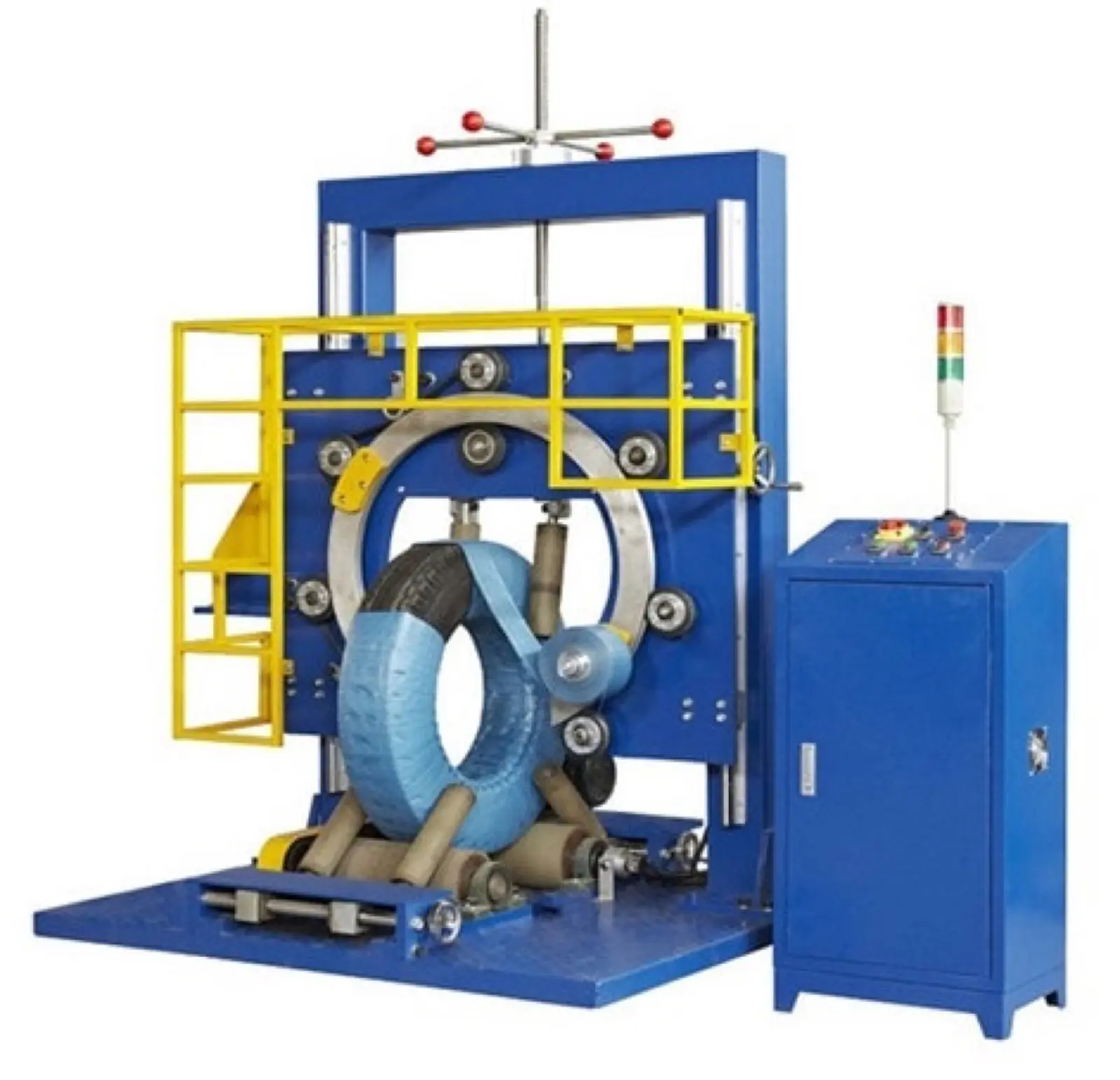

FPT-200Tyre Packing Machine FPT-200The FPT-200 wraps motorcycle tyres and other light tyres. The tyre is held firmly through the cycle so it cannot shift, and the finished package is compact and even.View machine →

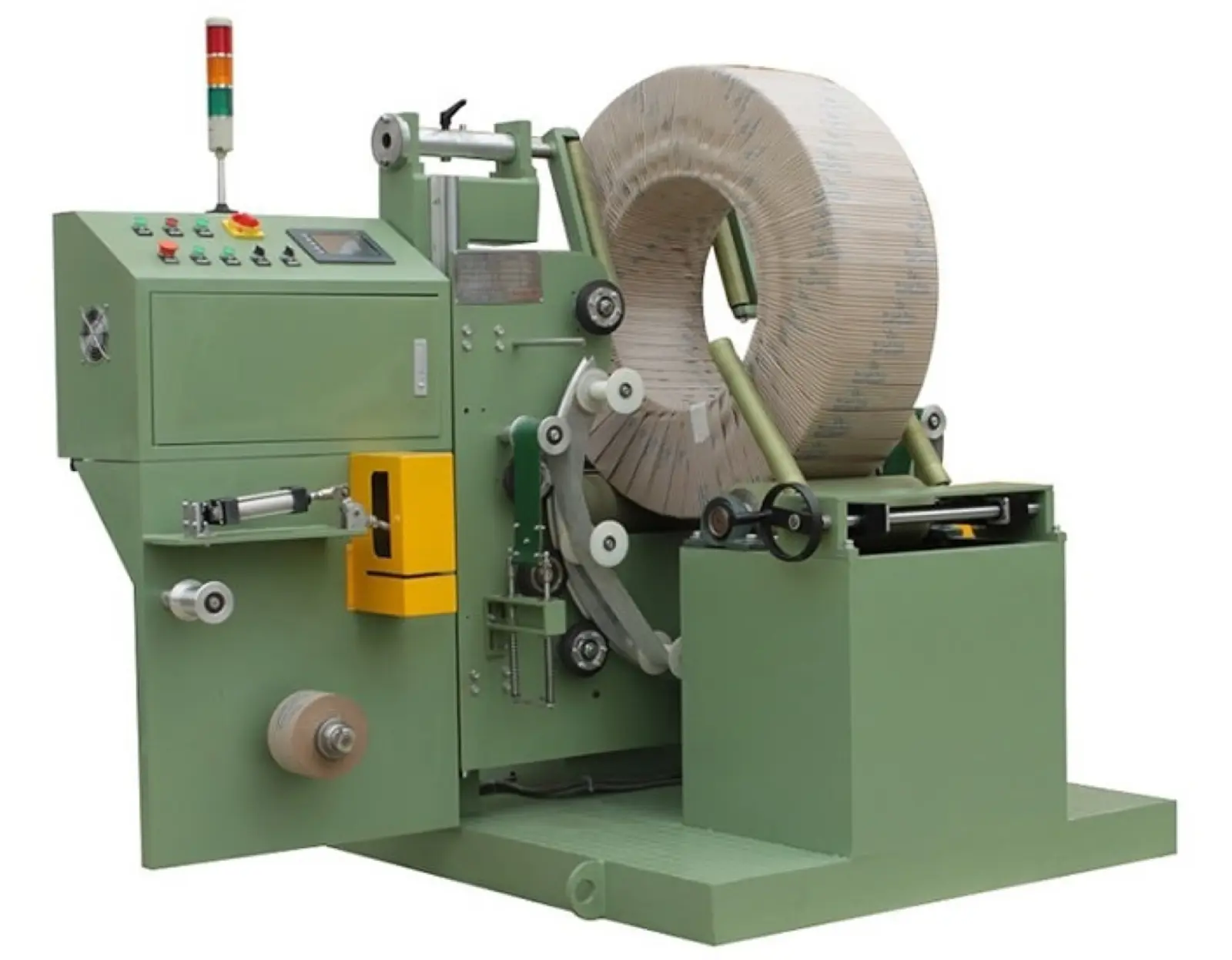

FPT-300Tyre Packing Machine FPT-300The FPT-300 wraps tyres in protective film for a clean, uniform finish. It is simple to operate and is used where tyres have to be packed quickly without manual handling.View machine →- FPT-400Tyre Packing Machine FPT-400The FPT-400 wraps large tyres and rolls automatically, replacing the manual job of wrapping by hand. Packaging material is mounted beside the wrapping station, so the roll leaves the machine ready for storage or shipment.View machine →
Technical data
Specifications
Every machine is built around the customer's coil dimensions, so the ranges below describe the envelope we engineer within — not a fixed catalogue size. Tell us your coil and we confirm the exact model.
Get the technical proposal →| Coil weight | 20 kg – 25 000 kg (model dependent) |
|---|---|
| Coil outer diameter | Ø 600 – 2 200 mm |
| Coil inner diameter | Ø 400 – 800 mm |
| Coil width | 10 – 2 000 mm |
| Wrapping speed | 25 – 70 sec / coil |
| Film material | LLDPE stretch film, VCI film, kraft paper, woven belt |
| Control | PLC + HMI touch screen, recipe memory |
| Power supply | AC 380 V / 50 Hz (customisable) |
Machine features
What is in the machine
- Eye-through and horizontal wrapping modes cover coil from 20 kg to 25 t
- PLC + HMI with recipe memory: change coil size without mechanical adjustment
- Compatible with LLDPE stretch film, VCI anti-rust film, kraft paper and woven belt
- Overlap ratio, film tension and layer count are set from the touch screen
- Integrated weighing, labelling and stacking available as options
- CE compliant guarding, emergency stops and safety interlocks
Industry applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Send us your coil data — we quote the right machine, not the biggest one
Coil inner / outer diameter, width, weight and required output per hour are enough for us to propose a model range, layout drawing and delivery time.
Request a quotation →Expert insights
Frequently asked questions
What is a steel coil wrapping machine?
A steel coil wrapping machine is an automated packaging machine that applies protective film, paper, or woven material around steel coils to prevent rust, scratches, and handling damage. FHOPE systems handle slit coils, copper coils, and heavy steel master coils, and can run alone or as part of a complete coil packing line with strapping, weighing, labeling, and stacking.
How does eye-through coil wrapping work?
Eye-through wrapping places the coil with its axis vertical and rotates a wrapping ring around it, feeding film through the center eye so the material covers the full coil surface in continuous spiral layers. This method creates seamless, tight protective sealing with controlled tension across the coil faces and outer diameter.
What coil sizes can the machine handle?
FHOPE coil wrapping machines are engineered around the customer's coil dimensions , including inner diameter, outer diameter, and width, so size capacity is defined by model and configuration. The series covers narrow slit coils through wide heavy-duty master coils. Customers provide ID, OD, width, weight, and material type for model selection.
What is the maximum coil weight?
The maximum coil weight depends on the model and coil dimensions; FHOPE heavy-duty machines are engineered for multi-ton steel master coils used in mills and processing plants. An exact rating is confirmed during application engineering based on outer diameter, width, and loading method such as crane, trolley, or conveyor.
Can it wrap slit steel coils?
Yes. FHOPE offers horizontal automatic wrapping systems designed specifically for slit steel coils, with professional multi-layer protective packaging. Slit-coil systems can be combined with upenders, strapping, labeling, and conveyor integration, and connect directly to slitting line output.
Can it use VCI film?
Yes. The wrapping system supports VCI film as well as stretch film, kraft paper, and woven protective materials. VCI film adds corrosion protection for ocean freight and long-term storage, and customers can test different wrapping materials to confirm the required protection level.

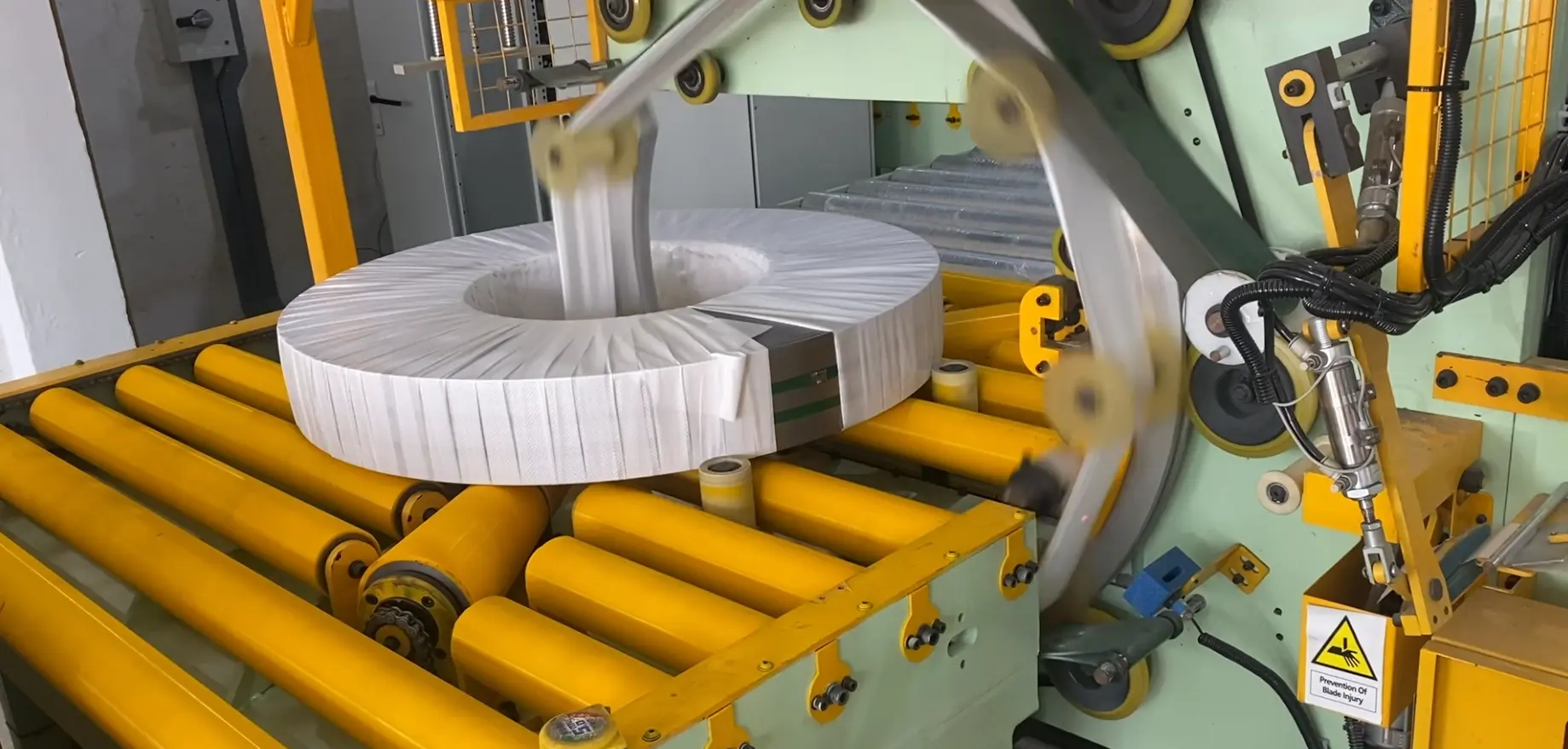

Machines in action
