Coil Wrapping Machine · Wire Coil Wrapping Machine · FPW-500
Wire Coil Wrapping Machine FPW-500
The FPW-500 wraps wire coils and includes a trolley for loading and unloading.
- FPW-500
- Coil Packing Machine
- 300-700
- Steel wire coil ID(mm)
- 700-1300
- Steel wire coil OD(mm)
- 50-500mm
- Steel wire coil width(mm)
Overview
FPW-500 in short
The FPW-500 wraps wire coils and includes a trolley for loading and unloading. A Siemens PLC controls the machine movements, and the control system is laid out for straightforward maintenance.
The FPS-500 is a steel wire wrapper designed for coils 100-500 mm in width. Coils are loaded and unloaded from the top of the machine via crane. The wrapping process travels through the coil ID at 360 degrees. This flexible, low-maintenance machine can replace 3-4 workers, packing at high speeds while producing neatly wrapped, seaworthy packages. With an affordable price and 1-2-year ROI, the FPS-500 is an ideal wire packaging solution.
The FPW-500 series steel wire wrapper features a trolley for easy coil loading/unloading. A Siemens PLC provides precise control of wrapping motions with minimal maintenance. Premium electrical components enable high-speed, gentle wrapping and high reliability at low operating and maintenance costs.
1. Automatic for wire coil wrapping with packing material length checking.
3. Supportive roller PU covering & passive friction wheels and integral mould structure devices antiskid and safe, making package object more stable and tidier.
Visual details

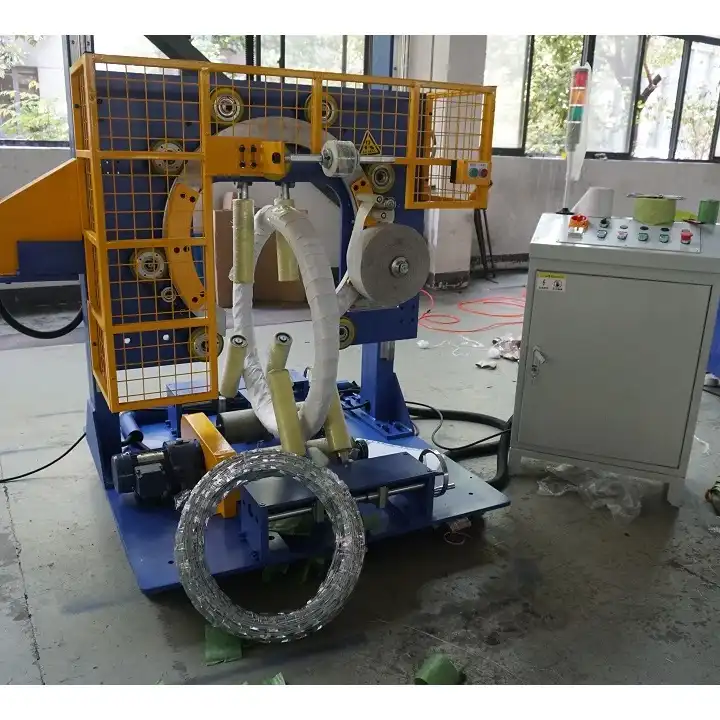

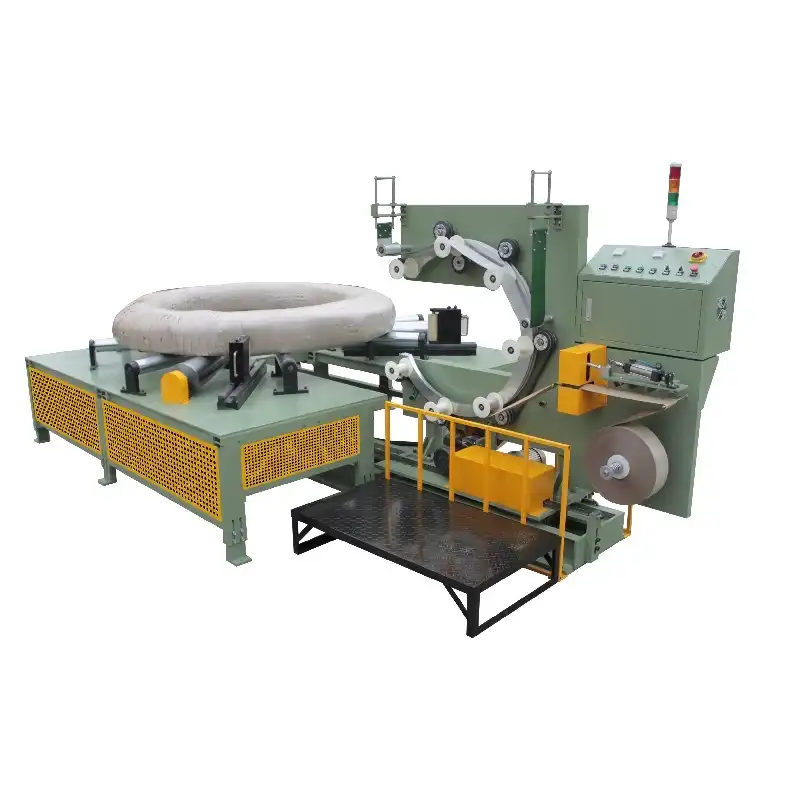

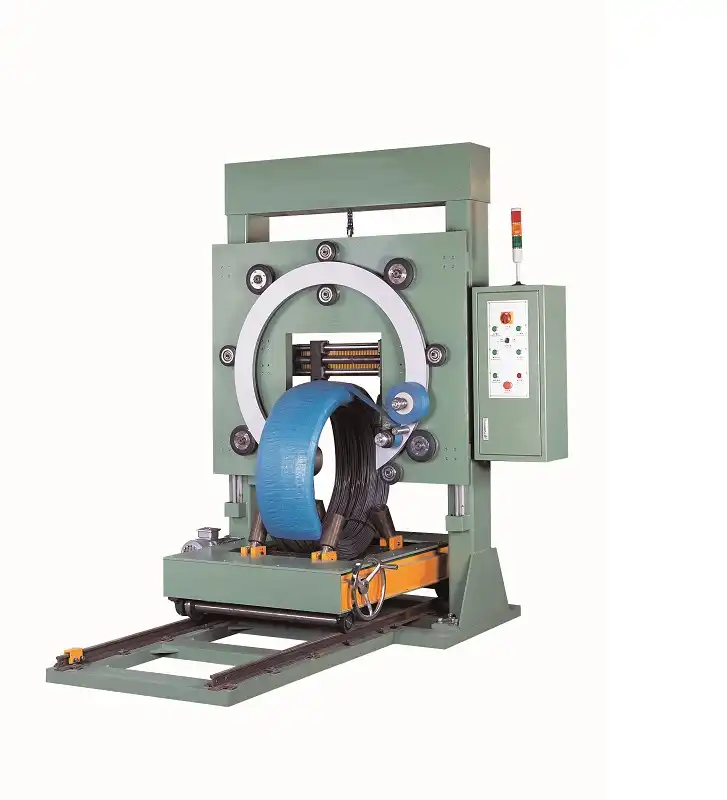

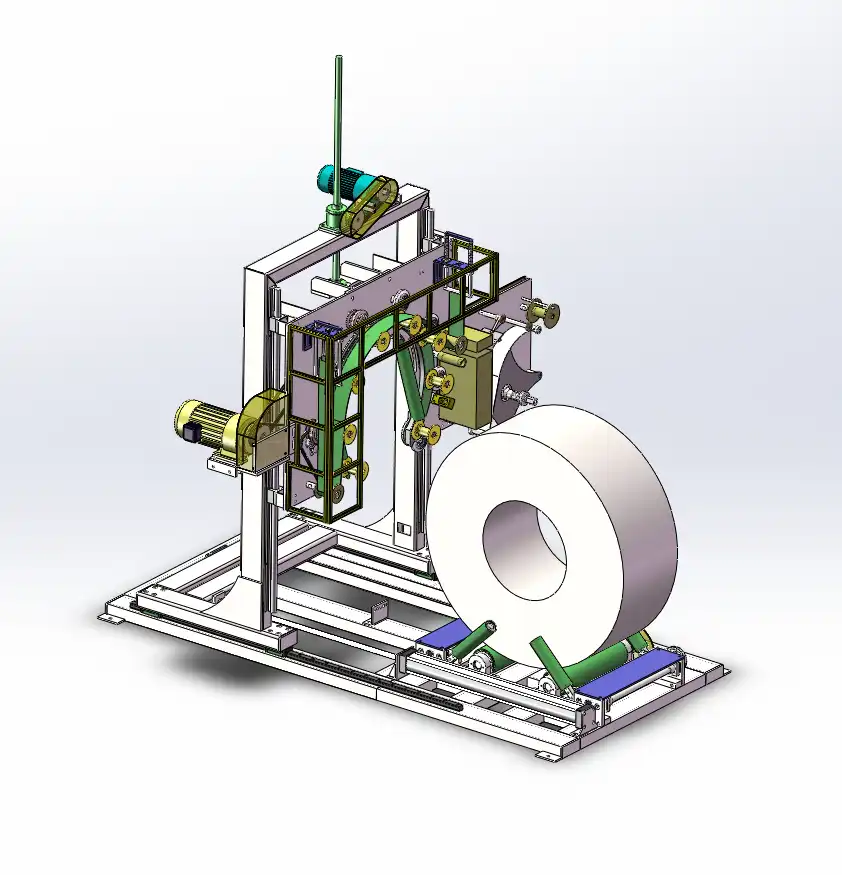

The FPW-500 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPW-500 in operation
Video: FHOPE Wire coil wrapping machine for galvanised and aluminium wire (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPW-500 specifications
Taken from the FPW-500 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Coil Packing Machine | FPW-500 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase |
| Power (KW) | 3.5kw |
| Steel wire coil ID(mm) | 300-700 |
| Steel wire coil OD(mm) | 700-1300 |
| Steel wire coil width(mm) | 50-500mm |
| Steel wire coil Weight(Kg) | 40-1500kg |
| Packing material | PVC/LDPE/LLPE/PAPER/HDPE ID:50mm OD:100-450mm Width:100-120mm |
| Overlapping rate | 10%-90% |
| Air supply. | 4-6kgf/m2 |
Machine features
What this machine does
- Automatic for wire coil wrapping with packing material length checking.
- Packing material next by the wrapping station type.
- Supportive roller PU covering & passive friction wheels and integral mould structure devices antiskid and safe, making package object more stable and tidier.
- Different packing materials might be adopted.
- Main board up and down adjustment by motor with gear.
- Overlap extent and tension degree of packing material could be regulated as the customers’ need.
- The mechanical hand device can be used to feeding & cutting packing material automatically.
- Trolley in & out the wrapping station with procising position automatic.
- Easy operation by non skilled operator
- Special cutter with cylinder, could cut various kinds of packing materials.
- Parameters
- Coil Packing Machine
- Voltage (V/Hz)
- 380v 50Hz 3Phase
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Wire Coil Wrapping Machine
FPW-2500 Wire Coil Wrapping Machine FPW-2500 The horizontal PC wire coil packing machine is designed for steel wire coils with outer diameters of up to 2500 mm and weights of 1 to 3 tons. It is a ring-type coil wrapping machine that feeds plastic wrapping film through the inner diameter of the coil. View machine →
FPW-300 Wire Coil Wrapping Machine FPW-300 The FPW-300 is a wire coil ring wrapper intended for medium-sized coils. It is capable of wrapping coils with various packaging materials, such as LLDPE stretch film, compound paper, knitted belts, and more. View machine →
FPW-400 Wire Coil Wrapping Machine FPW-400 The FPW-400 wraps steel wire and copper wire coils in film, paper or woven material. It is a floor-standing ring wrapper: the coil is loaded by crane, trolley or conveyor, and a rotating ring with turning rollers wraps it in place. View machine →
FPW-600 Wire Coil Wrapping Machine FPW-600 The FPW-600 is a steel wire coil wrapping machine featuring a trolley for easy coil loading and unloading. Primarily used for packaging big prestressed concrete wire and pre-strand wire coils, the FPW-600 delivers high efficiency and superior packaging. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
