Wire Coil Wrapping Machine FPW-400
The FPW-400 wraps steel wire and copper wire coils in film, paper or woven material.
- >300
- Steel wire coil ID(mm)
- 600-1200
- Steel wire coil OD(mm)
- 40-400mm
- Steel wire coil width(mm)
- 40-400kg
- Steel wire coil Weight(Kg)
Overview
FPW-400 in short
The FPW-400 wraps steel wire and copper wire coils in film, paper or woven material. It is a floor-standing ring wrapper: the coil is loaded by crane, trolley or conveyor, and a rotating ring with turning rollers wraps it in place.
FHOPE is an industry pioneer manufacturer in steel wire coil packaging machine solutions. Through continual technological and technical advancements, FHOPE offers wire coil wrapping machines that can accommodate a wide range of coil sizes, from 20-3,000 mm in width. These highly flexible machines can be customized in form and structure to suit customers' unique needs.
The floor-standing stationary-type steel wire coil packing machine is designed primarily for packaging steel wire coils and copper wire coils at the floor level. This affordable machine saves on labour costs and enhances product protection. Utilizing a rotating ring and turning rollers, the wrapping material is wound around the wire coil's surface.
11. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
The steel wire coil packing machine is highly versatile equipment designed for medium-sized wire coil wrapping applications. It can accommodate a wide range of coil sizes and packaging materials to meet diverse product protection and cost requirements. The machine's intelligent control system allows for easy adjustment of all parameters through an interface, enabling smooth transition between different coil and packaging material types. Additionally, the control system's superior sensors and monitoring capabilities minimize errors while also providing operators with real-time feedback and alerts.
Visual details

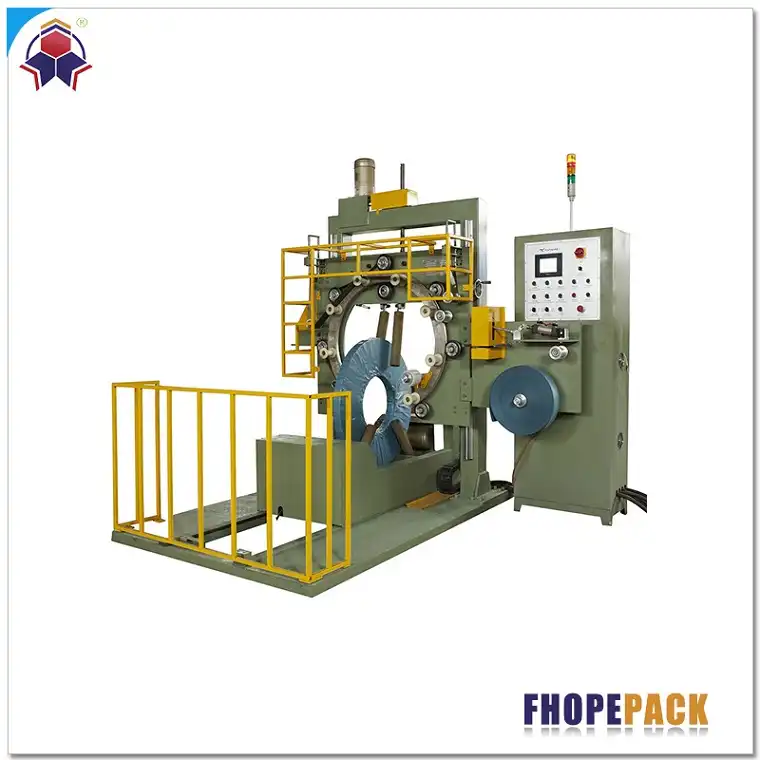

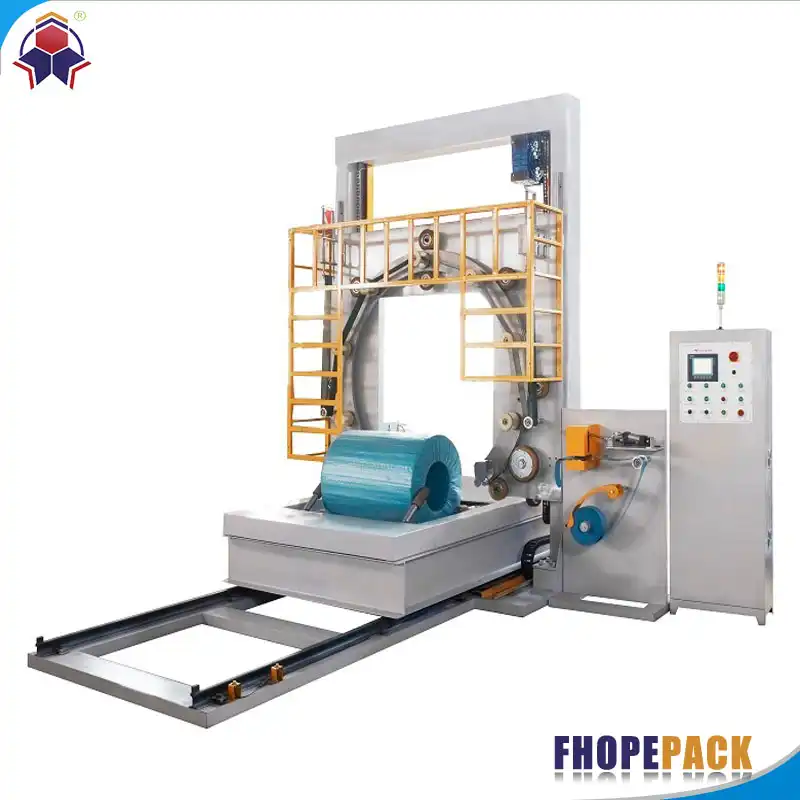

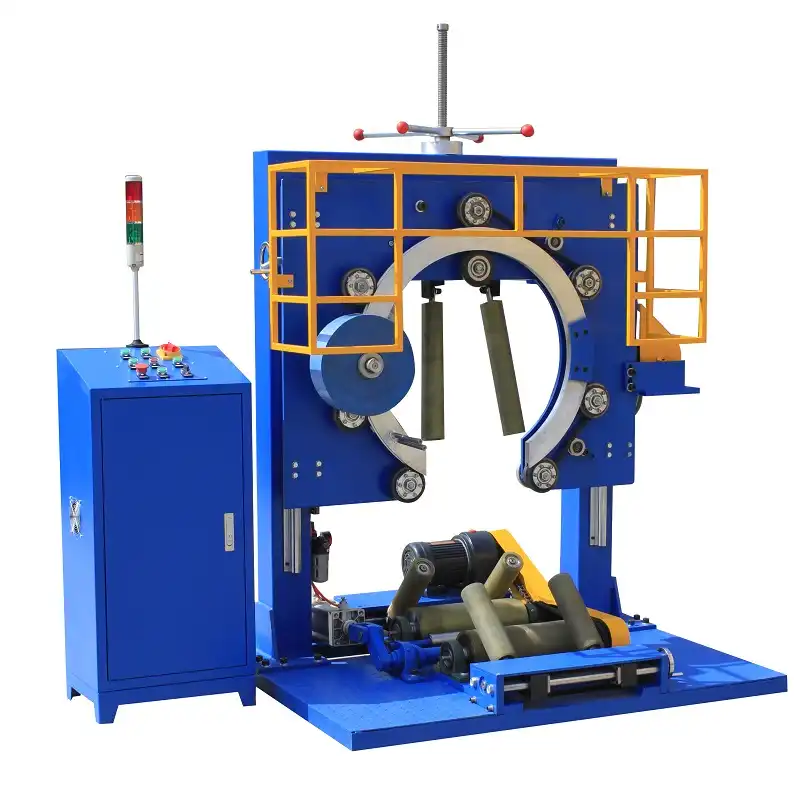

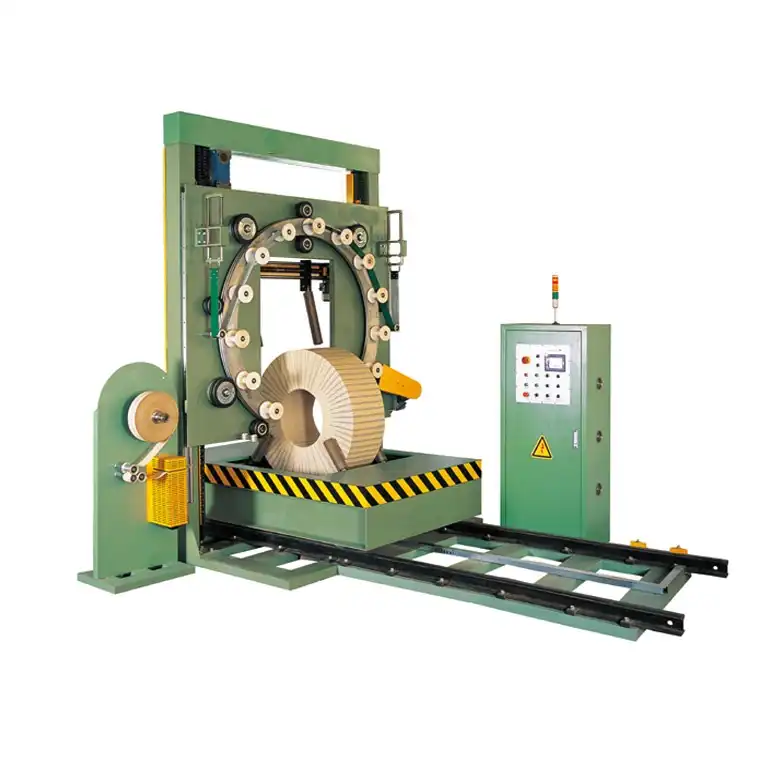

The FPW-400 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPW-400 in operation
Video: FHOPE Wire coil wrapping machine for galvanised and aluminium wire (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPW-400 specifications
Taken from the FPW-400 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Model | FPW-400 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase |
| Power (KW) | 1.5kw |
| Steel wire coil ID(mm) | >300 |
| Steel wire coil OD(mm) | 600-1200 |
| Steel wire coil width(mm) | 40-400mm |
| Steel wire coil Weight(Kg) | 40-400kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE ID:50mm OD:100-250mm Width:100-300mm |
| Overlapping rate | 10%-90% |
| Air supply. | 4-6 bar |
Machine features
What this machine does
- PLC & HMI for automatic operation.
- Low working table height for easy loading and unloading on floor.
- Automatic start and stop of the wrapping
- The converter is adopted to adjust the speed of the ring and rollers
- Overlap of the packing tape according to requirement.
- Automatic material cutting.
- Guardrails, soft starts and stop for safety operation.
- Height of the machine adjusted by manually to fix for different coil OD and ID.
- Packaging tension is adjustable by special breaker in the film roll
- The rollers covered with PU that is to protect the surface of the wire coils.
- Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
- Two type packing material fixing way: On ring or Next to wrapping station.
- Widely packing material applicable.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
