Wire Coil Wrapping Machine FPW-300
The FPW-300 is a wire coil ring wrapper intended for medium-sized coils.
- 300-700
- Steel wire coil ID(mm)
- 450-850
- Steel wire coil OD(mm)
- 100-300mm
- Steel wire coil width(mm)
- 10-250kg
- Steel wire coil Weight(Kg)
Overview
FPW-300 in short
The FPW-300 is a wire coil ring wrapper intended for medium-sized coils. It is capable of wrapping coils with various packaging materials, such as LLDPE stretch film, compound paper, knitted belts, and more.
This steel wire ring wrapper employs a ring-style film wrapper to package steel wire coils. The packaging protects against dust, air, moisture, and other elements. The machine wraps coils around an eye core, and is highly flexible. It can be customized to meet the specific needs of each customer and packaging line layout. All packaging and wrapping requirements are input into the machine's control system for automatic, tailored operation. The data setting as below:
The FPW-300 wire coil wrapping machine is an N-type ring wrapper that affixes packing material to the ring. It is designed primarily for wrapping light steel wire coils, razor wire coils, and GI wire coils. This highly efficient coil packaging equipment saves on labour, protects products, and reduces material costs, providing an ideal solution for coil-shaped packaging needs.
11. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
The machine features an operation panel with push buttons for control. It offers easy adjustment to accommodate varying packaging needs.
Visual details
The FPW-300 machine

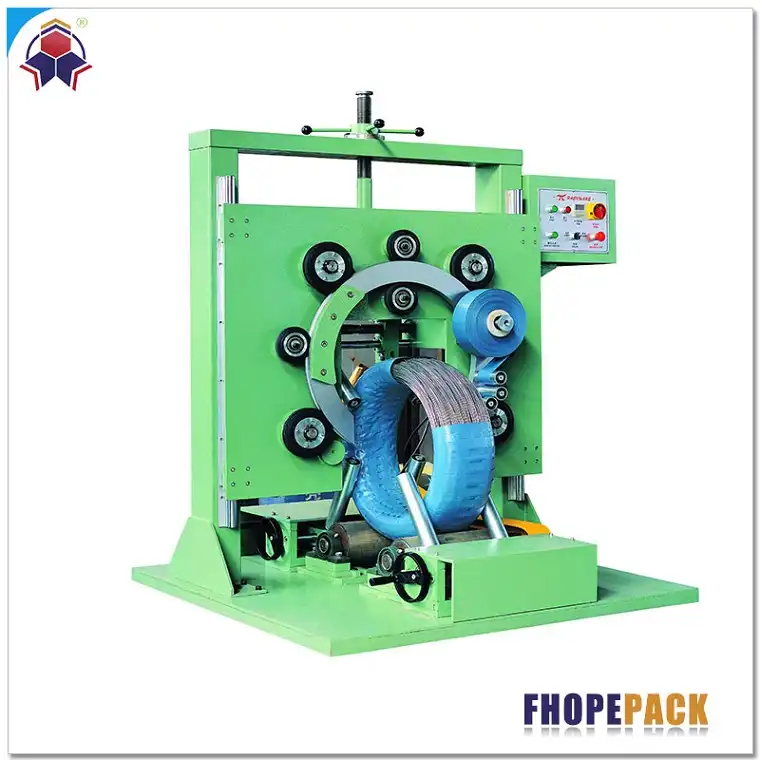

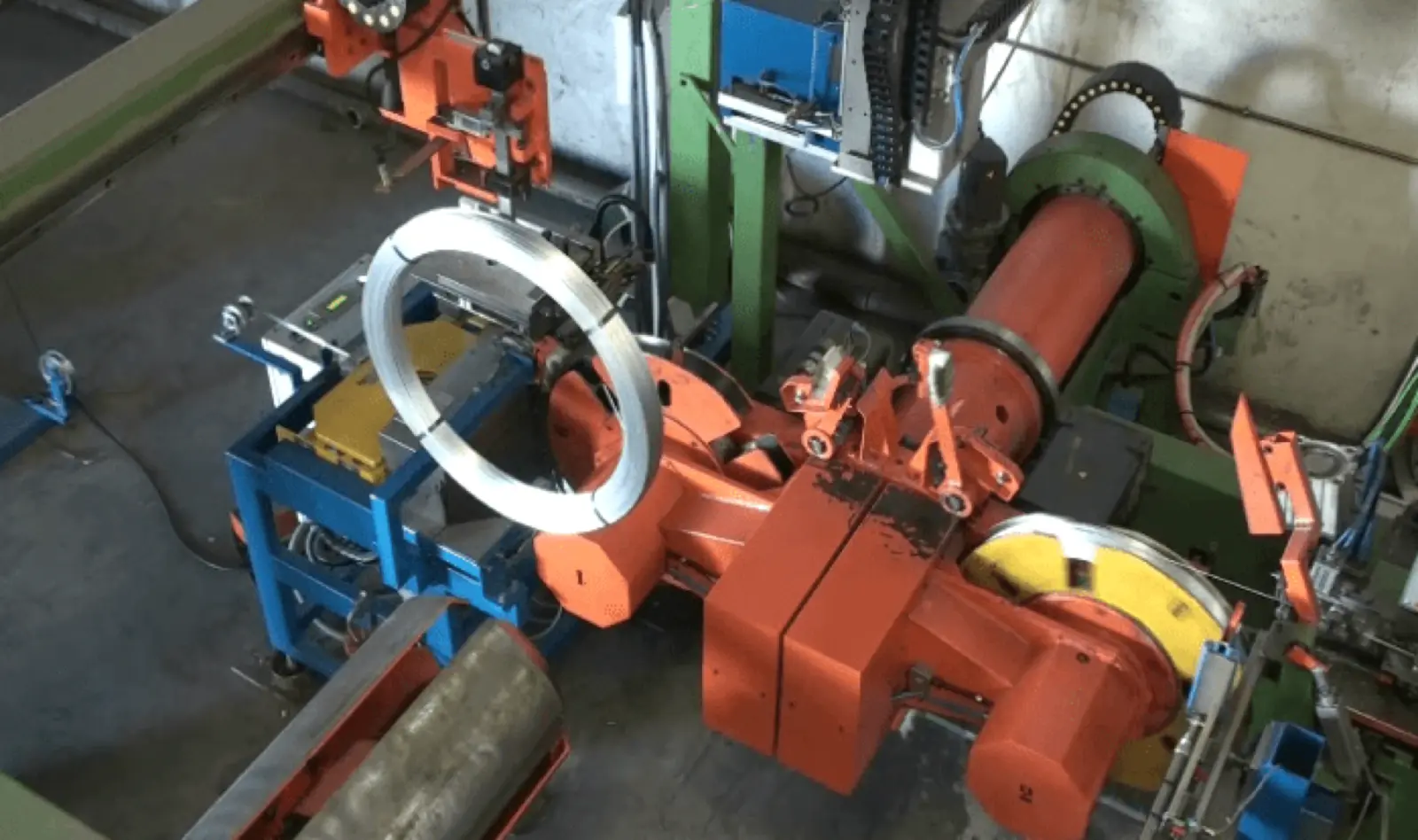

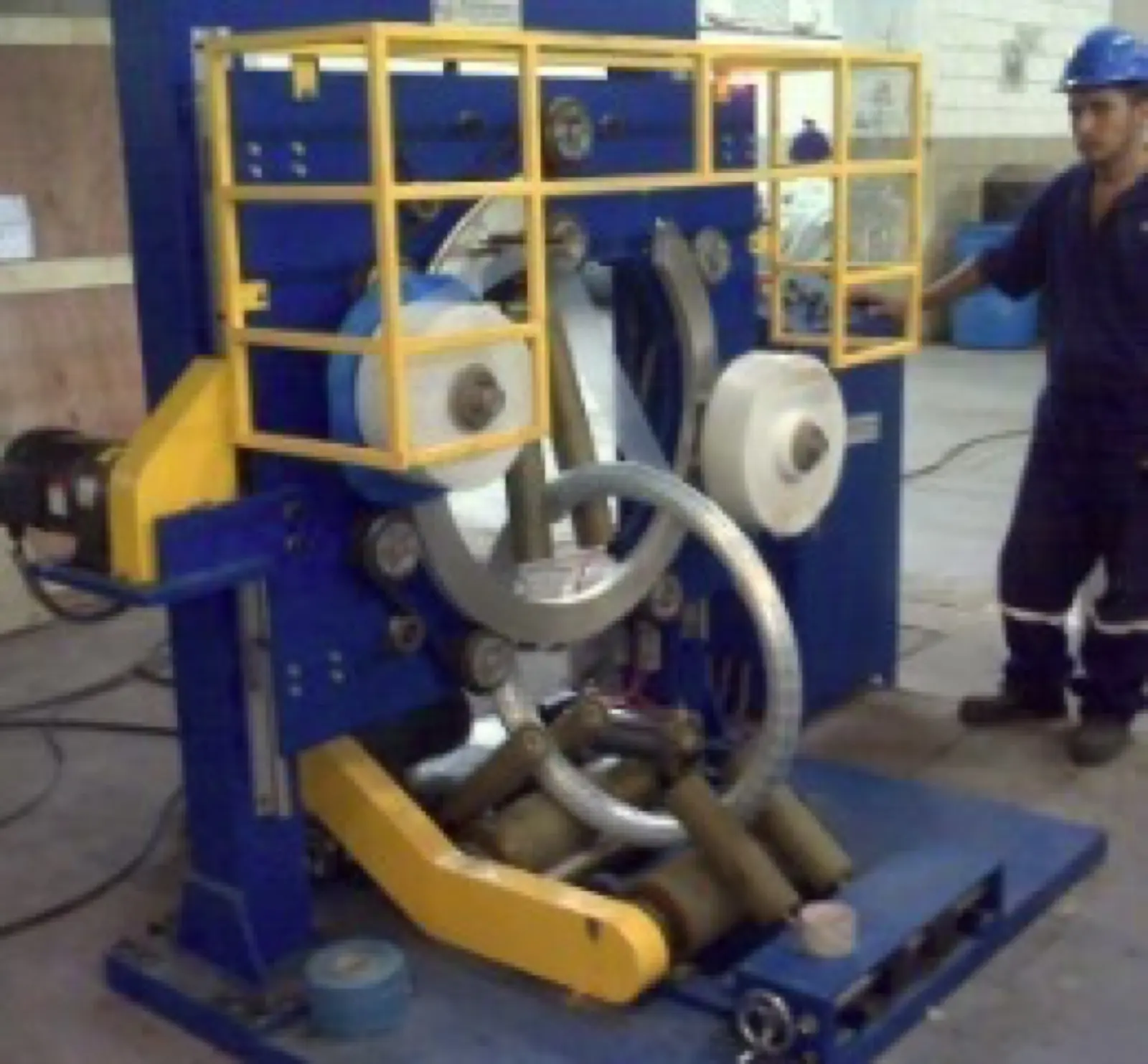

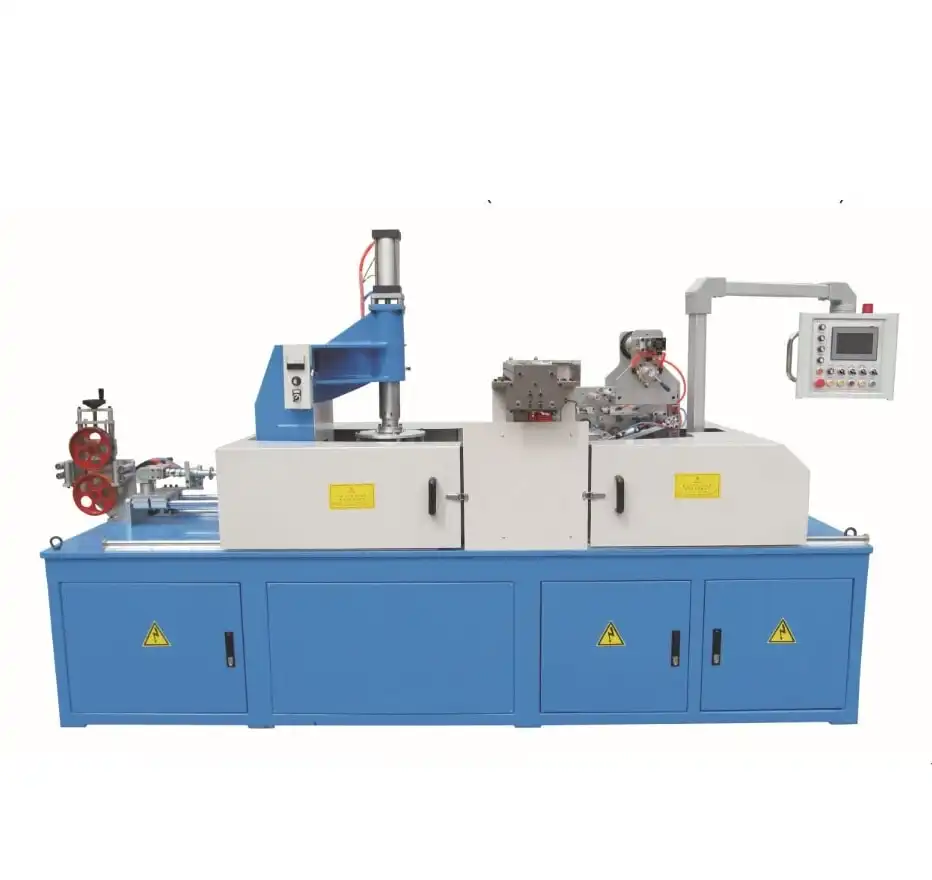

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPW-300 in operation
Video: FHOPE Wire coil wrapping machine for galvanised and aluminium wire (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPW-300 specifications
Taken from the FPW-300 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Items | FPW-300 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase |
| Power (KW) | 1.5kw |
| Steel wire coil ID(mm) | 300-700 |
| Steel wire coil OD(mm) | 450-850 |
| Steel wire coil width(mm) | 100-300mm |
| Steel wire coil Weight(Kg) | 10-250kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE ID:50mm OD:100-250mm Width:100-120mm |
| Overlapping rate | 10%-90% |
| Air supply. | No |
Machine features
What this machine does
- PLC with time relay for machine control
- Manually infeeding and out feeding the wire coil
- Manual and automatic working mode for easy operation.
- Packing material tie at the wire coil for starting the wrapping
- Overlap of the packing tape according to requirement.
- Manually packing material cutting.
- Guardrails, soft starts and stop for safety operation.
- Height of the ring could be adjusted for different OD of the coil
- Packaging tension is adjustable by special breaker.
- Not installation required after receiving the machine. Only power supply required for start working.
- Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
- Special brake for the tape release device to avoid material folding.
- Sea worth packing
- Note: Can be designed according your specification.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
