Wire Coil Wrapping Machine FPW-600
The FPW-600 is a steel wire coil wrapping machine featuring a trolley for easy coil loading and unloading.
- 300-850
- Steel wire coil ID(mm)
- 700-1400
- Steel wire coil OD(mm)
- 150-600mm
- Steel wire coil width(mm)
- 100-4000kg
- Steel wire coil Weight(Kg)
Overview
FPW-600 in short
The FPW-600 is a steel wire coil wrapping machine featuring a trolley for easy coil loading and unloading. Primarily used for packaging big prestressed concrete wire and pre-strand wire coils, the FPW-600 delivers high efficiency and superior packaging.
The FPW-600 is a big steel wire coil packaging machinery featuring a trolley for easy coil loading and unloading. Primarily used for packaging prestressed concrete wire and pre-strand wire coils, the FPW-600 delivers high efficiency and superior packaging. This machine reduces labour and material costs while meeting unique customer specifications.
With adjustable components and controls, the FPW-600 can be tailored to each customer's needs. Its efficient wrapping mechanisms, premium electrical components, and intelligent control system enable fast, precise, low-maintenance operation. For coil producers seeking affordable, customized steel wire packaging solutions that scale with their business, the FPW-600 is the ideal choice.
3. Wrapped with anti-wear polyurethane active & passive friction wheels and integral mould structure devices antiskid and safe, making package object more stable and tidier.
4. Different packing materials might be adopted: woven belt, compound paper, crepe paper, non-woven fabric, sackcloth tape, stretch film, PE film, LLDPE film, HLDPE film and so on.
Visual details

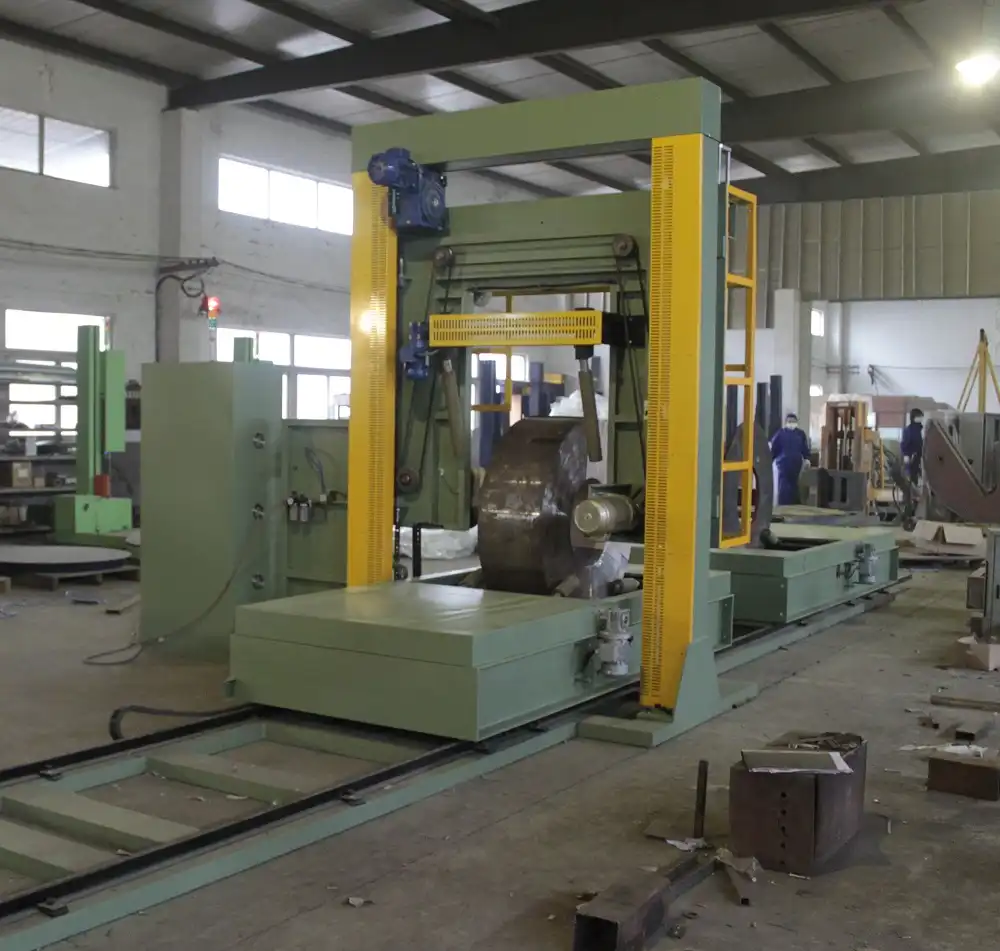

The FPW-600 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPW-600 in operation
Video: FHOPE Wire coil wrapping machine for galvanised and aluminium wire (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPW-600 specifications
Taken from the FPW-600 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Technical parameter: Machine Model | FPW-600 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase |
| Power (KW) | 4.5kw |
| Steel wire coil ID(mm) | 300-850 |
| Steel wire coil OD(mm) | 700-1400 |
| Steel wire coil width(mm) | 150-600mm |
| Steel wire coil Weight(Kg) | 100-4000kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE/Woven ID:50mm OD:200-450mm Width:10-120mm |
| Overlapping rate | 10%-90% |
| Air supply | 4-6kgf/m2 |
Machine features
What this machine does
- Steel wire coil Automatic and semi-automatic model for choosing.
- Paper, stretch film tape are available.
- Wrapped with anti-wear polyurethane active & passive friction wheels and integral mould structure devices antiskid and safe, making package object more stable and tidier.
- Different packing materials might be adopted: woven belt, compound paper, crepe paper, non-woven fabric, sackcloth tape, stretch film, PE film, LLDPE film, HLDPE film and so on.
- Ring center height level adjustable form small and big OD coil.
- Packing tension and overlop rate setting per customers’ need.
- The mechanical arm device can be used to feed and cut packaging material automatically.
- Coil size checking and scanning device is an option to make the data input automatically.
- The coil OD covering or tape applicator for sealed coil package.
- The packing material clamper and cuter works for many kinds of packing materials.
- This is an big size wire coil packing machinery, so the coil loading and unalding way is import for making the machine accordingly to.
- So it is better discussing the packing goal and handling way with production dept and operator direction before making a decision.
- Technical parameter:
- Machine Model
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
