Tyre Packing Machine FPT-300
The FPT-300 wraps tyres in protective film for a clean, uniform finish.
- 500-900
- Tyre ID(mm)
- 800-1200
- Tyre OD(mm)
- 80-300
- Tyre width(mm)
- 10-100
- Tyre Weight(Kg)
Overview
FPT-300 in short
The FPT-300 wraps tyres in protective film for a clean, uniform finish. It is simple to operate and is used where tyres have to be packed quickly without manual handling.
The tyre packaging machine contains a strong frame. A rotating ring is placed around the frame to wrap a material roll. The opening rotary ring is used for eye cross wrapping. The tire packaging machine can perfectly pack the overall surface of the tires, and make the outer packing more beautiful. The packing quality satisfied the customers 100%.
This kind of tyre packaging machine high speed truning & film wrapping for the packing of processed of the tire. Optional onboard program control system provides touch screen instructions. Providing the Complete technical documentations in CAD, videos and images, and program. It is a simplify maintenance requirement machine for a long life running time.
Visual details
The FPT-300 machine

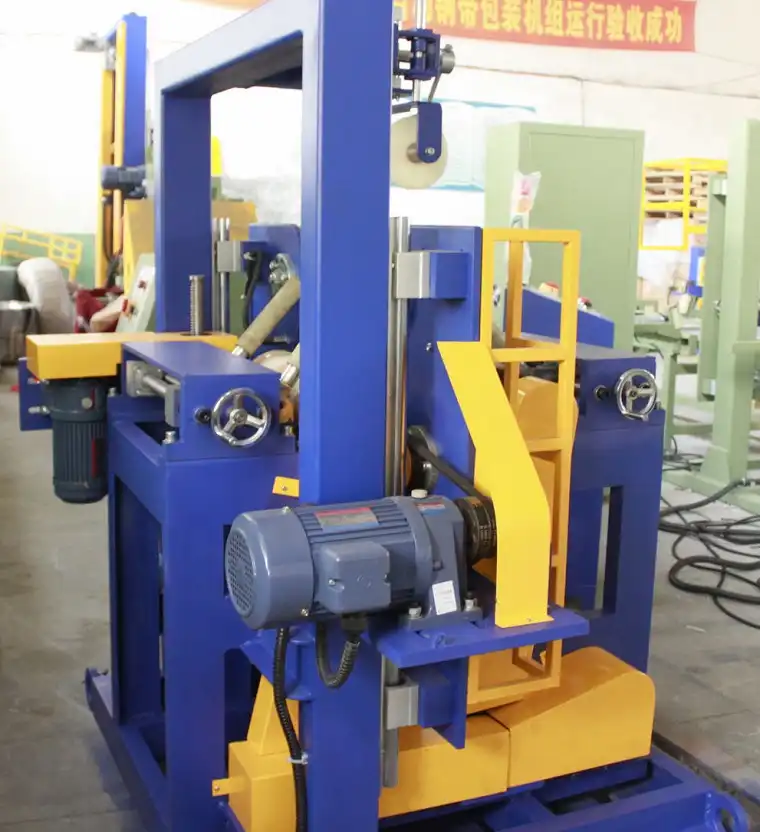

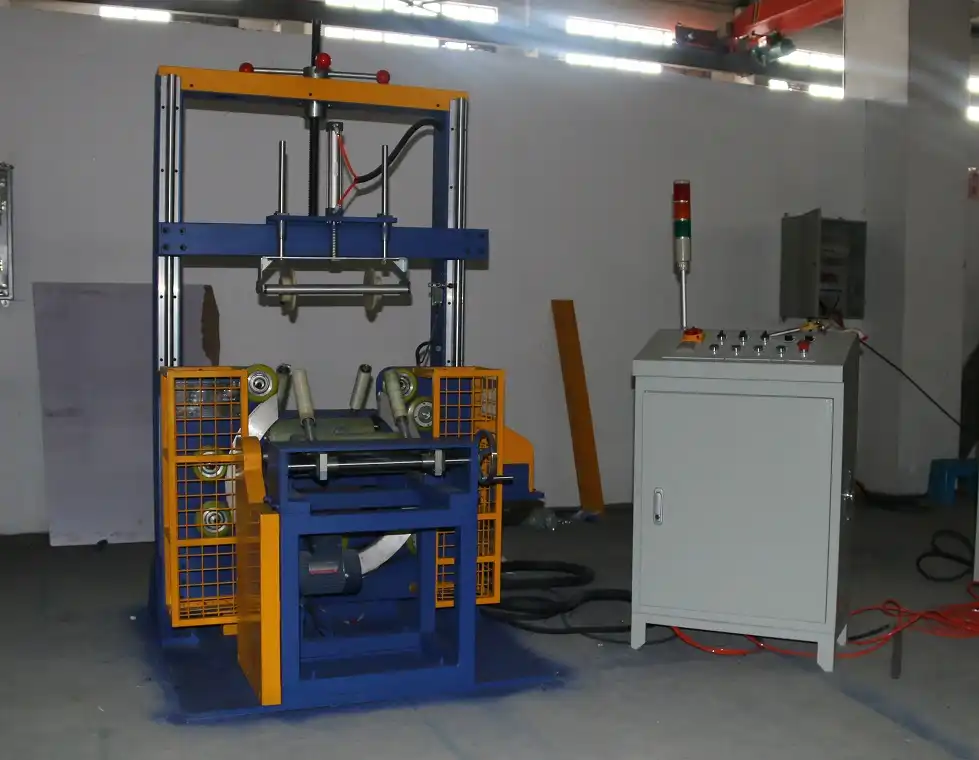

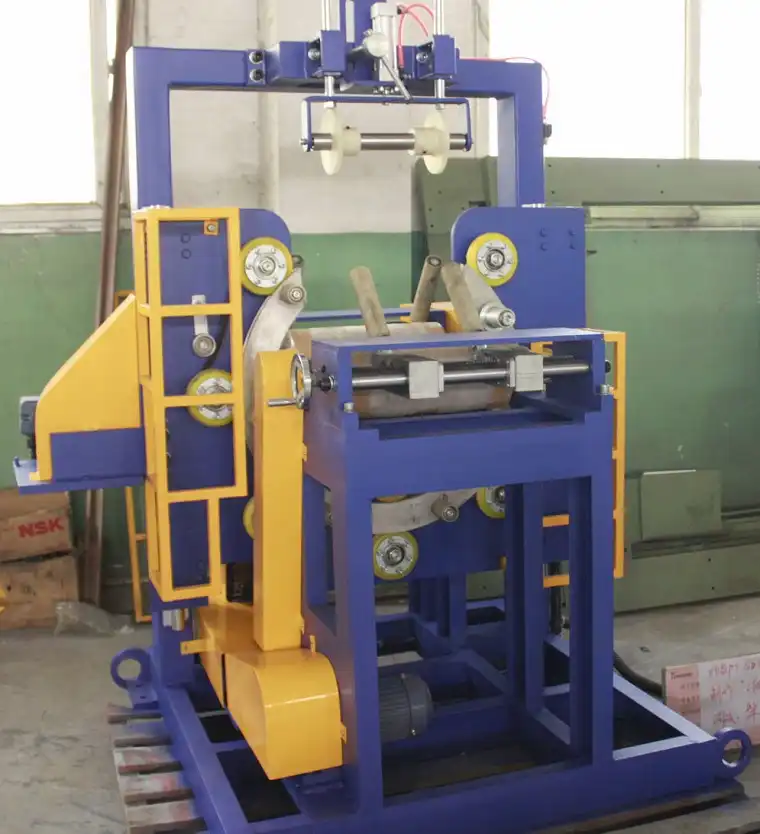

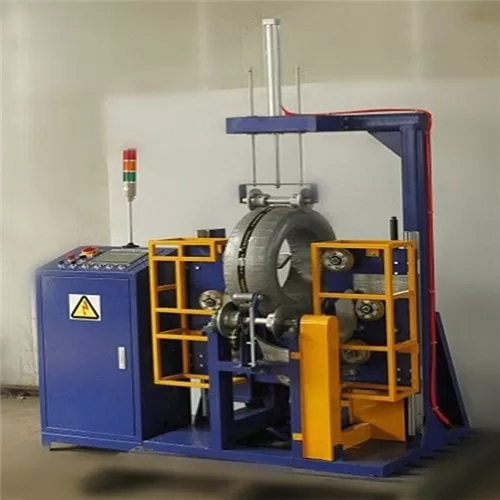

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPT-300 in operation
Video: FHOPE Automatic tyre packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPT-300 specifications
Taken from the FPT-300 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Model | FPT-300 |
|---|---|
| Voltage (V/Hz) | AC 380/50( or your requirement) |
| Power (KW) | 2.0 |
| Tyre ID(mm) | 500-900 |
| Tyre OD(mm) | 800-1200 |
| Tyre width(mm) | 80-300 |
| Tyre Weight(Kg) | 10-100 |
| Packing material | PE/Stretch film/knit belt/PP/Sliver paper |
| Ring speed(r/min) | 30-110 |
| Wrapping speed | 25-40sec/pcs |
| Overlapping rate | 20-80% |
Machine features
What this machine does
- Highly trye packing efficiency with different material.
- Packing position automatic reset function.
- Two working mode for easy automatic operation.
- The inverter for speed adjustment for the ring and rollers.
- O verlap of the packing tape according to requirement.
- Automatic material cutting.
- Guardrails for convering the moving part of the machine, ring soft starts and stop for safety operation.
- Adjustable ring level for different small to big tyre.
- Packaging tension is adjustable by special breaker.
- Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
- Packing tension is pre-setting for the package tigtheness requirement.
- Widely packing material applicable, film, paper..
- Brand Logo tapping on OD.
- This kind of tyre packaging machine high speed truning & film wrapping for the packing of processed of the tire. Optional onboard program control system provides touch screen instructions. Providing the Complete technical documentations in CAD, videos and images, and program. It is a simplify maintenance requirement machine for a long life running time.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
