Coil Wrapping Machine · Tyre Packing Machine · FPT-200
Tyre Packing Machine FPT-200
The FPT-200 wraps motorcycle tyres and other light tyres.
- 300-700
- Tyre ID(mm)
- 510-800
- Tyre OD(mm)
- 40-250
- Tyre width(mm)
- 10-30
- Tyre Weight(Kg)
Overview
FPT-200 in short
The FPT-200 wraps motorcycle tyres and other light tyres. The tyre is held firmly through the cycle so it cannot shift, and the finished package is compact and even.
This is a packaging machine designed for motorcycle tires, which can be packed with lightweight tires to avoid shaking. With the help of cylinder bracket to support roller, it is easier to operate the packing. It replaces the labour of manual tyre packaging.
This is the top side loadingtype tire packing machine, which was specially designed for car tyre, motorcycle tyre. It is satisfied with the convenience of the tire packaging by worker. Optional onboard program control system provides touch screen instructions. Complete technical documentations, videos and images simplify maintenance and maximize normal running time.
This is ring type wrapper with C ring upto sky for tyre loading and unlaoding from top side.
Visual details

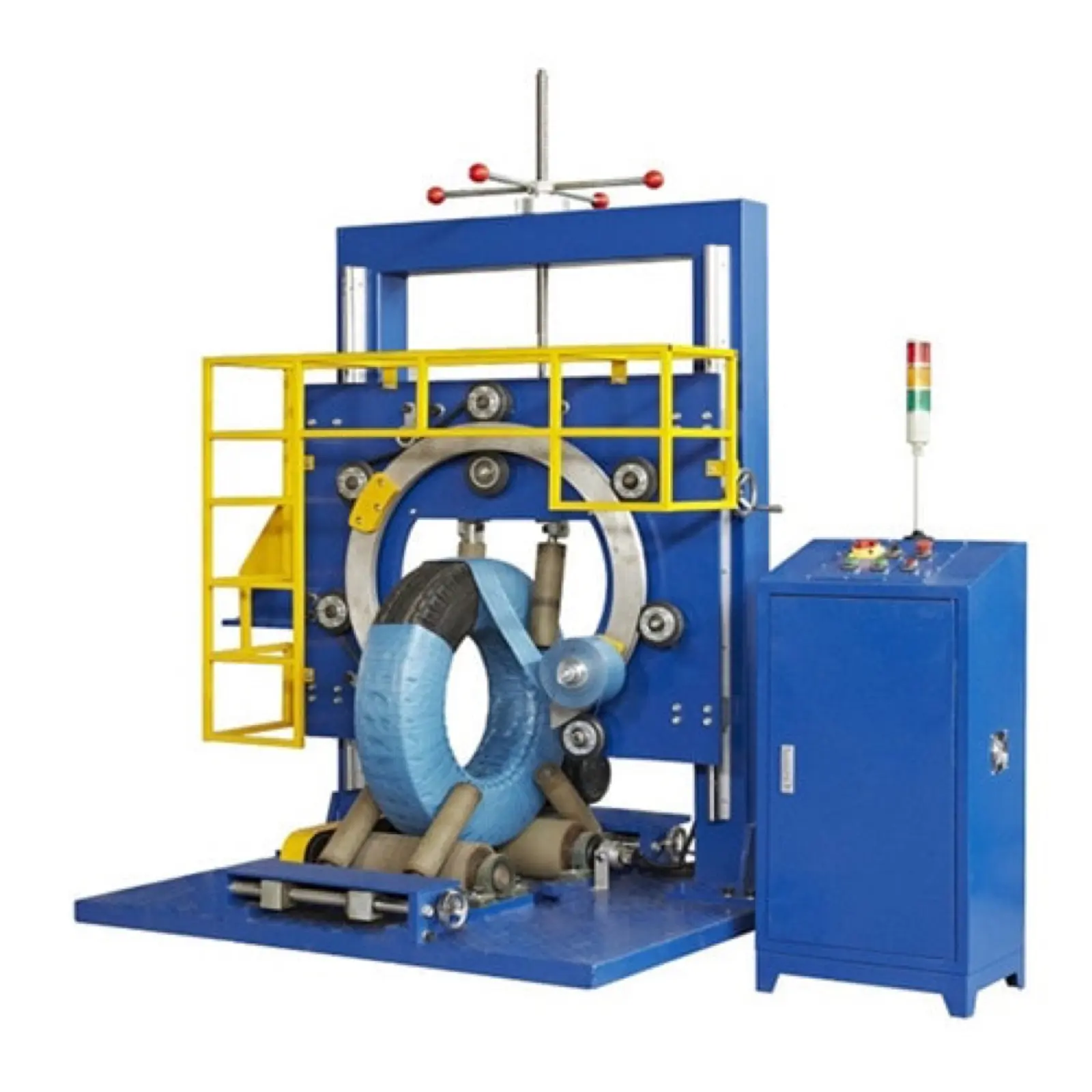

The FPT-200 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPT-200 in operation
Video: FHOPE Automatic tyre packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPT-200 specifications
Taken from the FPT-200 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Model | FPT-200 |
|---|---|
| Voltage (V/Hz) | AC 380/50( or your requirement) |
| Power (KW) | 1.5 |
| Tyre ID(mm) | 300-700 |
| Tyre OD(mm) | 510-800 |
| Tyre width(mm) | 40-250 |
| Tyre Weight(Kg) | 10-30 |
| Packing material | PE/Stretch film/knit belt/PP/Sliver paper |
| Ring speed(r/min) | 0-120 |
| Wrapping speed | 18-30sec/pcs |
| Overlapping rate | 10-80% |
Machine features
What this machine does
- Different packing material can be adopted in the wrapper.
- The rotating ring initial position return and automatic reset.
- Two choosable mode in Automatic and semiauto for different packing.
- The inverters for speed adjusting that makes the ring and rollers for soft stop&start.
- Inverters for speed changing so that for wrapping 10%-90% overlap
- It is packing material fix on the ring version.
- Guardrails, moving parts covering for safety operation.
- Machine adjustment for different tyre OD&ID for good packaging.
- There are special bearker in the film roller for Packaging tension adjustment.
- Error in the touch screem for the trouble shooting.
- Packaging maerial: stretch film, PE, LDPE, paper..
- Logo tape covers the tyre OD at the same time of the wrapping
- This is the top side loadingtype tire packing machine, which was specially designed for car tyre, motorcycle tyre. It is satisfied with the convenience of the tire packaging by worker. Optional onboard program control system provides touch screen instructions. Complete technical documentations, videos and images simplify maintenance and maximize normal running time.
- Parameters:
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
