Coil Wrapping Machine · Cable Coil Packing Machine · FPCA-100
Cable Coil Packing Machine FPCA-100
The FPCA-100 wraps cable coils with an inner diameter of 90 mm.
- 90-250
- Cable coil ID(mm)
- 150-400
- Cable coil OD(mm)
- 50-180
- Cable coil width(mm)
- 2-30
- Cable coil Weight(Kg)
Overview
FPCA-100 in short
The FPCA-100 wraps cable coils with an inner diameter of 90 mm. It uses eye-through wrapping at high speed, and the simple, low-maintenance design keeps material changes quick.
Cable coil wrapping machine designed for small ID cable coil film packing:
The Min ID of the cable coil can be wrapping by film is 90mm only, which is high speed packing safety. There are many cable coil packaging solutions available for the wire cable production industry. The aim is to provide innovative, cost efficient packing machine to resolve the problems in labour cost raising and labour shortage. Our sengineering team help to provide the protective packaging system for your application that saving your 80% labour in packaging process.
FPCA series horizontal tpe cable packing machine is packing the cable coil, copper coil, steel coil.. per eye to sky position. The supportive roller 360 rotation the coil without position shifting by supportive rollers.
15. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
Visual details

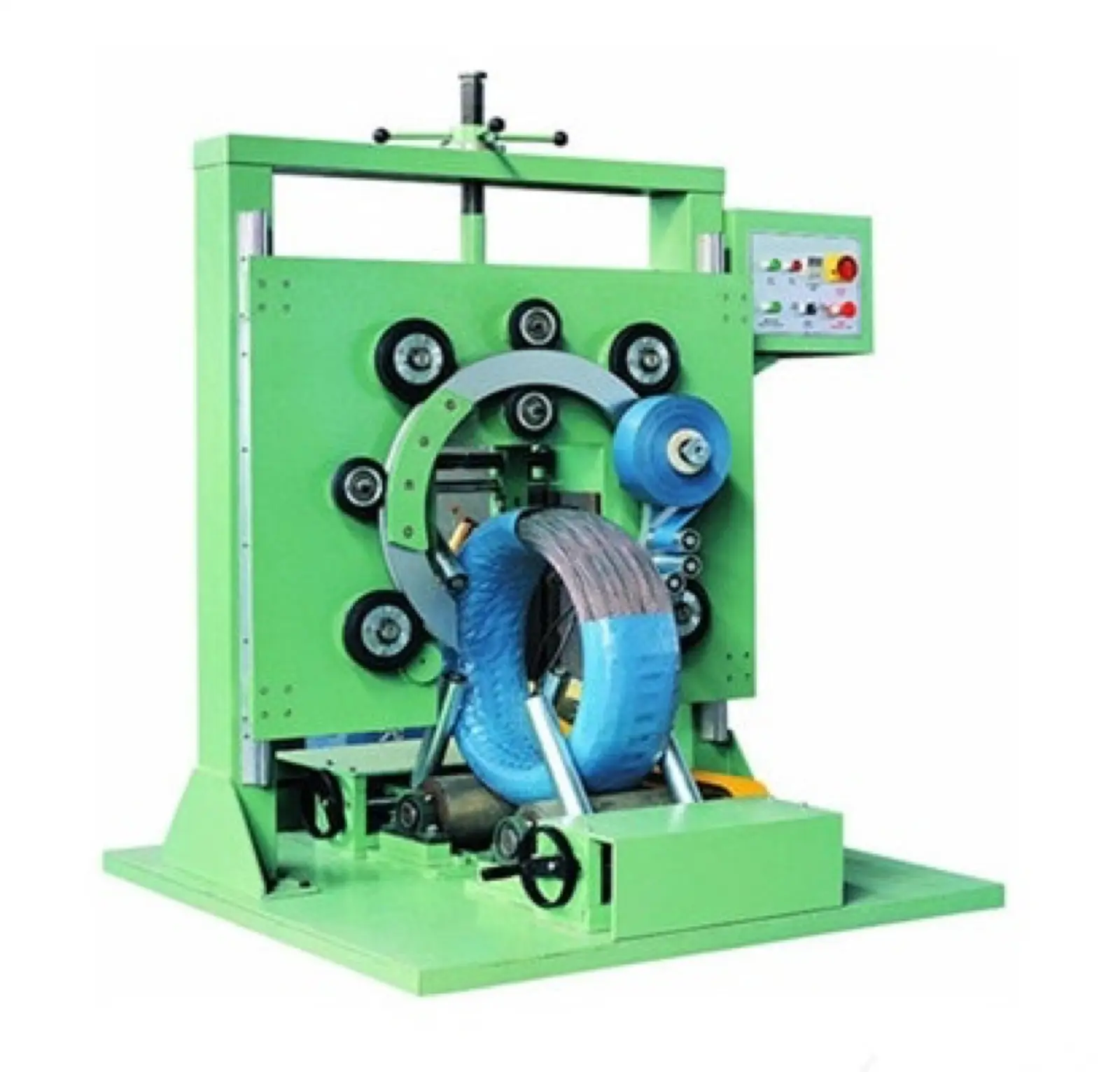

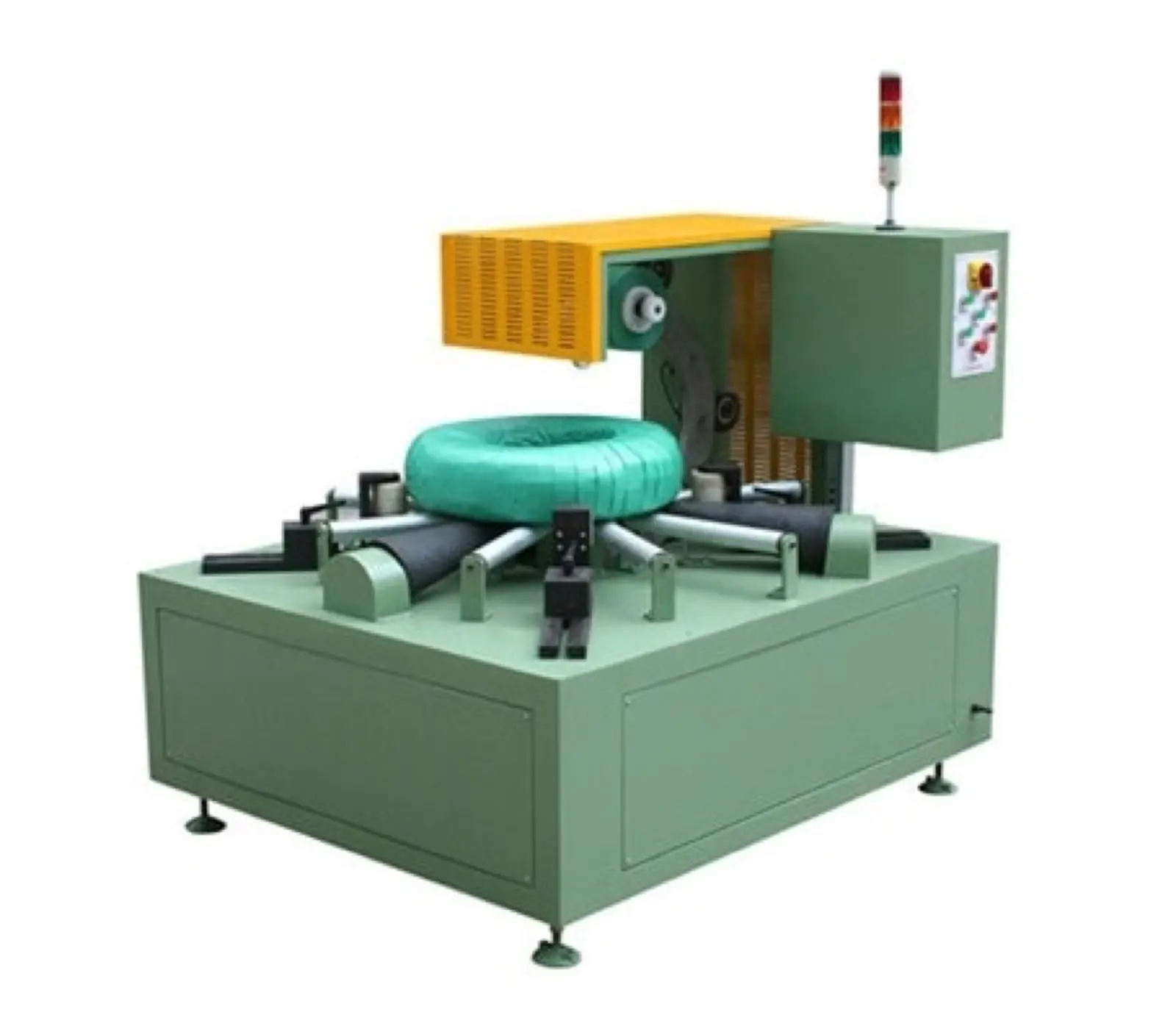

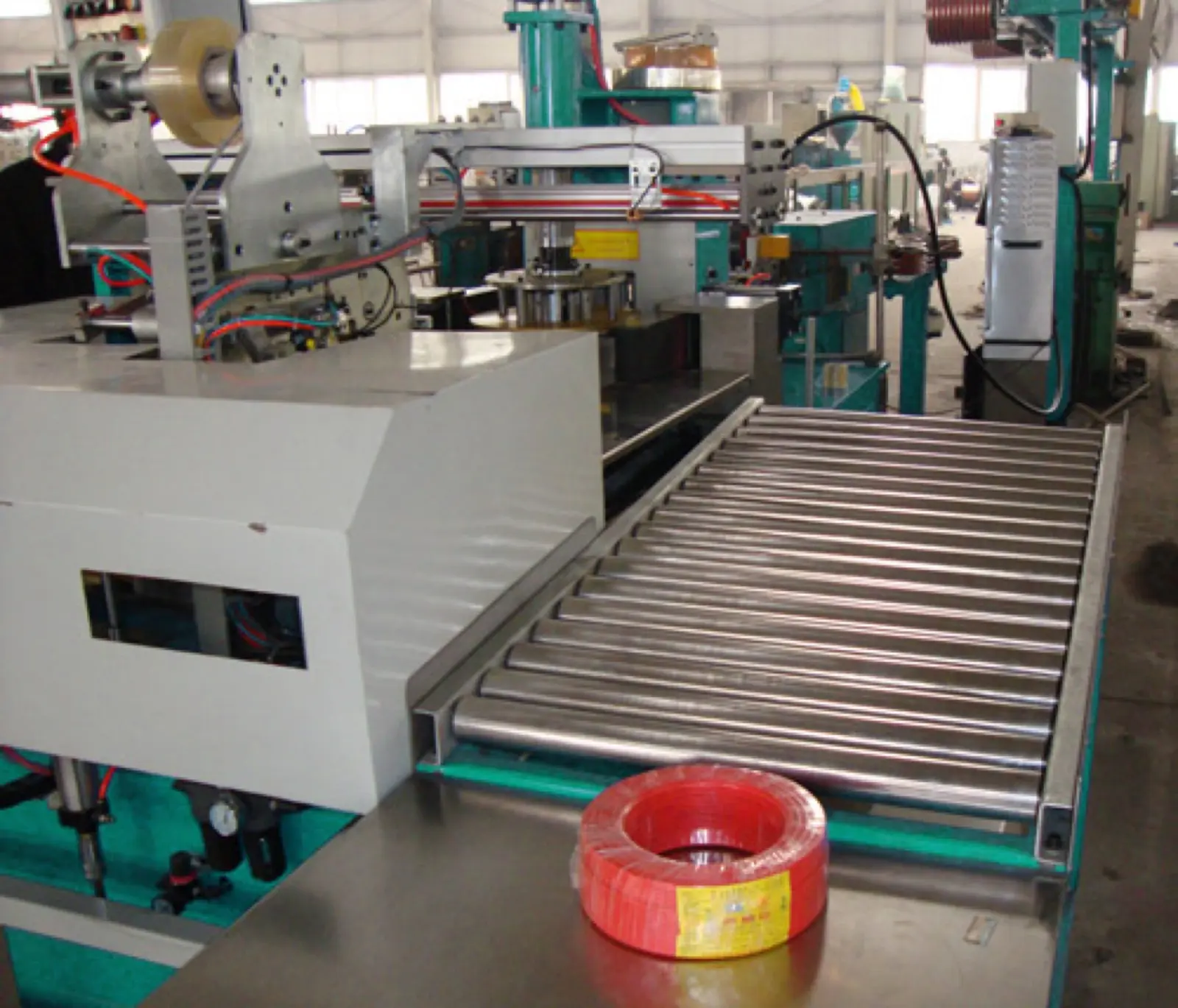

The FPCA-100 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPCA-100 in operation
Video: FHOPE Steel wire and cable coil wrapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPCA-100 specifications
Taken from the FPCA-100 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Voltage (V/Hz) | AC 380/60( or your requirement) |
|---|---|
| Power supply(KW) | 1.8 |
| Cable coil ID(mm) | 90-250 |
| Cable coil OD(mm) | 150-400 |
| Cable coil width(mm) | 50-180 |
| Cable coil Weight(Kg) | 2-30 |
| Packing material | PE/Stretch film/pvc |
| Ring speed(r/min) | 10-120 |
| Wrapping speed | 18-30sec/pcs |
| Overlapping rate | 20-90% |
Machine features
What this machine does
- Easy operation for non skill operator.
- Different cable info and specifications stored on program for packing choosing.
- Press down device for holding the coil in wrapping.
- Manually loading and unloading coil easily.
- Ring speed adjustable from 1-100r per minute.
- Ring structure strong and durable
- PU surface in supportive rolls, driving rollers.
- Overlapping rate: 20-80%
- Special designed for small cable coil ID
- overcurrent protection
- Shield and fence for operation safety
- Automatic packing machinery cutting and feeding
- Derived supportive roller for turning.
- Adopting 4 groups of electric arm to adjust, including adjusting wire reel size and collating winding center point.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
