Steel Coil Wrapping Machine FPS-500
The FPS-500 wraps steel coils with a focus on flexibility and high operating speed.
- 508/610mm
- Coil ID(mm)
- 700-1400mm
- Coil OD(mm)
- 200-500mm
- Coil width(mm)
- 80-1000kg
- Coil Weight(Kg)
Overview
FPS-500 in short
The FPS-500 wraps steel coils with a focus on flexibility and high operating speed. Maintenance access is straightforward, and the tight wrap reduces labour and material cost.
This coil packing machine is widely used to coiled articles especially for steel coils, steel wires, pipe coils, etc. The wrapped package is well-protected & sealed & beautiful & looks tidier with waterproof, dustproof, rustproof, wearproof, anti-aging functions.
Visual details

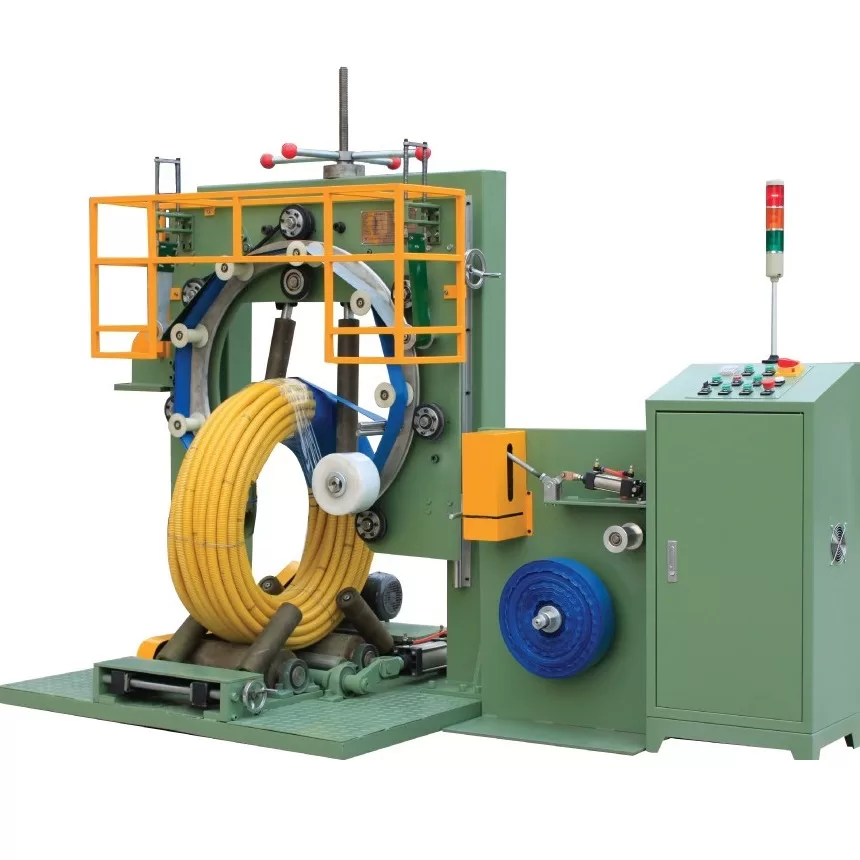

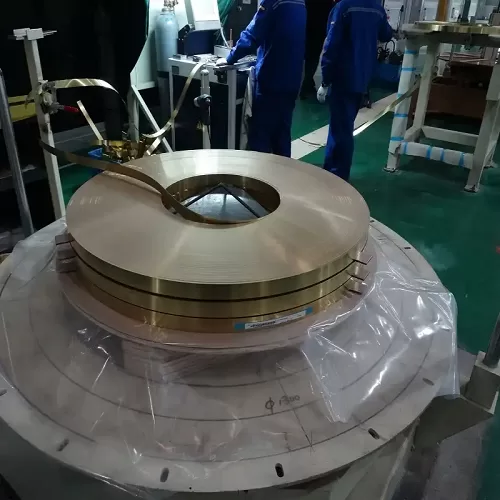

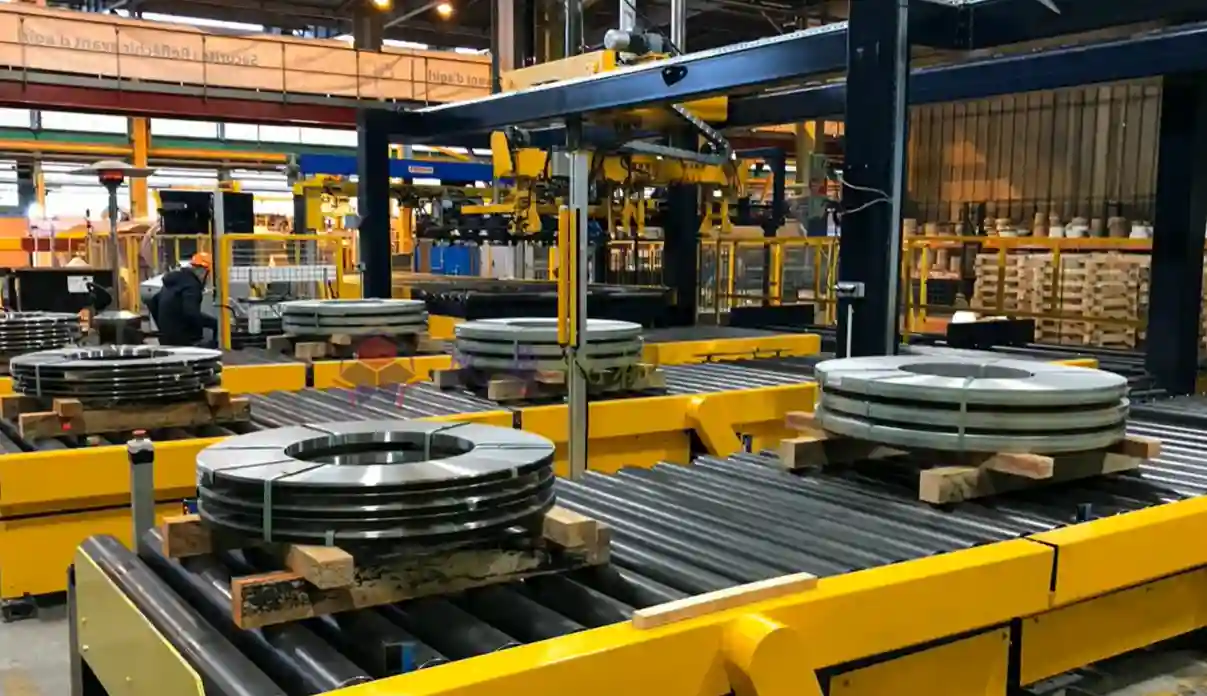

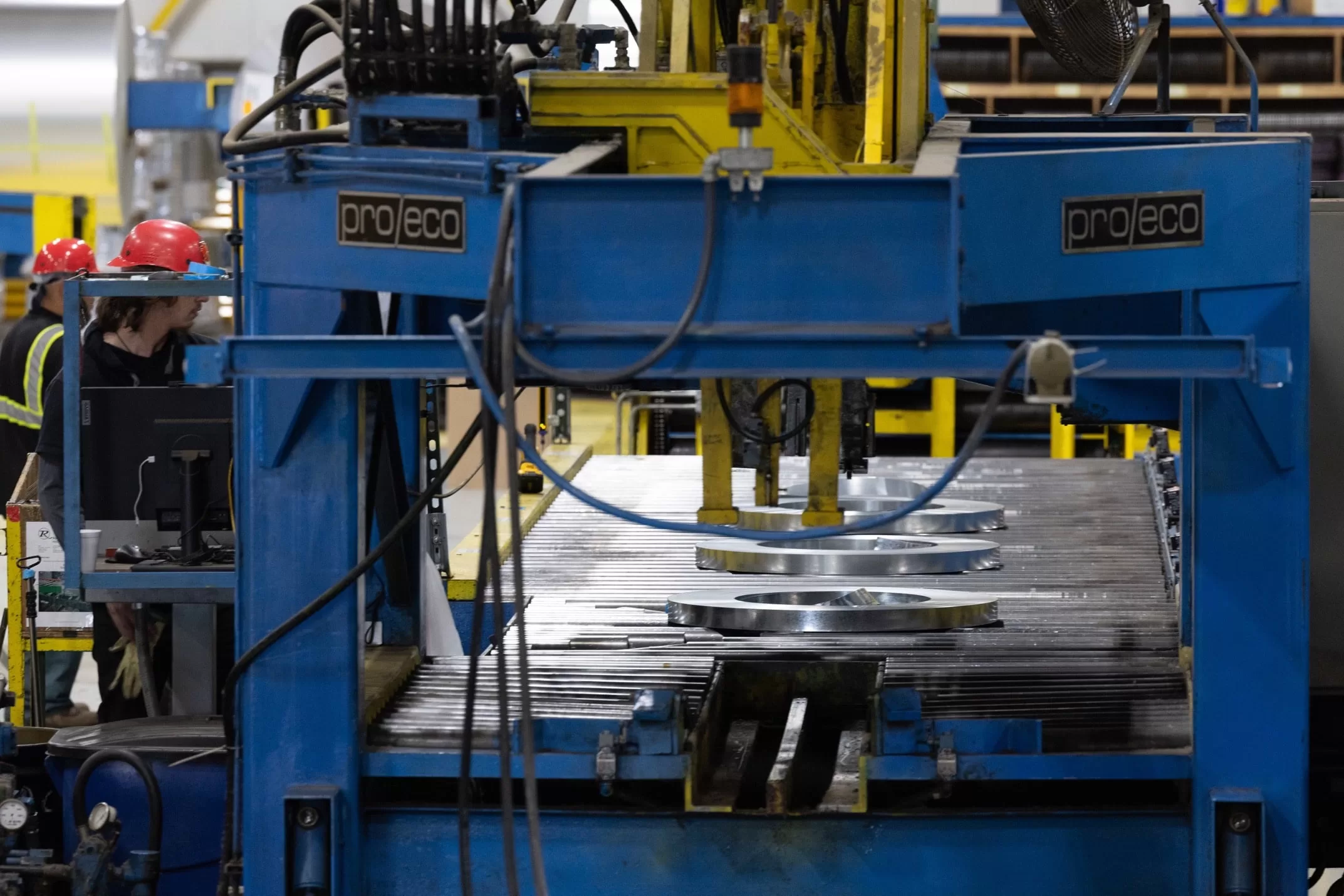

The FPS-500 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPS-500 in operation
Video: FHOPE Steel coil and wire coil wrapping and packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPS-500 specifications
Taken from the FPS-500 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Molde | FPS-500 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase 5Wire |
| Power (KW) | 2.0kw |
| Coil ID(mm) | 508/610mm |
| Coil OD(mm) | 700-1400mm |
| Coil width(mm) | 200-500mm |
| Coil Weight(Kg) | 80-1000kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE size determined by coil's size |
| Overlapping | 10%-90% |
| Air supply | 5-7kgf/ c㎡ |
Machine features
What this machine does
- Core Features
- Engineered for Steel Coil Protection
- Smart PLC & HMI Control
- Equipped with Siemens/Mitsubishi PLC systems for precision control. The intuitive HMI touchscreen allows easy setting of packaging parameters such as speed, tension, and overlap rates.
- HMI Preview
- Certified Safety System
- CE-compliant with integrated light curtains and emergency stop functions. The machine halts immediately when an operator enters the protected area, ensuring complete safety during operation.
- Operator Safety Priority
- Inverter-Driven Control
- Features variable frequency drives for smooth start/stop operations, allowing precise coil wrapping without risk of damage.
- Durable PU Rollers
- High-strength polyurethane-coated rollers prevent slippage and protect coil surfaces from scratches.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
