Steel Coil Wrapping Machine FPS-400
The FPS-400 wraps steel coils and steel strip coils.
- FPS-400
- Steel coil pack machine Items
- 508/610mm
- Steel wire coil ID(mm)
- 800-1400
- Steel wire coil OD(mm)
- 100-400mm
- Steel wire coil width(mm)
Overview
FPS-400 in short
The FPS-400 wraps steel coils and steel strip coils. The machine is built for high efficiency with a tight, clean wrap that reduces labour and packaging material cost.
FHOPE Steel coil packaging machinery FPS-400, classical type of simplified coil packing machine, is good handling choice for stell coil industry, convenient for loading and unloading from the top of the machine vertically by crane.
Stretch film, crepe paper, woven belt.. various packaging materials are available. Whatever sizes of coil packing machine, it ’ s tailor making based on required information of coil OD, coil ID, coil width/thickness. Wrapping speed, packing material and wrapping layer could be adjustable for customer ’ s needs.
Standard machine is consist of C-ring, packing material releasing roller, supportive roller, carrier roller, base frame, etc. PLC and touch screen control system for your quick operation and convenient maintenance.
Visual details

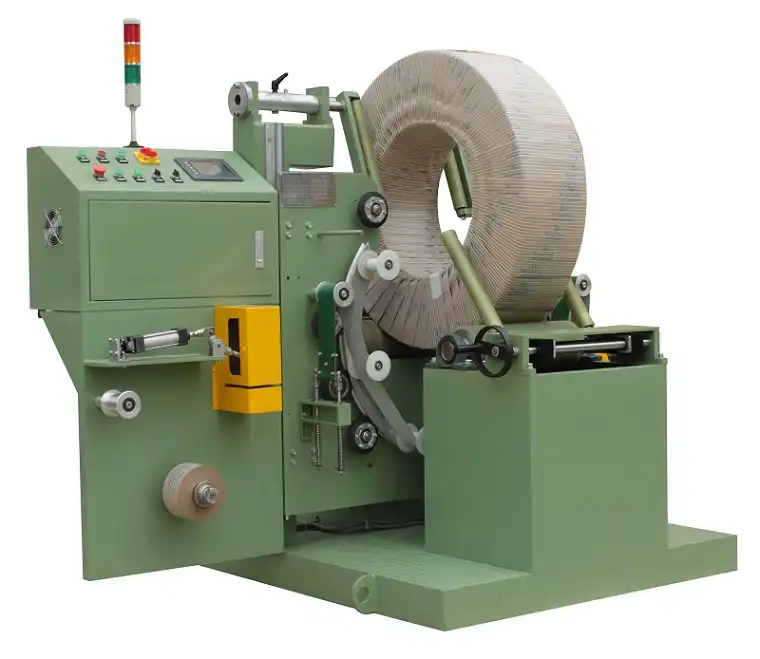

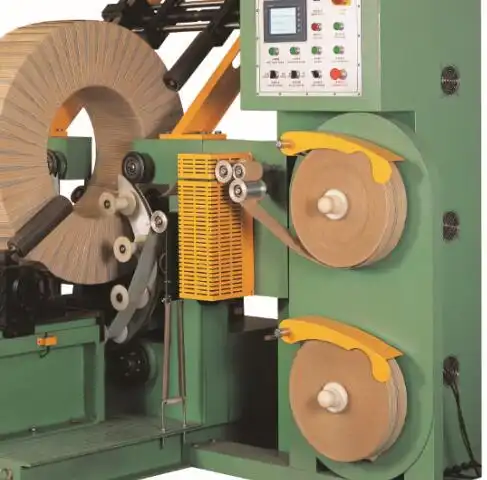

The FPS-400 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPS-400 in operation
Video: FHOPE Steel coil and wire coil wrapping and packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPS-400 specifications
Taken from the FPS-400 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Steel coil pack machine Items | FPS-400 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase |
| Power (KW) | 4.0kw |
| Steel wire coil ID(mm) | 508/610mm |
| Steel wire coil OD(mm) | 800-1400 |
| Steel wire coil width(mm) | 100-400mm |
| Steel wire coil Weight(Kg) | 100-2000kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE ID:50mm OD:100-450mm Width:100-150mm |
| Overlapping rate | 10%-90% |
| Air supply. | 5-7kgf/ c㎡ |
Machine features
What this machine does
- Core Features
- Engineered for Steel Coil Protection
- Smart PLC & HMI Control
- Integrated Siemens/Mitsubishi PLC and intuitive HMI touchscreen enable precise control of coil wrapping parameters including tension, speed, and overlap.
- HMI Preview
- Certified Safety System
- Compliant with CE standards, featuring safety light curtains and emergency stops to ensure safe operation by halting the machine when an operator enters the protected zone.
- Operator Safety Priority
- Inverter-Driven Control
- Variable frequency drives provide smooth start/stop control, minimizing wear and ensuring tight, secure coil wrapping without damage.
- Durable PU Rollers
- Robust Polyurethane-coated rollers provide excellent grip while preventing damage to coil surfaces during the wrapping process.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
