Steel Coil Wrapping Machine FPS-300
The FPS-300 wraps steel and copper coils in protective material.
- 508-610
- Steel coil ID(mm)
- 600-1200
- Steel coil OD(mm)
- 100-300mm
- Steel coil width(mm)
- 20-1000kg
- Steel coil Weight(Kg)
Overview
FPS-300 in short
The FPS-300 wraps steel and copper coils in protective material. It is a horizontal coil wrapper designed to reduce labour and material cost while protecting the coil surface.
F PW-300 is a economic Steel coil wrapping machine that is flexible for various specifications of steel coil packing. I t can help customer to get high packing efficiency, labour saving, good packing goal and safety workshop government. F or coil packing, it will have qualified characters of dust-proof, product surface protection and water resistant.
The coil loading way is by rolling in and out. So usually it used to packing the light steel coil.
From FHOPEPACK, we supplies good handling solution for customers by lots of packaging adjustment options. L arge size range, adjustable speeds of carrier roller rotation, ring wrapping, packing material tension and overlapping, are convenient elements of this equipment.
H eight of mainframe is adjustable to make ring rotate in the center of the coil.
Visual details

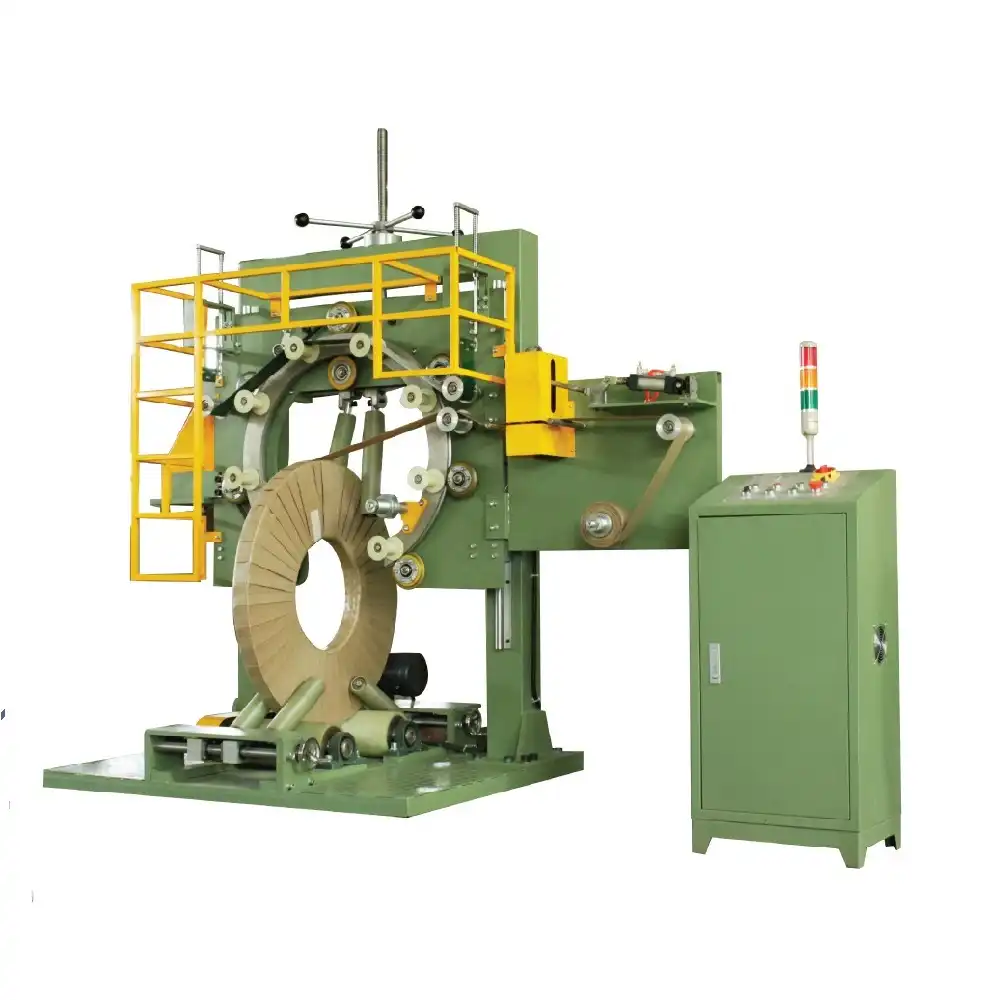

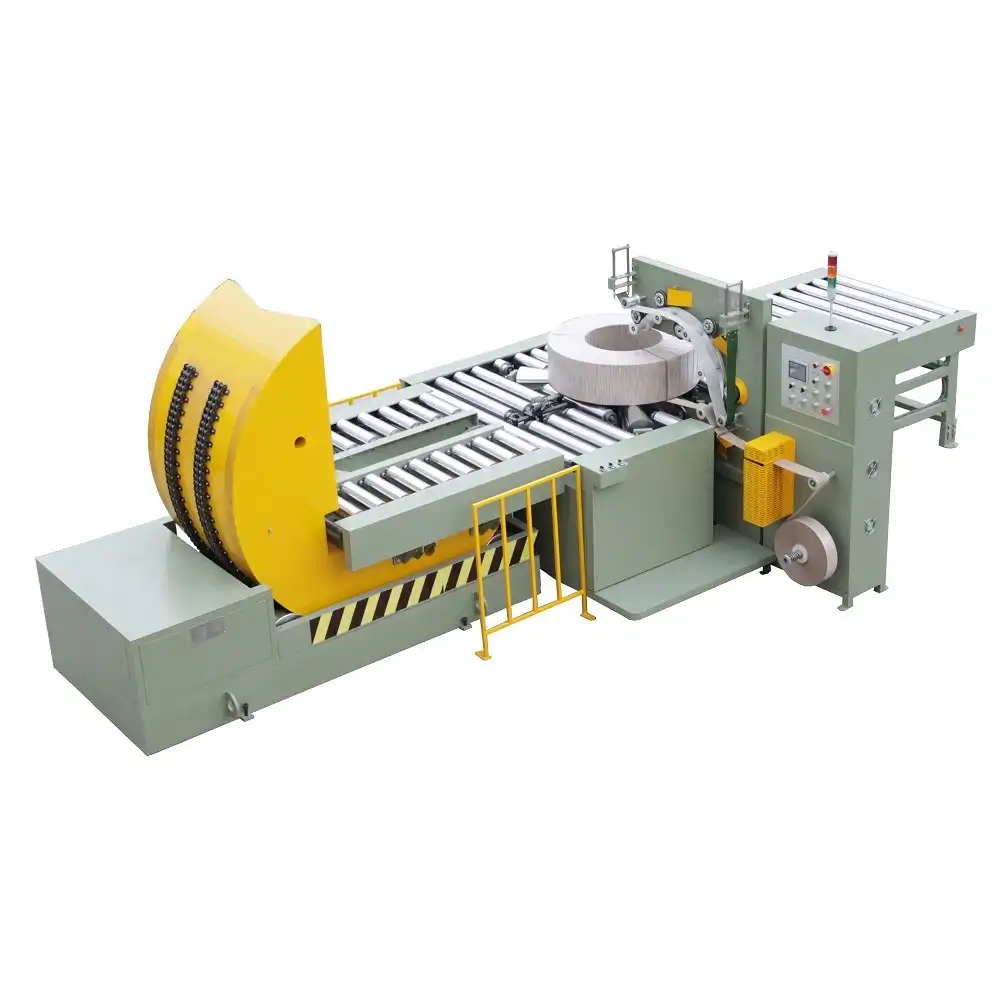

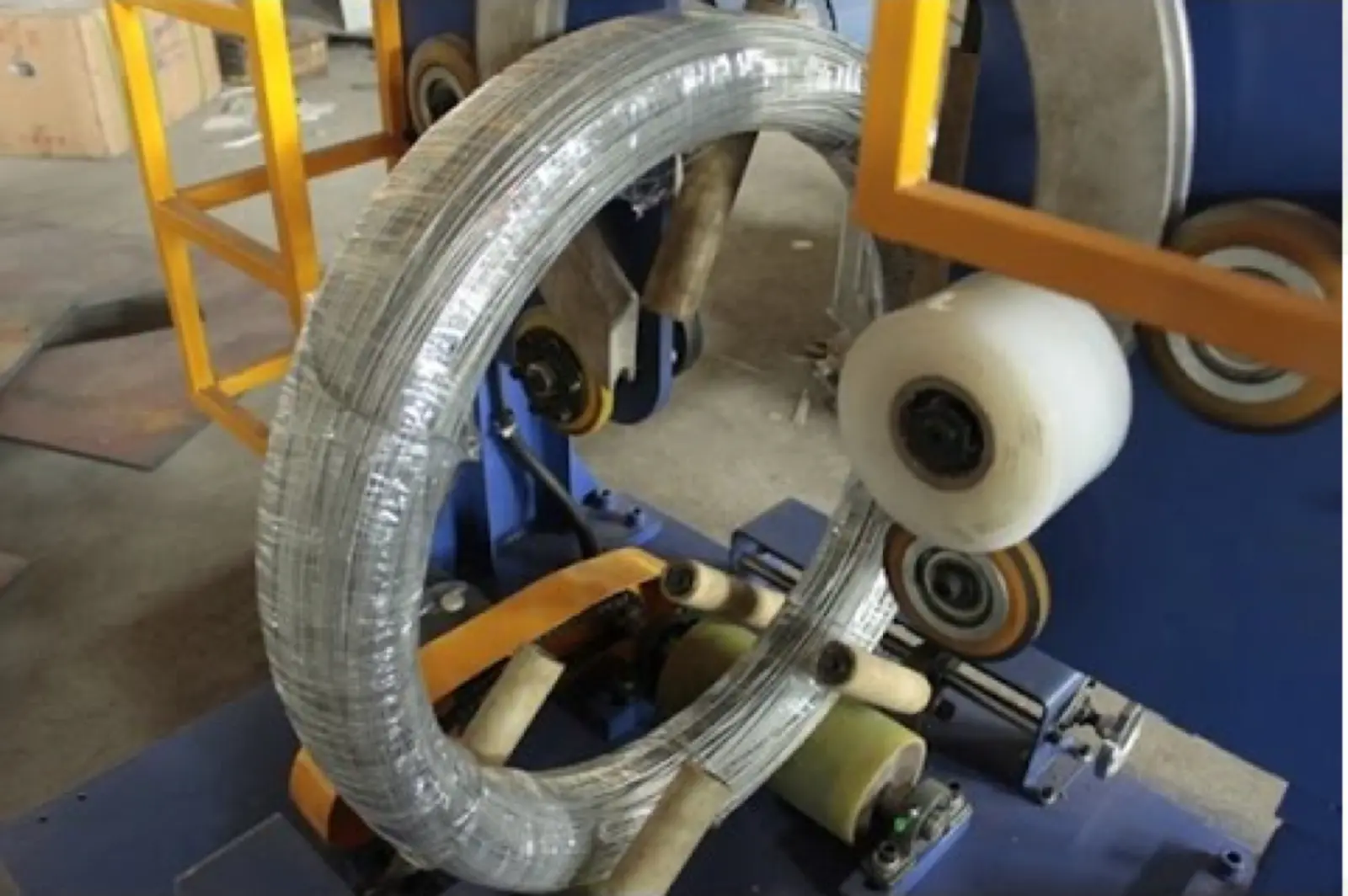

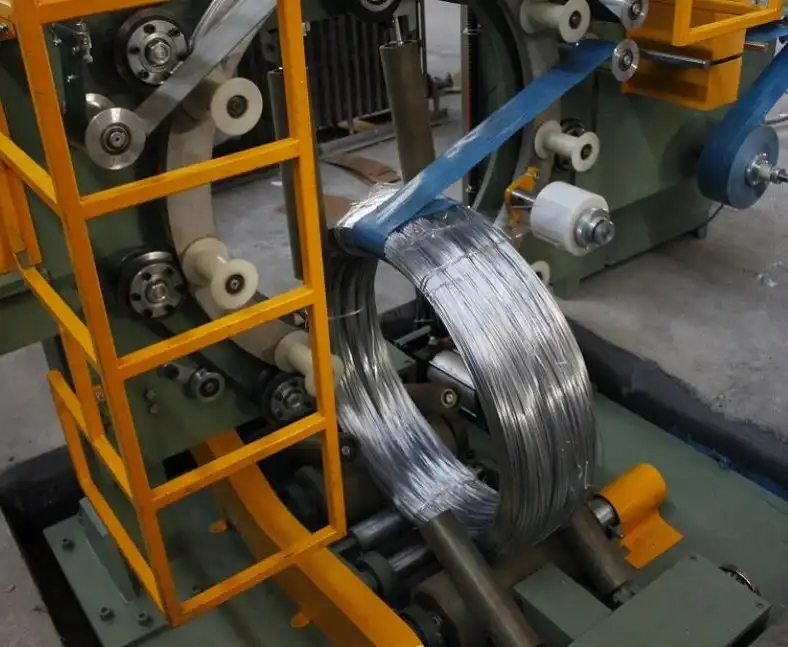

The FPS-300 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPS-300 in operation
Video: FHOPE Steel coil and wire coil wrapping and packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPS-300 specifications
Taken from the FPS-300 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Parameters | FPW-300 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase (can be customised) |
| Power (KW) | 1.5kw |
| Steel coil ID(mm) | 508-610 |
| Steel coil OD(mm) | 600-1200 |
| Steel coil width(mm) | 100-300mm |
| Steel coil Weight(Kg) | 20-1000kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE ID:50mm OD:100-450mm Width:100-150mm |
| Overlapping rate | 10%-90% |
| Air supply. | 4-6 bar |
Machine features
What this machine does
- Core Features
- Engineered for Steel Coil Protection
- Smart PLC & HMI Control
- Precise control of tape tension, overlap, and speed via Siemens/Mitsubishi PLC and intuitive HMI.
- HMI Preview
- Certified Safety System
- CE-compliant with safety light curtains and E-stop for instant shutdown upon operator entry.
- Operator Safety Priority
- Inverter-Driven Control
- Soft start/stop via variable frequency drives for smooth operation and secure coil handling.
- Durable PU Rollers
- Heavy-duty polyurethane rollers ensure strong grip and prevent coil surface damage.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
