Wire Coil Wrapping Machine FPW-800
The FPW-800 wraps pre-stranded and PC wire coils and comes with loading and unloading trolley equipment.
- >500
- Steel wire coil ID(mm)
- 800-1400
- Steel wire coil OD(mm)
- 300-800mm
- Steel wire coil width(mm)
- 200-3000kg
- Steel wire coil Weight(Kg)
Overview
FPW-800 in short
The FPW-800 wraps pre-stranded and PC wire coils and comes with loading and unloading trolley equipment. It is a heavy wire coil wrapper for coils that are too heavy to load by hand.
FPW-800 steel wire wrapping machine is an efficient packing equipment for wire coil with the accessory equipment of a trolley for loading and unloading. This machine is suitable for pre-strand wire coil packing and PC wire coil packing. The high quality of FPW-800 has been admitted by the market since it came out. The FPW-800 steel wire wrapping machine is an efficient packing equipment for wire coils. With supplied trolley equipment for loading and unloading, it is suitable for packaging pre-stranded wire coils and PC wire coils. Since its release, the high quality of the FPW-800 has been recognized by the market.
A choice between fully automatic and semi-automatic operation modes to cater to diverse user preferences.
Compatibility with a wide range of packaging materials, including film, paper, and HDPE.
Integration of anti-wear polyurethane active and passive friction wheels, as well as a cohesive mold structure device for slip resistance and safety, ensuring a secure and neatly packaged product.
Visual details

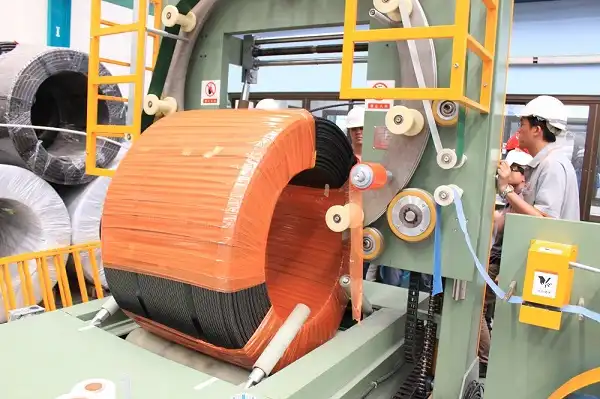

The FPW-800 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPW-800 in operation
Video: FHOPE Wire coil wrapping machine for galvanised and aluminium wire (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPW-800 specifications
Taken from the FPW-800 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| I tem | FPW-800 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase |
| Power (KW) | 3.4kw |
| Steel wire coil ID(mm) | >500 |
| Steel wire coil OD(mm) | 800-1400 |
| Steel wire coil width(mm) | 300-800mm |
| Steel wire coil Weight(Kg) | 200-3000kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE ID:50mm OD:100-250mm Width:100-300mm |
| Overlapping rate | 10%-90% |
| Air supply. | 4-6kgf/m2 |
Machine features
What this machine does
- A choice between fully automatic and semi-automatic operation modes to cater to diverse user preferences.
- Compatibility with a wide range of packaging materials, including film, paper, and HDPE.
- Integration of anti-wear polyurethane active and passive friction wheels, as well as a cohesive mold structure device for slip resistance and safety, ensuring a secure and neatly packaged product.
- Flexibility to use various packing materials such as woven belts, compound paper, crepe paper, non-woven fabric, sackcloth tape, stretch film, PE film, LLDPE film, and HLDPE film, among others.
- Adjustable ring center height to accommodate different wire coil specifications.
- Customizable overlapping extent and tension levels for packing materials according to customer preferences.
- An advanced mechanical hand mechanism for automatic feeding and cutting of packing materials.
- Optional push-out device to facilitate easy and convenient transportation of the packaged wire coil.
- The availability of labeling devices and side press rollers, customizable based on customer requirements and coil characteristics.
- Specially designed cylinder cutters, capable of handling various packing materials.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
