Coil Wrapping Machine · Pipe Coil Packing Machine · FPH-400
Pipe Coil Packing Machine FPH-400
The FPH-400 wraps hose and pipe coils, including PEX, PE, corrugated and HDPE pipe.
- 400-800
- Coil ID(mm)
- 500-1200
- Coil OD(mm)
- 50-400
- Coil width(mm)
- 3-25
- Coil Weight(Kg)
Overview
FPH-400 in short
The FPH-400 wraps hose and pipe coils, including PEX, PE, corrugated and HDPE pipe. High wrapping efficiency and a tight package reduce labour and material cost.
The FPH series coil wrapper packs hose coils and PEX, PE, corrugated and HDPE pipe coils. This machine saves labour and material cost due to the high efficiency and tight packaging. This vertical type hose coil wrapping machine is designed for small and light coils.
The easy operation and maintenance of this coil wrapping machine give tremendous convenience to the users.
Packaging material LLDPE/PVC/PE... LLDPE and PVC are able to do the package with well sealing which is able to prevent the pipe coil from air, moisture, dust..
The paper, HDPE, PE are able to provide a well anti-wear package for coils during transportation.
Visual details
The FPH-400 machine

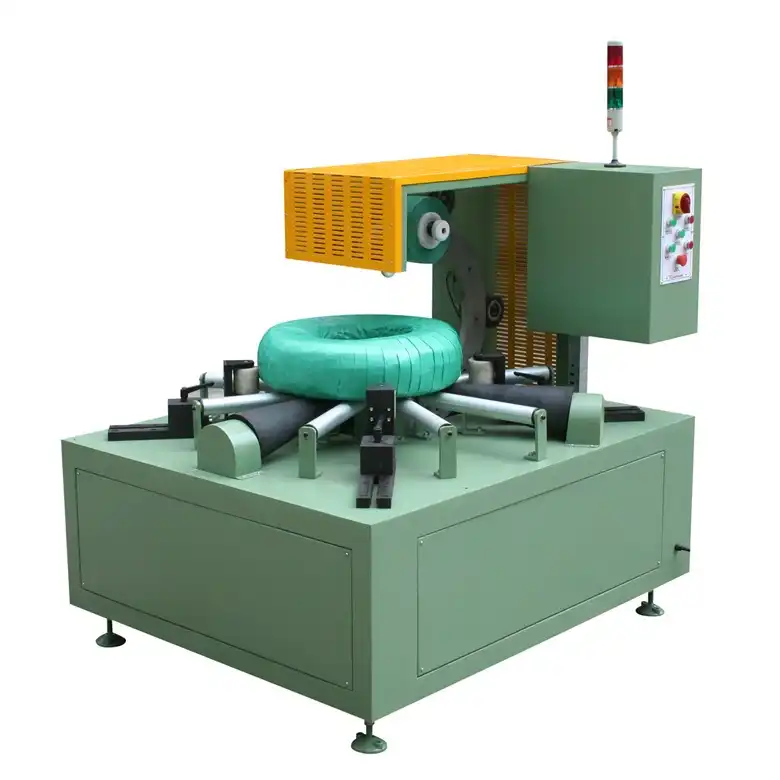

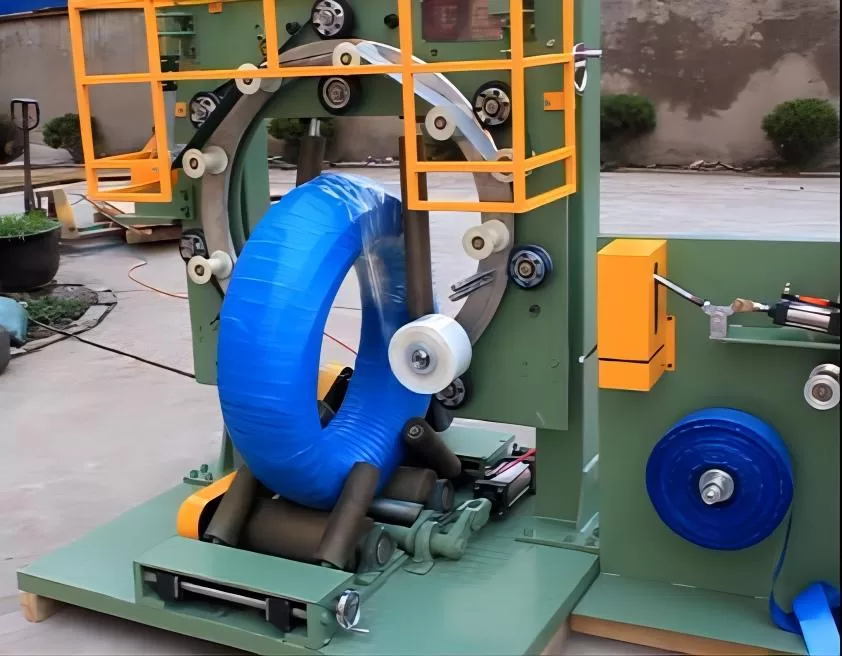

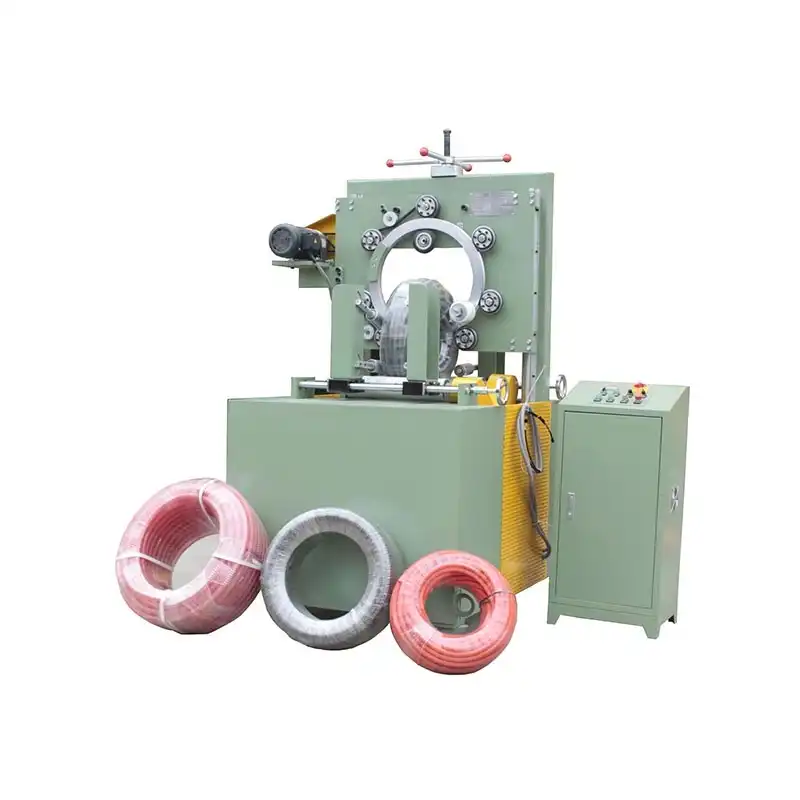

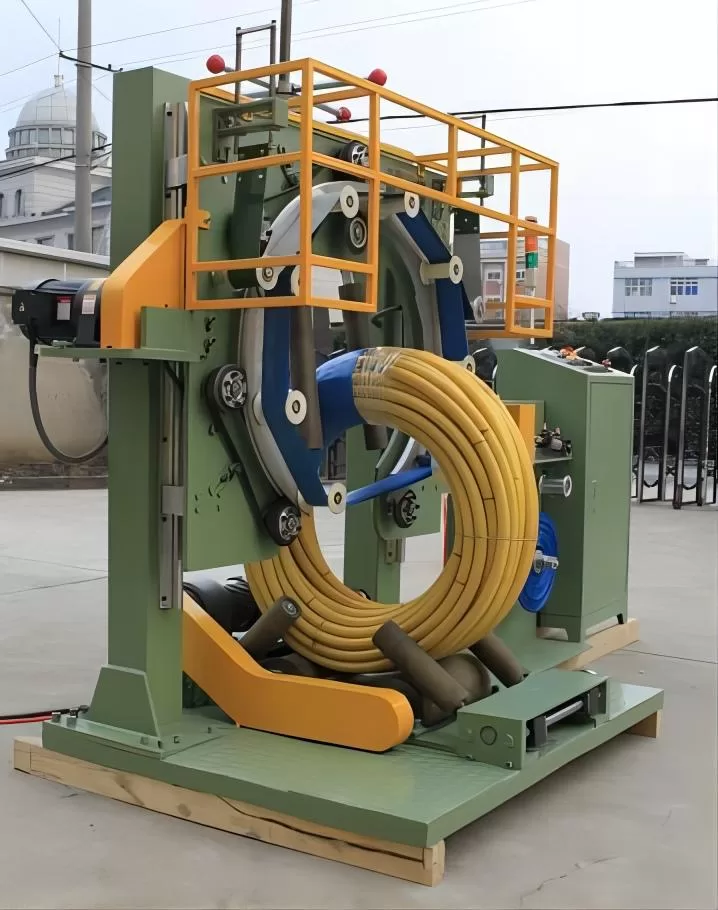

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPH-400 in operation
Video: FHOPE Automatic pipe coiler machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPH-400 specifications
Taken from the FPH-400 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Model | FPH-400 coil wrapper |
|---|---|
| Voltage (V/Hz) | AC 380/50( or your requirement) |
| Power (KW) | 1.8 |
| Coil ID(mm) | 400-800 |
| Coil OD(mm) | 500-1200 |
| Coil width(mm) | 50-400 |
| Coil Weight(Kg) | 3-25 |
| Packing material | LLDPE/PE/Stretch film/PVC/ |
| Ring speed(r) | 20-90 |
| Wrapping speed | 15-35sec/pcs |
| Overlapping rate | 20-90% |
Machine features
What this machine does
- vertical type packing machine design for coil wrapper.
- Sensors for positioning and adjustable functions.
- Manual / automatic working modes for choose using.
- Inverter controlling the roller and wrapping ring speed.
- Overlap rate different per product material.
- Start and stop softly for protection the machine.
- Guiding rollers for protection coil for wrapping.
- Special breaker to adjust before wrapping start.
- Automatic indicator and alarm system for protection.
- With High speed and efficient packaging.
- More information:
- How to choose a good suitable coil packaging machine?
- Different materials for coil packaging.
- Note: Coil wrapper can be designed according your specification.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
