Bearing Packing Machine FPB-400
The FPB-400 is built for large bearings and axletrees.
- 300-800
- Bearing ID(mm)
- 500-1200
- Bearing OD(mm)
- 100-400
- Bearing width(mm)
- 100-500
- Bearing Weight(Kg)
Overview
FPB-400 in short
The FPB-400 is built for large bearings and axletrees. It wraps each bearing in protective material at production speed, increasing packing capacity while cutting labour and material waste.
This bearing wrapping machine is designed for big size bearing and axletree packaging requirement.
It’s high efficiency improves the packing capacity, saves the labour cost. The tight package saves the packaging material. High stability improves the packaging quality.
One model of the series features a wrapping machine for bearing automatically.
Up to 6 programs can be stored in the PLC’s memory and selected via keypad.
Visual details

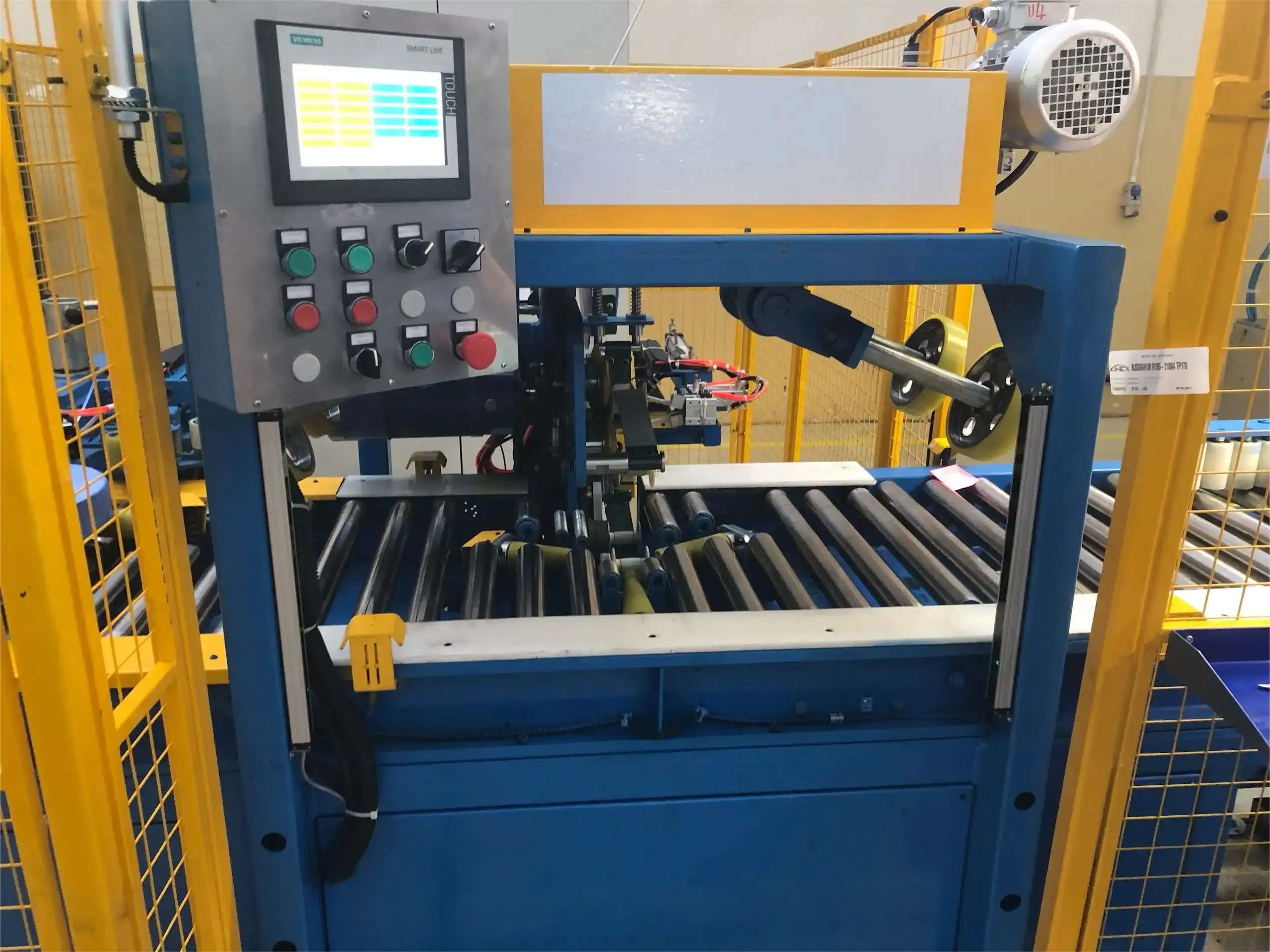

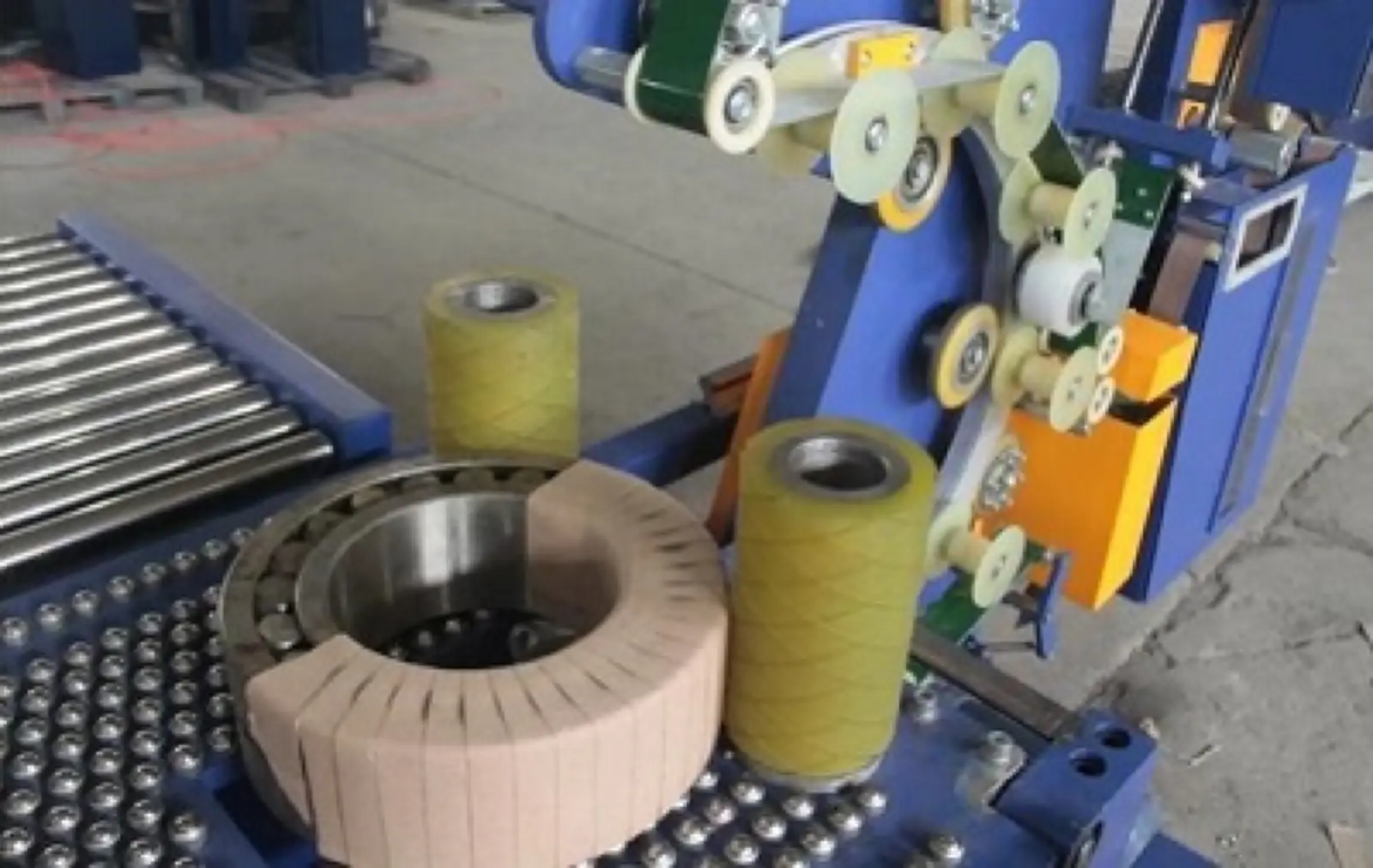

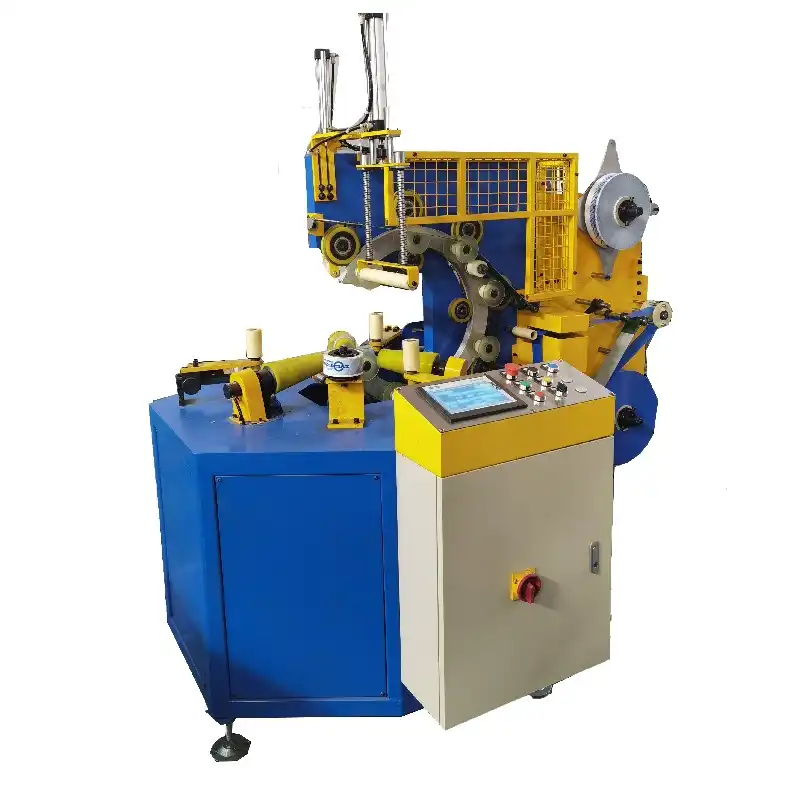

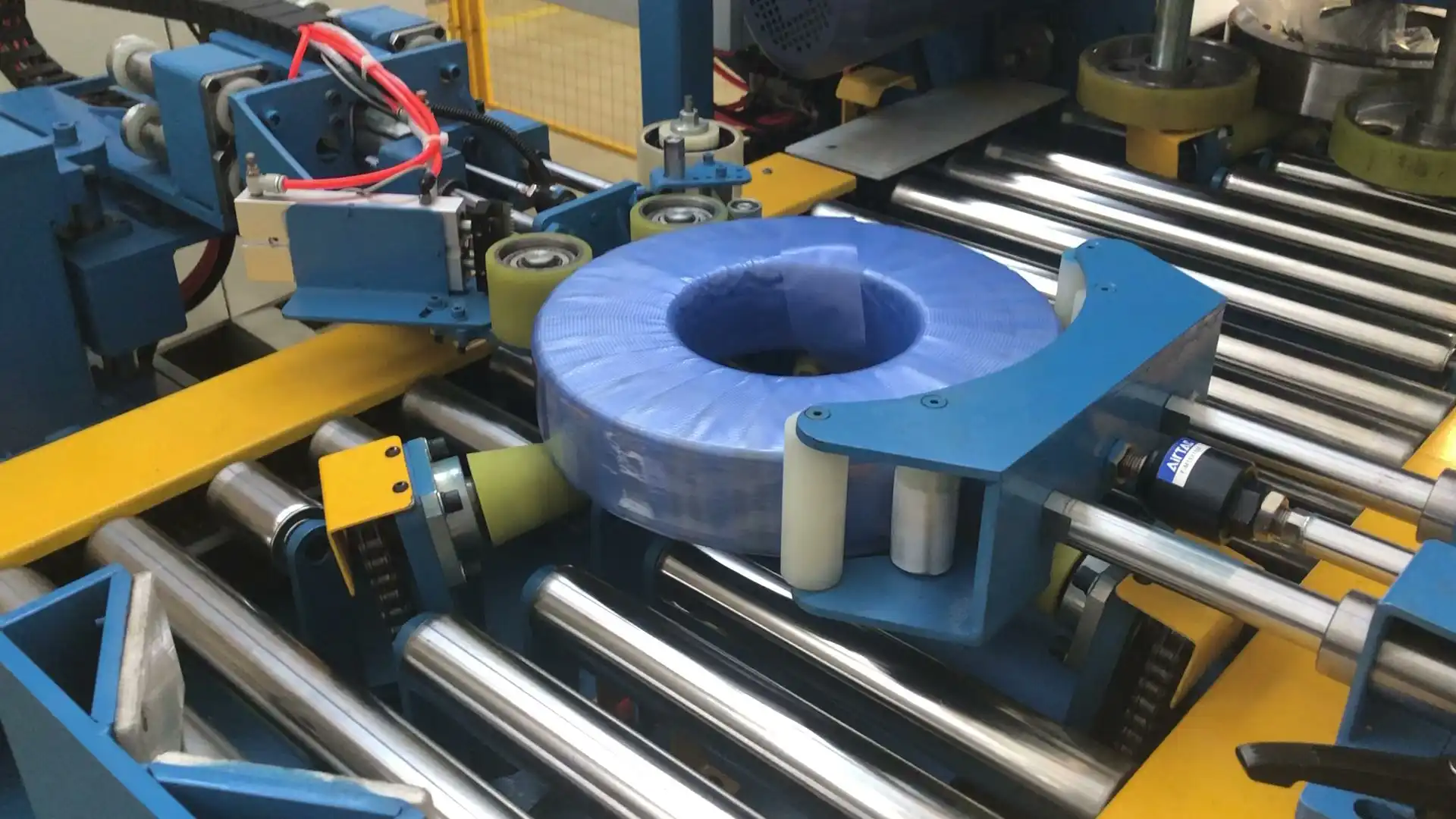

The FPB-400 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPB-400 in operation
Video: FHOPE Automatic bearing packaging and bearing wrapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPB-400 specifications
Taken from the FPB-400 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Model | FPB-400 |
|---|---|
| Voltage (V/Hz) | AC 380/50( or your requirement) |
| Power (KW) | 2.5 |
| Bearing ID(mm) | 300-800 |
| Bearing OD(mm) | 500-1200 |
| Bearing width(mm) | 100-400 |
| Bearing Weight(Kg) | 100-500 |
| Packing material | Goffered paper/PE/Stretch film/knit belt/PVC |
| Ring speed(r/min) | 30-70 |
| Wrapping speed | 30-50 sec/pce |
| Overlapping rate | 20-90% |
Machine features
What this machine does
- Bearing Packing Machine
- Description:
- This bearing wrapping machine is designed for big size bearing and axletree packaging requirement.
- It’s high efficiency improves the packing capacity, saves the labour cost. The tight package saves the packaging material. High stability improves the packaging quality.
- Features of bearing packing machine:
- One model of the series features a wrapping machine for bearing automatically.
- Machine has a infeed and outfeed conveyors to accommodate bearings.
- Up to 6 programs can be stored in the PLC’s memory and selected via keypad.
- Automatic centralized positioning for bearing wrapping packaging.
- Packing material can be chosen different kinds of material.
- Operation for bearing packing machine:
- Film/paper/woven can be used as packing material.
- Working speed adjustable by converters.
- Easy setting OD. ID. width & corrected parameter of bearing. Other parameters no need setting.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
