Coil Wrapping Machine · Bearing Packing Machine · FPB-200
Bearing Packing Machine FPB-200
This machine is designed to provide a reliable and efficient packaging solution for bearings.
- 300-600
- Bearing ID(mm)
- 700-1000
- Bearing OD(mm)
- 20-200
- Bearing width(mm)
- 20-200
- Bearing Weight(Kg)
Overview
FPB-200 in short
This machine is designed to provide a reliable and efficient packaging solution for bearings. It is an online and automatic system that can be customized to meet specific requirements, such as size, packing material, and handling needs.
This bearing packing machine is designed for bearing and axletree packaging.
Its high packing speed improves the capacity and saves labour cost and the tight package saves packaging material for customers.
Visual details

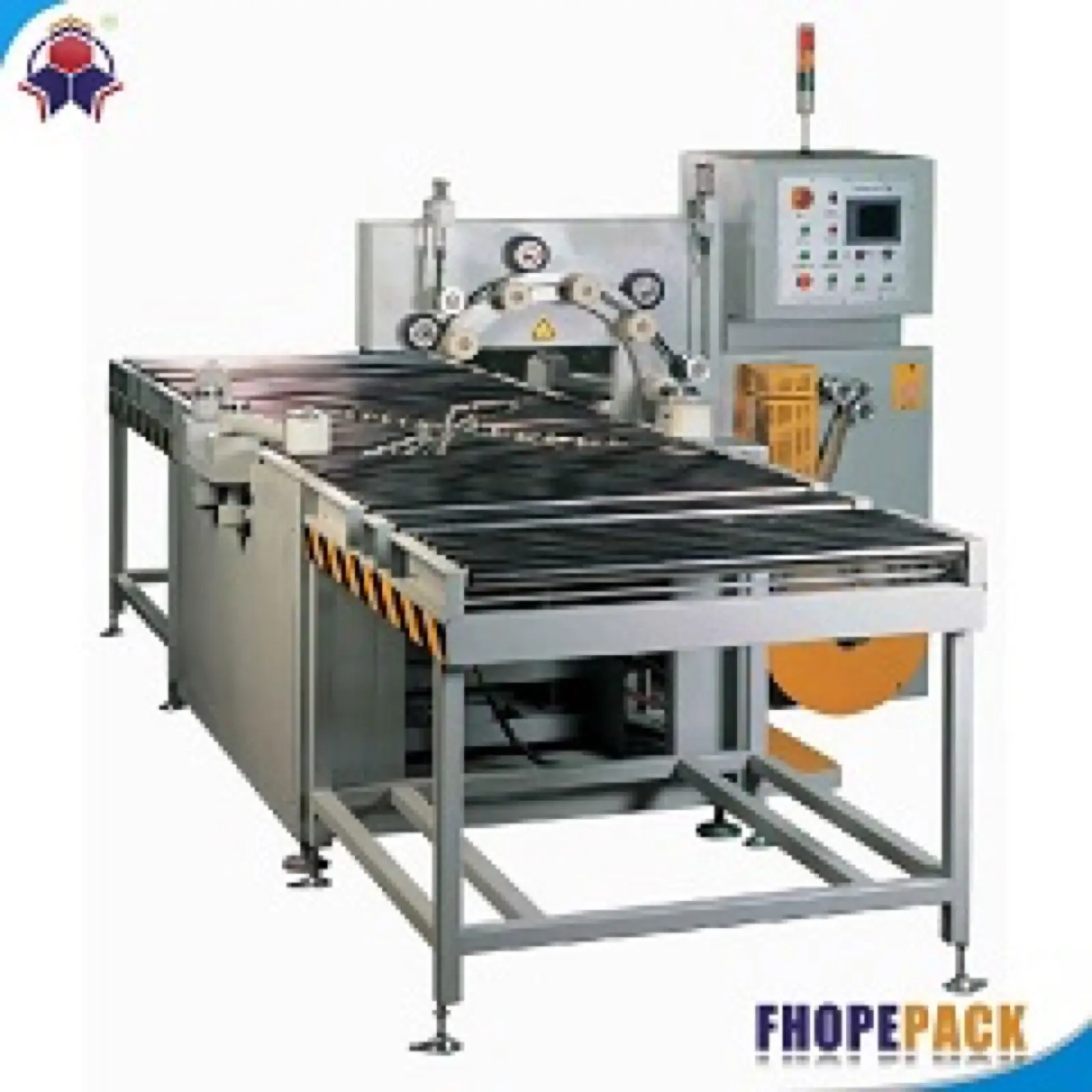

The FPB-200 machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPB-200 in operation
Video: FHOPE Automatic bearing packaging and bearing wrapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPB-200 specifications
Taken from the FPB-200 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Model | FPB-200 |
|---|---|
| Voltage (V/Hz) | AC 380/50( or your requirement) |
| Power (KW) | 1.5 |
| Bearing ID(mm) | 300-600 |
| Bearing OD(mm) | 700-1000 |
| Bearing width(mm) | 20-200 |
| Bearing Weight(Kg) | 20-200 |
| Packing material | Goffered paper/PE/Stretch film/knit belt/PVC |
| Wrapping speed | 35-45sec/pcs |
| Overlapping rate | 20-80% |
Machine features
What this machine does
- Bearing Packing Machine
- Description:
- This bearing packing machine is designed for bearing and axletree packaging.
- Its high packing speed improves the capacity and saves labour cost and the tight package saves packaging material for customers.
- Features of bearing packing machine:
- PLC for automatic operation.
- Automatic positioning for bearing wrapping through ID.
- Automatic motor conveyors can be equipped for bearing loading and unloading.
- Manual and automatic 2 models.
- Alarms automatically for trouble occurs.
- Softly stop and start.
- Wrapping ring reset system.
- Technical parameter：
- Machine Model
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
