Coil Wrapping Machine · Cable Coil Packing Machine · FPCA-200
Cable Coil Packing Machine FPCA-200
The FPCA-200 wraps cable coils in protective film or paper.
- 150-400
- Cable coil ID(mm)
- 250-500
- Cable coil OD(mm)
- 80-200
- Cable coil width(mm)
- 2-50
- Cable coil Weight(Kg)
Overview
FPCA-200 in short
The FPCA-200 wraps cable coils in protective film or paper. The wrapping station is laid out for fast material changes and easy maintenance, and the finished coil keeps a clean, consistent appearance.
This is an film wrapping machine for cable packing by stretch film, pvc film which has a slightly glue to make the package sealed from dust and moisture. The machine cooperate with the coiling machine at the end of the cable extruder for improving the packing speed. The cabel coil place on the roller station with eye to sky that makes the irregular cable coil be wrapping smoothly.
Visual details
The FPCA-200 machine

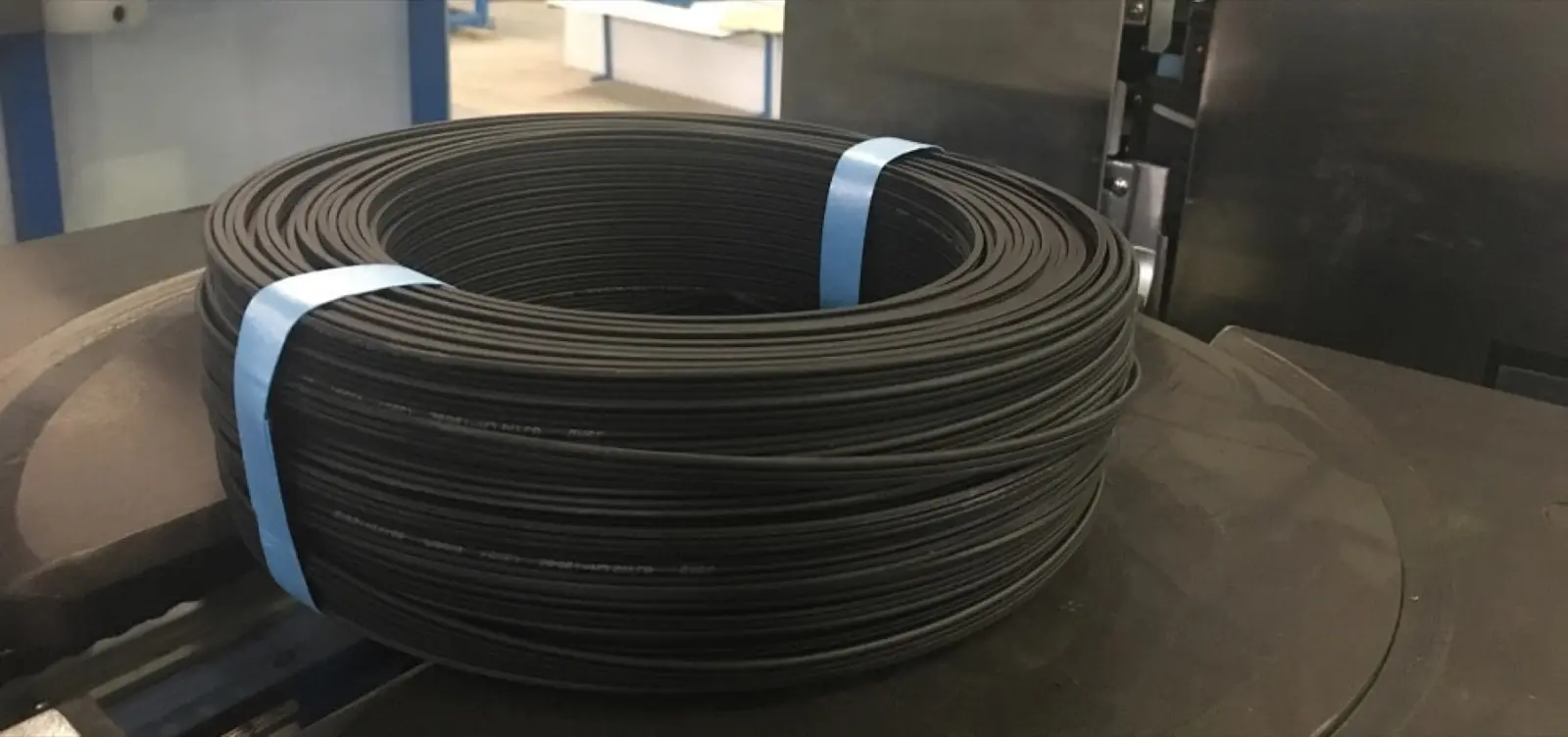

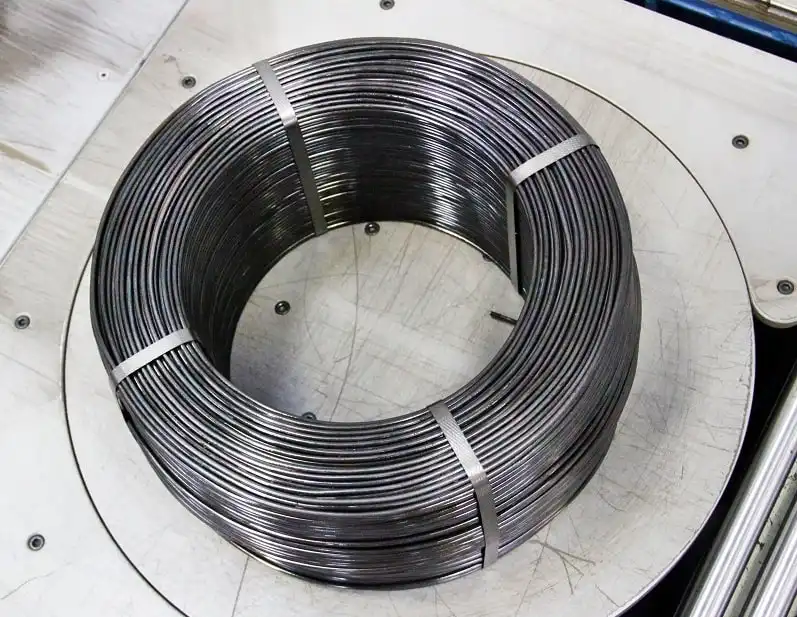

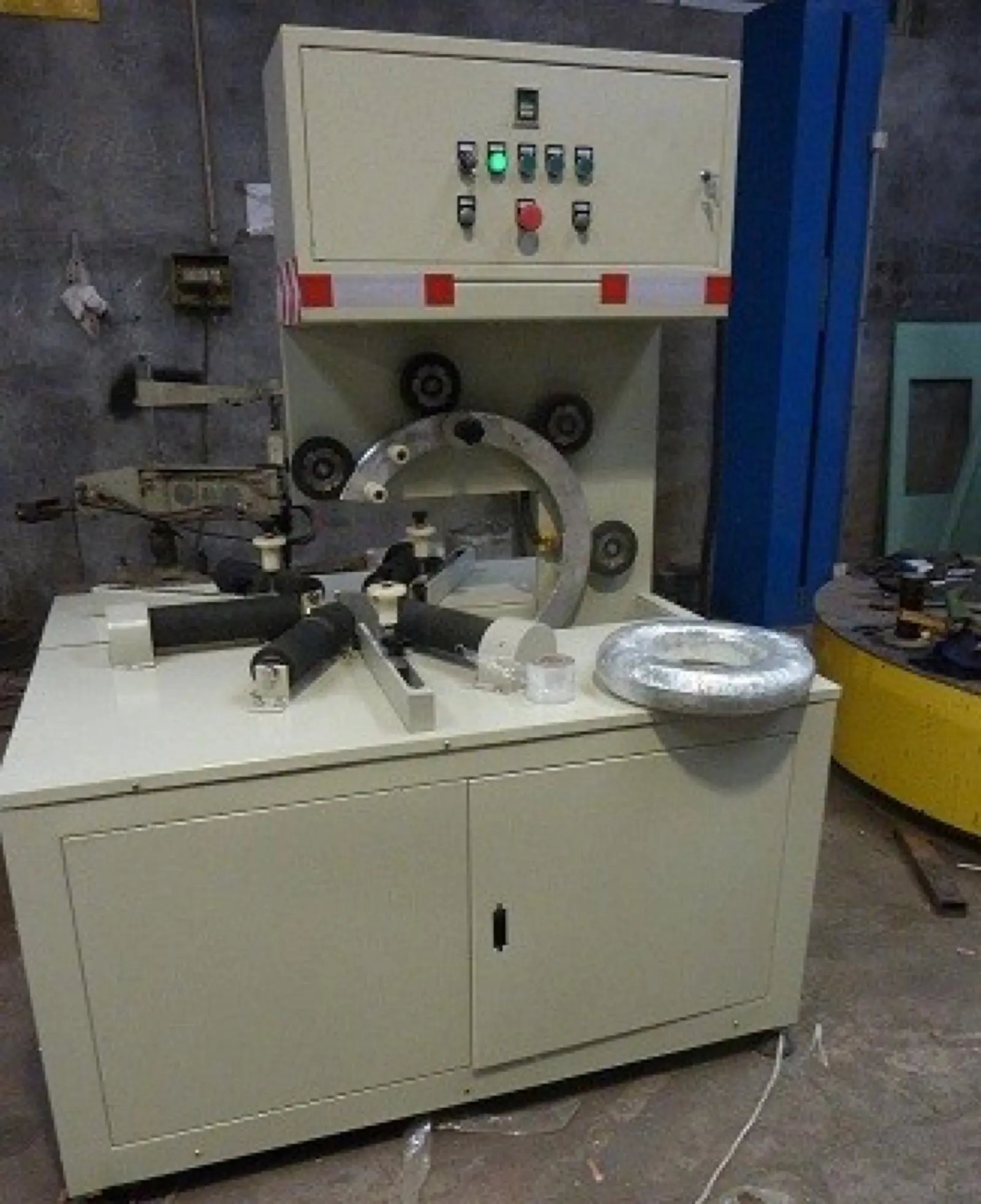

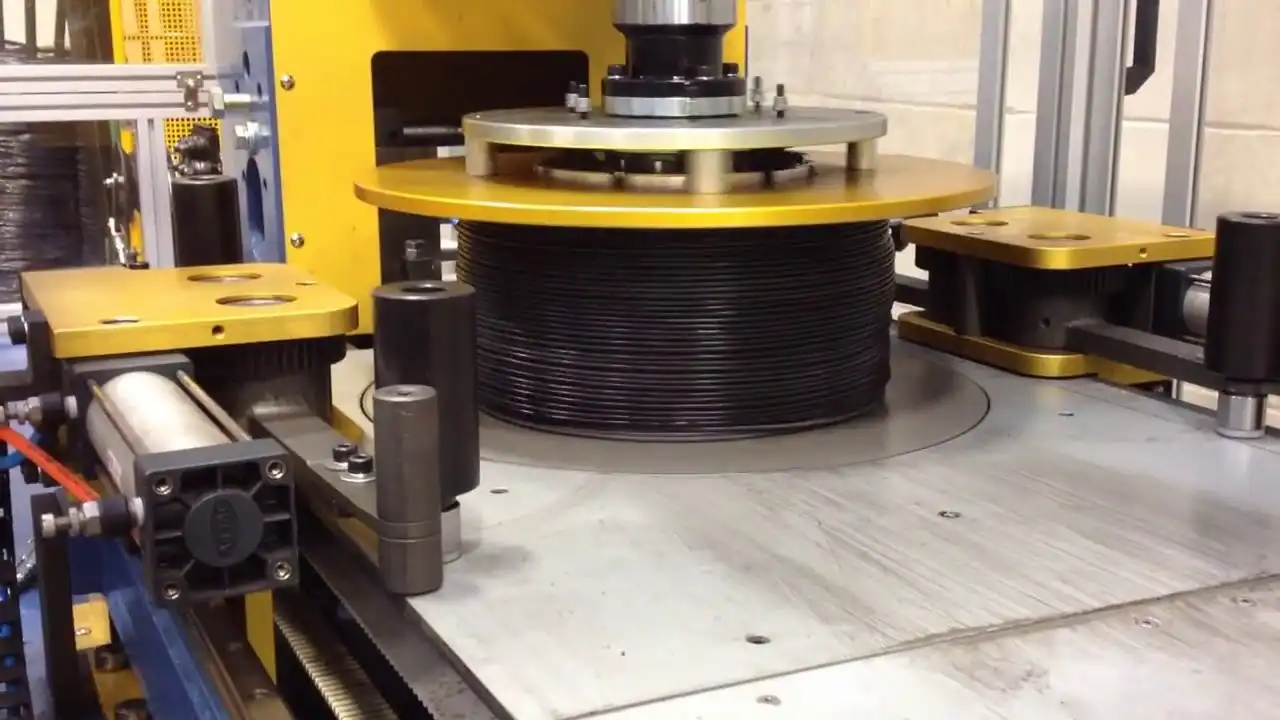

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPCA-200 in operation
Video: FHOPE Steel wire and cable coil wrapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPCA-200 specifications
Taken from the FPCA-200 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Voltage (V/Hz) | AC 380/50( or your requirement) |
|---|---|
| Power supply(KW) | 2.0 |
| Cable coil ID(mm) | 150-400 |
| Cable coil OD(mm) | 250-500 |
| Cable coil width(mm) | 80-200 |
| Cable coil Weight(Kg) | 2-50 |
| Packing material | PE/Stretch film/pvc |
| Ring speed(r/min) | 10-120 |
| Wrapping speed | 20-30sec/pcs |
| Overlapping rate | 20-80% |
Machine features
What this machine does
- PLC&HMI for automatic material calculates function.
- Different specifications stored on program.
- Panel operation for easy maintain and change
- Special design for easy loading and unloading by manual easily.
- Ring soft stop, start and reset.
- Manual and automatic working mode for easy operation.
- The converters for adjusting the speed of the ring and rollers
- Overlapping rate of the packing material according to requirement.
- Foot Switch control per manually operation.
- motor overcurrent protection
- Supportive rollers for avoiding coil shaking in wrapping
- Automatic packing machinery cutting and feeding
- Derived supportive roller for turning.
- Adopting 4 groups of electric arm to adjust, including adjusting wire reel size and collating winding center point.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
