Steel Coil Wrapping Machine FPS-800
The FPS-800 wraps slit steel coils, copper coils and wire coils up to 800 mm wide and 400 kg in weight, using film, paper or HDPE.
- 508
- Steel coil ID(mm)
- 800-1400
- Steel coil OD(mm)
- 400-800mm
- Steel coil width(mm)
- 200-1000kg
- Steelcoil Weight(Kg)
Overview
FPS-800 in short
The FPS-800 wraps slit steel coils, copper coils and wire coils up to 800 mm wide and 400 kg in weight, using film, paper or HDPE. Coils are loaded and unloaded by trolley.
Touch screen is key tool for customer's convenient operation. It could input some data of the coil, like OD, ID, width, weight and customer's required need of wrapping speed and wrapping layer.
PLC programs and touch screen operation system allow to creat high quality experience of operation, packing performance, labour efficiency, even handling profitability of the automatic steel coil packing machine. What you need is that just input data of any coil to make processing with automatic operation mode. Whatever which type of steel coil packing machine you will choose, you will get the packing goal into reality. Packing speed, better packing performance are what customer always to go after profit-push. And, these are important indicators to measure whether a packaging machine is good or not. This series of machines is the equipment that meets these indicators. You will get high automation profit output of speed and volume from the coil packing machine.
Note: The special specifiaction for steel coil packing is possible, please contact with our team for the solution.
Electrical Configuration List – Coil Wrapping Machine (Model: FPS-800)
Visual details
The FPS-800 machine

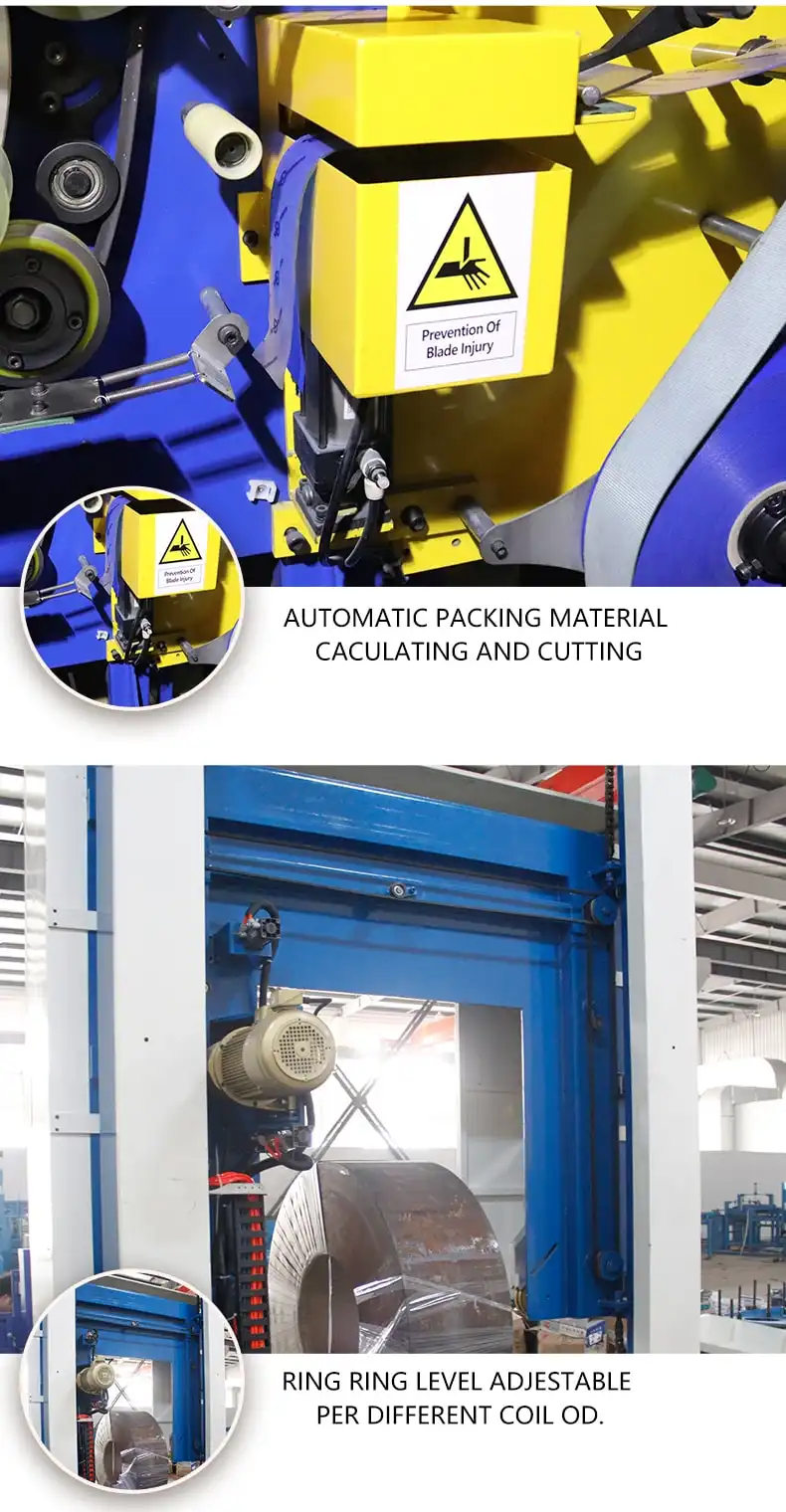

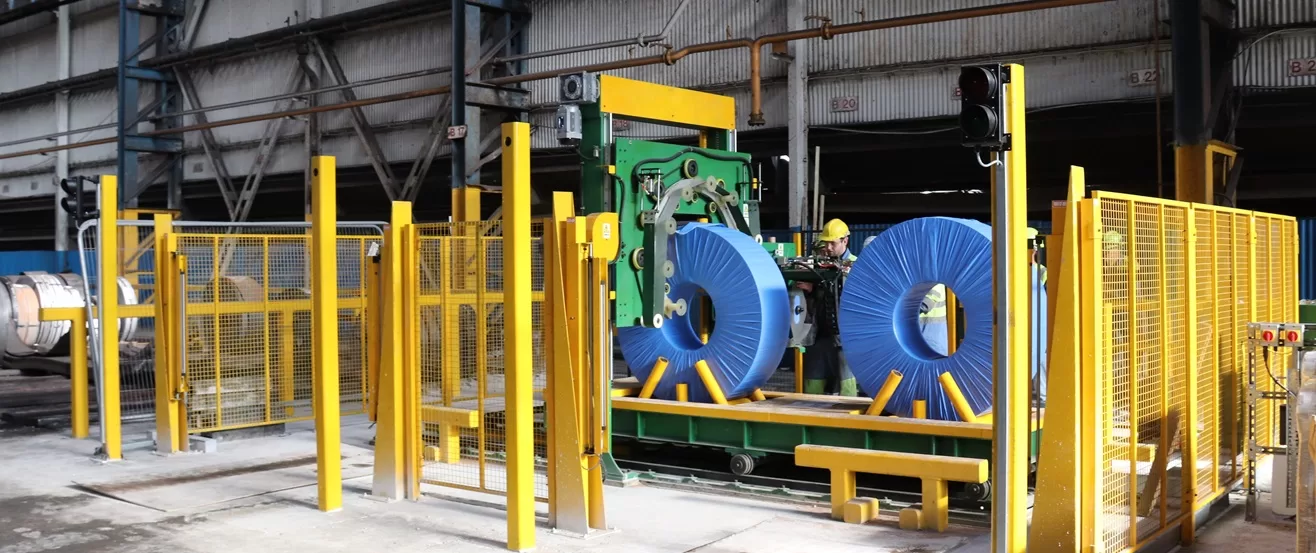

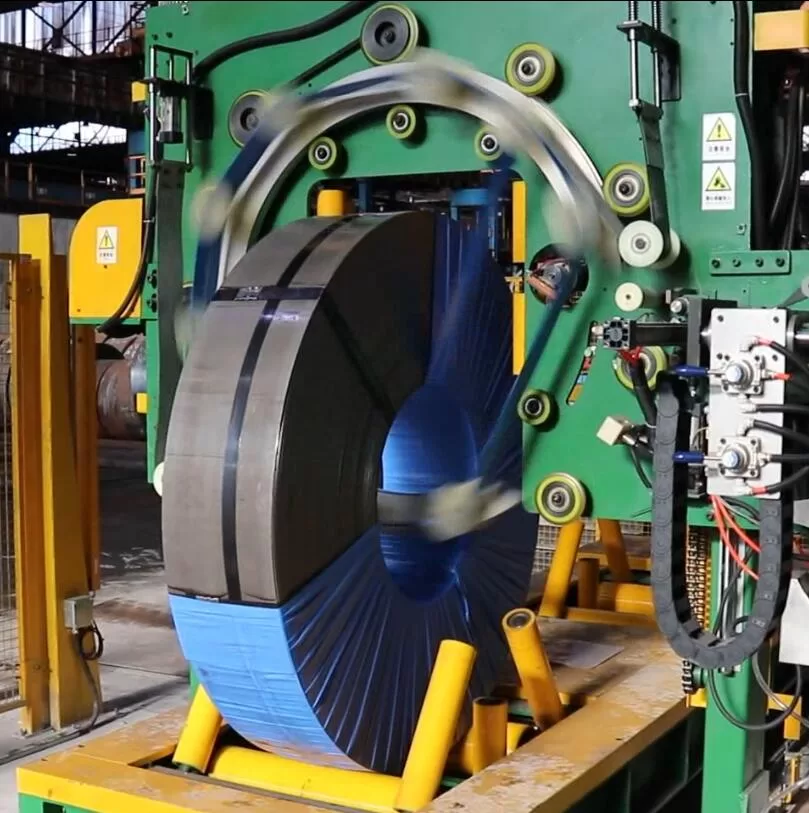

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
FPS-800 in operation
Video: FHOPE Steel coil and wire coil wrapping and packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
FPS-800 specifications
Taken from the FPS-800 data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Items | FPS-800 |
|---|---|
| Voltage (V/Hz) | 380v 50Hz 3Phase(adjustable) |
| Power (KW) | 1.5kw |
| Steel coil ID(mm) | 508 |
| Steel coil OD(mm) | 800-1400 |
| Steel coil width(mm) | 400-800mm |
| Steelcoil Weight(Kg) | 200-1000kg |

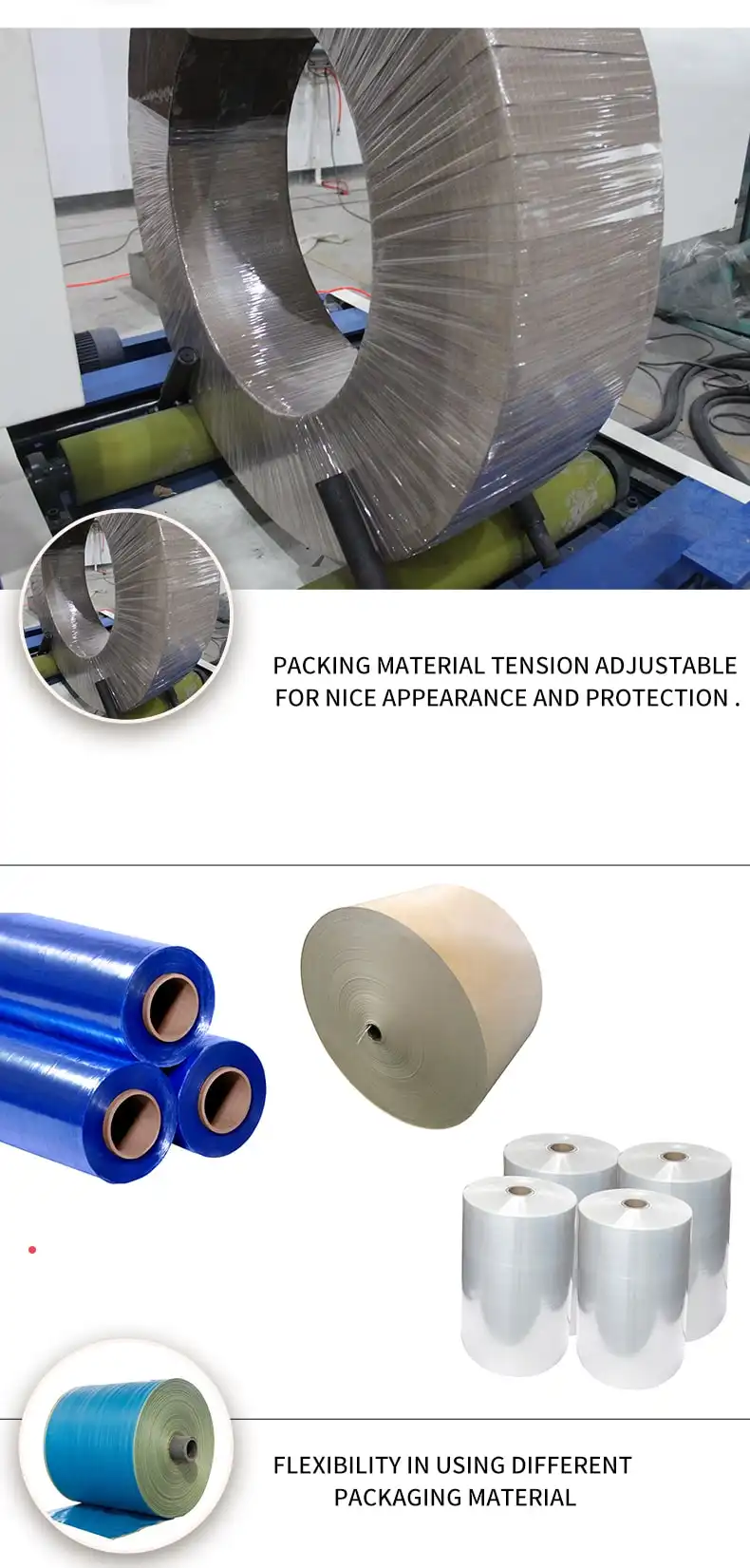

| Packing material | PVC/LLDPE/PE/PAPER/HDPE available |
| Overlapping rate | 10%-90% (adjustable) |
| Air supply. | 5-7kgf/ c㎡(optional) |
| Item | Brand / Description |
| Main Control System (PLC) | Siemens / Mitsubishi / Omron (optional) High-performance PLC for full process control |
| HMI Touch Screen | Siemens / Weinview (7" or 10") User-friendly interface for parameter input, status display, and alarm prompts |
| Inverter (VFD) | Delta / Schneider / Siemens Controls motor speed, ensuring smooth operation |
| AC Contactor | Schneider / ABB Reliable motor control and protection |
| Relay | Omron / Schneider Signal switching and circuit control |
| Power Supply Module | Meanwell / Omron DC 24V power supply for control circuit |
| Encoder (Optional) | Omron / Autonics For precise position feedback and speed monitoring |
| Emergency Stop Button | Schneider / ABB Multi-point emergency stop buttons for safety |
| Photoelectric Sensor | SICK / Panasonic Detects material position and presence |
| Terminal Blocks | WAGO / Phoenix Contact Modular terminal connections for easy maintenance |
| Cables & Wires | Industrial-grade, compliant with national or UL standards; wear-resistant and shielded |
| Control Cabinet | Enclosed metal cabinet with dust-proof design; includes fan or temperature control |
| Main Motors | SEW / ABB / Premium Chinese brands Designed for continuous industrial operation |
| Safety Circuit | Complies with CE or UL standards Includes overload, short circuit, and surge protection |
Machine features
What this machine does
- Modbus RTU / TCP
- Profibus / Profinet
- Ethernet/IP
- Remote I/O modules for integration with upstream/downstream automation systems
- All electrical components are selected from internationally recognized industrial brands to ensure reliability and stability.
- Power and control systems can be customized based on your local voltage, frequency, and control logic.
- Complete documentation is provided, including electrical schematics, wiring diagrams, and I/O lists.
- Core Features
- Engineered for Steel Coil Protection
- Smart PLC & HMI Control
- Powered by Siemens/Mitsubishi PLC. The user-friendly touchscreen allows precise digital setting of overlap rates, tape tension, and speed control.
- HMI Preview
- Certified Safety System
- CE-compliant design featuring safety light curtains and emergency stops. The machine halts instantly if an operator enters the zone, ensuring zero-risk operation.
- Operator Safety Priority
- Inverter-Driven Control
- Variable frequency drives enable soft start/stop functionality, ensuring smooth ring rotation and tight packaging without damaging the coil.
- Durable PU Rollers
- Heavy-duty support rollers coated with high-strength Polyurethane (PU). Provides anti-slip grip while preventing scratches on coil surfaces.
Typical applications
Where it is installed
- Steel and non-ferrous: cold rolled, hot rolled, galvanized and slit coils, aluminium and copper strip
- Wire and cable: steel wire, wire rod, PC wire, razor wire, cable reels
- Automotive and tyre: tyre wrapping and palletising, bearings and axletrees
- Tube and hose: steel pipe coils, PVC / PPR / UPVC hose coils
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
