Vertical Coil Packaging Line
The vertical coil packaging line packs coils in eye-to-wall orientation, for steel, copper and aluminium coils that are stored and shipped standing on edge.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Vertical Coil Packaging Line in short
The vertical coil packaging line packs coils in eye-to-wall orientation, for steel, copper and aluminium coils that are stored and shipped standing on edge. Coil handling, wrapping, strapping and stacking are integrated, so the coil is never lifted manually.
The vertical type steel coil packaging line is a eye to wall coil packing solution specially designed for steel coil, copper coil, wire coil and alum coil.. Strapping and weighing equipments can be added into packaging line.
The control system consists of two parts: electric control cabinet and operation platform. Each part can also be operated manually.
1. Coil Turnstile: connecting with coil car for auto loading slit coils.
3. Down ender: Picking slit coils from turnstile and changing coil from vertical to horizontal conveyors.
Visual details
The Vertical Coil Packaging Line machine

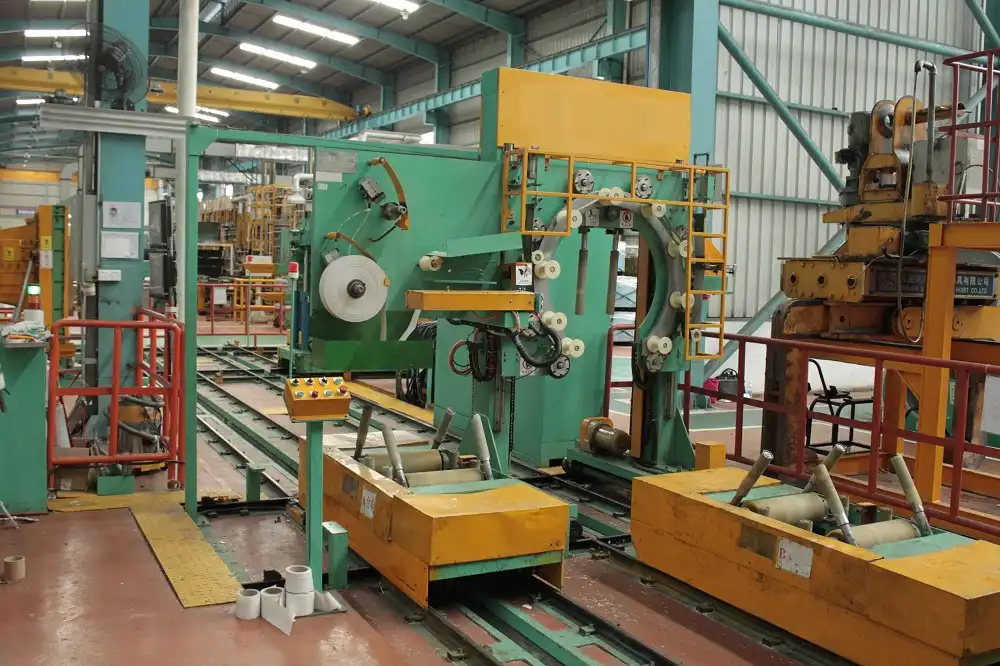

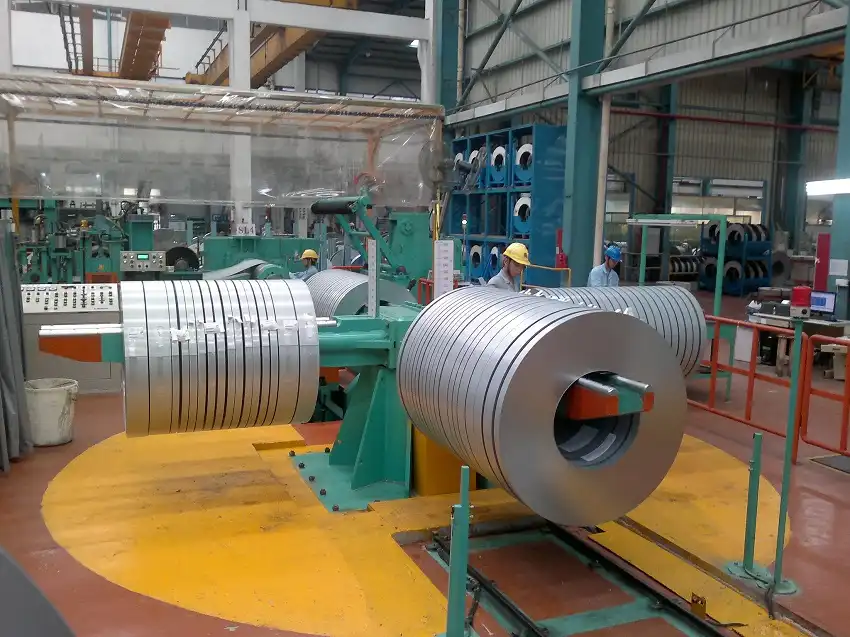

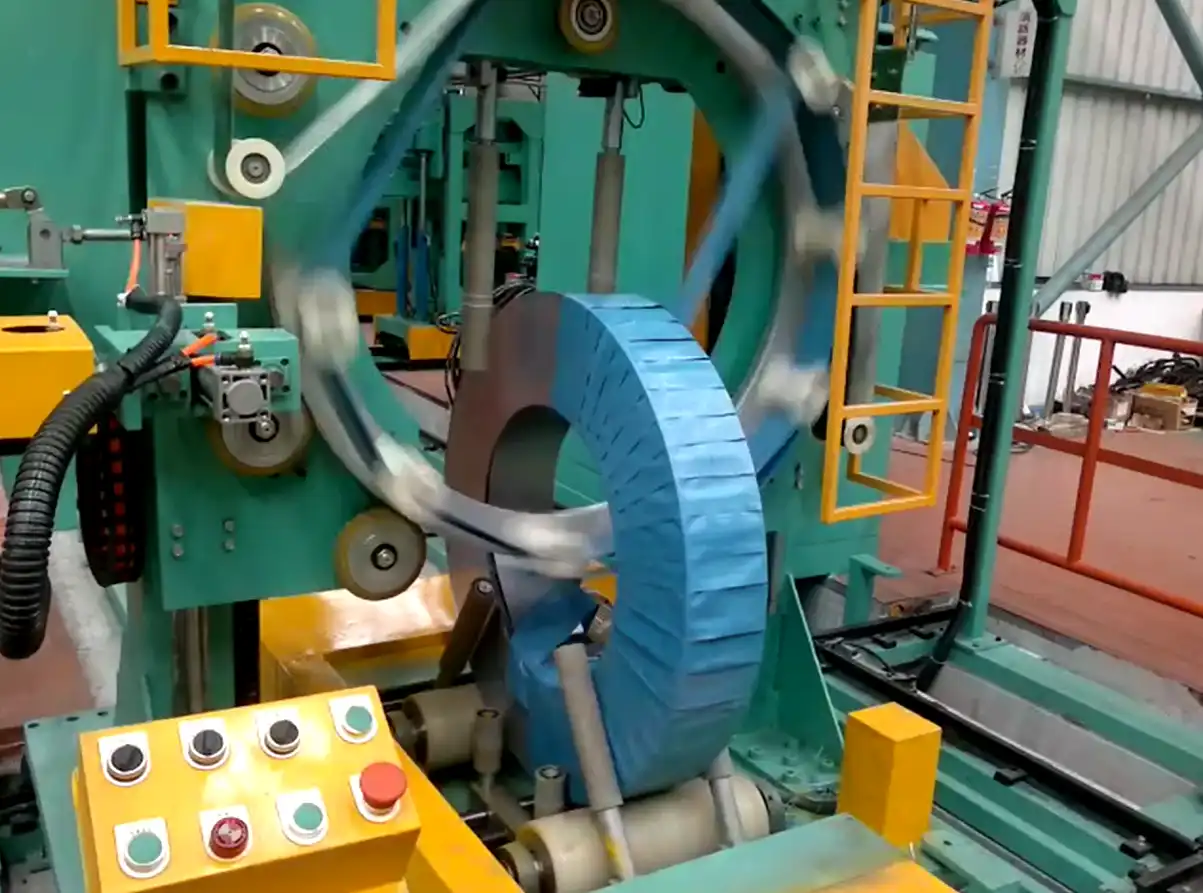

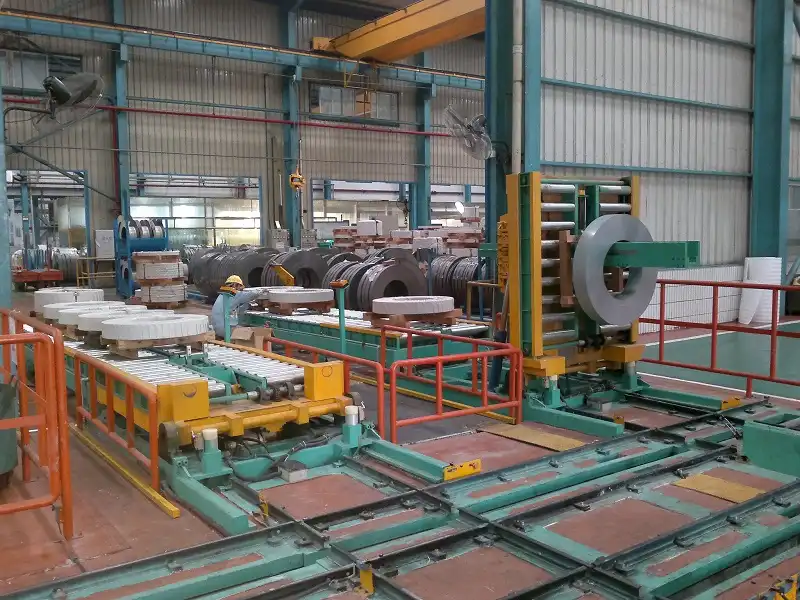

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Vertical Coil Packaging Line in operation
Video: FHOPE Eye vertical coil stretch wrapper and packing machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- The vertical type steel coil packaging line is a eye to wall coil packing solution specially designed for steel coil, copper coil, wire coil and alum coil.. Strapping and weighing equipments can be added into packaging line.
- The control system consists of two parts: electric control cabinet and operation platform. Each part can also be operated manually.
- Coil Turnstile: connecting with coil car for auto loading slit coils.
- Coil car: Auto moving coil for packaging loading and unloading.
- Down ender: Picking slit coils from turnstile and changing coil from vertical to horizontal conveyors.
- Strapping machine: Can strap coil through ID with PET/PE/steel belt.
- Coil wrapping machine:Through coil eye cross wrapping with different packing material.
- Coil Stacking machine: For finished coils moving and and storage the packed coils on pallet.
- Application:
- Copper Coil:
- Copper coils, often used in electrical transformers, benefit
- significantly from precise handling and packaging. These coils can range
- from 300 to 500 mm in diameter and typically weigh between 250 to 350
- kg. The strapping machine, utilizing a PET belt, securely fastens the
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Vertical & Heavy-loading Line
Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
