Cold Rolled Steel Coil Strapping & Packing Line
An automatic cold rolled steel coil packaging system that takes coils from the production line or the coil store through strapping, film wrapping, paper covering, edge protection and stacking.
- 6500kg
- Machine Weight
- AC 400V/50Hz
- Power Supply
- 15kw
- Power consumpation
- 0.6mpa
- Operating pressure
Overview
Cold Rolled Steel Coil Strapping & Packing Line in short
An automatic cold rolled steel coil packaging system that takes coils from the production line or the coil store through strapping, film wrapping, paper covering, edge protection and stacking. It is designed to run close-coupled to the mill or slitting line with minimal operator intervention.
This specification outlines is the equipment requirements of the Col roll steel coil Packaging Line for automation project. FHOPE will providing the on site installation and technical service. As a manufacturer, the packaging machines shall be complete except for equipment noted as ‘Supplied by Others’ in this specification. The latest proven state-of-the-art technology in the design, automation, and component selection shall be used for this equipment. Equipment shall be energy optimized wherever possible. The line is intended to be fully automatic and or minimizing where possible to intervention of personnel. The Packaging line shall be close coupled to the production line. And the system provides transport method of coils from the cold roll production line and from the Automatic Storage and Retrieval System (ASRS) to the Packaging line.

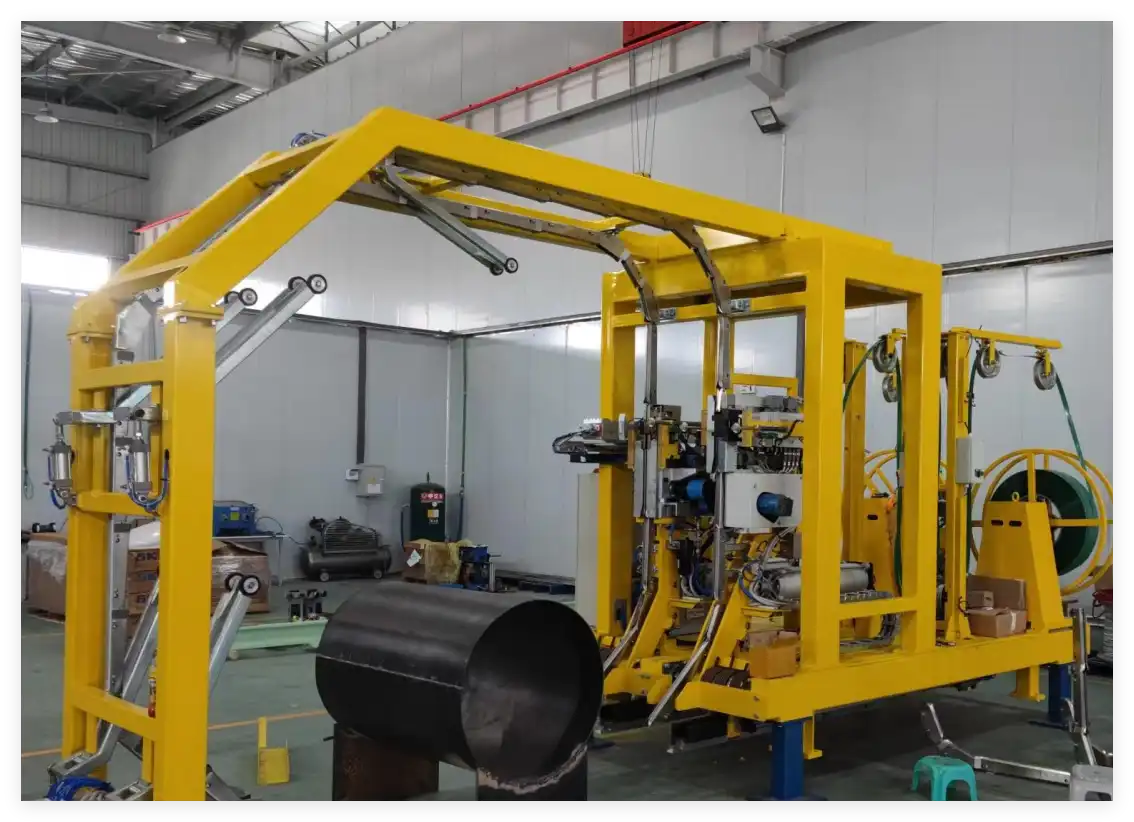

This is Circumferential strapping machine with bridge crane for position adjustment that controls by PLC system for automatic steel coil strapping. It equipped with a strap coil belt dispenser in vertical that feeding and unwinding belt. The strapping head with pneumatic clutch.
The for steel coil OD strapping, the machine is able to move both to the right and to the left.

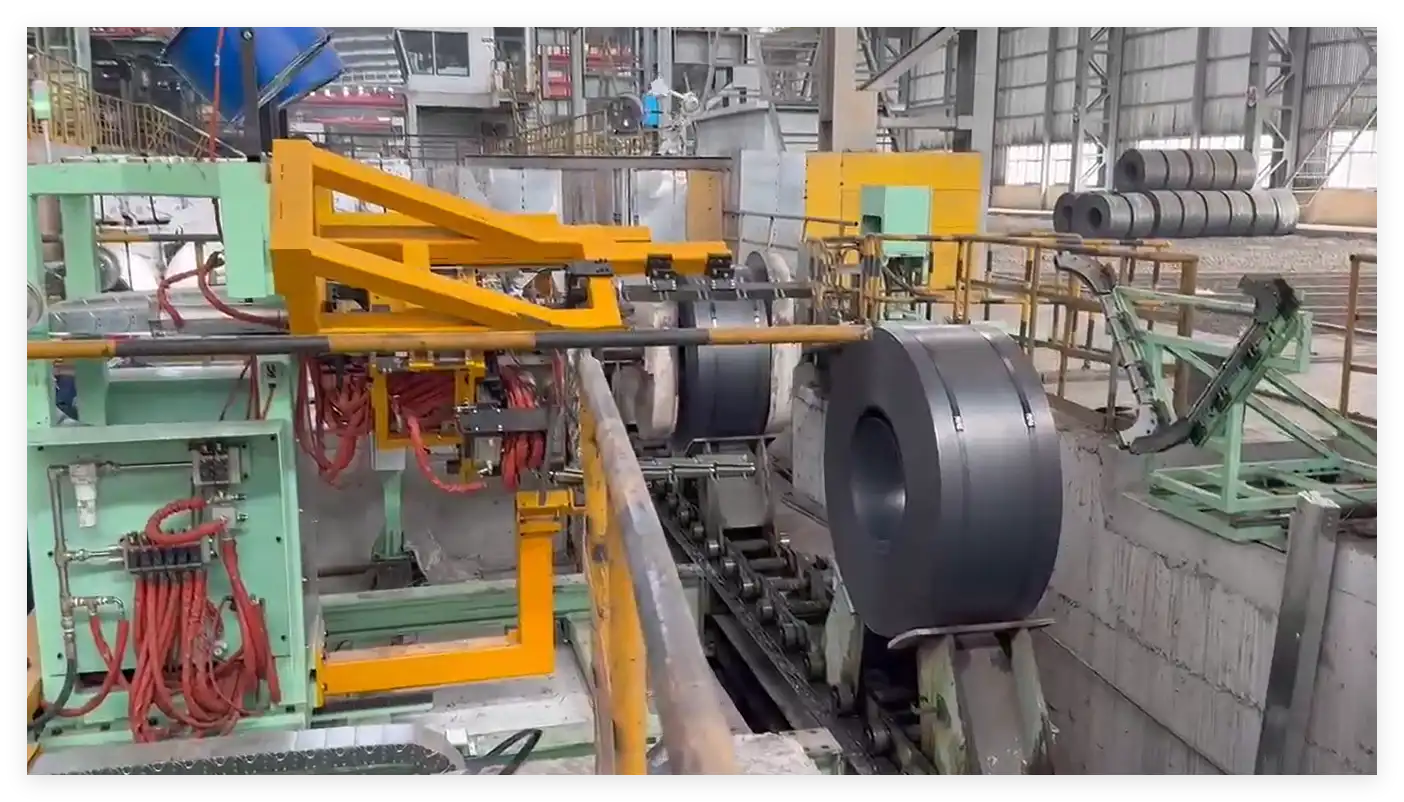

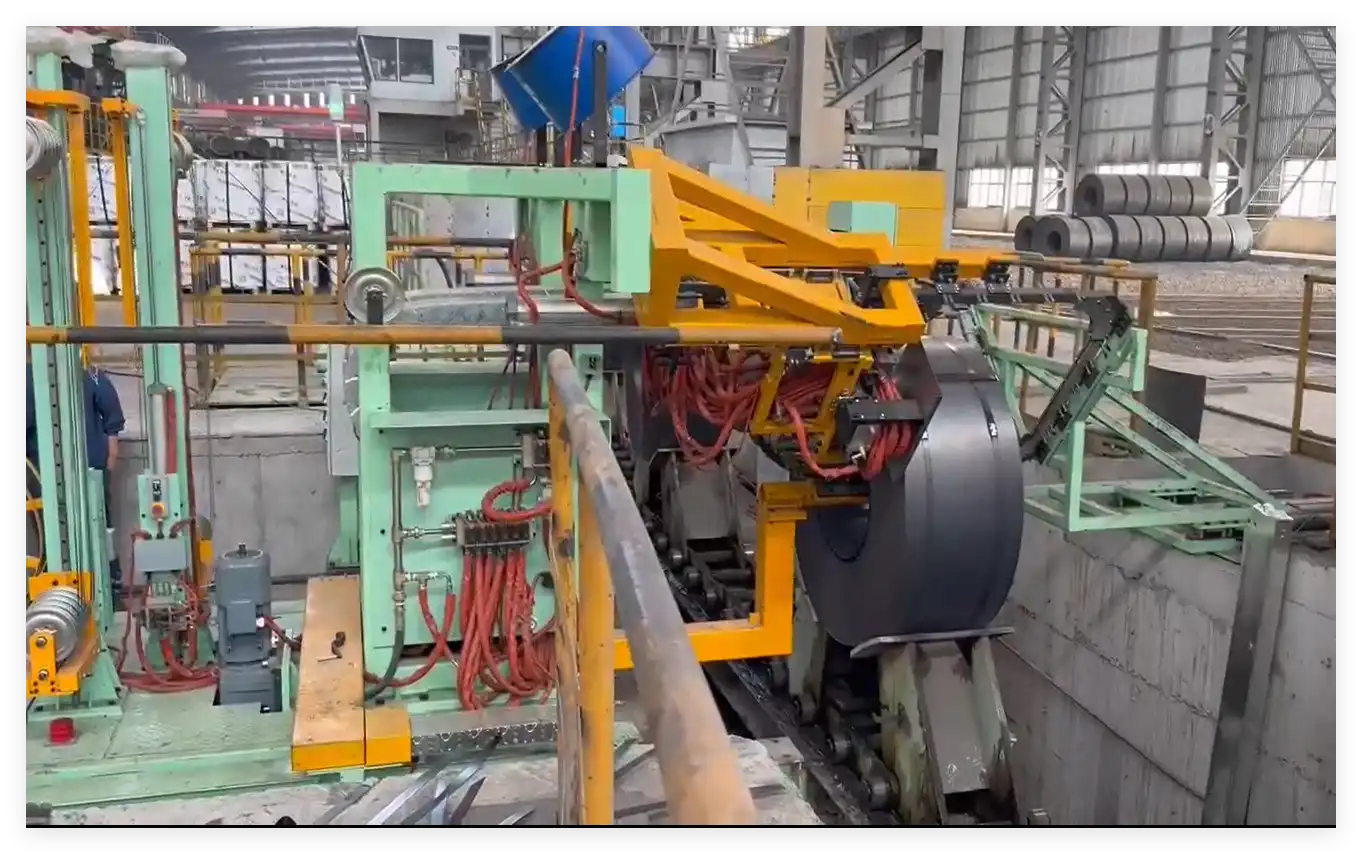

The radial coil strapping machine is able forward and backward by the rolley-mounted mobile base for automatic radial coil strapping
Visual details
The Cold Rolled Steel Coil Strapping & Packing Line machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Cold Rolled Steel Coil Strapping & Packing Line in operation
Video: FHOPE Integrated automatic steel coil handling and packing line (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
Taken from the line data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Machine Weight | 6500kg |
|---|---|
| Power Supply | AC 400V/50Hz |
| Power consumpation | 15kw |
| Operating pressure | 0.6mpa |
| Air Consumption | 500 Nl / cycle |
| Strapping speed | 20s per belt |
Machine features
What this machine does
- Cold Roll Steel Coil Strapping & Packing Line Manufacturer
- This specification outlines is the equipment requirements of the Col roll steel coil Packaging Line for automation project. FHOPE will providing the on site installation and technical service. As a manufacturer, the packaging machines shall be complete except for equipment noted as ‘Supplied by Others’ in this specification. The latest proven state-of-the-art technology in the design, automation, and component selection shall be used for this equipment. Equipment shall be energy optimized wherever possible. The line is intended to be fully automatic and or minimizing where possible to intervention of personnel. The Packaging line shall be close coupled to the production line. And the system provides transport method of coils from the cold roll production line and from the Automatic Storage and Retrieval System (ASRS) to the Packaging line.
- The typical packaging way of the cold roll steel coil packaging
- ID hole protector
- ID steel edge protector
- OD steel edge protector
- OD edge protector strapping
- ID cardboard protector
- OD cardboard protector
- Cold roll steel coil OD strapping
- VCI paper covering
- VCI film stretch wrapping
- Cardboard OD covering
- Steel sheet OD covering
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
