Coil Packing Line · Steel Coil Packing Line
Automatic Steel Coil Packaging Line
A fully automatic horizontal steel and strip coil packaging line: turnstile, slit coil upender, wrapping, strapping, weighing, labelling and stacking.
- Max. 100 – 3000 kg
- Single Coil Weight
- 900 – 1400 mm
- Coil Outer Diameter (OD)
- 508 mm
- Coil Inner Diameter (ID)
- 15 – 450 mm
- Coil Width
Overview
Automatic Steel Coil Packaging Line in short
A fully automatic horizontal steel and strip coil packaging line: turnstile, slit coil upender, wrapping, strapping, weighing, labelling and stacking. It is engineered for steel mills and service centres that pack coils of different widths and weights on the same line.
It's a full-Automatic horizontal steel coil packaging line, the line including auto turnstile, slit coil up-ender, steel coil strapping, coil wrapping packaging, power conveyor, coil stacking & pallet wrapping a whole packaging line. This solution designed for many coil packaging, such as copper coil, stainless steel coil, wire coil..
This Coils Packing Line can connect with exit of a Slitting Line by coil car/turnstile. We FHOPE team can offer the best solution which to ensure maximum production and high packaging speed. Full-Automatic packaging solution to achieve without gap for the unmanned operations.
Customizing-building packaging line machine is with impressive functions which be accomplished in FHOPE Slit Coils Packing Lines base on Customers’ requirements.
FHOPE offer a best packaging solution to you after communication for all list of packaging functions.
Visual details
The Automatic Steel Coil Packaging Line machine

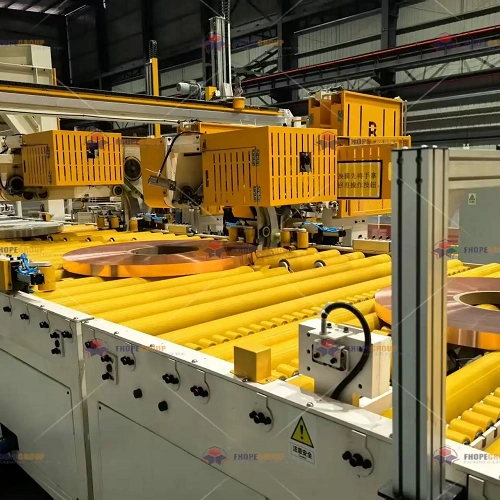

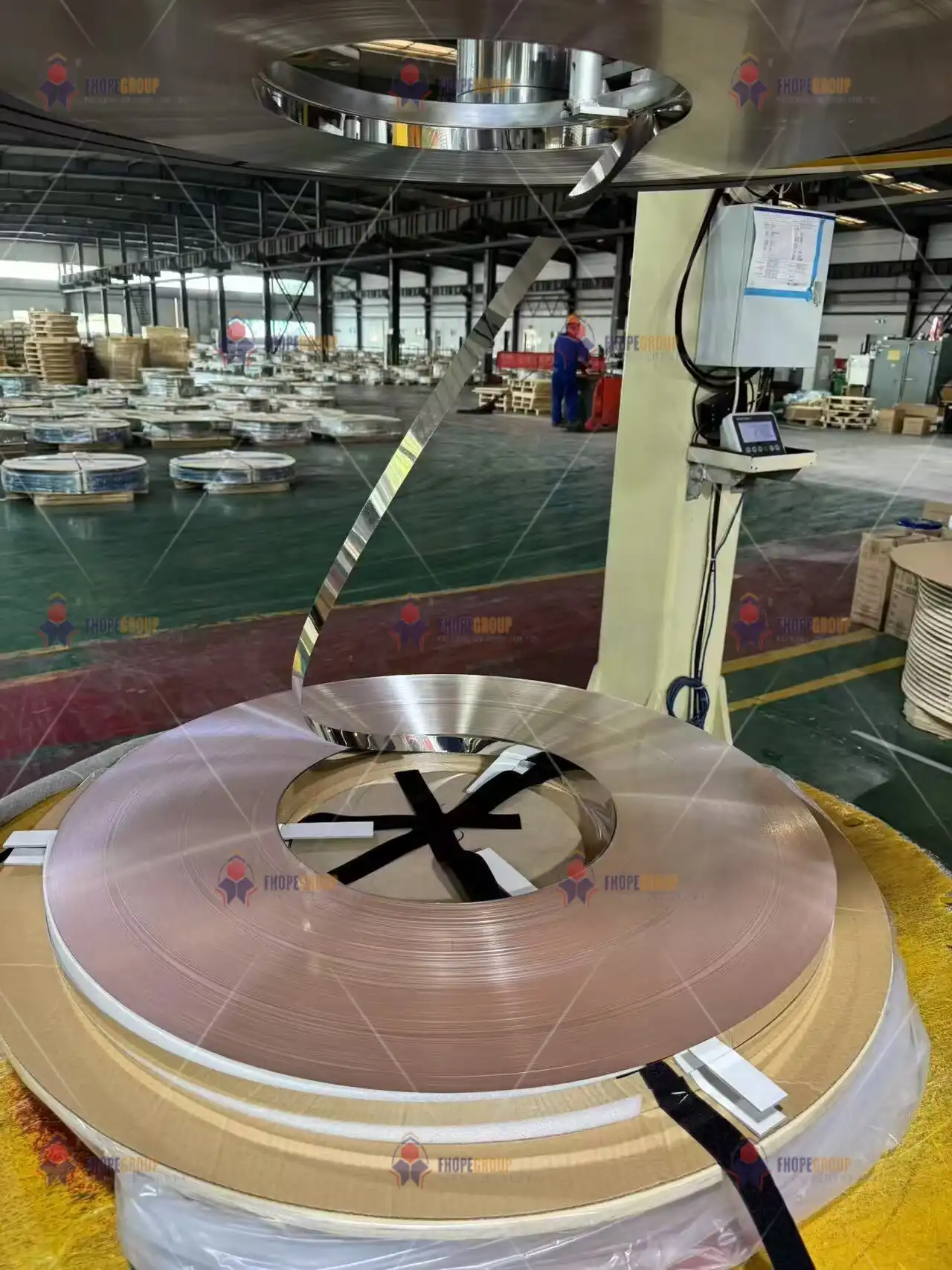

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Automatic Steel Coil Packaging Line in operation
Video: FHOPE Integrated automatic steel coil handling and packing line (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
Taken from the line data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Parameter | Specification |
|---|---|
| Object Characteristic | Steel Coil (slit and sheared strip coil) |
| Single Coil Weight | Max. 100 – 3000 kg |
| Coil Outer Diameter (OD) | 900 – 1400 mm |
| Coil Inner Diameter (ID) | 508 mm |
| Coil Width | 15 – 450 mm |
| Packing Speed | 20 – 30 coils/hour (depending on line configuration) |
| Power Supply | 380V , 3 Phase, 50Hz |
| Control System | Siemens PLC + MSGC HMI |
| Drive Type | Electric + Pneumatic |
| Operation Mode | Fully automatic (PLC controlled) |
| Packing Material | Stretch film / VCI paper / woven belt / composite film |
| Air Supply Requirement | 0.6 – 0.8 MPa, clean and dry compressed air |
| Ambient Temperature | 0 – 40°C |
| Noise Level | ≤ 75 dB |
Machine features
What this machine does
- STEEL COIL PACKAGING LINE FOR SLITTING STRIP AND COIL
- It's a full-Automatic horizontal steel coil packaging line, the line including auto turnstile, slit coil up-ender, steel coil strapping, coil wrapping packaging, power conveyor, coil stacking & pallet wrapping a whole packaging line. This solution designed for many coil packaging, such as copper coil, stainless steel coil, wire coil..
- This Coils Packing Line can connect with exit of a Slitting Line by coil car/turnstile. We FHOPE team can offer the best solution which to ensure maximum production and high packaging speed. Full-Automatic packaging solution to achieve without gap for the unmanned operations.
- Customizing-building packaging line machine is with impressive functions which be accomplished in FHOPE Slit Coils Packing Lines base on Customers’ requirements.
- FHOPE offer a best packaging solution to you after communication for all list of packaging functions.

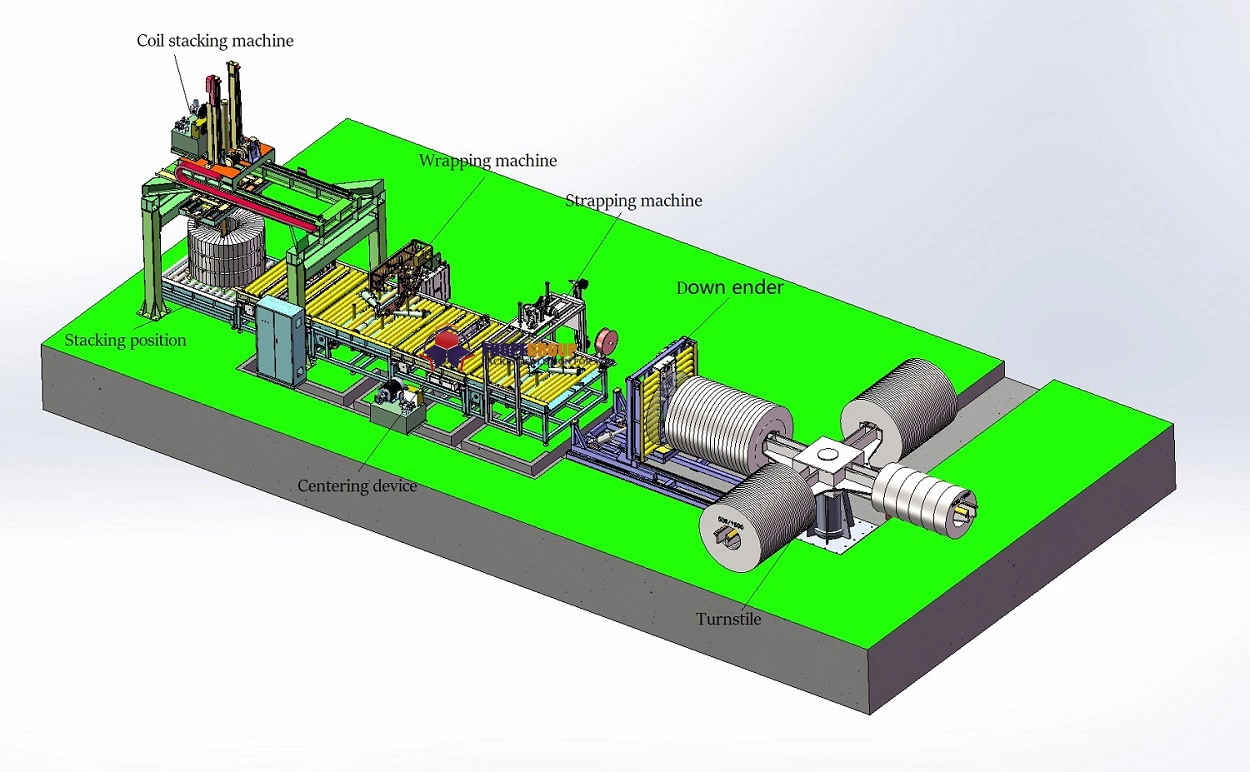

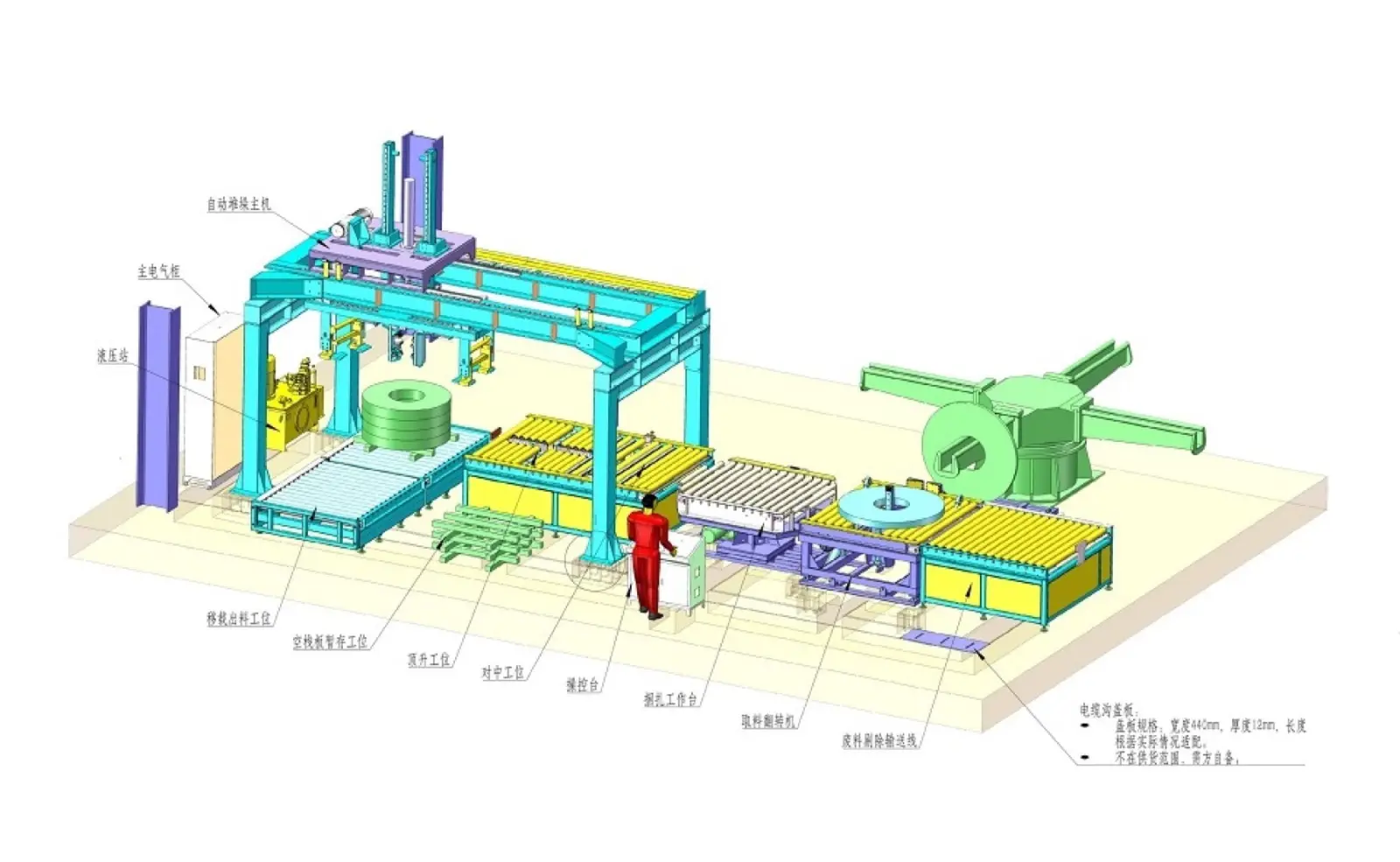

- The drawing available for main construction of this whole line packaging solution.
- FHOPE's engineering team brings the experience and knowledge needed to handle the problem in packaging.
- Main Technical Parameters — Steel Coil Packing Line
- Parameter
- Specification
- Object Characteristic
- Steel Coil (slit and sheared strip coil)
- Single Coil Weight
- Max. 100 – 3000 kg
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Steel Coil Packing Line
Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
