Coil Packing Line · Copper Coil Packing Line
Brass & Copper Strip Vacuum Handling and Welding Line
Welding lines are industrial equipment used to efficiently and consistently weld multiple copper coils together.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Brass & Copper Strip Vacuum Handling and Welding Line in short
Welding lines are industrial equipment used to efficiently and consistently weld multiple copper coils together. This process minimises manual handling and ensures high-quality welding.
Multi-coil Welding lines are typically industrial equipment that are designed for multi-coil of welding together, as be a good choice for efficiently and consistently welding the copper coils. The welding line has the operation process, including:
Handling equipment: such as cranes, forklifts, and conveyors to move the copper coils between the different stations in the welding line.
Coil upender: to flip a coil from a horizontal to a vertical position or vice versa.
Transit platform: used for transporting the coils between different stages in the welding line.
Visual details

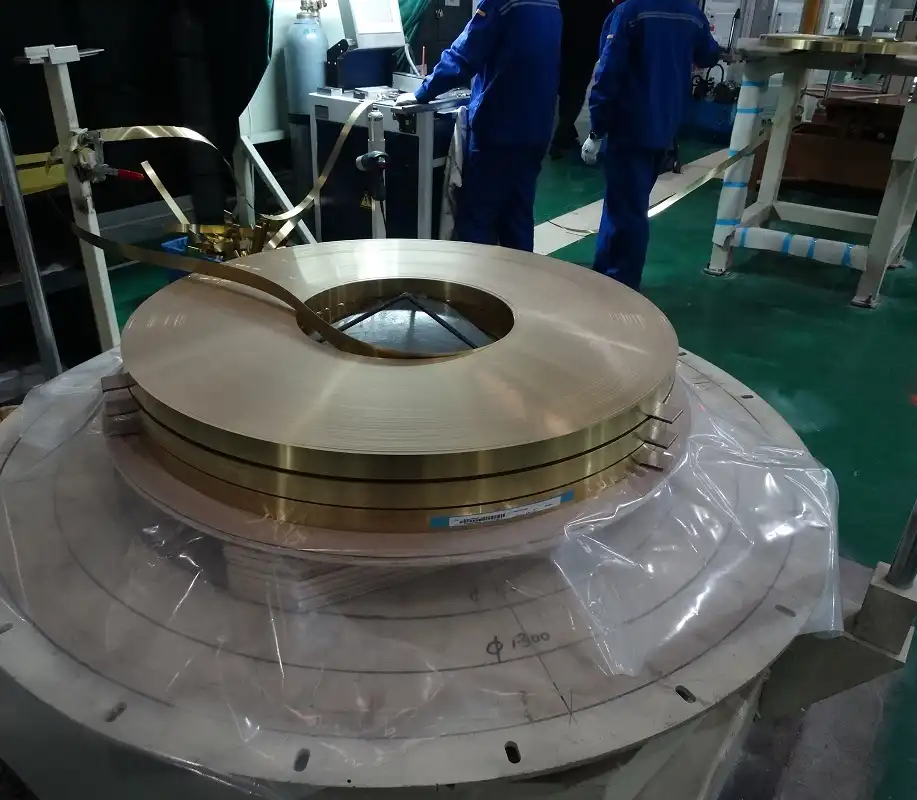

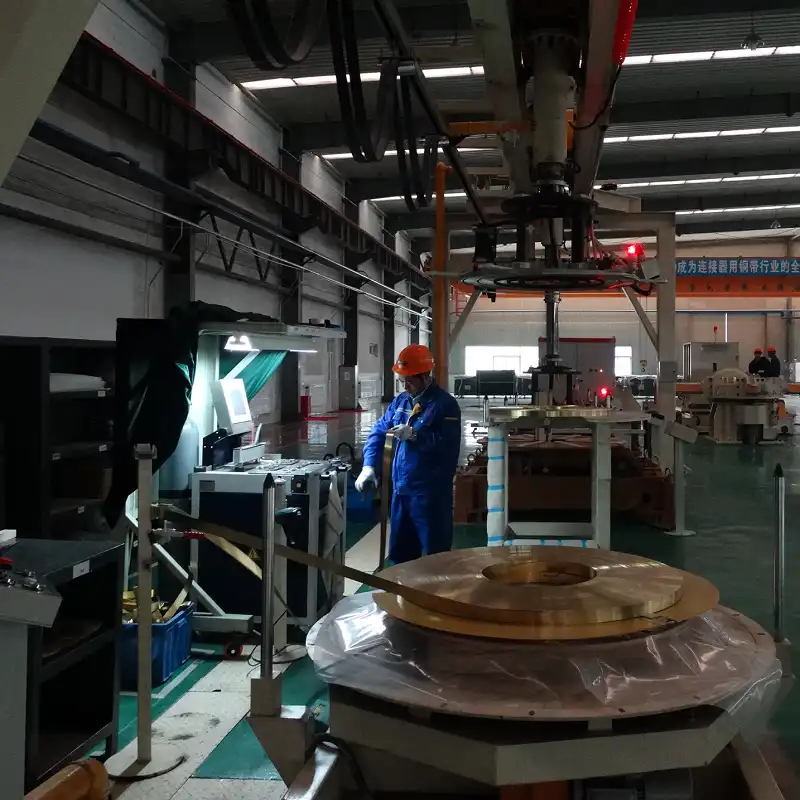

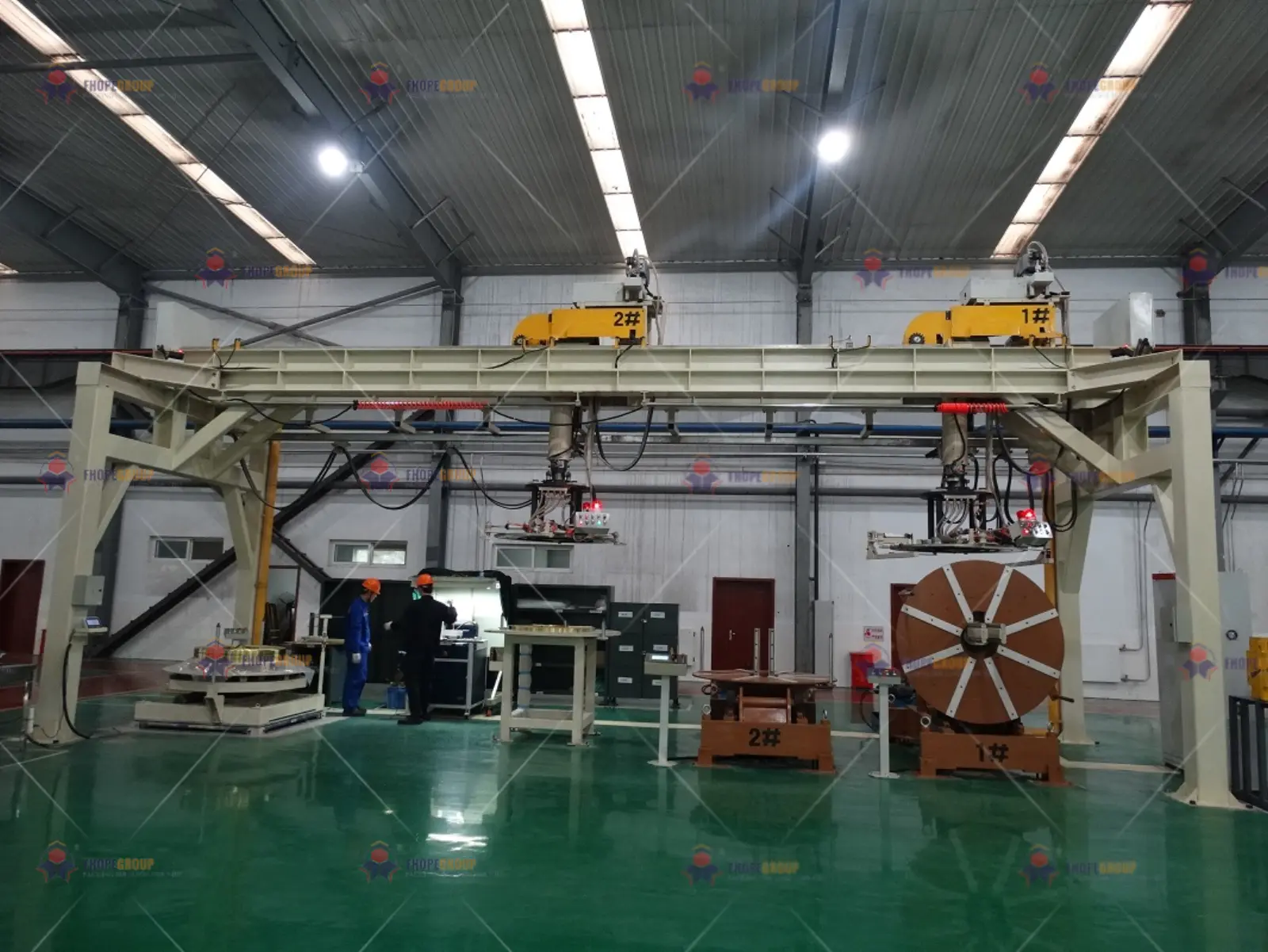

The Brass & Copper Strip Vacuum Handling and Welding Line machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Brass & Copper Strip Vacuum Handling and Welding Line in operation
Video: FHOPE Automatic copper strip coil packaging and handling solution (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does

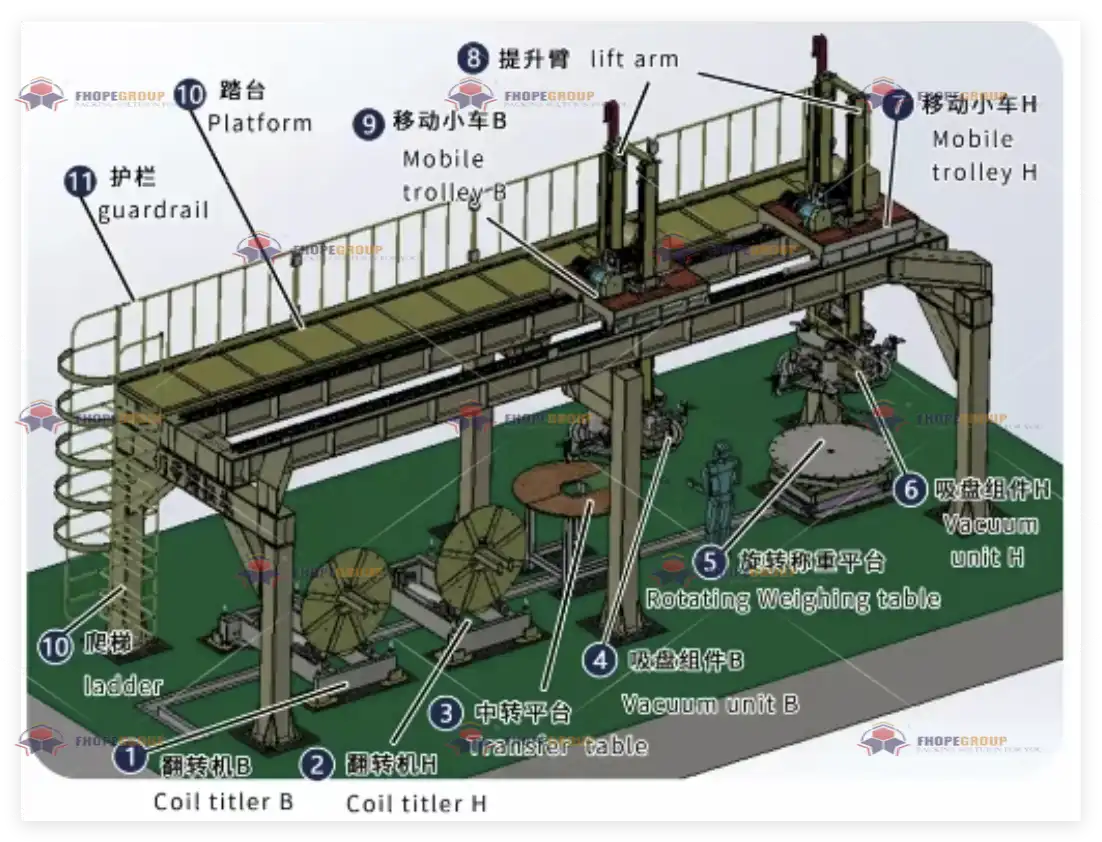

- Handling equipment: such as cranes, forklifts, and conveyors to move the copper coils between the different stations in the welding line.
- Coil upender: to flip a coil from a horizontal to a vertical position or vice versa.
- Transit platform: used for transporting the coils between different stages in the welding line.
- Welding operation: Depending on the type of welding process used, this may involve a robotic welding arm or human-operated welding equipment.
- Rotate-lifter platform: to allow them to be welded from different angles. This can be useful for ensuring consistent and high-quality welds.
- Framework and single equipment: The welding line is a combination of both the framework and individual equipment units, which work together to provide an efficient and high-quality welding process.
- Equipment alignment: The individual equipment units are aligned on the same axis, which can help to ensure efficient transfer of the copper coils between each stage of the welding process.
- Alternating upenders: The use of two upenders that can be used alternately allows for increased versatility and flexibility in the welding process. This can be particularly useful for handling different types of copper coils and accommodating changes in production volume
- Vacuum chuck integration: It will work throughout the entire welding line, which helps to create an integrated and cohesive system. This can help to reduce the need for manual handling of the copper coils and ensure precise positioning during welding
- Rotate-lifter function: It can help to ensure that the copper coils are positioned correctly for welding and can improve the quality and consistency of the welds
- Convenient operating design: The gaps left in the transit platform provide convenient access to the lower part of the welding line, which can help to simplify maintenance and repair tasks.
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Copper Coil Packing Line
Line Advanced Copper Coil Packing Line The Advanced Copper Coil Packing Line combines strapping with orbital wrapping for export-grade packing. It handles loads from 15 to 40 tons and applies dual-layer protection, with PLC and HMI control along the line. View machine →
Line Copper Coil Packaging Line The copper coil packaging line covers the full sequence for copper and brass strip coils: coil turning, eye-to-wall handling, wrapping, strapping, weighing and stacking. Film and paper are cut and fed automatically, and the line can be coupled directly to the slitting line output. View machine →
Line Economy Copper Coil Packing Line The Economy Copper Coil Packing Line automates coil handling and stacking for small and medium copper processors. It takes the manual coil flipping and heavy lifting out of the packing bay and is built as a compact line for sites with limited floor space. View machine →
Line Premium Copper Coil Packing Line The Premium Copper Coil Packing Line adds certified weighing, strapping and automatic timber blocking to copper coil packing. It is configured for high annual tonnage, where every packed coil has to leave the line with a verified weight and a documented packing pattern. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
