Coil Packing Line · Copper Coil Packing Line
Premium Copper Coil Packing Line
The Premium Copper Coil Packing Line adds certified weighing, strapping and automatic timber blocking to copper coil packing.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Premium Copper Coil Packing Line in short
The Premium Copper Coil Packing Line adds certified weighing, strapping and automatic timber blocking to copper coil packing. It is configured for high annual tonnage, where every packed coil has to leave the line with a verified weight and a documented packing pattern.
Visual details

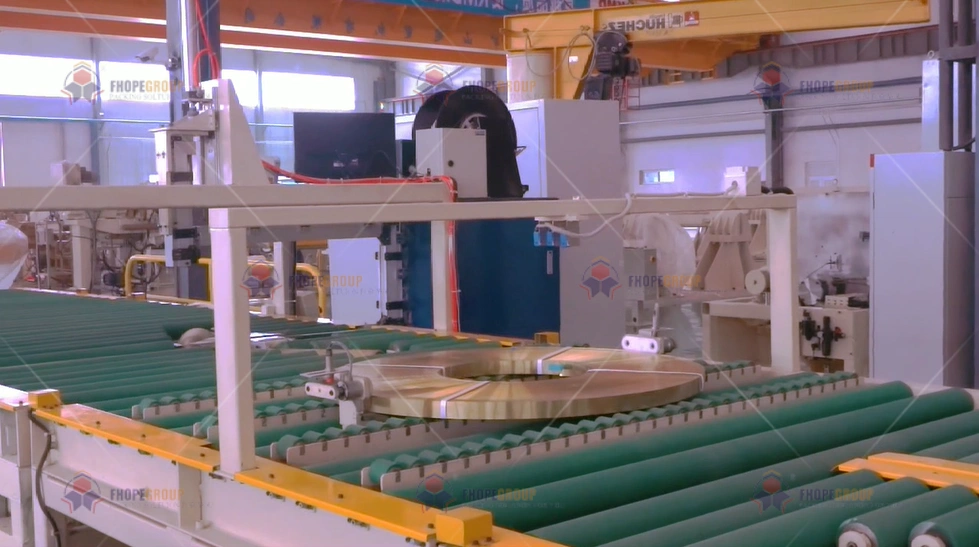

The Premium Copper Coil Packing Line machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Premium Copper Coil Packing Line in operation
Video: FHOPE Automatic copper strip coil packaging line (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- Capacity — 12-18 coils/hr (High-speed throughput).
- Footprint — 16m x 8m (128 sq.m total area).
- Load Range — 20 - 50 Tons (Heavy-duty compatibility).
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
