Automatic Slit Coil Packaging System
The automatic slit coil packaging system combines a turnstile, coil downender, strapping turntable and stacking machine in one PLC-controlled line.
- 20-350mm
- Min slit coil width that can be downended
- 60“
- Cycle time to downend coil
- Data
- Item
- app.1800mm
- Max horn extension
Overview
Automatic Slit Coil Packaging System in short
The automatic slit coil packaging system combines a turnstile, coil downender, strapping turntable and stacking machine in one PLC-controlled line. Coils are lifted, turned 90 degrees between eye-to-wall and eye-to-sky orientation, strapped and stacked without manual handling.
It is automatic slit coil packaging system that includes turntile, coil down ender, coil weighing machine, coil strapping machine and stacking equipment to handling packed slit coil from centering conveyor to pallet one by one.
The system is able help to Minimized the manually operation in handling the heavy coil which is more safety and efficiency way to stacking the steel coil.
Coil move to the in-feeding station, automatic centering and raising the coil
roll diameter: 100mm, length:1600mm, covering material:PU, Roll centers:150mm
Visual details
The Automatic Slit Coil Packaging System machine

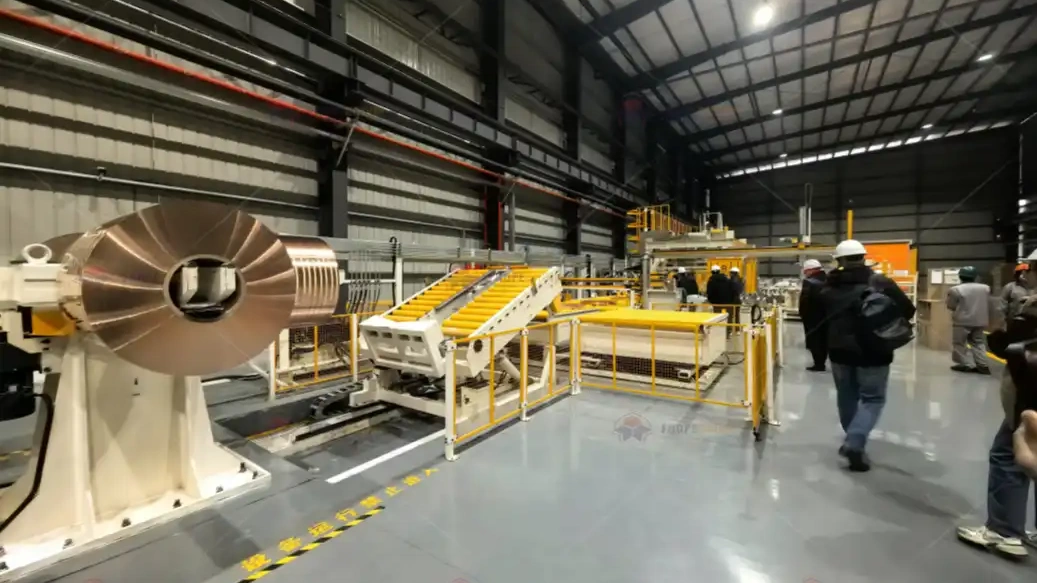

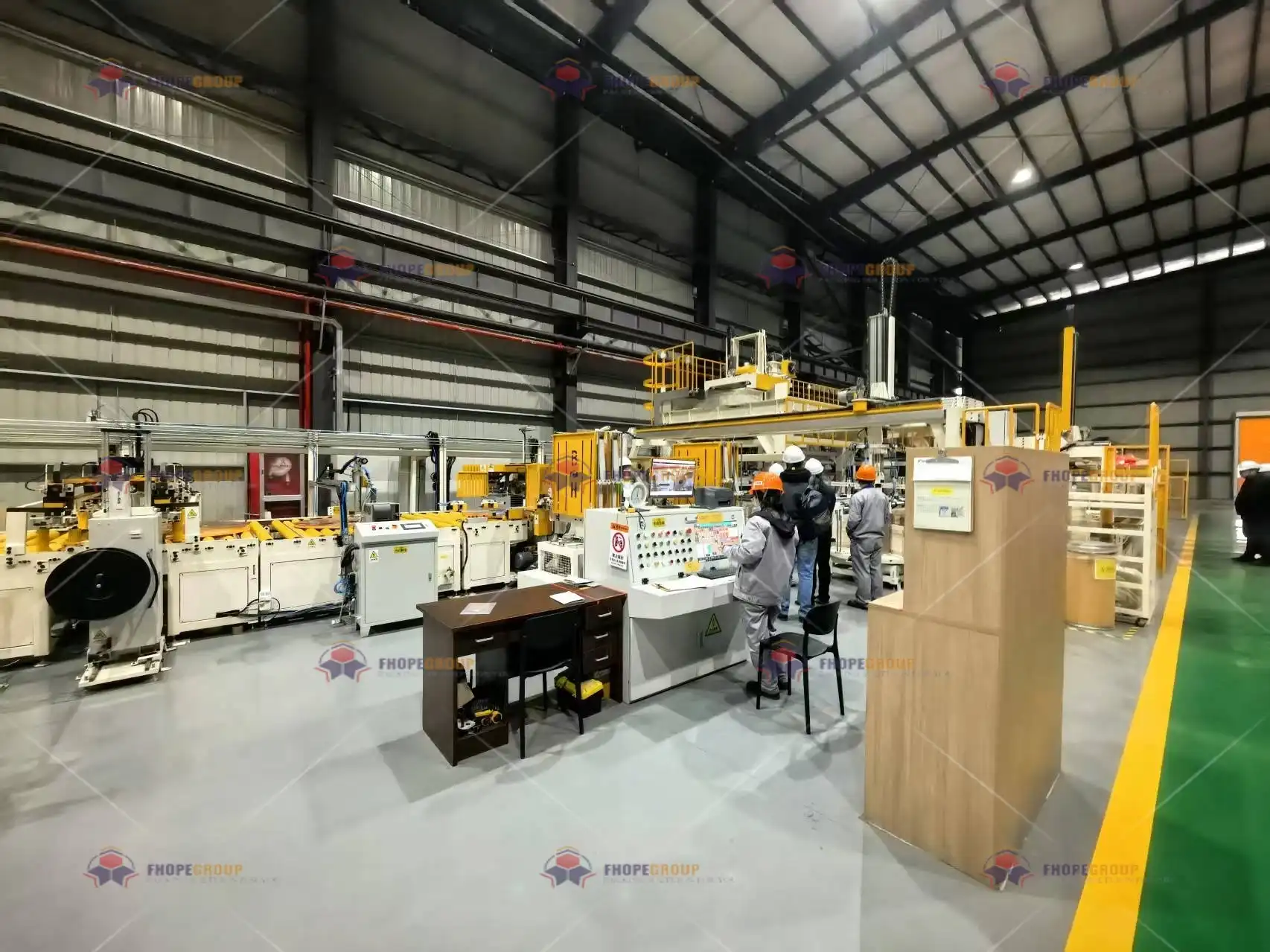

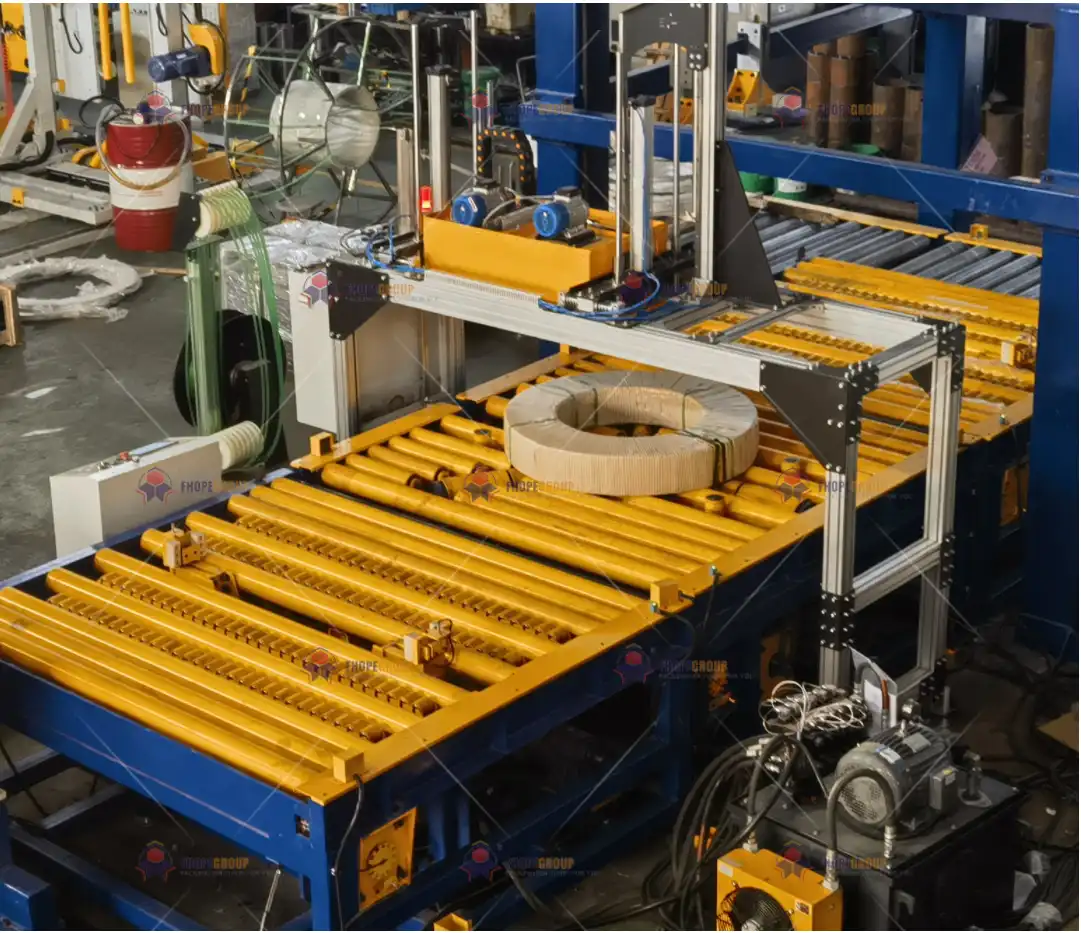

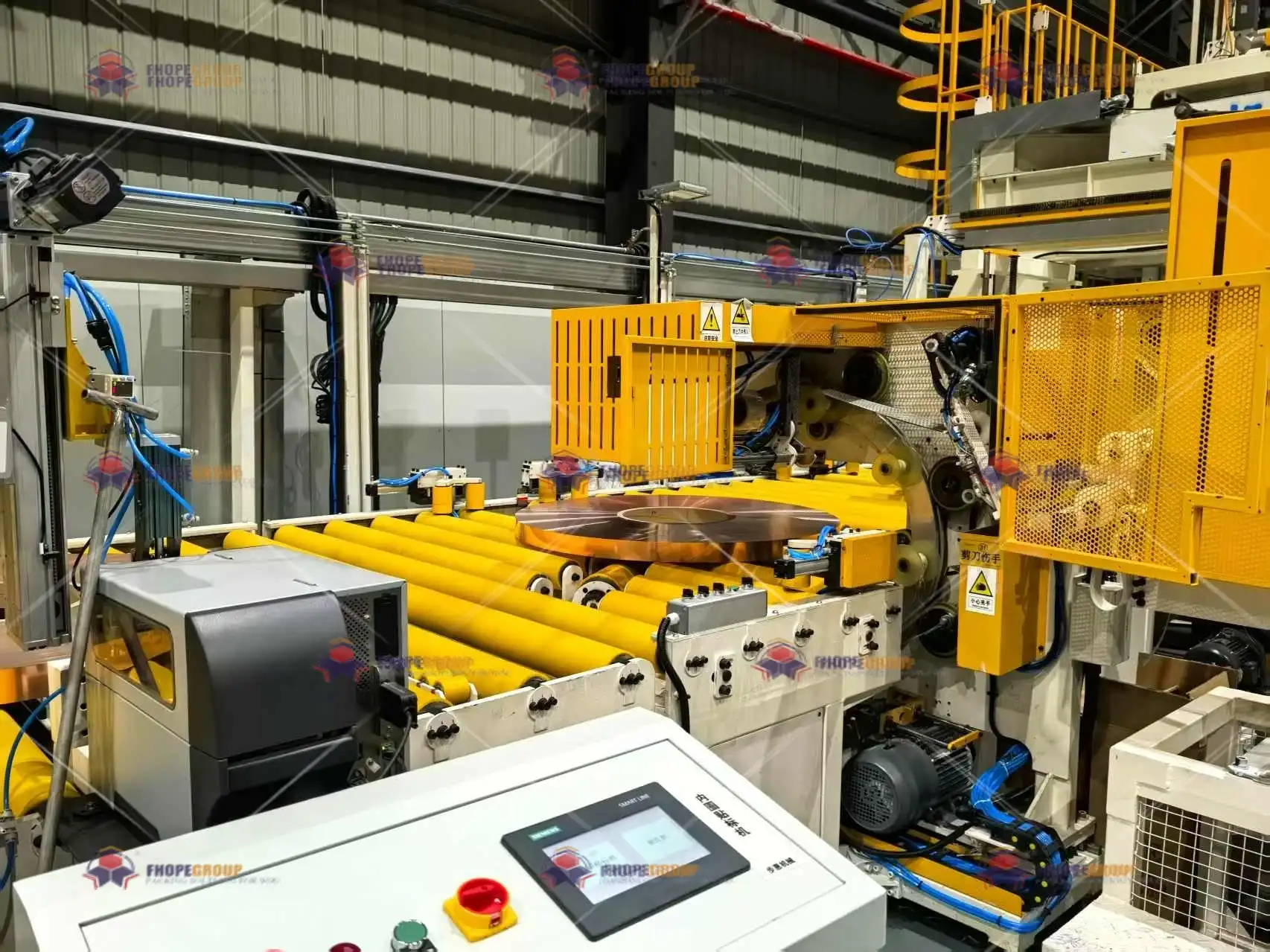

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Automatic Slit Coil Packaging System in operation
Video: FHOPE Steel slitting coil packaging line system (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
Taken from the line data sheet. Ranges describe the envelope this model is built within — send your coil and we confirm the exact configuration.
Get the technical proposal →| Item | Data |
|---|---|
| Min slit coil width that can be downended | 20-350mm |
| Max horn extension | app.1800mm |
| Horn travel motor powered | 3.0Kw |
| Linear motion slides/wheels/camrollers | By Linear |
| Lift powered | Hydraulic |
| Tilt powered | Hydraulic |
| Cycle time to downend coil | 60“ |
| Conveyor length | 1600mm |
| For covered rollers include | roll diameter: 100mm, length:1600mm, covering material:PU,Roll centers:150mm |
| Conveyor Motor | 2.2Kw |
| Power supply | 380v 50Hz |
Machine features
What this machine does
- Automatic Slit Coil Packaging System
- It is automatic slit coil packaging system that includes turntile, coil down ender, coil weighing machine, coil strapping machine and stacking equipment to handling packed slit coil from centering conveyor to pallet one by one.
- The system is able help to Minimized the manually operation in handling the heavy coil which is more safety and efficiency way to stacking the steel coil.
- Operation:
- Coil move to the in-feeding station, automatic centering and raising the coil
- Automatic coil pick up and lifting
- Automatic palletizing the coil one by one on the pallet.
- Pallet out-feeding.
- A. Centering&Lifting table
- Roller conveyor for moving the coil
- Centering device for coil center with is able error correction for stacking
- The coil will be raising for easy pick up by forks.
- Automatic coil positioning.
- B. Stacking machine
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Slit Coil Packing Line
Line Slitting Coil Packaging Line with Turntable Stacker The slitting coil packing line combines cross arm, material flipping car, PET strapping machine, 90° and horizontal transfer conveyors, inner and outer diameter printing labelers, woven belt wrapping machine, centering conveyor and pickup table, and stacker with rotating stacking turntable. An industrial computer and control system coordinate the line. View machine →
Line Economic Steel Coil Packaging Line The economic type coil packaging line is a vertical line for handling and packing slitting coils. It automates coil feeding, packing and stacking, reduces labour costs by automating key tasks, and minimises the required operating space. View machine →
Line Slit Coil Packing Line The slit coil handling and packaging line connects to a slitting line, picking up coils from the turnstile arm, and straps each coil through the eye at the coil tail. Non-ferrous coils can be wrapped in plastic stretch film for dust and moisture protection, and finished coils are stacked on a skid for storage and shipment. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
