Slit Coil Packing Line
The slit coil handling and packaging line connects to a slitting line, picking up coils from the turnstile arm, and straps each coil through the eye at the coil tail.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Slit Coil Packing Line in short
The slit coil handling and packaging line connects to a slitting line, picking up coils from the turnstile arm, and straps each coil through the eye at the coil tail. Non-ferrous coils can be wrapped in plastic stretch film for dust and moisture protection, and finished coils are stacked on a skid for storage and shipment.
The full range of the slit coil handling and packing line available in economical, automatic/manually operation with PC controller.
The packing line is able connect to the slitting line and picking up coil from turnstile arm.
Automatic strapping machines and allow strapping the coil through ID coil tail.
In this system the non-ferrous coils can be wrapped in the plastic stretch film for dust, moisture protection.
Visual details
The Slit Coil Packing Line machine

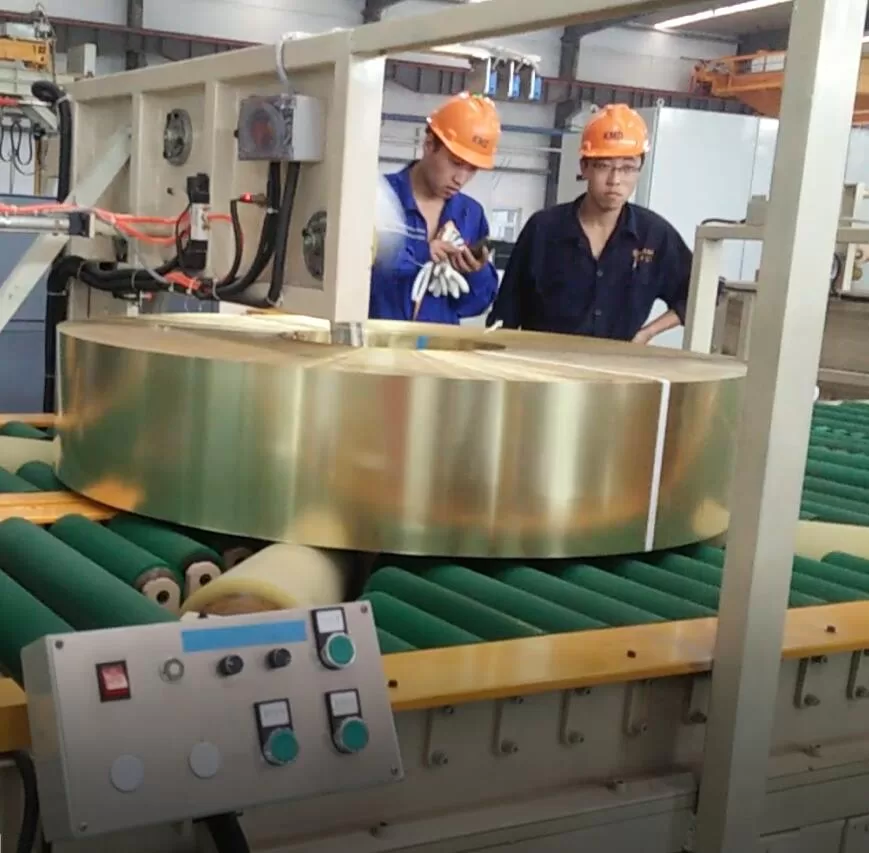

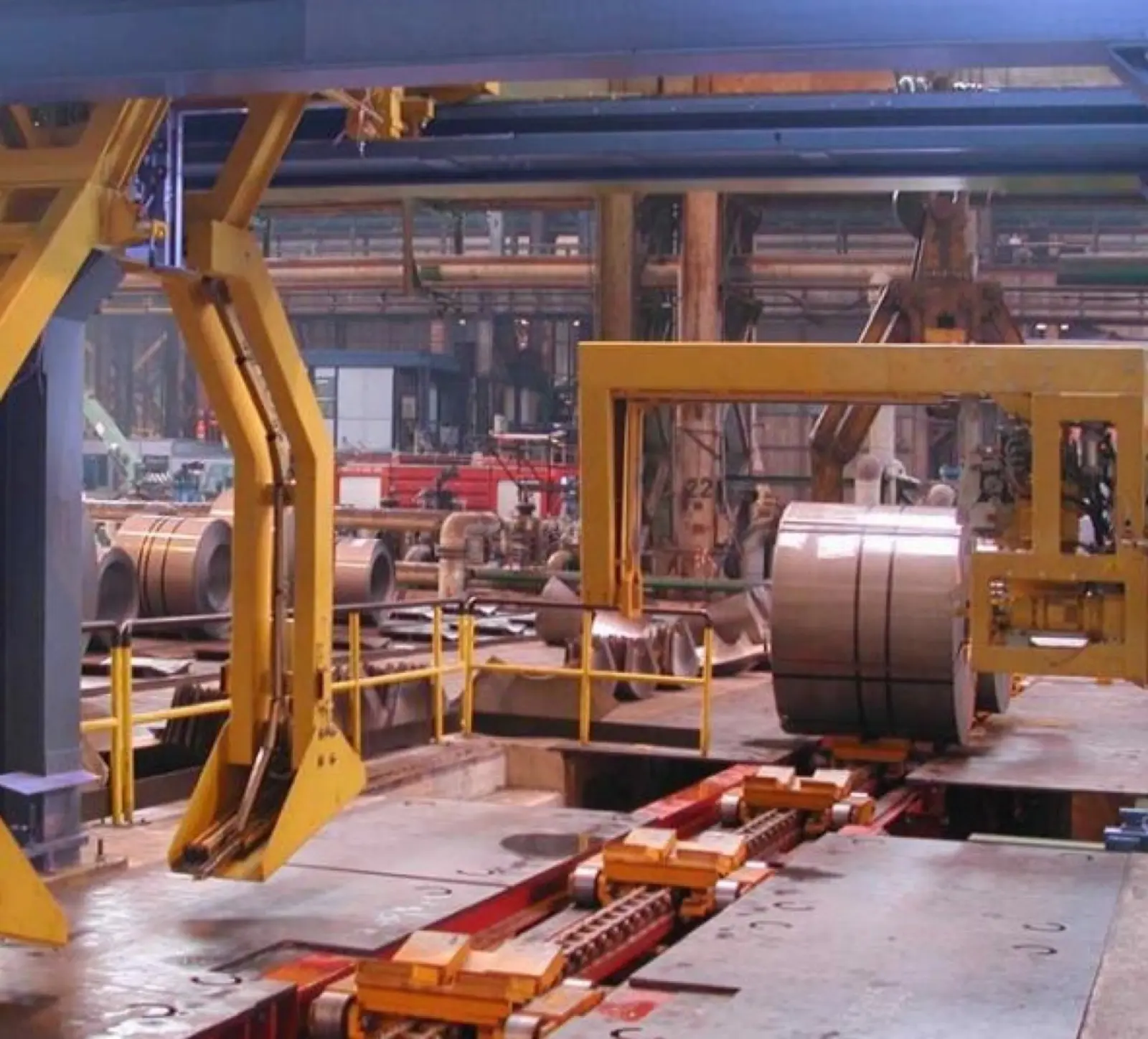

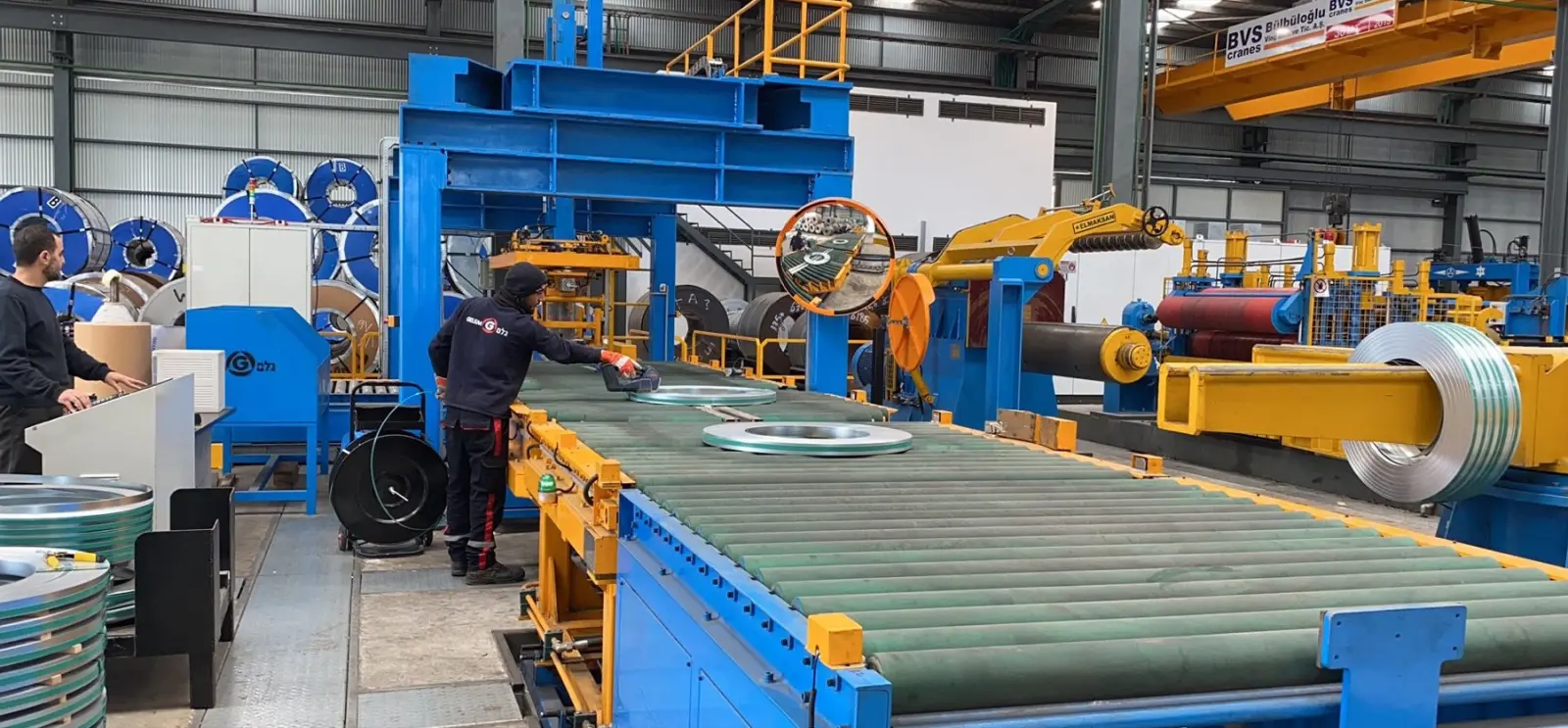

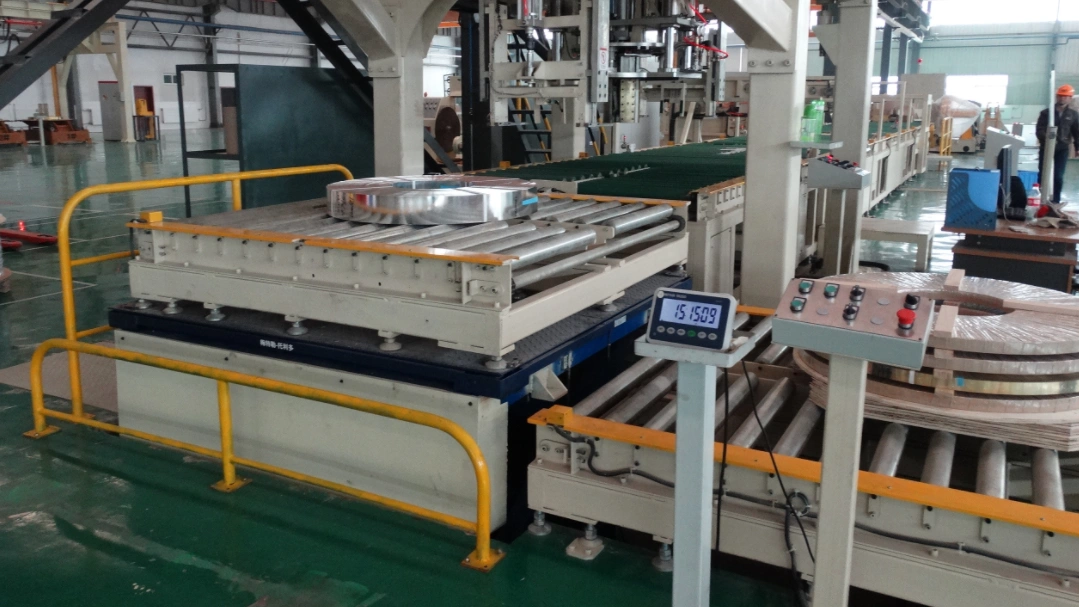

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Slit Coil Packing Line in operation
Video: FHOPE Steel slitting coil packaging line system (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- Slit coil handling and packaging line
- The full range of the slit coil handling and packing line available in economical, automatic/manually operation with PC controller.
- The packing line is able connect to the slitting line and picking up coil from turnstile arm.
- Automatic strapping machines and allow strapping the coil through ID coil tail.
- And stacked the coils on a skid for storage and shipment
- The packing and handling system for the slitting coil:
- a. increasing the coil handling and packing speed.
- b. Protecting the products surface and reduce damage.
- c. Saves the man power.
- d. Reduce the maintenance time and cost.
- In this system the non-ferrous coils can be wrapped in the plastic stretch film for dust, moisture protection.
- Base on the user friendly designing the coils an be tracking in the packing, weighing, labeling for shop and stock control system.
- Main part of the slitting col handling and packing line:
- Coil Down Ender
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
