Coil Packing Line · Slit Coil Packing Line
Economic Steel Coil Packaging Line
The economic type coil packaging line is a vertical line for handling and packing slitting coils.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Economic Steel Coil Packaging Line in short
The economic type coil packaging line is a vertical line for handling and packing slitting coils. It automates coil feeding, packing and stacking, reduces labour costs by automating key tasks, and minimises the required operating space.
The vertical steel slitting coil packaging line presents an efficient, cost-effective solution tailored for the streamlined handling and packing of slitting coils. This system is engineered to provide advanced automation across coil feeding, packing, and stacking processes.
In operation, the slitting coil is lifted by a crane and positioned onto a dedicated coil trolley, seamlessly integrating into the packaging workflow. Once palletized, the coils transition to the stack turnover mechanism, from which they are moved toward the out-feeding conveyor. This synchronized process ensures that the packaging of slitting coils is not only handled automatically but also completed with remarkable precision and speed.
With this setup, the packaging line empowers the slitting center to achieve faster coil operations, optimizing overall production efficiency. Additionally, the system significantly reduces labour costs by automating key tasks, all while minimizing the required operational space.
coil trolley>>feeding channel>>vertical steel coil packaging machine>>out-feding channel>>oading stacker upedner>>storage conveyor>>system control cabinet.
Visual details

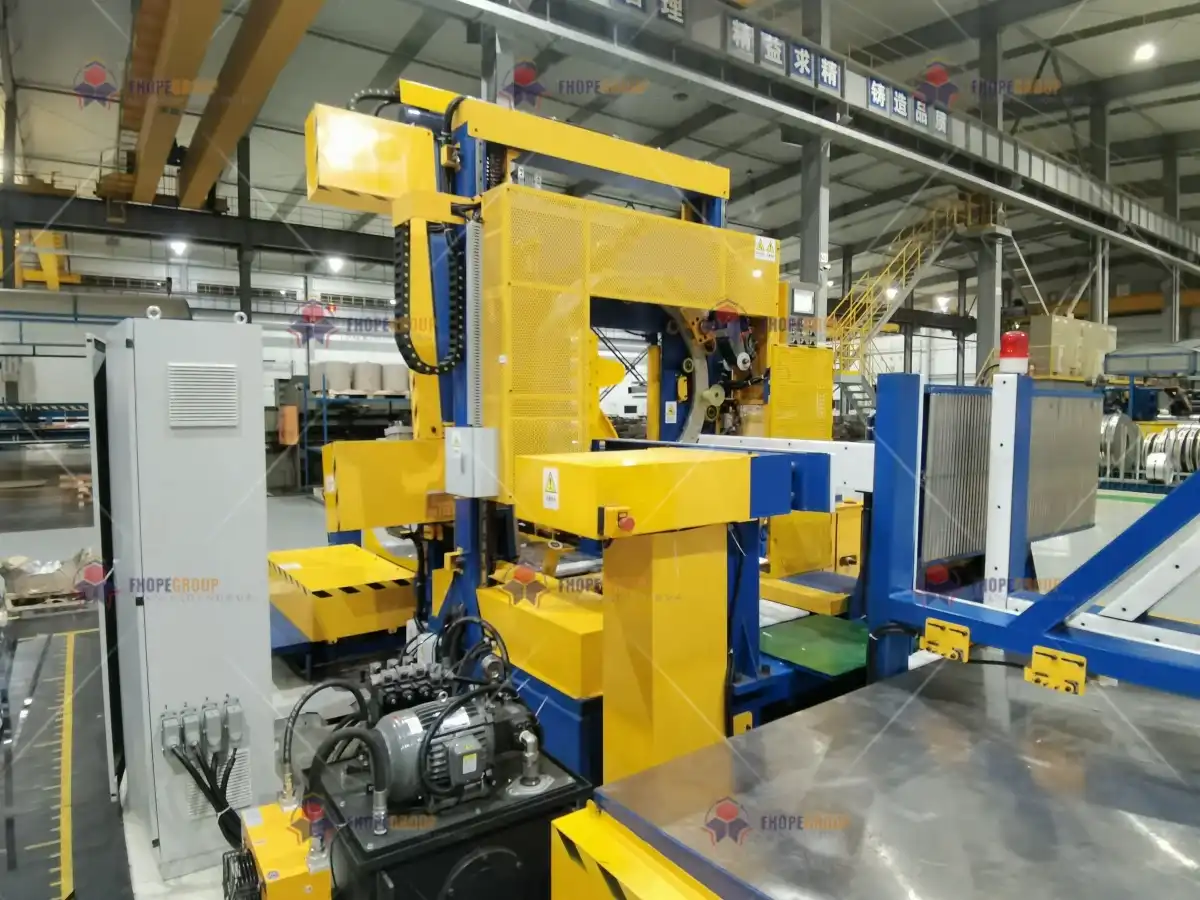

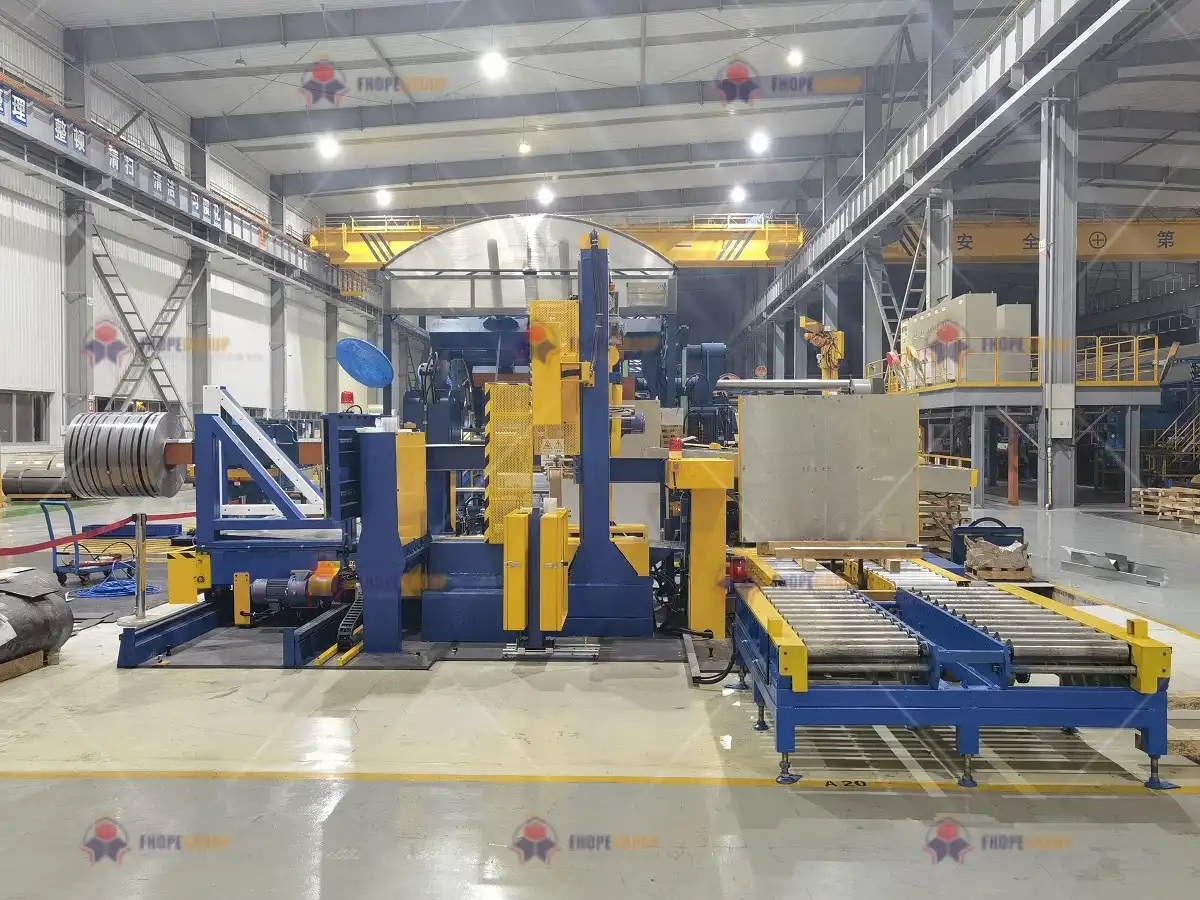

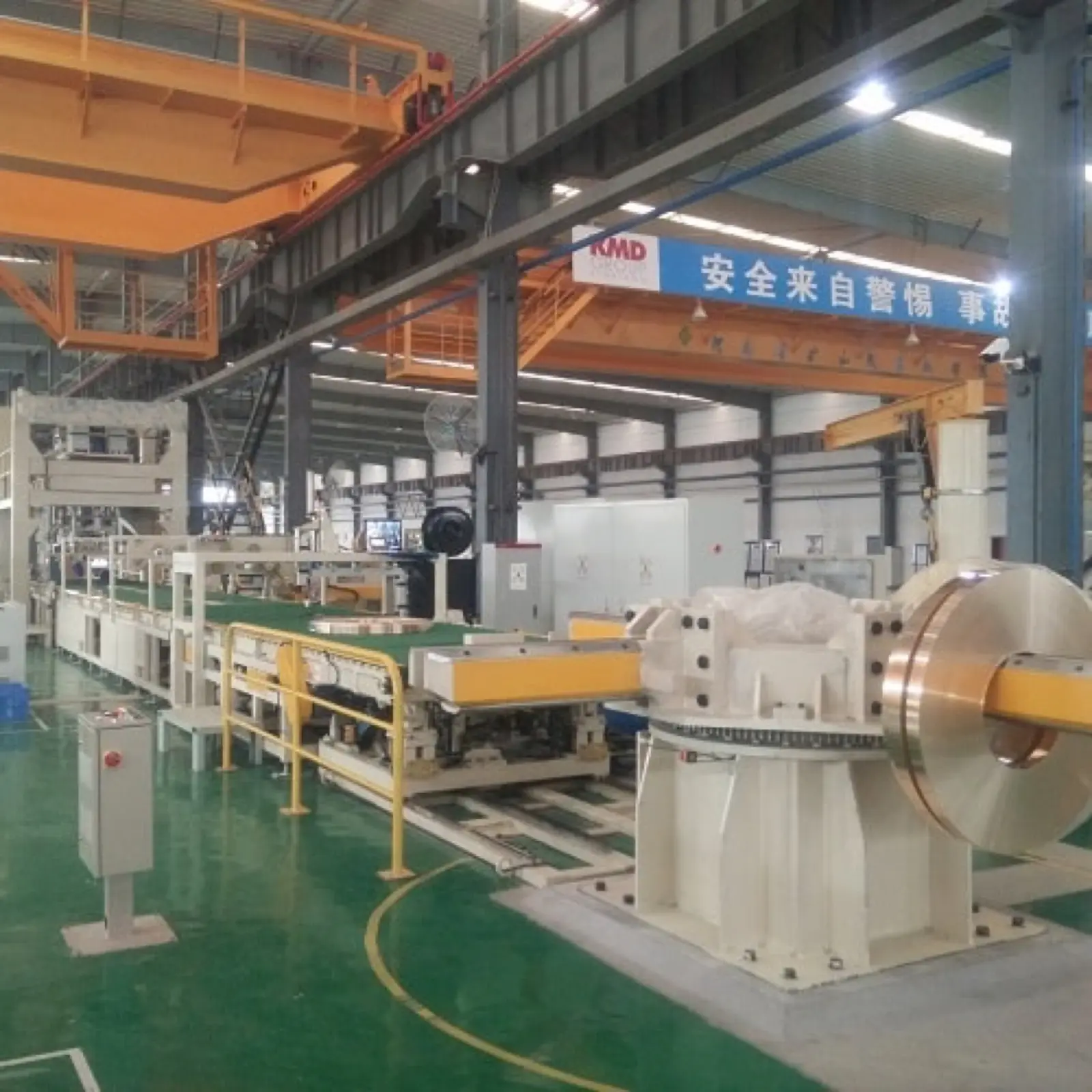

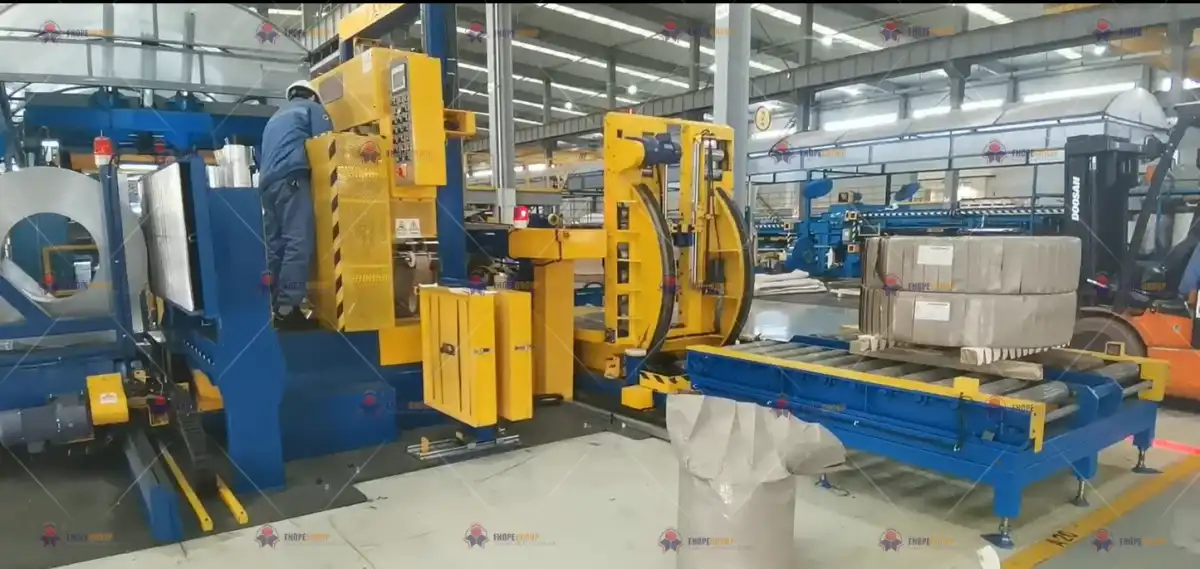

The Economic Steel Coil Packaging Line machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Economic Steel Coil Packaging Line in operation
Video: FHOPE Steel slitting coil packaging line system (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- Economic Steel Coil Packaging Line
- The vertical steel slitting coil packaging line presents an efficient, cost-effective solution tailored for the streamlined handling and packing of slitting coils. This system is engineered to provide advanced automation across coil feeding, packing, and stacking processes.
- In operation, the slitting coil is lifted by a crane and positioned onto a dedicated coil trolley, seamlessly integrating into the packaging workflow. Once palletized, the coils transition to the stack turnover mechanism, from which they are moved toward the out-feeding conveyor. This synchronized process ensures that the packaging of slitting coils is not only handled automatically but also completed with remarkable precision and speed.
- With this setup, the packaging line empowers the slitting center to achieve faster coil operations, optimizing overall production efficiency. Additionally, the system significantly reduces labour costs by automating key tasks, all while minimizing the required operational space.
- PACKING LINE INCLUDES:
- coil trolley>>feeding channel>>vertical steel coil packaging machine>>out-feding channel>>oading stacker upedner>>storage conveyor>>system control cabinet.
- Coil Trolley
- The coil trolley is designed for loading and
- separating individual coils sequentially, ensuring they are properly
- placed into the coil packaging machine.
- ✧ The station is equipped with a trolley, coil positioning system, tracks, and control sensors for efficient operation.
- ✧ It also functions as temporary storage for slitting coils, organizing them before packaging.
- A motor system powers the trolley’s back-and-forth movement,
- providing smooth and reliable feeding of the coil into the packaging
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Slit Coil Packing Line
Line Automatic Slit Coil Packaging System The automatic slit coil packaging system combines a turnstile, coil downender, strapping turntable and stacking machine in one PLC-controlled line. Coils are lifted, turned 90 degrees between eye-to-wall and eye-to-sky orientation, strapped and stacked without manual handling. View machine →
Line Slitting Coil Packaging Line with Turntable Stacker The slitting coil packing line combines cross arm, material flipping car, PET strapping machine, 90° and horizontal transfer conveyors, inner and outer diameter printing labelers, woven belt wrapping machine, centering conveyor and pickup table, and stacker with rotating stacking turntable. An industrial computer and control system coordinate the line. View machine →
Line Slit Coil Packing Line The slit coil handling and packaging line connects to a slitting line, picking up coils from the turnstile arm, and straps each coil through the eye at the coil tail. Non-ferrous coils can be wrapped in plastic stretch film for dust and moisture protection, and finished coils are stacked on a skid for storage and shipment. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
