Automatic Wire Coil Compressing & Packing Line
The automatic wire coil compressing and packing line compacts loose wire coils on their spool and applies strapping at the selected positions.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Automatic Wire Coil Compressing & Packing Line in short
The automatic wire coil compressing and packing line compacts loose wire coils on their spool and applies strapping at the selected positions. The coil stays on the table while the press compacts it, so the finished coil is dense, square and ready for storage or shipment.
The Automatic Strapping Machine performs all the straps in different strapping positions. The wire coil along with the basket should be stay in table and the compactor system will compacting the wire coil on spool. It is al solution adjustable to accommodate materials by inverters. The offered line is designed for the handling of a total of 8 coils per hour along with its baskets, taking into account that to each coil will be done a total of 4 radial straps. This value has been provided by the customer has designed the line according with received specifications. The automatic strapping machine and the compactor don’t damage the wire coils to be strapped, because the contact zone of them are protected with HDPE material. For the elabouration of the offer have been considered the Automatic Strapping & Compacting Line can work 24 hours per day and 7 days per week. So it will be designed accordingly. It is the most efficiency equipment for improving your wire coil packagingwhich meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labour cost in wire handling. The operator should place a basket along with its wire coil on the conveyor and conveyor move the coil into compacting station. The basket along with the coil should be displaced to the position of the strapping table supplied by Fhopeapck.
q Type of joint By friction - vibration r Joint location The strapping is performed in the front part of the wire coil.
q Joint efficiency Approx. 75-80% of the breaking load of the strap (mentioned quality). Speeds and strength
Visual details
The Automatic Wire Coil Compressing & Packing Line machine

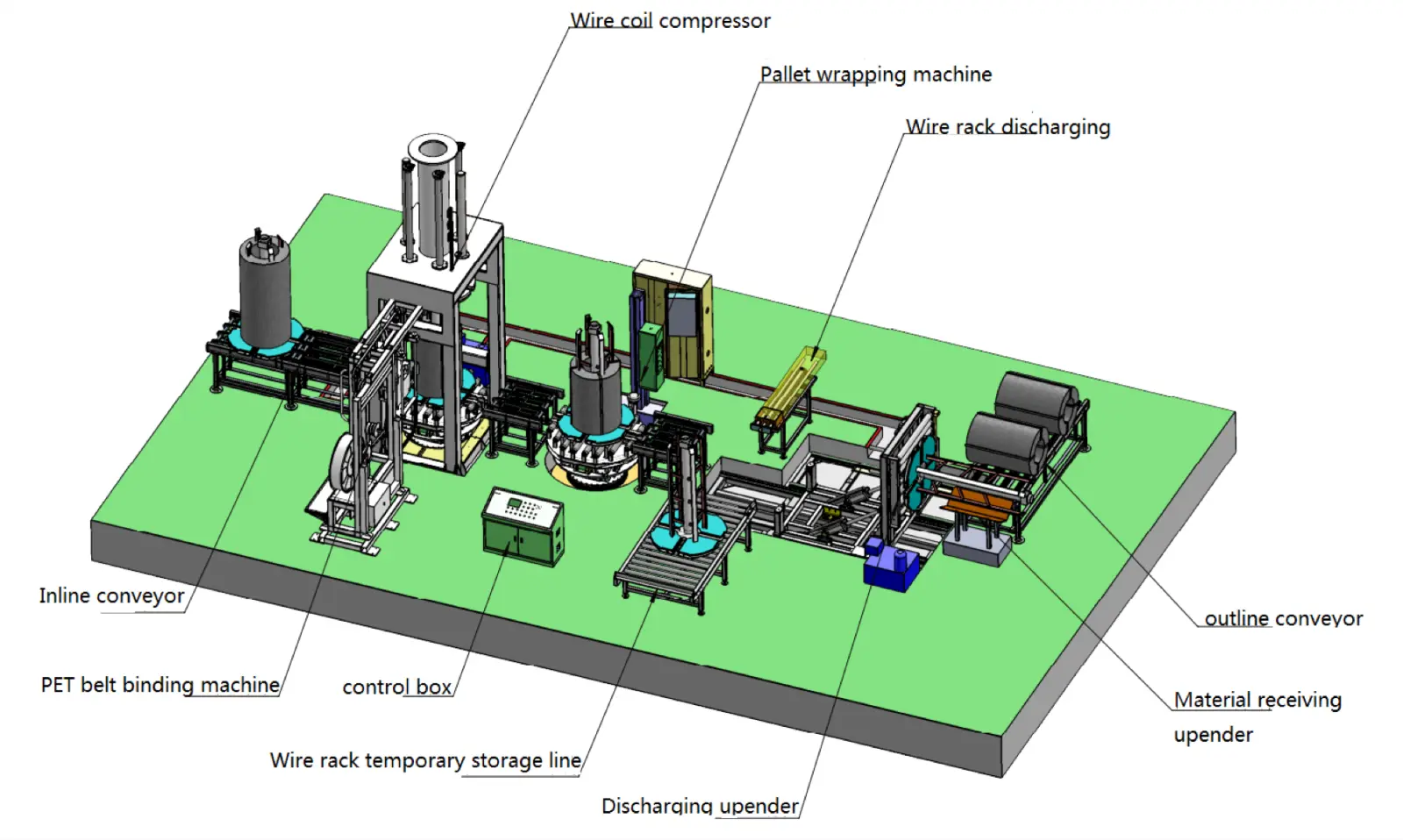

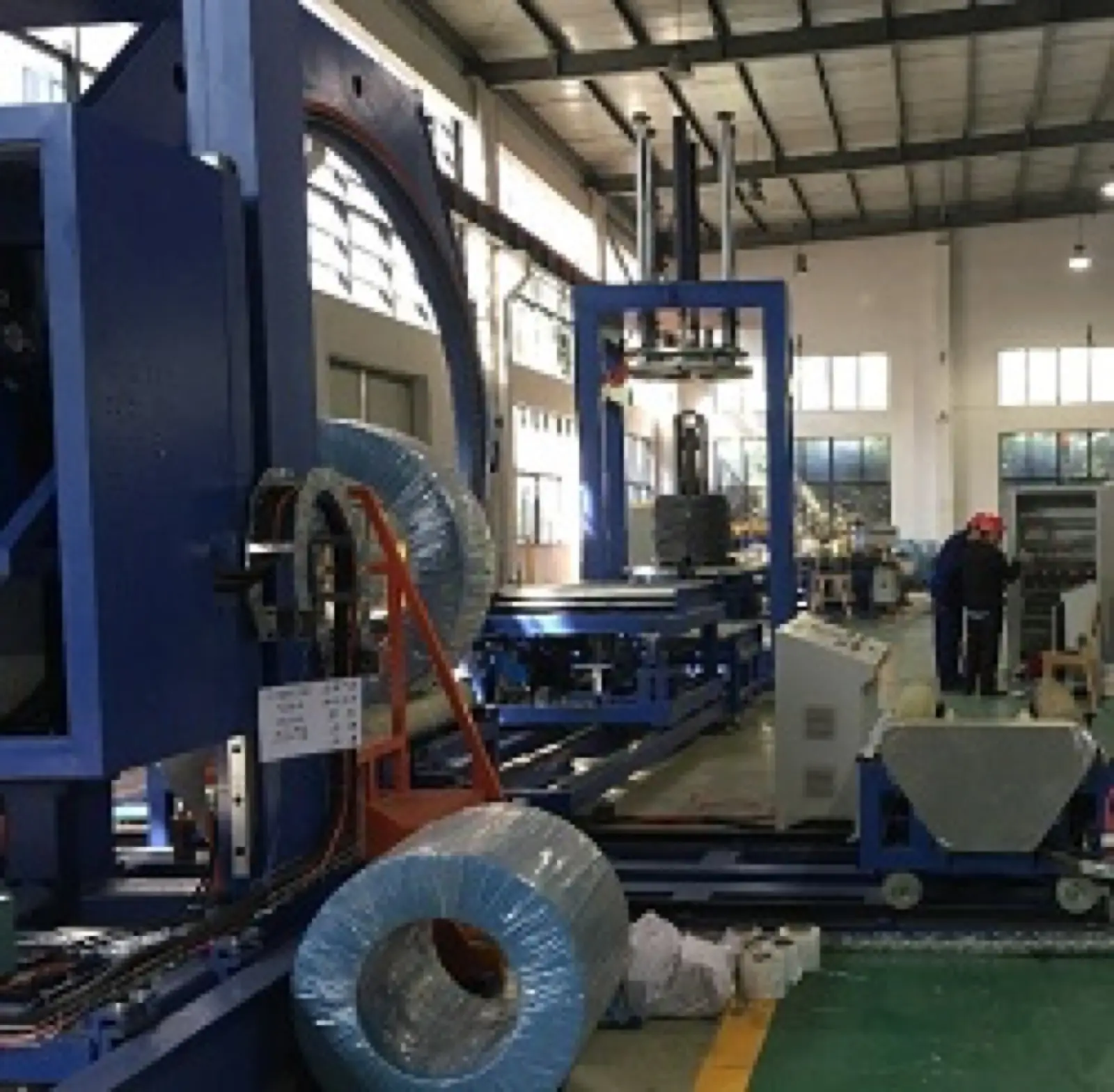

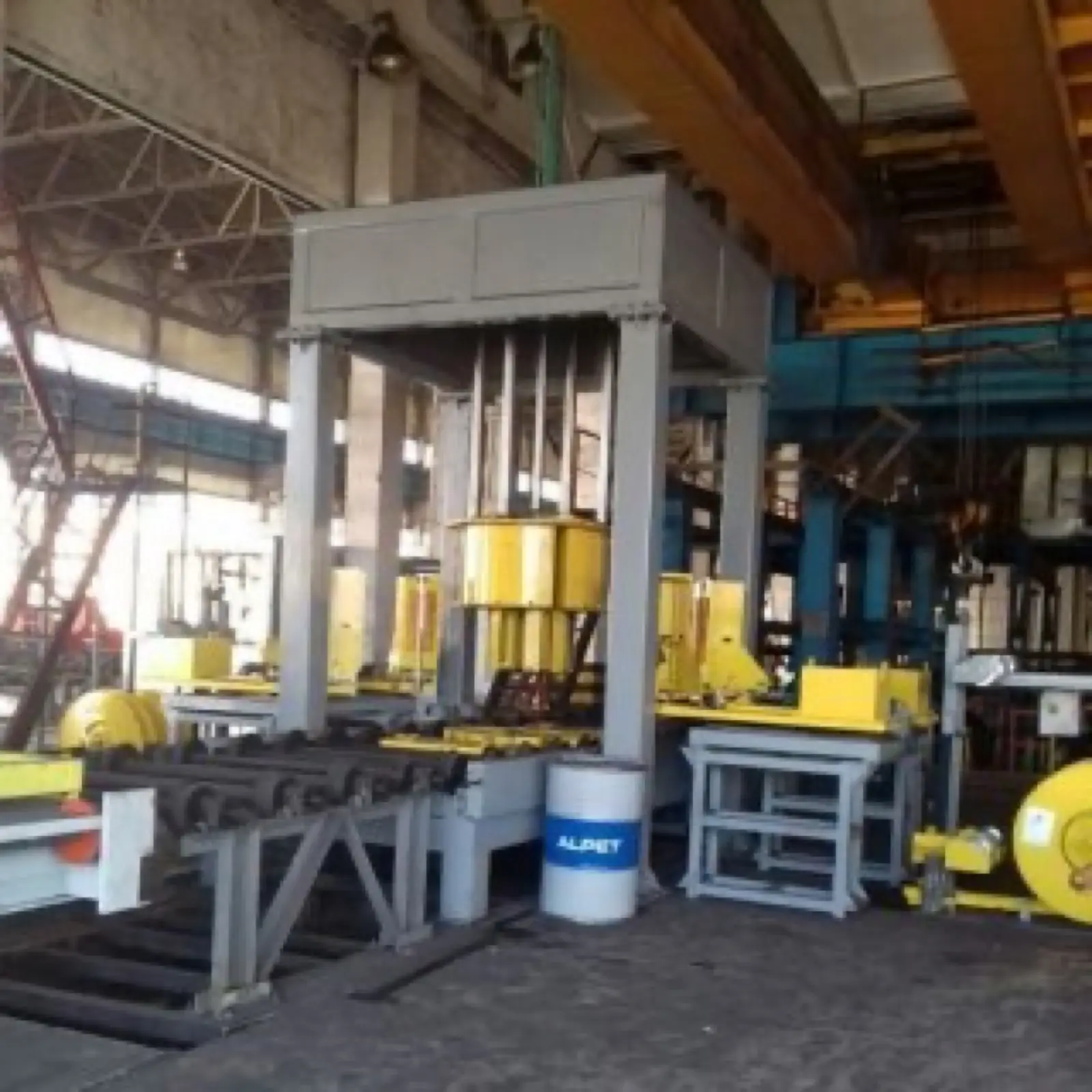

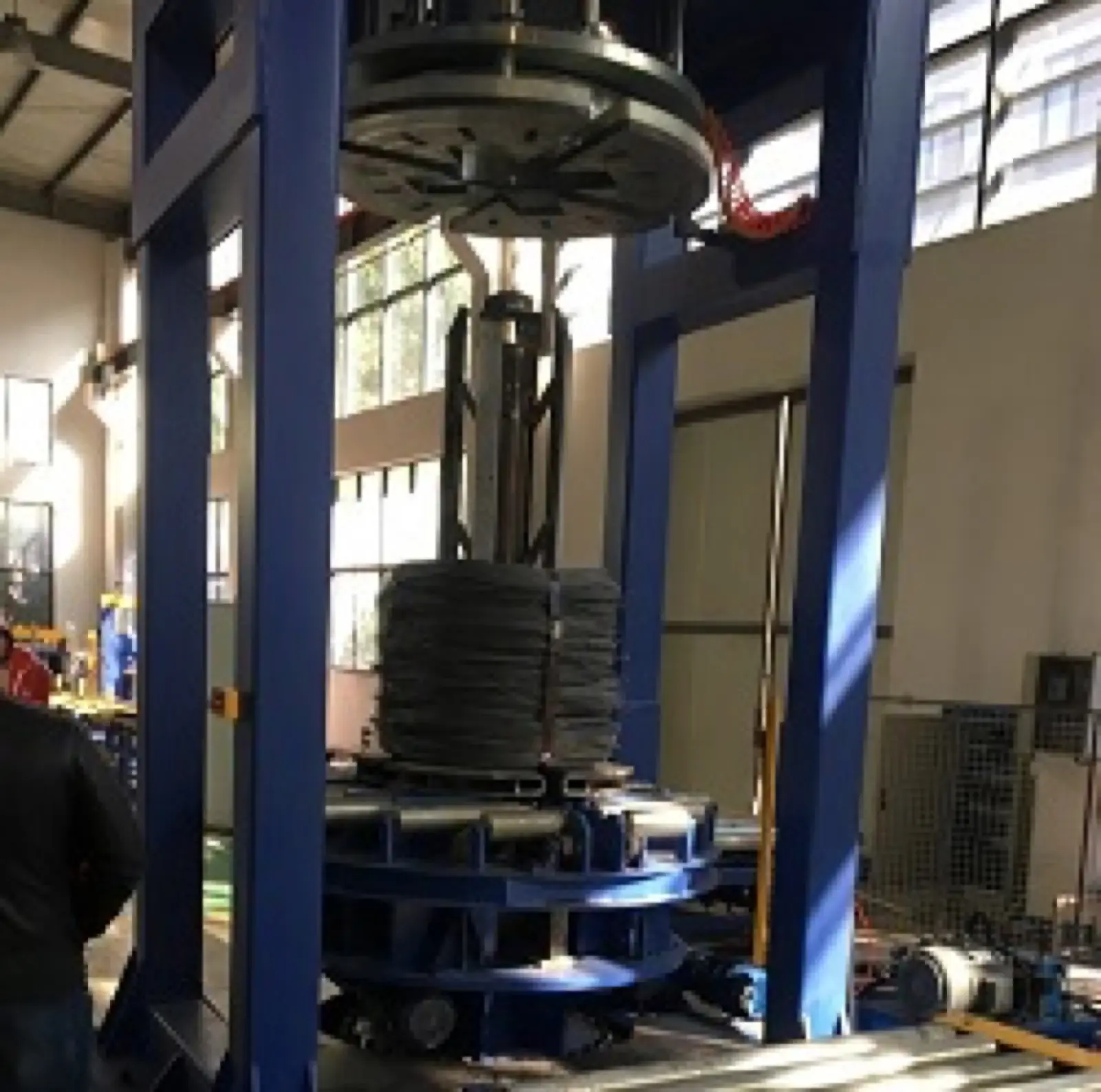

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Automatic Wire Coil Compressing & Packing Line in operation
Video: FHOPE Automatic wire rod compacting and strapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- Automatic Wire coil compressing and strapping packing line
- The Automatic Strapping Machine performs all the straps in different strapping positions. The wire coil along with the basket should be stay in table and the compactor system will compacting the wire coil on spool. It is al solution adjustable to accommodate materials by inverters. The offered line is designed for the handling of a total of 8 coils per hour along with its baskets, taking into account that to each coil will be done a total of 4 radial straps. This value has been provided by the customer has designed the line according with received specifications. The automatic strapping machine and the compactor don’t damage the wire coils to be strapped, because the contact zone of them are protected with HDPE material. For the elabouration of the offer have been considered the Automatic Strapping & Compacting Line can work 24 hours per day and 7 days per week. So it will be designed accordingly. It is the most efficiency equipment for improving your wire coil packagingwhich meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labour cost in wire handling. The operator should place a basket along with its wire coil on the conveyor and conveyor move the coil into compacting station. The basket along with the coil should be displaced to the position of the strapping table supplied by Fhopeapck.
- Application: the Automatic steel wie compressing and strapping Machine is composed of compacting device, hydraulic pump station, conveyor &etc, it’s used for vertical type wire coil compacting.
- Operation:
- a. conveying the wire with rack to the compacting position.
- b. conveyer down for wire rack placing the solid compaction position.
- c. automatic compacting.
- d. conveyor raising and move the coil to next station.
- Main technical parameters：
- Strapping material:
- q Strap width 19mm q Strap thickness 1,00 / 1,27mm
- q Type of strap Polyester
- q Strap quality Smooth /High quality polyester strap
- Sealing features:
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Wire Coil Packing Line
Line Wire Rod Compacting and Strapping Machine The automatic wire rod compacting and strapping line is designed for wire rod coil packaging and suits coils with an outer diameter of 100-200mm, a width of 1000-3000mm and a weight of up to 2 tonnes. After a coil is placed on the compressing station, the line positions, compacts and straps it automatically with PET or steel strapping. View machine →
Line Semi-Automatic Wire Coil Compactor A semi-automatic wire coil compactor for plants that compact and strap coils in smaller batches. The coil is compressed on the table and strapped with a manual tool, which keeps the investment low while removing the manual coil handling. View machine →
Line Wire Coil Compactor & Strapping Machine FHOPE supplies semiautomatic and automatic wire coil compacting and strapping solutions. The equipment compacts wire coils hydraulically, straps them with PET or steel belt, and can be supplied for wire coils of any size, optionally adding stretch film or PVC wrapping. View machine →
Line Wire Coil Compressing and Strapping Line This automatic line compacts GI wire coils on their baskets and straps them, working with the drawing machine to handle each basket. It suits coils with an outside diameter of 800-1300mm, an inside diameter of 450-600mm and a maximum weight of 2000kg, applies four straps per coil and reduces coil height from 1200mm to 800mm. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
