Coil Packing Line · Wire Coil Packing Line
Wire Coil Compactor & Strapping Machine
FHOPE supplies semiautomatic and automatic wire coil compacting and strapping solutions.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Wire Coil Compactor & Strapping Machine in short
FHOPE supplies semiautomatic and automatic wire coil compacting and strapping solutions. The equipment compacts wire coils hydraulically, straps them with PET or steel belt, and can be supplied for wire coils of any size, optionally adding stretch film or PVC wrapping.
FHOPE provides semiauto and automatic wire coil compacting and strap packaging solution.
FHOPE has accumulated the rich experience in provide customized designing and manufacturering automatic wire compressor packaging equipment for wire coils; There are different solution to compacting and strapping of wire coils of any size, strapping by PET or steel belt, logo tapping, weighing, stacking.. There are different types compressing machine and strapping machine which is able to provide a tight package making and packing by stretch film, PVC.. It is al solution adjustable to accommodate materials by inverters. It is the most efficiency equipment for improving your wire coil packaging which meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labour cost in wire handling.
It improving your package protection in transportation and stocking. The automatic packing machine can be add to the packing line which is able reducing the possibility of corrosion or water spots, dust and rust, protecting the surface of coil in transportation. Also it helps to improving your marketing. There are many series cable wrapping machine available. FHOPE can help you find the right machine per your specification.
FHOPE provide automatic wire coil compactor and strapping machine for automatic handling the wire coil with basket online.
Visual details
The Wire Coil Compactor & Strapping Machine machine

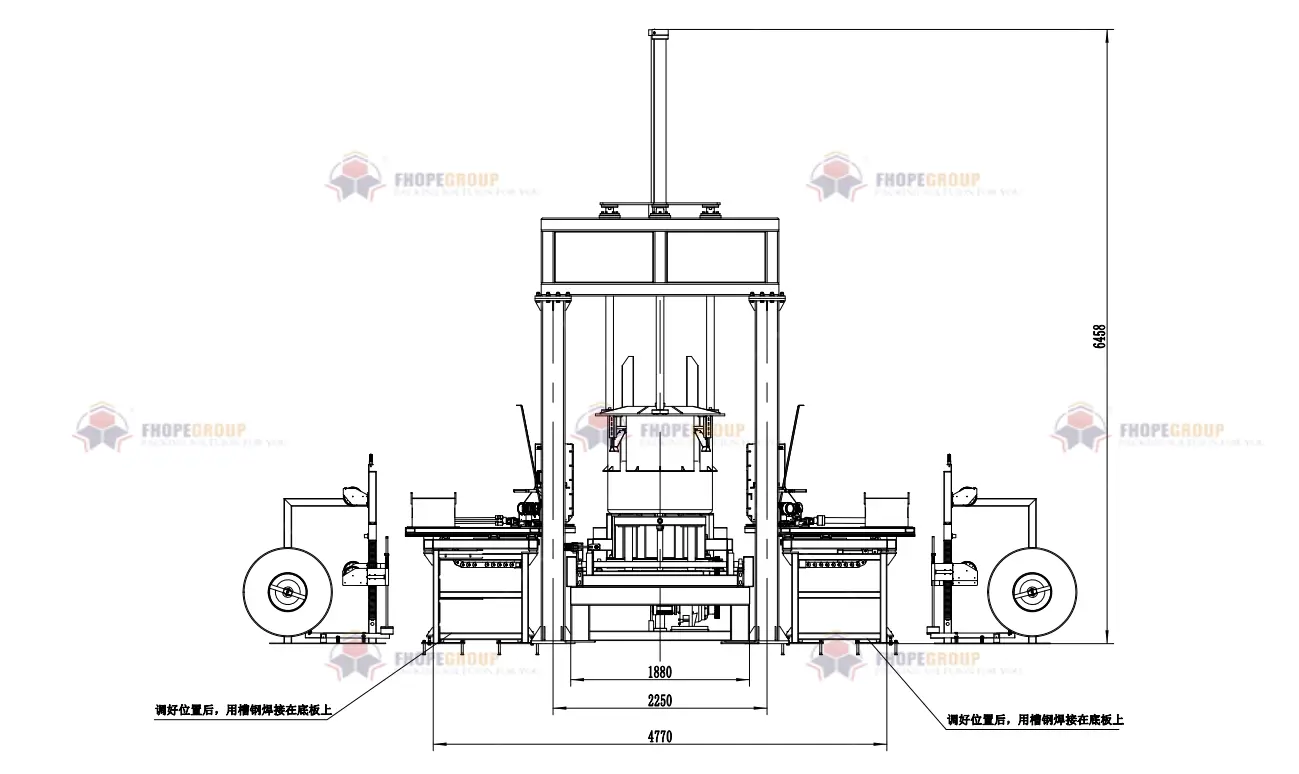

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Wire Coil Compactor & Strapping Machine in operation
Video: FHOPE Wire coil compactor and strapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- FHOPE provides semiauto and automatic wire coil compacting and strap packaging solution.
- FHOPE has accumulated the rich experience in provide customized designing and manufacturering automatic wire compressor packaging equipment for wire coils; There are different solution to compacting and strapping of wire coils of any size, strapping by PET or steel belt, logo tapping, weighing, stacking.. There are different types compressing machine and strapping machine which is able to provide a tight package making and packing by stretch film, PVC.. It is al solution adjustable to accommodate materials by inverters. It is the most efficiency equipment for improving your wire coil packaging which meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labour cost in wire handling.
- It improving your package protection in transportation and stocking. The automatic packing machine can be add to the packing line which is able reducing the possibility of corrosion or water spots, dust and rust, protecting the surface of coil in transportation. Also it helps to improving your marketing. There are many series cable wrapping machine available. FHOPE can help you find the right machine per your specification.
- FHOPE provide automatic wire coil compactor and strapping machine for automatic handling the wire coil with basket online.
- Technical specifications&performance:
- We are responsible for the whole equipment design, the equipment integrity, and the completeness& accuracy of all the documents.
- All of the design are based on Metric standard and comply with the existing ISO standards. All bearings are adopted according to International standards.
- Solid structure, firm and durable.
- Special designing for compacting wire coil with rack
- Soft start and stop.
- Compacting driven by hydraulic.
- Special transmission mechanism adopted, safe and stable.
- Conveyor for loading and unloading
- Multiple limit protection makes the machine more safe.
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Wire Coil Packing Line
Line Automatic Wire Coil Compressing & Packing Line The automatic wire coil compressing and packing line compacts loose wire coils on their spool and applies strapping at the selected positions. The coil stays on the table while the press compacts it, so the finished coil is dense, square and ready for storage or shipment. View machine →
Line Wire Rod Compacting and Strapping Machine The automatic wire rod compacting and strapping line is designed for wire rod coil packaging and suits coils with an outer diameter of 100-200mm, a width of 1000-3000mm and a weight of up to 2 tonnes. After a coil is placed on the compressing station, the line positions, compacts and straps it automatically with PET or steel strapping. View machine →
Line Semi-Automatic Wire Coil Compactor A semi-automatic wire coil compactor for plants that compact and strap coils in smaller batches. The coil is compressed on the table and strapped with a manual tool, which keeps the investment low while removing the manual coil handling. View machine →
Line Wire Coil Compressing and Strapping Line This automatic line compacts GI wire coils on their baskets and straps them, working with the drawing machine to handle each basket. It suits coils with an outside diameter of 800-1300mm, an inside diameter of 450-600mm and a maximum weight of 2000kg, applies four straps per coil and reduces coil height from 1200mm to 800mm. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
