Semi-Automatic Wire Coil Compactor
A semi-automatic wire coil compactor for plants that compact and strap coils in smaller batches.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Semi-Automatic Wire Coil Compactor in short
A semi-automatic wire coil compactor for plants that compact and strap coils in smaller batches. The coil is compressed on the table and strapped with a manual tool, which keeps the investment low while removing the manual coil handling.
This Wire Coil Compacting Machine has frames, electric cabinet, and hydraulic installation. This machine will be for compacting the wire coil and strap it by manually tool. The Manually Strapping Machine performs all the straps in different strapping positions. The wire coil along with the basket should be stay in table and the compactor system will compacting the wire coil on spool. It is al solution adjustable to accommodate materials by inverters. It is the most efficiency equipment for improving your wire coil packagingwhich meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labour cost in wire handling. The operator should place a basket along with its wire coil on the conveyor and conveyor move the coil into compacting station. The basket along with the coil should be displaced to the position of the strapping table supplied by Fhopeapck.
FHOPE provide semiautowire coil compactor and strapping machine for automatic handling the wire coil with basket online.
We are responsible for the whole equipment design, the equipment integrity, and the completeness& accuracy of all the documents.
All of the design are based on Metric standard and comply with the existing ISO standards. All bearings are adopted according to International standards.
Visual details

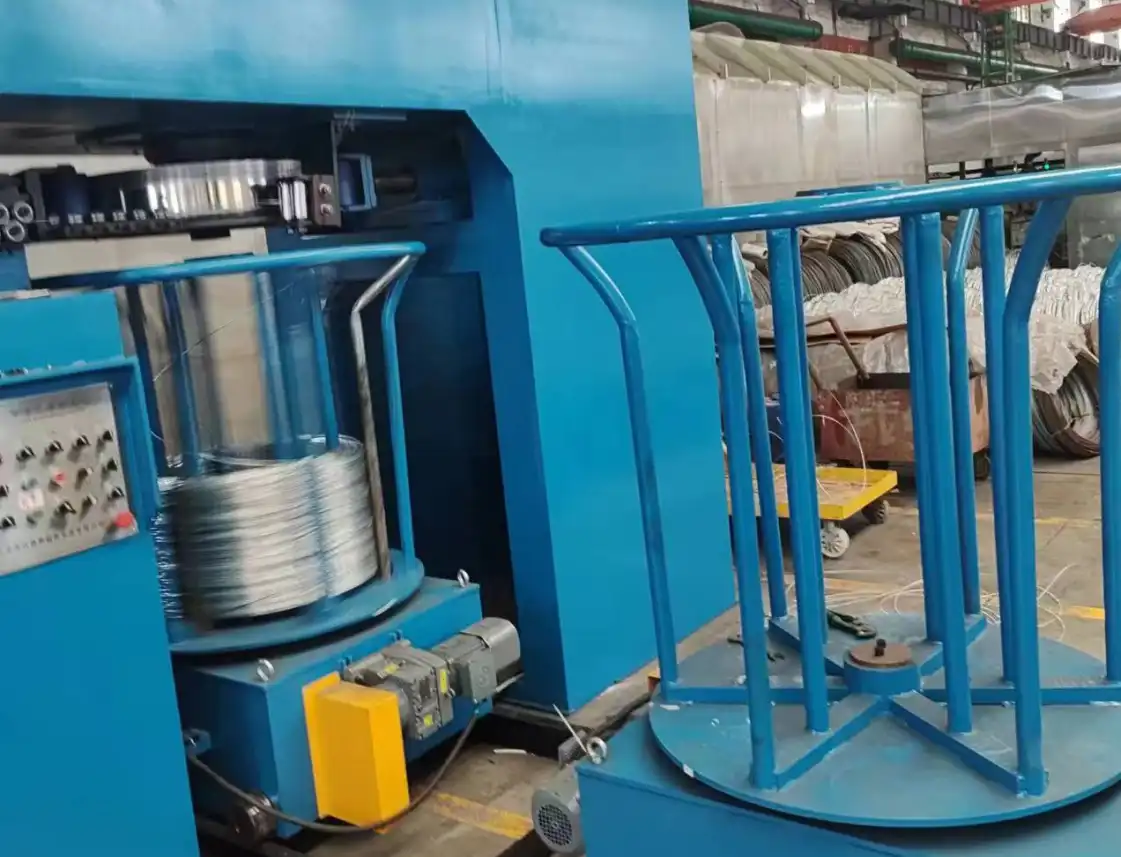

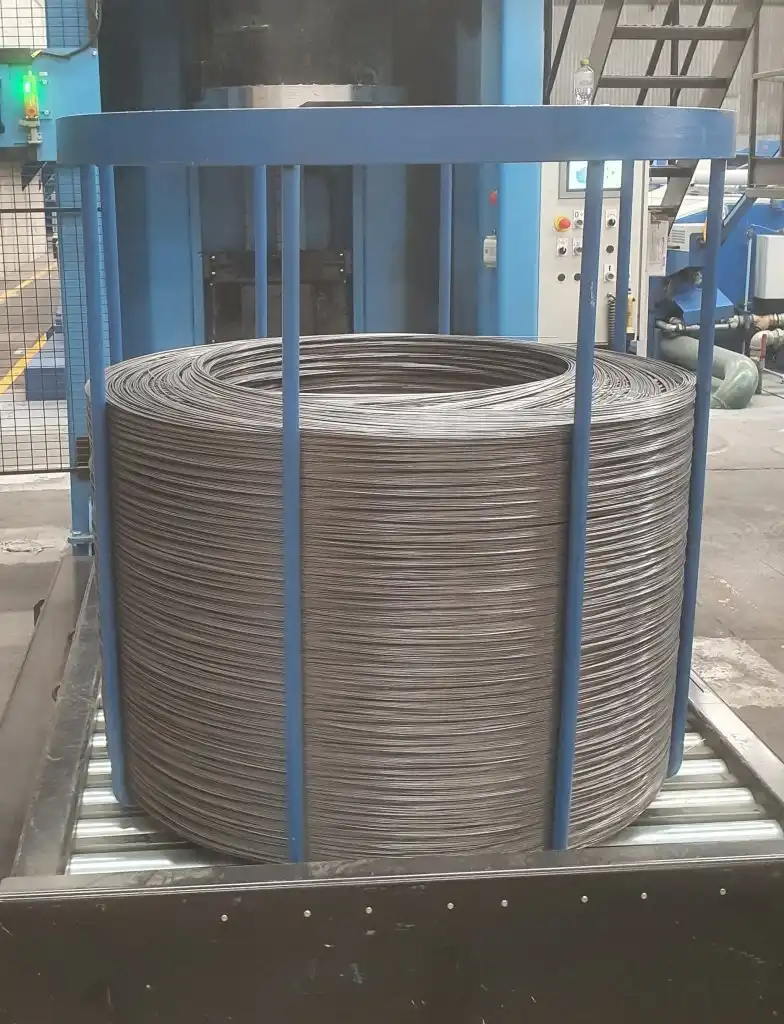

The Semi-Automatic Wire Coil Compactor machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Semi-Automatic Wire Coil Compactor in operation
Video: FHOPE Semi-automatic wire coil compactor and strapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- This Wire Coil Compacting Machine has frames, electric cabinet, and hydraulic installation. This machine will be for compacting the wire coil and strap it by manually tool. The Manually Strapping Machine performs all the straps in different strapping positions. The wire coil along with the basket should be stay in table and the compactor system will compacting the wire coil on spool. It is al solution adjustable to accommodate materials by inverters. It is the most efficiency equipment for improving your wire coil packagingwhich meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labour cost in wire handling. The operator should place a basket along with its wire coil on the conveyor and conveyor move the coil into compacting station. The basket along with the coil should be displaced to the position of the strapping table supplied by Fhopeapck.
- FHOPE provide semiautowire coil compactor and strapping machine for automatic handling the wire coil with basket online.
- Application: the equipment is composed of compacting device, hydraulic pump station, conveyor &etc, it’s used for vertical type wire coil compacting.
- Operation:
- a. conveying the wire with rack to the compacting position.
- b. conveyer down for wire rack placing the solid compaction position.
- c. automatic compacting.
- d. conveyor raising and move the coil to next station.
- Main technical parameters：
- Object: Steel wire coils
- Coil outer diameter: 600-1400mm,
- Coil Inner diameter: 400-1200mm,
- Coil Width: 300-1400mm (approx),
- Max. compacting range: 800mm
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
