Wire Rod Compacting and Strapping Machine
The automatic wire rod compacting and strapping line is designed for wire rod coil packaging and suits coils with an outer diameter of 100-200mm, a width of 1000-3000mm and a weight of up to 2 tonnes.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Wire Rod Compacting and Strapping Machine in short
The automatic wire rod compacting and strapping line is designed for wire rod coil packaging and suits coils with an outer diameter of 100-200mm, a width of 1000-3000mm and a weight of up to 2 tonnes. After a coil is placed on the compressing station, the line positions, compacts and straps it automatically with PET or steel strapping.
This Wire Rod Strapping & Compacting Line includes compacting frames, block roller, strapping heads, electric cabinet, pneumatic and hydraulic installation. This line will be fully automatic with manual operations mode. After connecting with C-hook handling line, the wire rod coil should move the wire coil on the compressing station manually/automatically. The c-hook along with the coil will be displaced to the position of the strapping table for strapping.
Automatic position checking and placing the rod coil on the block roller
After coil compacting, PET/steel strapping head auto strapping 4 straps per coil
3)Simple in structure, easy to operate, safe, reliable, low-noise, stable performance.
Visual details

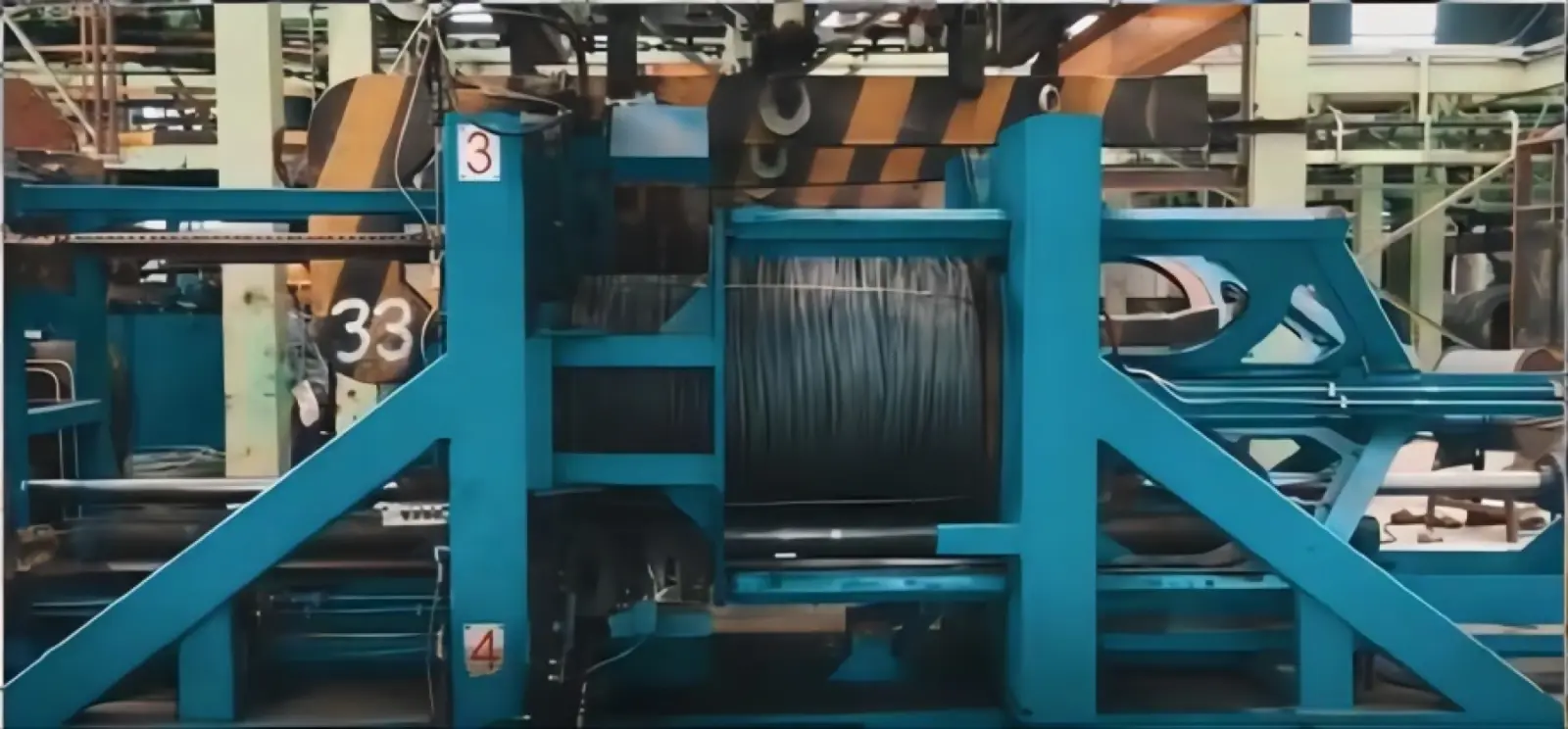

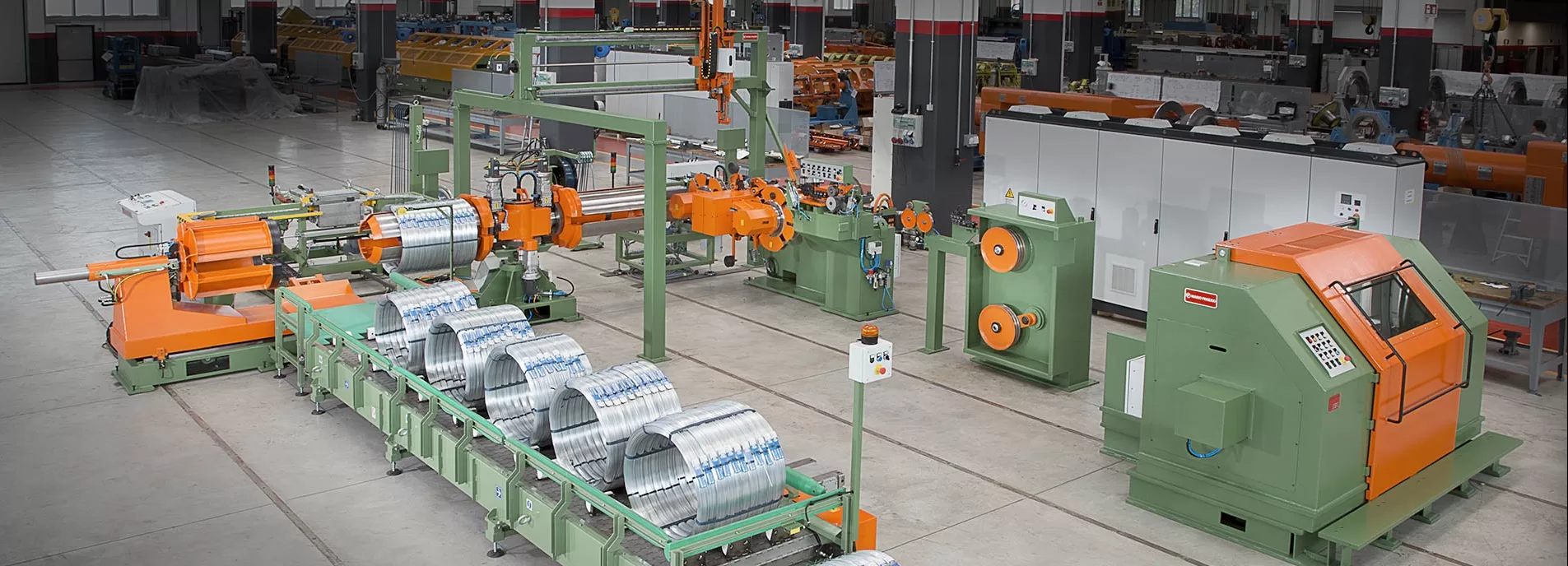

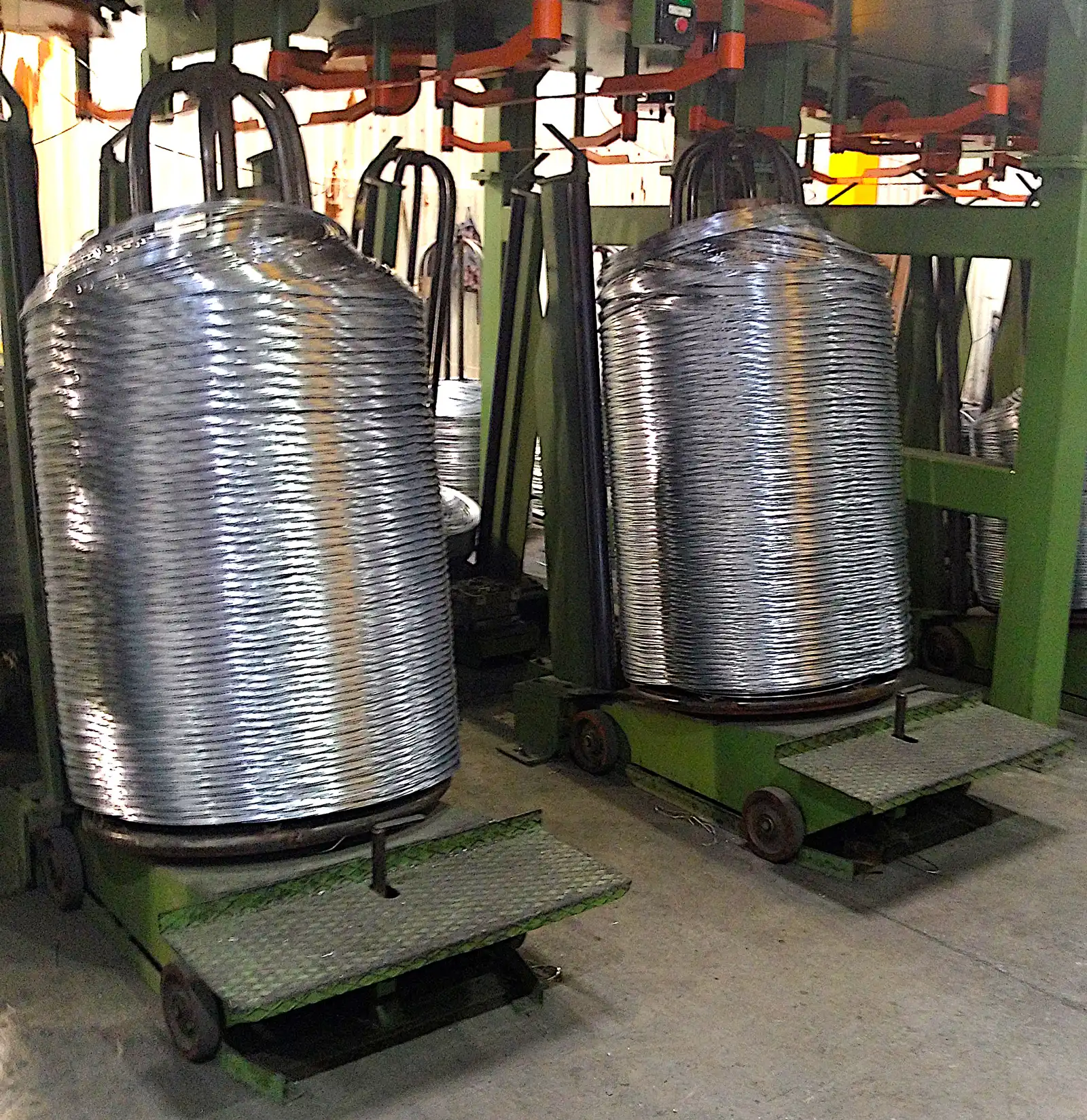

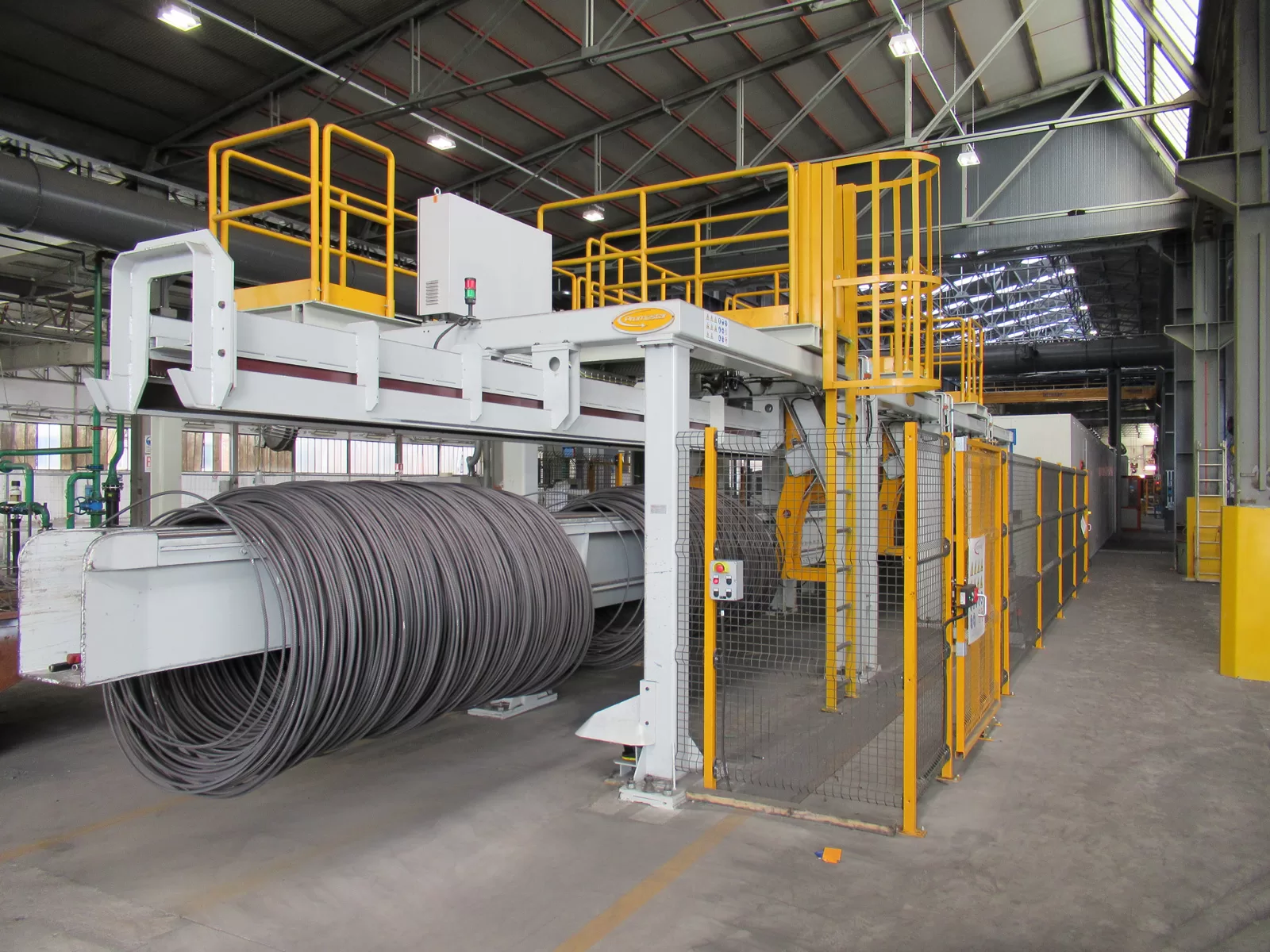

The Wire Rod Compacting and Strapping Machine machine
Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Wire Rod Compacting and Strapping Machine in operation
Video: FHOPE Automatic wire rod compacting and strapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |
| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- Automatic wire rod compacting and strapping machine
- This Wire Rod Strapping & Compacting Line includes compacting frames, block roller, strapping heads, electric cabinet, pneumatic and hydraulic installation. This line will be fully automatic with manual operations mode. After connecting with C-hook handling line, the wire rod coil should move the wire coil on the compressing station manually/automatically. The c-hook along with the coil will be displaced to the position of the strapping table for strapping.
- OPERATION
- Wire rod coil hoisted to compressing station by crane with C hook
- Automatic position checking and placing the rod coil on the block roller
- Automatic compressing the wire rod coil
- After coil compacting, PET/steel strapping head auto strapping 4 straps per coil
- The strapped rod coil moves out to the compressing station by crane
- One coil finished, cycle operation
- Basic features of hydraulic pump station
- Well brand, energy conservation, high efficiency.
- The working table with gap for easy manual strapping.
- Simple in structure, easy to operate, safe, reliable, low-noise, stable performance.
- Integrated manual and automatic switches.
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
