Wire Coil Packaging Line
The wire coil packaging line handles film and paper wrapping for steel wire, wire rod and cable coils, with automatic cutting and feeding of the packaging material.
- 20 – 40 coils / hour (configuration dependent)
- Line capacity
- up to 30 000 kg (heavy-loading turnstile up to 60 t)
- Coil weight
- Ø 800 – 2 200 mm
- Coil outer diameter
- 15 – 450 mm (slit coil) / up to 2 000 mm
- Coil width
Overview
Wire Coil Packaging Line in short
The wire coil packaging line handles film and paper wrapping for steel wire, wire rod and cable coils, with automatic cutting and feeding of the packaging material. It runs as a standalone station or inside a complete packing line.
Automatic wire coil packaging line including two wrapping station for film packaging and paper wrapping with infeeding and out feeding conveyor. Automatic coil strapping machine and coil stacker & pallet wrapping machine can be add on this line for unmanned operation. It can be connected with production line. Following is the video shows the automatic operation process.
Specification designing of Wire Coils Packing Line is capable ensure your maximum high packaging speed requirement. Automatic solution is achieved without gap for the unmanned operation.
Visual details
The Wire Coil Packaging Line machine

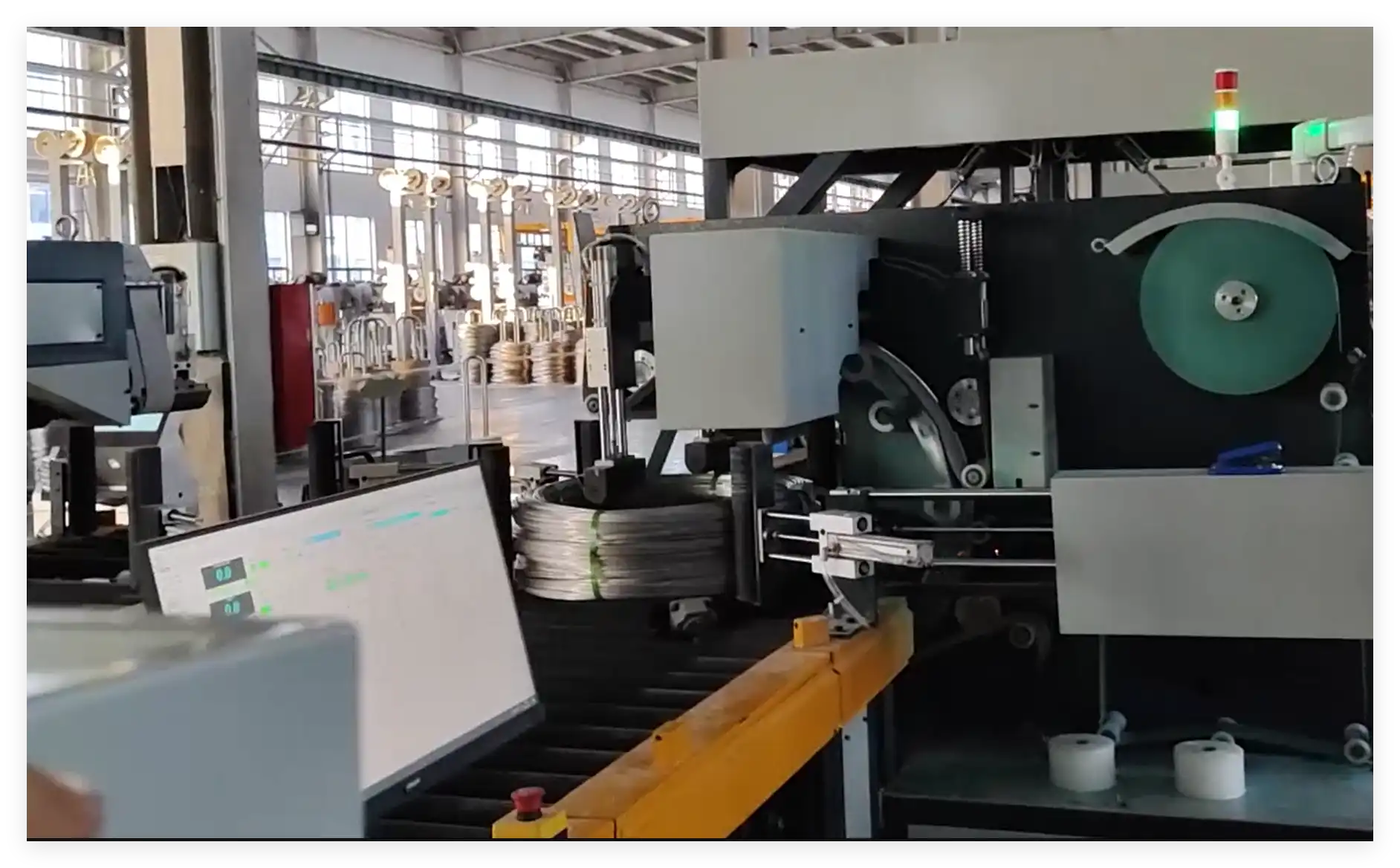

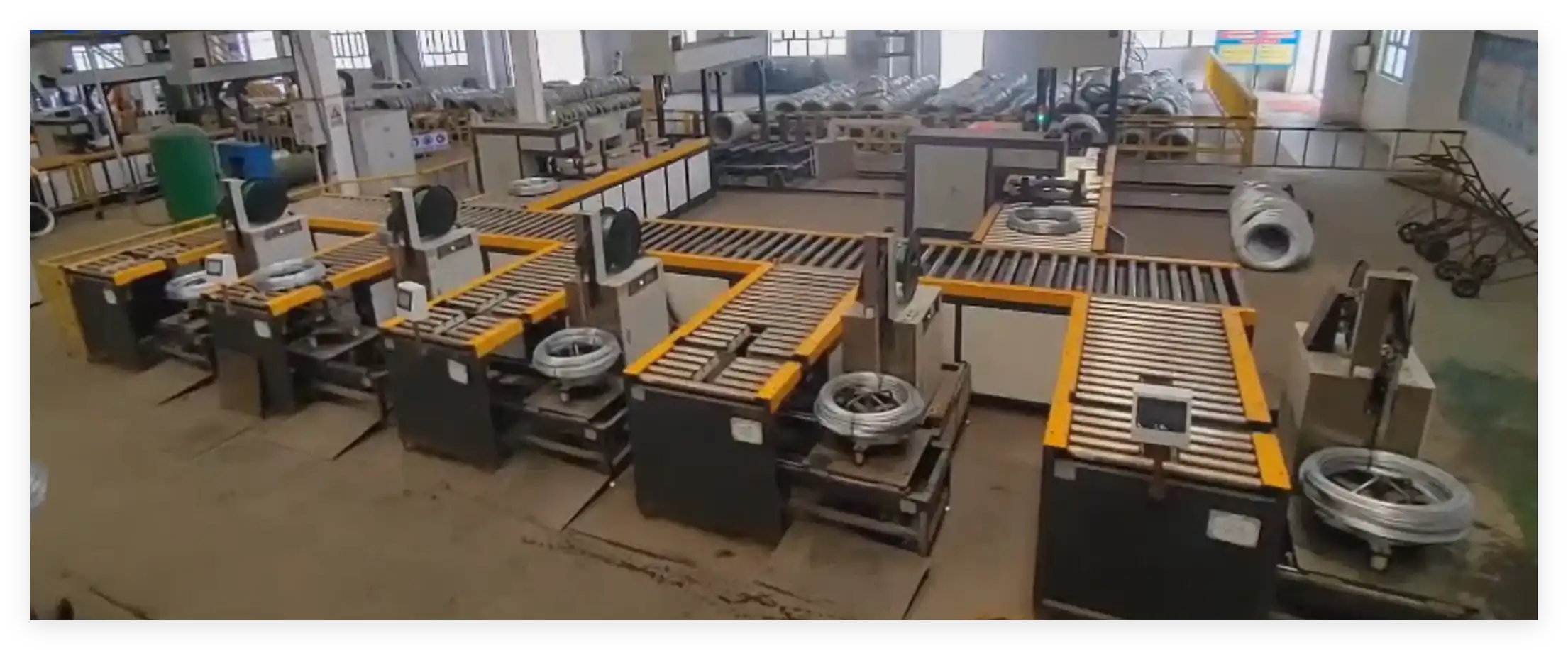

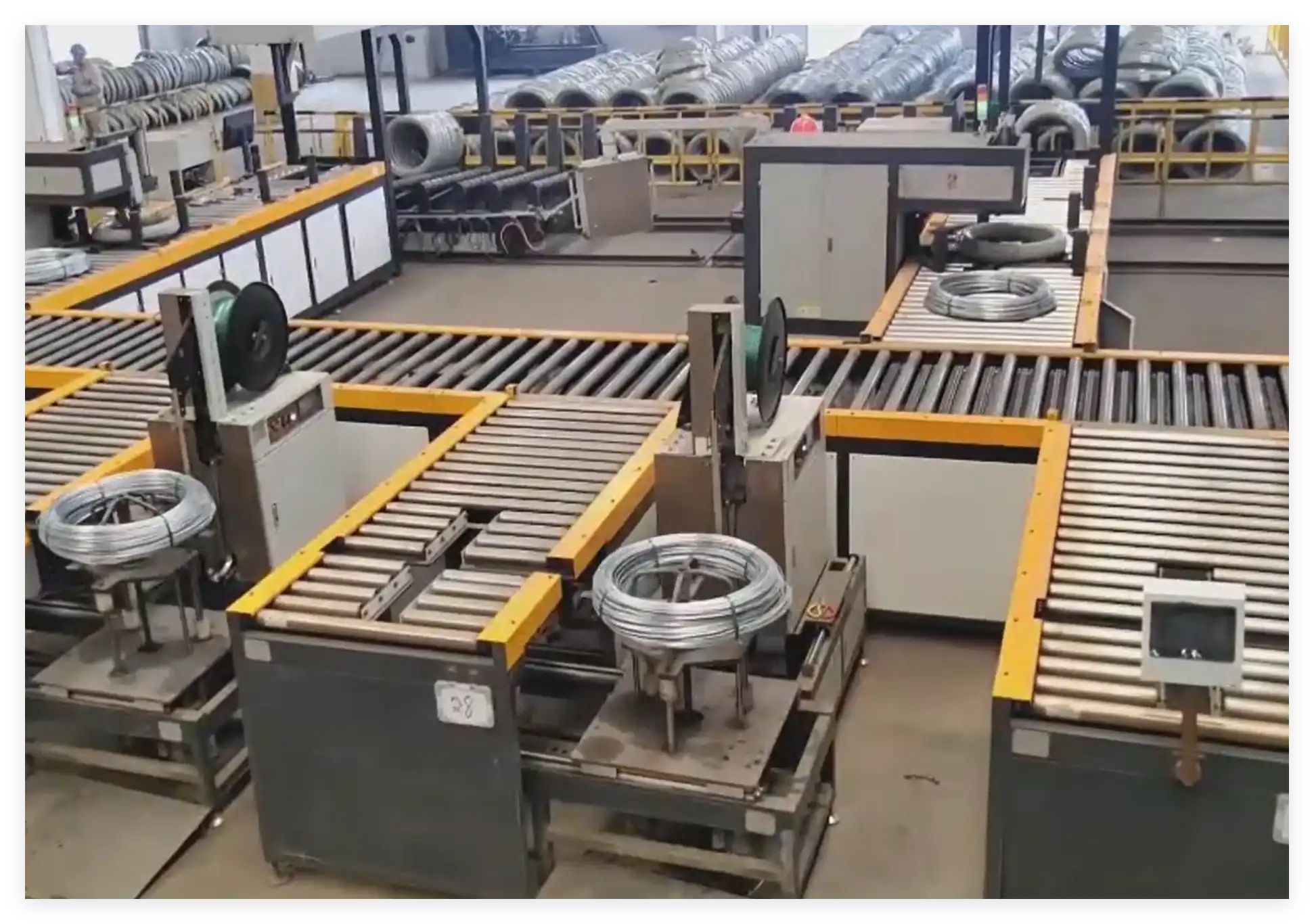

Main view, detail photos and a film of the machine in operation — see the wrapping station, the controls and how the coil is loaded and packed.
Watch it work
Wire Coil Packaging Line in operation
Video: FHOPE Steel wire auto coiler and strapping machine (YouTube). A film of this machine family — ask us for footage of the exact configuration, or for a live video call from the factory.
Technical data
Specifications
This is a project-engineered line, so there is no single catalogue table. The figures opposite are the platform data the line is built from; we issue the machine-by-machine specification with the quotation.
Get the technical proposal →| Line capacity | 20 – 40 coils / hour (configuration dependent) |
|---|---|
| Coil weight | up to 30 000 kg (heavy-loading turnstile up to 60 t) |
| Coil outer diameter | Ø 800 – 2 200 mm |
| Coil width | 15 – 450 mm (slit coil) / up to 2 000 mm |

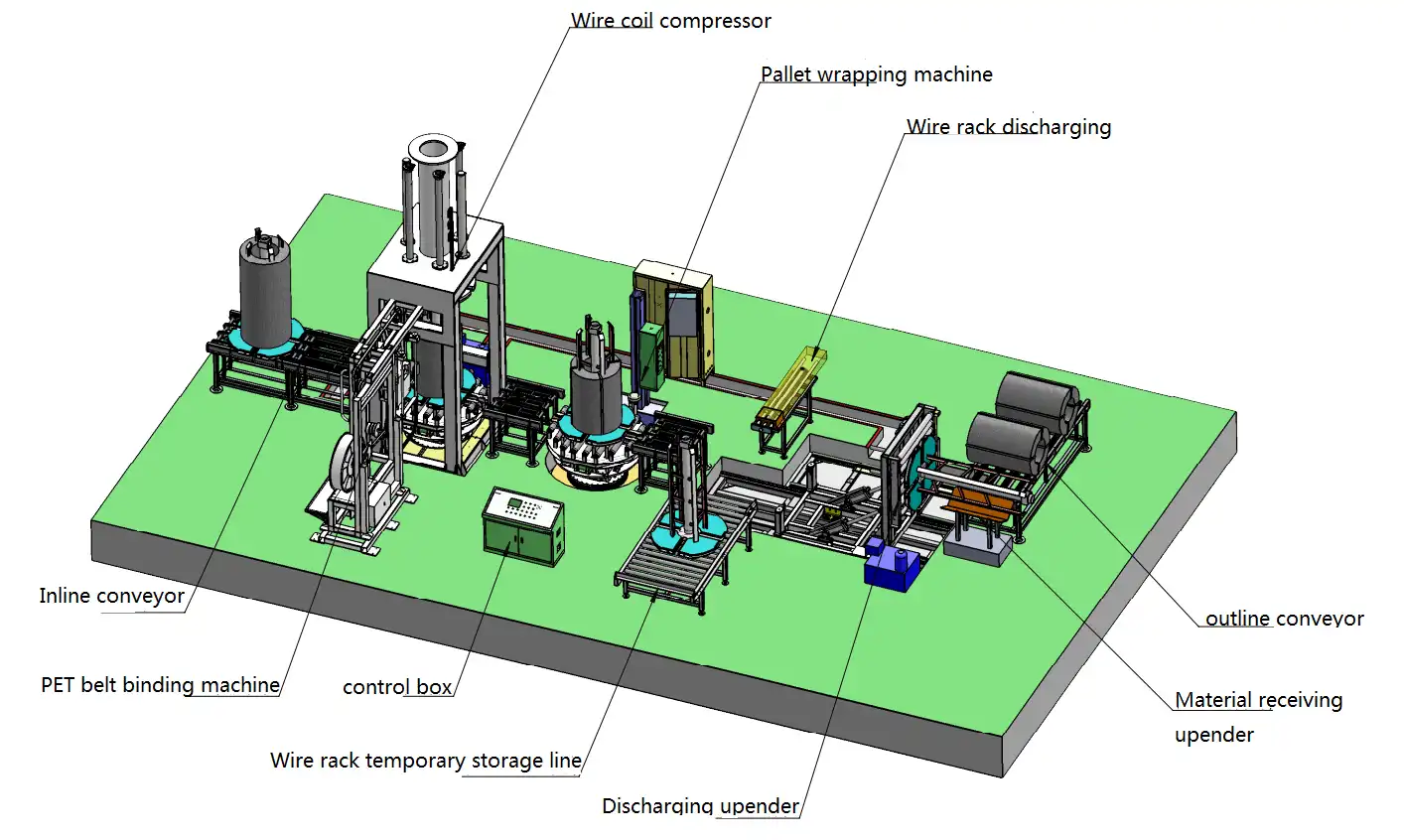

| Stations | coil block station, roller station, wrapper, strapping, weighing, stacker |
| Strapping material | PET strap, steel strap |
| Control | Central PLC (Siemens / Rockwell / Mitsubishi) + HMI, ERP / MES interface optional |
| Safety | CE and ISO 13849 compliant: light curtains, interlocks, E-stops |
Platform specifications — this line is configured to order per project.
Machine features
What this machine does
- Automatic wire coil packaging line including two wrapping station for film packaging and paper wrapping with infeeding and out feeding conveyor. Automatic coil strapping machine and coil stacker & pallet wrapping machine can be add on this line for unmanned operation. It can be connected with production line. Following is the video shows the automatic operation process.
- More information, contact the FHOPE sales team.
- Specification designing of Wire Coils Packing Line is capable ensure your maximum high packaging speed requirement. Automatic solution is achieved without gap for the unmanned operation.
- #Wire Coils Packaging Lines technical feature:
- The machine will be designed per different size, weight and packaging material..
- The packaging line can be designed with your layout and factory space.
- After service including installation, commissioning and training.. will be done by our engineer.
- Automatic PLC&HMI control system for online packaging.
- Different packing material available for nice packaging.
Typical applications
Where it is installed
- Steel service centres and rolling mills: slitting and shearing lines, cold roll and PPGI coils
- Copper and brass processing: coil slitting, vacuum handling and welding lines
- Wire industry: wire coil compacting, strapping and wrapping lines
- Pipe and profile plants: steel tube, plastic pipe and aluminium profile packing lines
Every machine is commissioned on site by FHOPE engineers, with operator training and a spare-parts list handed over at handover.
Same application
Other models in Wire Coil Packing Line
Line Automatic Wire Coil Compressing & Packing Line The automatic wire coil compressing and packing line compacts loose wire coils on their spool and applies strapping at the selected positions. The coil stays on the table while the press compacts it, so the finished coil is dense, square and ready for storage or shipment. View machine →
Line Wire Rod Compacting and Strapping Machine The automatic wire rod compacting and strapping line is designed for wire rod coil packaging and suits coils with an outer diameter of 100-200mm, a width of 1000-3000mm and a weight of up to 2 tonnes. After a coil is placed on the compressing station, the line positions, compacts and straps it automatically with PET or steel strapping. View machine →
Line Semi-Automatic Wire Coil Compactor A semi-automatic wire coil compactor for plants that compact and strap coils in smaller batches. The coil is compressed on the table and strapped with a manual tool, which keeps the investment low while removing the manual coil handling. View machine →
Line Wire Coil Compactor & Strapping Machine FHOPE supplies semiautomatic and automatic wire coil compacting and strapping solutions. The equipment compacts wire coils hydraulically, straps them with PET or steel belt, and can be supplied for wire coils of any size, optionally adding stretch film or PVC wrapping. View machine → Send us your coil and we will confirm the model
Coil inner diameter, outer diameter, width, weight, material and required output are enough for us to come back with the model, the packing material recommendation and a quotation.
